Office D/I

Office D/I 1245 46W/830 DA2 AL MA

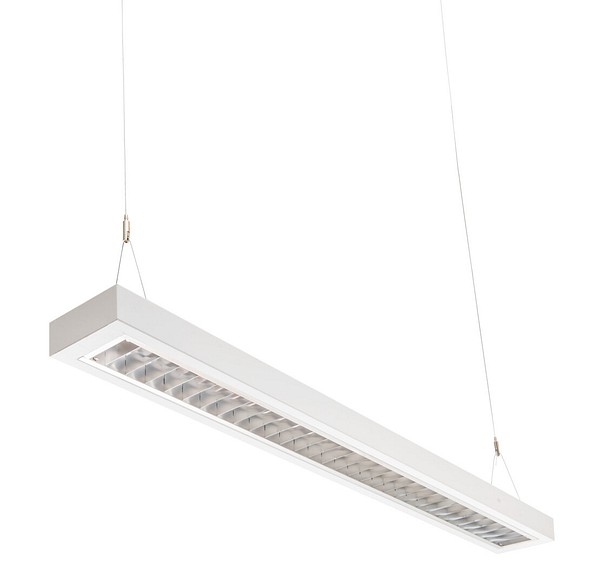

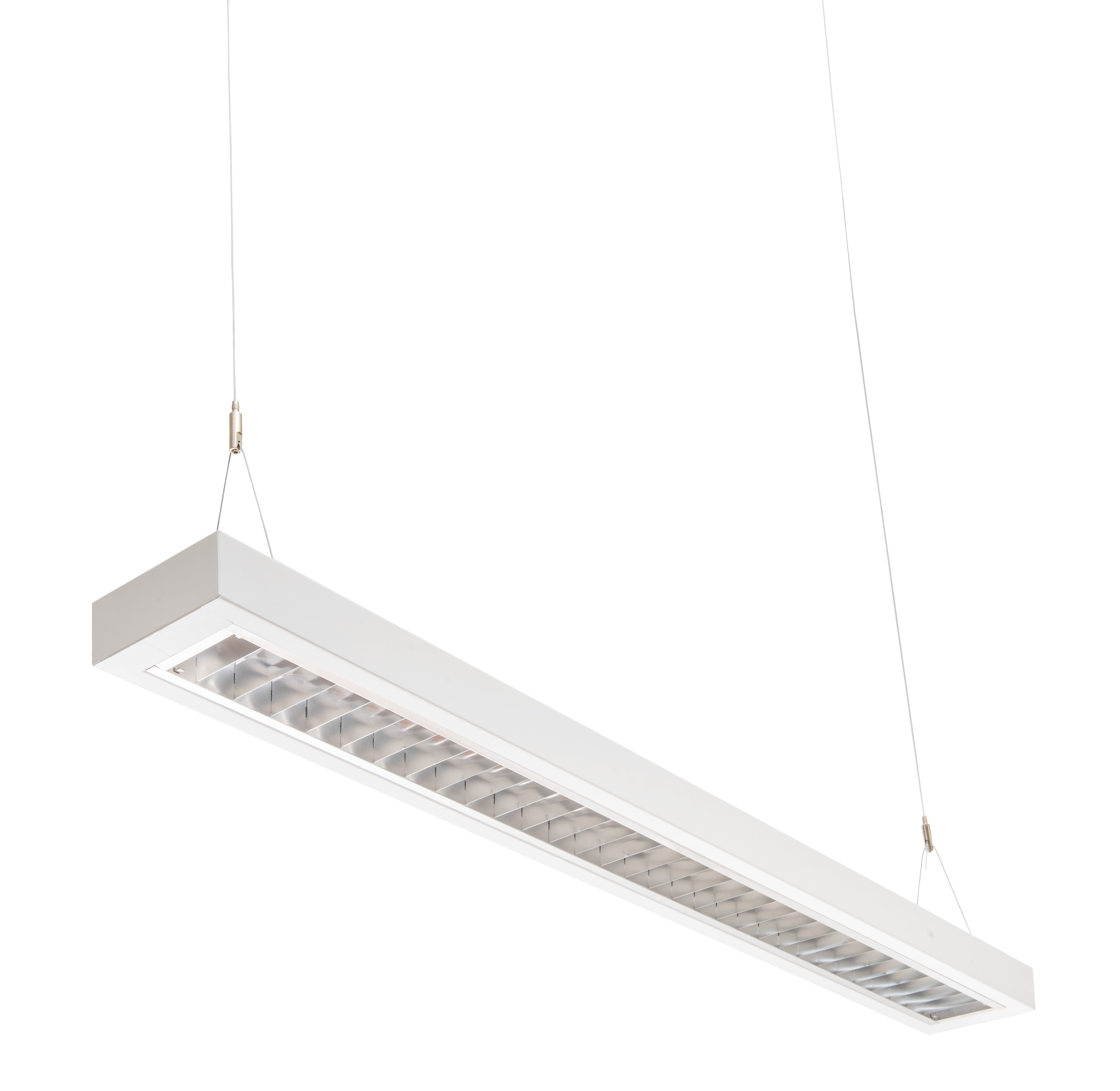

Office DI Suspension luminaire 46W 3000K 5500lm Dim DALI-2; Dim programmable; Dim with push-button; IP20; IK02; Protection cl. I; L80B10 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Ending; 5x1mm²; Housing Steel; Colour wh; Cover Plastic matt/satinized

See product details
Code
A1OFCC-DALI

Technical info

Mounting

Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
Yes
Degree of protection (IP)
IP20
Impact strength
IK02
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
Yes
Suitable for emergency lighting
No
Emergency function monitoring system
None
Type of wiring
Ending
Connectable conductor cross section (min) (mm²)
1.5 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²
Number of poles
5
Conductor cross section (mm²)
1 mm²
Connection type
Other

Structure

Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Steel
Housing colour
White
Cover material
Plastic matt/satinized
Type of grid
Matt
Control gear included
Yes
Exchangeable control gear
Yes
Reflector
Matt
Energy efficiency class of light source according to EU regulation 2019/2015
D
Containing product according to 2019/2020/EU
Yes
Emergency power supply integrated
No
Emergency power supply system
None
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suspension supplied with the product
No
Pendant length (min) (mm)
500 mm
Pendant length (max) (mm)
2000 mm

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Type of control gear
LED operating device current-controlled
Protection class according to IEC 61140
I
Luminaire efficacy (min) (lm/W)
120 lm/W
Luminaire efficacy (max) (lm/W)
120 lm/W
Suitable for lamp power (min) (W)
46 W
Suitable for lamp power (max) (W)
46 W
Maximum system power (W)
46 W
Luminaire efficacy (lm/W)
120 lm/W
Power factor
0.9

Dimming and control

Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DALI-2
Yes
Dimming DMX
No
Dimming DSI
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming potentiometer (integrated)
No
Dimming programmable
Yes
Dimming RF
No
Dimming LineSwitch
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
Yes
No dimming function
No
With movement sensor
No
With presence indicator
No
With light sensor
No
Constant luminous flux control
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
IFTTT support available
No
Bluetooth operated
No

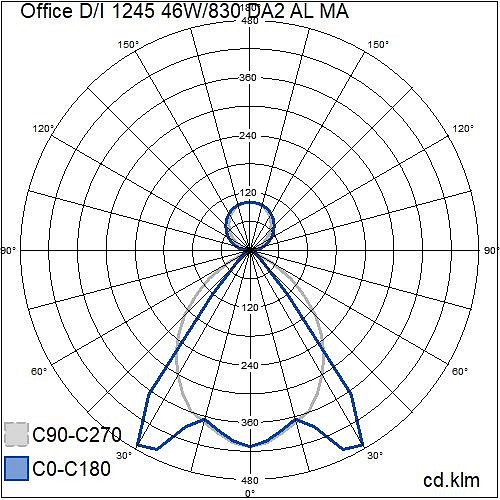

Photometric data

Light distributor
Reflector
Colour consistency (McAdam ellipse)
SDCM3
Light outlet
Direct/indirect
Direct-/indirect proportion separately controllabl
Yes
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
5500 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
5500 lm
Effective luminous flux (lm)
5500 lm
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
3000 K
Colour temperature (max) (K)
3000 K
Colour rendering index (CRI/Ra)
80-89
Unified Glare Rating (UGR)
19
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
100000 h
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
90 %
Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
85 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
10 %

Measurements

Width (mm)
140 mm
Height/depth (mm)
60 mm
Length (mm)
1245 mm
