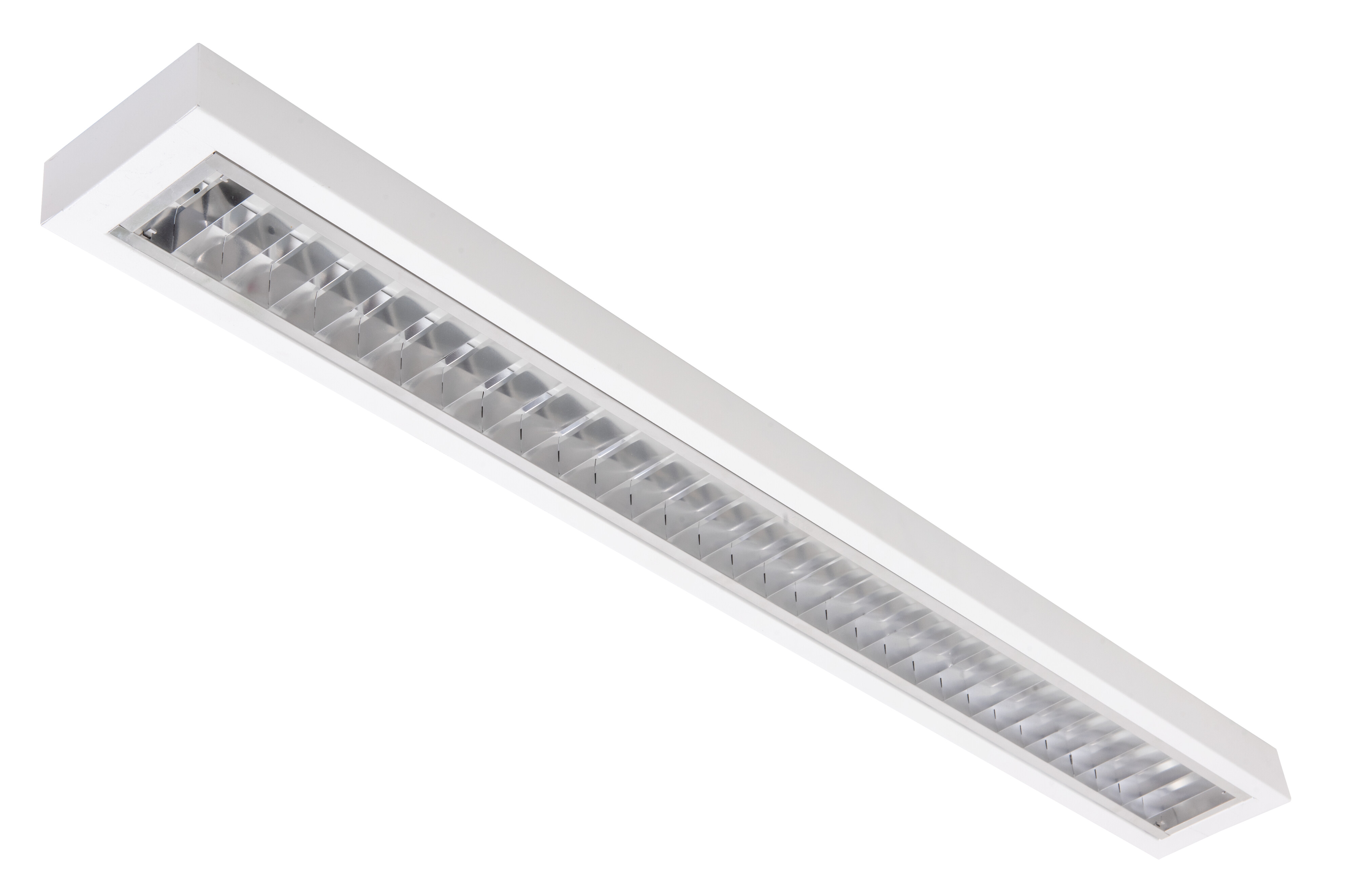

Office 1545 58W/830 AA AL MA
Office Surface mnt./suspen. luminaire 58W 3000K 7000lm Dim programmable; ActiveAhead; IP20; IK02; Protection cl. I; L80B10 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Steel; Colour wh; Cover Plastic matt/satinized
The Office downlight range, which can be surface-mounted on the ceiling, offers a variety of general lighting solutions with numerous customisation options. Its optics features include an aluminium low-luminance louvre and an integrated opal shield, which eliminate glare from the LEDs and achieve an excellent Unified Glare Rating l/value (UGR <19). Typical applications include schools, offices and other spaces where computers are used.
Steel housing, low-luminance louvre made of anodised aluminium.
White, RAL9003.
Protection class I.
Surface mounting to the ceiling or wall. Mounting on a suspension rail with additional accessories.
Linkable, 3 x 2,5 mm2, Dali-versions 5 x 2,5 mm2.
Integrated LED:
1245 mm 33 W 4000 lm / 46 W 5500 lm.
1545 mm 42 W 5000 lm / 58 W 7000 lm.
Colour temperatures 3,000 K and 4,000 K and Tunable white 2700–6500 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
IK02.
On/off, Dali-2, with pushbutton control 230V and CLO-function, Casambi (Bluetooth mesh) and ActiveAhead (with G2 sensor).
Ambient temperature range 0 … 25 °C.
Rated lifetime L80 100,000 h (Ta25°C).
Rated lifetime L90 80,000 h (Ta25°C).
A universal trail bracket for a 70 mm suspension rail (D2ARKI).
WH = white, DA2 = Dali-2, CA = Casambi, AA = Helvar ActiveAhead, AL = aluminium, MA = low luminance.
Also available in color temperatures 2700 K, 5000 K and 6500 K. CRI > 90 available for order. Project-specific luminous flux packages available on request. High-gloss louvre optics are available for the luminaire by special order. Available color options are also grey (RAL 9007) or black. Available with one pull switch, on/off and Dim. Available with a single pull switch, on/off and Dim.
- Code
- A1OFAG-AA
Downloads
Technical info
- GTIN
- 6435200296825
- Airam code
- A1OFAG-AA
- Code
- A1OFAG-AA
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- Dimming 1-10 V
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- With air slots
- No
- Compatible with Google Assistant
- No
- Fit for workplace acc. EN 12464-1
- Yes
- Luminaire efficacy (max) (lm/W)
- 120
- Light sharing
- Symmetric
- Beam angle
- Wide beam 40-80°
- Impact strength
- IK02
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- Yes
- Dimming DSI
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 7000
- Effective luminous flux (lm)
- 7000
- Constant luminous flux control
- Yes
- Dimming trailing edge
- No
- Light source included
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 7000
- No dimming function
- No
- Housing material
- Steel
- Width (mm)
- 140
- Suitable for suspended mounting
- Yes
- Type of grid
- Matt
- Luminaire may be covered with thermally insulating material
- -
- Flickering value Pst LM
- 1
- Bluetooth operated
- Yes
- Dimming DMX
- No
- Compatible with Casambi
- No
- Colour temperature switchable
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 58
- Dimming programmable
- Yes
- With movement sensor
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Reflector
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 120
- Movement sensor/presence detector technology
- Passive infrared
- Dimming 0-10 V
- No
- Height/depth (mm)
- 60
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 1545
- Dimming Touch and Dim
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- No
- Nominal current (min) (mA)
- 700
- With mounting material
- Yes
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 3000
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Dimming DALI-2
- No
- Suitable for recessed mounting
- No
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Rated life time L80/B50 at 25 °C
- 100000
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Degree of protection (IP), front side
- IP20
- Type of wiring
- Suitable for through wiring
- Dimming with push-button
- No
- Emergency power supply system
- None
- Protection class according to IEC 61140
- I
- Degree of protection (IP), rear side
- IP20
- Power factor
- 0.9
- Dimming Zigbee
- No
- Dimming DALI
- No
- Suitable for clamp-mounting
- Yes
- Unified Glare Rating (UGR)
- 19
- Compatible with Amazon Alexa
- No
- Dimmable
- Yes
- Dimming LineSwitch
- No
- Cover material
- Plastic matt/satinized
- With switch
- No
- Conductor cross section (mm²)
- 2.5
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Suitable for lamp power (max) (W)
- 58
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 3000
- Luminaire efficacy (min) (lm/W)
- 120
- Suitable for light line configuration
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- Housing colour
- White
- Number of poles
- 3
- Suitable for emergency lighting
- No
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Dimming manufacturer's proprietary system
- No
- Suitable for number of lamps
- 1
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 85
- Light outlet
- Direct
- Housing surface protection
- Powder coating
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 700
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP20
- Maximum system power (W)
- 58
- Lumen setting adjustable
- No
Product versions
Office
| Item description | Code | |
|---|---|---|
| Office 1245 33W/830 AL MA | A1OFAA |
|
| Office 1245 33W/840 AL MA | 4146855 |
|
| Office 1245 46W/830 AL MA | A1OFAC |
|
| Office 1245 46W/840 AL MA | 4146856 |
|
| Office 1545 42W/830 AL MA | A1OFAE |
|
| Office 1545 42W/840 AL MA | 4146857 |
|
| Office 1545 58W/830 AL MA | A1OFAG |
|
| Office 1545 58W/840 AL MA | 4146858 |
Office Dali
| Item description | Code | |
|---|---|---|
| Office 1245 33W/830 DA2 AL MA | A1OFAA-DALI |
|
| Office 1245 33W/840 DA2 AL MA | 4146859 |
|
| Office 1245 46W/830 DA2 AL MA | A1OFAC-DALI |
|
| Office 1245 46W/840 DA2 AL MA | 4146860 |
|
| Office 1545 42W/830 DA2 AL MA | A1OFAE-DALI |
|
| Office 1545 42W/840 DA2 AL MA | 4146861 |
|
| Office 1545 58W/830 DA2 AL MA | A1OFAG-DALI |
|
| Office 1545 58W/840 DA2 AL MA | 4146862 |
Office Casambi
| Item description | Code | |
|---|---|---|
| Office 1245 33W/830 CA AL MA | A1OFAA-CA |
|
| Office 1245 33W/840 CA AL MA | A1OFAB-CA |
|
| Office 1245 46W/830 CA AL MA | A1OFAC-CA |
|
| Office 1245 46W/840 CA AL MA | A1OFAD-CA |
|
| Office 1545 42W/830 CA AL MA | A1OFAE-CA |
|
| Office 1545 42W/840 CA AL MA | A1OFAF-CA |
|
| Office 1545 58W/830 CA AL MA | A1OFAG-CA |
|
| Office 1545 58W/840 CA AL MA | A1OFAH-CA |
|
| Office 1245 33W/TW CA AL MA | A1OFAI-CA |
|
| Office 1245 46W/TW CA AL MA | A1OFAJ-CA |
|
| Office 1545 42W/TW CA AL MA | A1OFAK-CA |
|
| Office 1545 58W/TW CA AL MA | A1OFAL-CA |
Office ActiveAhead
| Item description | Code | |
|---|---|---|
| Office 1245 33W/830 AA AL MA | A1OFAA-AA |
|
| Office 1245 33W/840 AA AL MA | A1OFAB-AA |
|
| Office 1245 46W/830 AA AL MA | A1OFAC-AA |
|
| Office 1245 46W/840 AA AL MA | A1OFAD-AA |
|
| Office 1545 42W/830 AA AL MA | A1OFAE-AA |
|
| Office 1545 42W/840 AA AL MA | A1OFAF-AA |
|
| Office 1545 58W/830 AA AL MA | A1OFAG-AA |
|
| Office 1545 58W/840 AA AL MA | A1OFAH-AA |
