  5. Flat Sq 120 IP44 9W/830 CA PCO WH
New Public spaces, Offices Residential spaces, indoor

Flat Sq

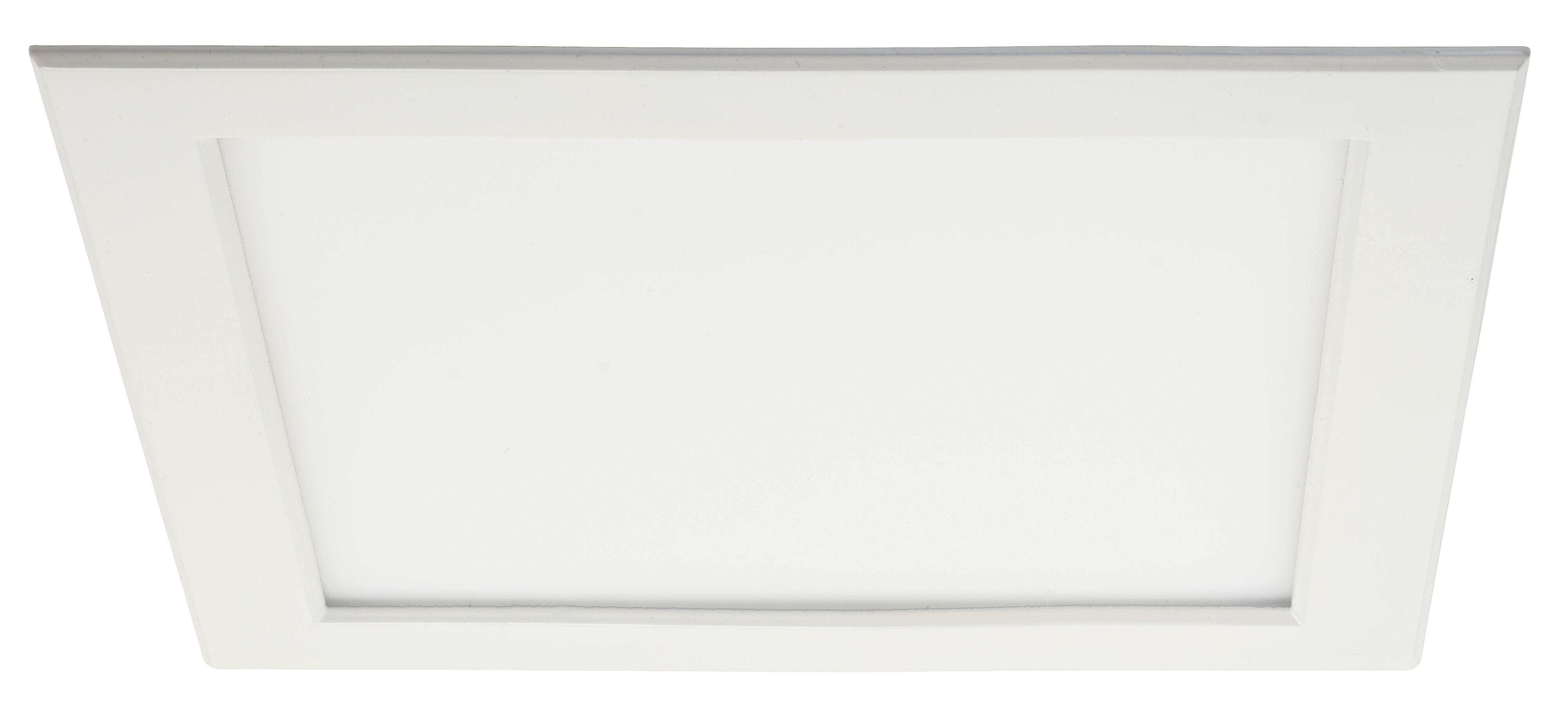

Flat Sq 120 IP44 9W/830 CA PCO WH

Flat Sq Downlight 9W 3000K 500lm Beam angle Open beam; Casambi; IP44; Protection cl. II; L70B50 60000h; LED not exchangeable; CRI>80; SDCM4; Suitable for through wiring; 2.5mm²; Housing al; Colour wh; Cover Plastic, opal

See product details
Code
A2FLGG-CA

Technical info

Mounting

Suitable for surface mounting
No
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Degree of protection (IP)
IP44
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP44
Impact strength
IK03
Emergency function monitoring system
None
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2.5 mm²
Connectable conductor cross section (min) (mm²)
1.5 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²
Connection type
Screwless terminal
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
160
Max. number of luminaires per miniature circuit breaker C16
240
Fit for workplace acc. EN 12464-1
No
Luminaire may be covered with thermally insulating material
No

Structure

Adjustability
Not adjustable
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
White
Cover material
Plastic, opal
Surface brushed
No
Control gear included
Yes
Exchangeable control gear
Yes
Reflector
None
Energy efficiency class of light source according to EU regulation 2019/2015
F
Containing product according to 2019/2020/EU
Yes
Emergency power supply system
None
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s

Dimming and control

With movement sensor
No
With presence indicator
No
With light sensor
No
Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
Constant luminous flux control
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Bluetooth operated
Yes
Compatible with Google Assistant
No
Compatible with Casambi
Yes
Compatible with Amazon Alexa
No

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Nominal current (min) (mA)
350 mA
Nominal current (max) (mA)
350 mA
Type of control gear
LED operating device current-controlled
Total harmonic distortion (THD) (%)
15 %
Total harmonic distortion
15 THD
Protection class according to IEC 61140
II
Suitable for lamp power (min) (W)
9 W
Suitable for lamp power (max) (W)
9 W
Maximum system power (W)
9 W
Luminaire efficacy (min) (lm/W)
55 lm/W
Luminaire efficacy (max) (lm/W)
55 lm/W
Power factor
0.9
Luminaire efficacy (lm/W)
55 lm/W

Photometric data

Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Open beam
Light outlet
Direct
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
3000 K
Colour temperature (max) (K)
3000 K
Colour temperature switchable
No
Colour rendering index (CRI/Ra)
80-89
Luminous flux (min) (lm)
500 lm
Luminous flux (max) (lm)
500 lm
Effective luminous flux (lm)
500 lm
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
500 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
500 lm
Lumen setting adjustable
No
Flickering value Pst LM
1
Beam angle adjustable
No
Stroboscope effect value SVM
0.4
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM4
Unified Glare Rating (UGR)
22

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
50000 h
Rated life time L80/B50 at 25 °C
35000 h
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
80 %
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
70 %
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
10 %
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25 °C

Measurements

Length (mm)
120 mm
Width (mm)
120 mm
Height/depth (mm)
26.5 mm
Outer diameter (mm)
120 mm
Built-in length (mm)
105 mm
Built-in length (min) (mm)
105 mm
Built-in length (max) (mm)
105 mm
Built-in width (mm)
105 mm
Built-in width (min) (mm)
105 mm
Built-in width (max) (mm)
105 mm
Built-in height/depth (mm)
26.5 mm
Installation height (min) (mm)
2000 mm
Installation height (max) (mm)
5000 mm
