Flat R Duo 225 IP44 18W 830/840 DIM
Flat R Duo Downlight 18W 3000K/4000K 1500lm Beam angle Open beam; Dim phase cut-off; Dim phase cut-on; IP44; IK03; Protection cl. II; L70B50 80000h; LED not exchangeable; Lamp included; CRI>80; SDCM6; Suitable for through wiring; 3x2.5mm²; Housing al; Colour wh; Cover Plastic, opal; C16 max. 73

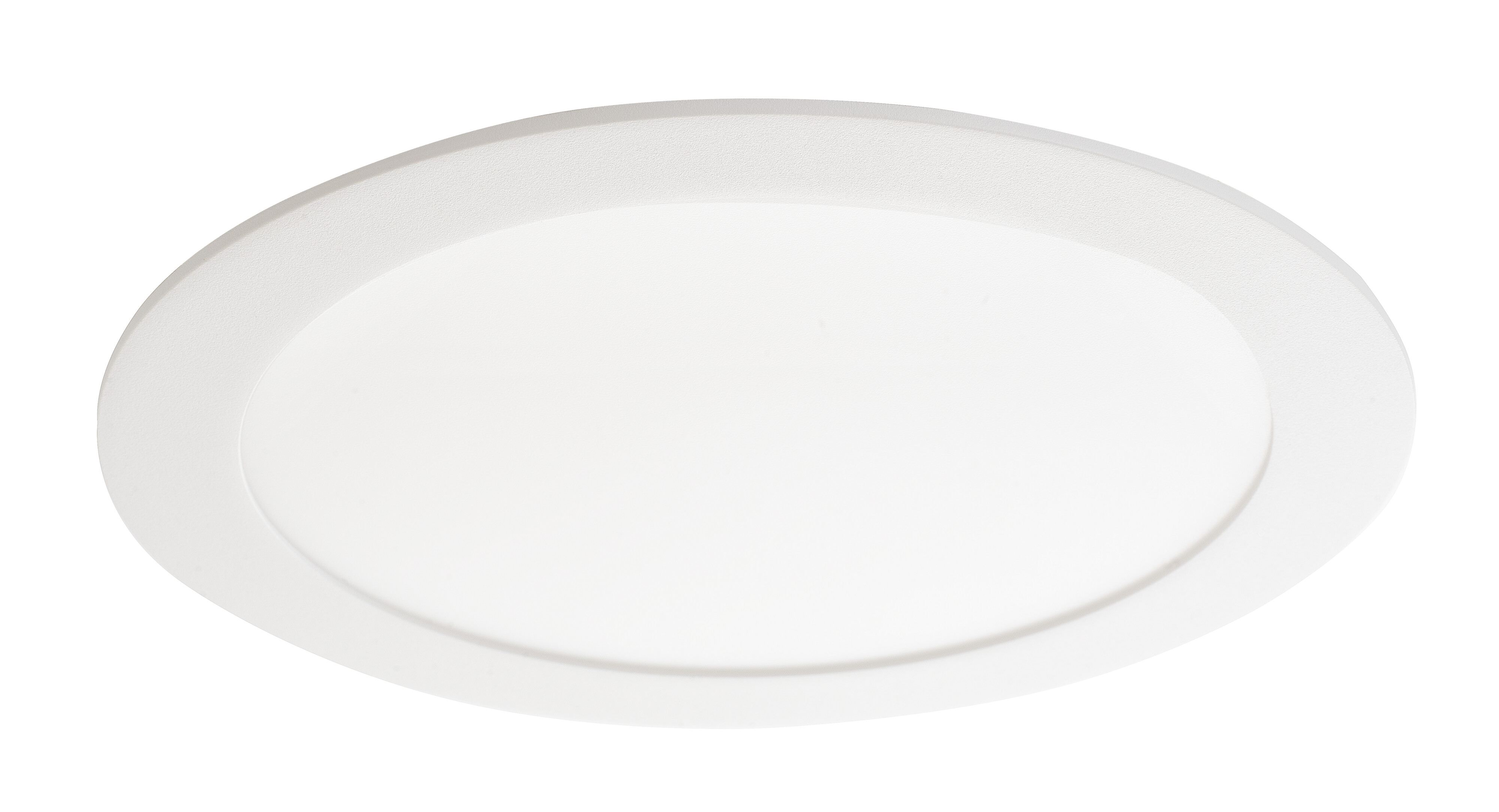

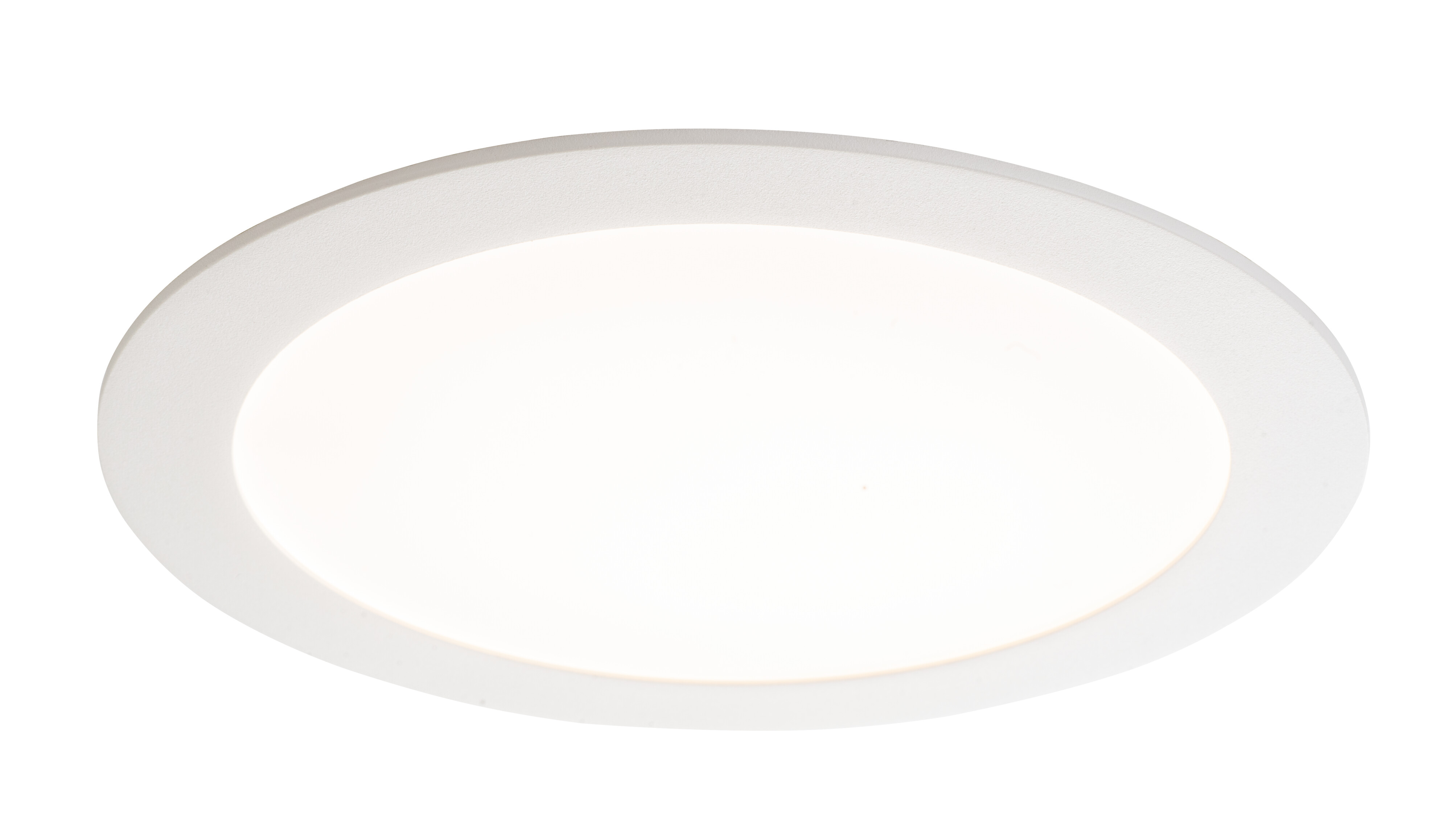

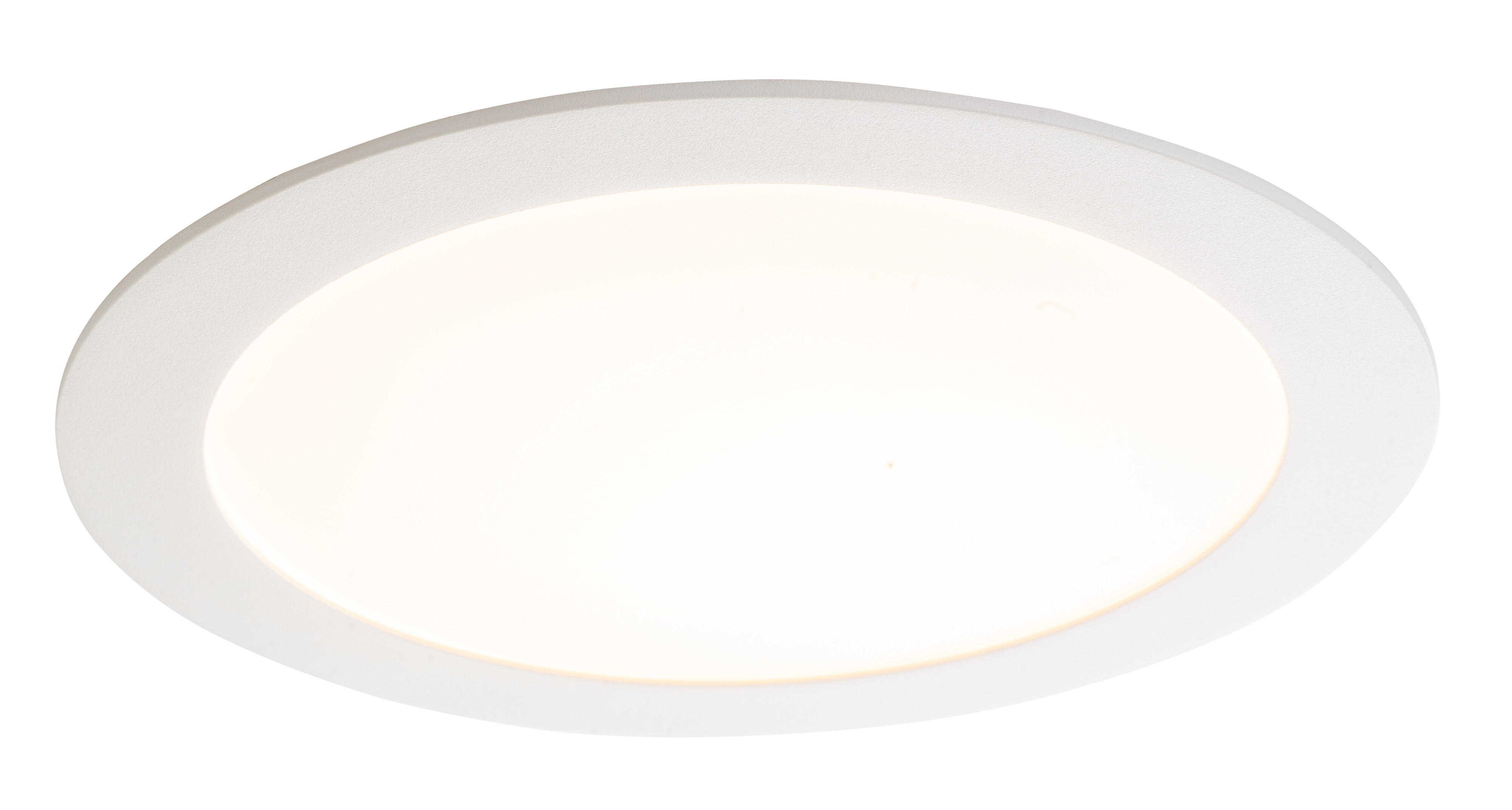

The Flat R Duo downlight with changeable colour temperature can be mounted in a low ceiling structure. Made of high-quality materials and with a good looking finish, this luminaire is versatile as a general luminaire for the home. While IP44 rated, this luminaire is also particularly suitable for bathrooms and other wet spaces. The luminaire has a matt body in structured aluminum and a diffuser in opal acrylic. All models are dimmable. The luminaire can also be linked.
Aluminium body and opal acrylic diffuser.
White, RAL 9003.
Protection class II.
Recessed mounting on a ceiling.
Linkable: Dimmable and Casambi models max 3 x 2,5 mm2. Dali-2 models maks. 5 x 2,5 mm2.
Colour temperature: 3000/4000 K, adjustable on the luminaire. CRI > 80 / Ra > 80.
MacAdam 6 SDCM.
IP20/IP44.
IK03.
Fixed LED 8 W / 500 lm, 12 W / 1000 lm, 18 W / 1500 lm.
Dimming: rising- and trailing-edge control, Dali-2 with push-button control (230 V) and Casambi.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 80 000 h (Ta25°C).
Rated lifetime L80 50 000 h (Ta25°C).
Power source lifetime 50 000 h.
- Code
- 4146520
Downloads
Technical info
- Electrical number (FIN)
- 4146520
- Electrical number (SWE)
- 7475363
- GTIN
- 6435200269751
- Airam code
- A2FDUC
- Code
- 4146520
- Installation height (max) (mm)
- 5000
- Length (mm)
- 225
- Fit for workplace acc. EN 12464-1
- No
- Adjustability
- Not adjustable
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 83
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- Yes
- Surface brushed
- No
- Unified Glare Rating (UGR)
- 22
- Number of poles
- 3
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 80000
- Suitable for light-track mounting
- No
- Dimming DMX
- No
- Containing product according to 2019/2020/EU
- Yes
- With light sensor
- No
- Photobiological safety according to EN 62471
- RG1
- Maximum system power (W)
- 18
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 1500
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Installation height (min) (mm)
- 2000
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 70
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP20

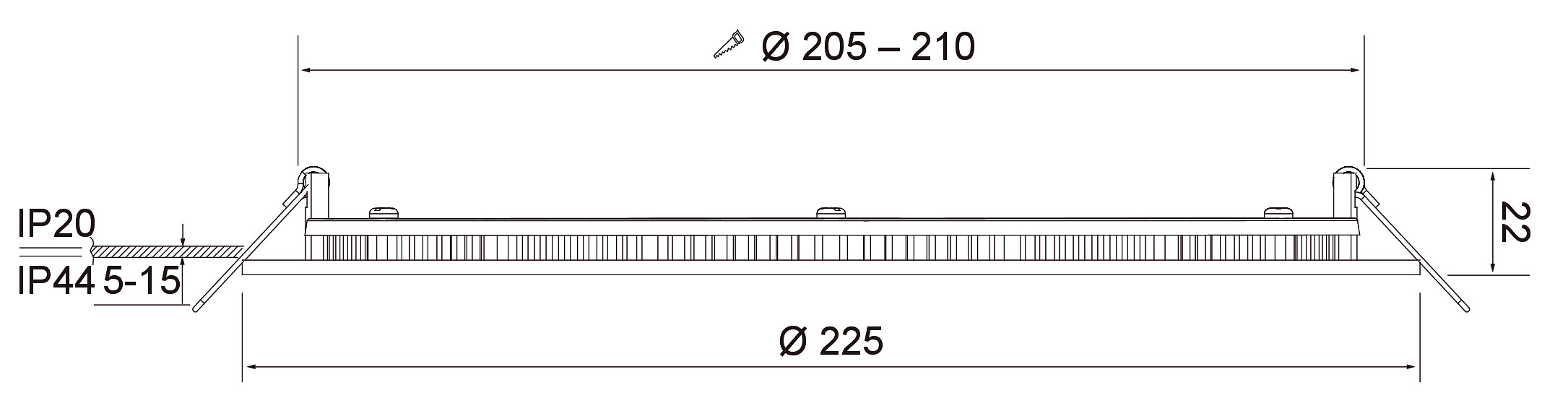

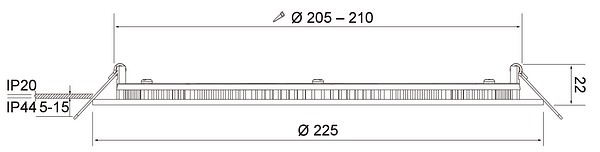

- Recess diameter (min) (mm)
- 205
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 80
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 1500
- Rated life time L80/B50 at 25 °C
- 50000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Recess diameter (max) (mm)
- 210
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK03
- Width (mm)
- 225
- Suitable for surface mounting
- No
- Luminaire efficacy (lm/W)
- 83
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- G
- Outer diameter (mm)
- 225
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 300
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Luminous flux (min) (lm)
- 1500
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 18
- Suitable for pedestal/floor mounting
- No
- No dimming function
- No
- Degree of protection (IP), front side
- IP44
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Reflector
- None
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 73
- Lamp type
- LED not exchangeable
- Light distributor
- Diffuser lens/optic/panel
- Luminaire may be covered with thermally insulating material
- No
- Total harmonic distortion (THD) (%)
- 20
- Built-in height/depth (mm)
- 43
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Surface protection
- Powder coating
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP44
- Suitable for traverse mounting
- No
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1500
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 18
- Protection class according to IEC 61140
- II
- Dimming DALI
- No
- Luminous flux (max) (lm)
- 1500
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 83
- Voltage type
- AC
- Suitable for low voltage cable system
- No
- Colour temperature switchable
- Discrete positions
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 22
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM6
- Dimming trailing edge
- Yes
- Suitable for wall mounting
- No
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 300
- Cover material
- Plastic, opal
- Max. number of luminaires per miniature circuit breaker B16
- 49
Product versions
Flat R Duo Dim
| Item description | Code | |
|---|---|---|
| Flat R Duo 120 IP44 8W 830/840 DIM | 4146518 |
|
| Flat R Duo 170 IP44 12W 830/840 DIM | 4146519 |
|
| Flat R Duo 225 IP44 18W 830/840 DIM | 4146520 |
Flat R Duo Dali
| Item description | Code | |
|---|---|---|
| Flat R Duo 120 IP44 8W 830/840 DA2 | A2FDUA-DALI |
|
| Flat R Duo 170 IP44 12W 830/840 DA2 | A2FDUB-DALI |
|
| Flat R Duo 225 IP44 18W 830/840 DA2 | A2FDUC-DALI |
Flat R Duo Casambi
| Item description | Code | |
|---|---|---|
| Flat R Duo 120 IP44 8W 830/840 CA | A2FDUA-CA |
|
| Flat R Duo 170 IP44 12W 830/840 CA | A2FDUB-CA |
|
| Flat R Duo 225 IP44 18W 830/840 CA | A2FDUC-CA |
