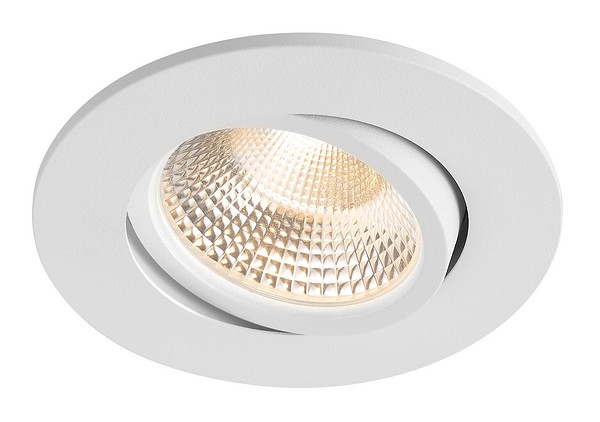

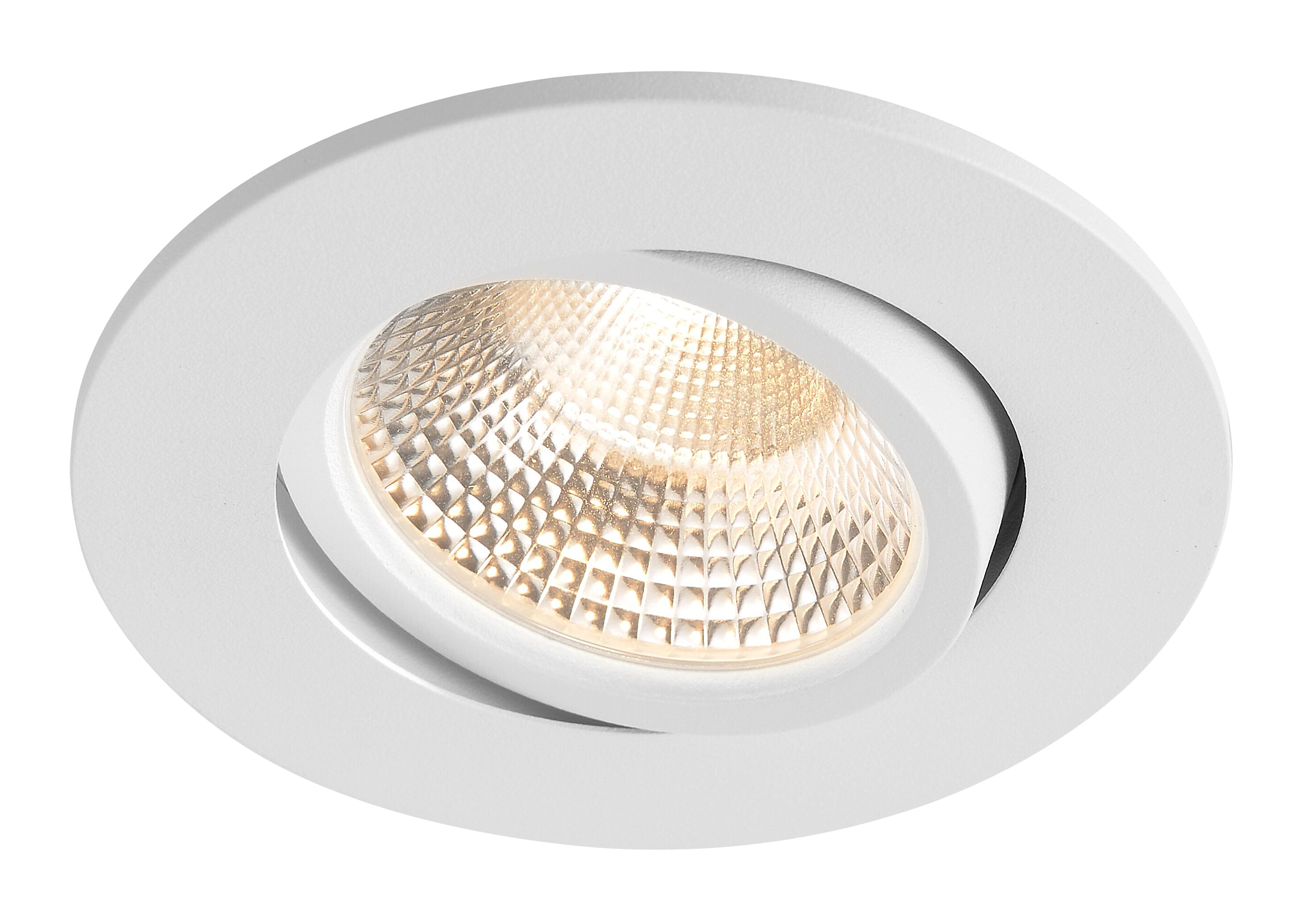

Compact Outdoor IP65 5W/830 DIM W
Compact Outdoor Downlight 5W 3000K 500lm Beam angle Medium beam 20-40°; Dim phase cut-off; Dim phase cut-on; IP65; IK03; Protection cl. II; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Ending; 2x0.75mm²; Housing al; Colour wh; Cover Plastic, transparent; C16 max. 200
Compact Outdoor is an adjustable downlight range, with full IP65 classification. The luminaires are particularly well suited for use in wet spaces and on exterior surfaces, eaves and open shuttering, as well as terrace roof structures. Colour temperatures: 3000 K and 4000 K. The luminaire is dimmable.
Aluminium housing and acrylic diffuser.
White powder-coated, RAL 9010. Black powder-coated, RAL 9005.
Protection class II.
Recessed mounting on a ceiling.
Connecting wire 2 x 0.75 mm2. Connection in a separate box.
Installation height 2–4 m.
Adjustable, can be turned +/-15 degrees.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65/IP65.
IK03.
Integrated LED 5 W / 500 lm.
Dimming: rising- and trailing-edge control.
Ambient temperature range -20 … 25 °C.
Rated lifetime L70 100 000 h.
Rated lifetime L80 65 000 h.
Power source service life 50 000 h.
- Code
- 4146548
Downloads
Technical info
- Electrical number (FIN)
- 4146548
- Electrical number (SWE)
- 7474672
- GTIN
- 6435200273420
- Airam code
- A1COMB
- Code
- 4146548
- Installation height (max) (mm)
- 4000
- Length (mm)
- 85
- Fit for workplace acc. EN 12464-1
- No
- Adjustability
- Swivelling
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 100
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 3000
- Dimming leading edge
- Yes
- Surface brushed
- No
- Unified Glare Rating (UGR)
- 22
- Number of poles
- 2
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 0.75
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 0.75
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Suitable for light-track mounting
- No
- Dimming DMX
- No
- Containing product according to 2019/2020/EU
- Yes
- With light sensor
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 5
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 500
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Built-in width (min) (mm)
- 68
- Installation height (min) (mm)
- 2000
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 70
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- Other
- Recess diameter (min) (mm)
- 68
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 80
- Built-in width (mm)
- 68
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -20
- Effective luminous flux (lm)
- 500
- Rated life time L80/B50 at 25 °C
- 65000
- IFTTT support available
- No
- Reflector colour
- Silver
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Recess diameter (max) (mm)
- 68
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK03
- Width (mm)
- 85
- Suitable for surface mounting
- No
- Luminaire efficacy (lm/W)
- 100
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Outer diameter (mm)
- 85
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 120
- Type of wiring
- Ending
- Built-in width (max) (mm)
- 68
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Luminous flux (min) (lm)
- 500
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 5
- Suitable for pedestal/floor mounting
- No
- No dimming function
- No
- Degree of protection (IP), front side
- IP65
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Reflector
- High-gloss
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 200
- Lamp type
- LED not exchangeable
- Light distributor
- Reflector
- Luminaire may be covered with thermally insulating material
- No
- Total harmonic distortion (THD) (%)
- 20
- Built-in height/depth (mm)
- 52
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Surface protection
- Powder coating
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP65
- Suitable for traverse mounting
- No
- Power factor
- 0.9

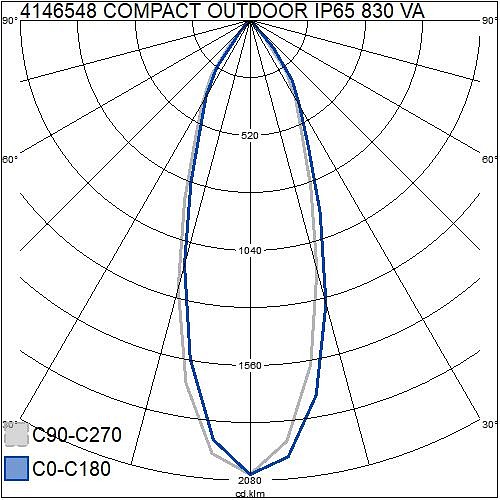

- Beam angle
- Medium beam 20-40°
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 500
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 5
- Protection class according to IEC 61140
- II
- Dimming DALI
- No
- Luminous flux (max) (lm)
- 500
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 100
- Voltage type
- AC
- Suitable for low voltage cable system
- No
- Colour temperature switchable
- No
- Built-in length (mm)
- 68
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 55
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- Yes
- Suitable for wall mounting
- No
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 120
- Cover material
- Plastic, transparent
- Max. number of luminaires per miniature circuit breaker B16
- 100
Product versions
| Item description | Code | |
|---|---|---|
| Compact Outdoor IP65 5W/840 DIM W | 4146547 |
|
| Compact Outdoor IP65 5W/830 DIM W | 4146548 |
|
| Compact Outdoor IP65 5W/840 DIM B | 4146549 |
|
| Compact Outdoor IP65 5W/830 DIM B | 4146550 |
