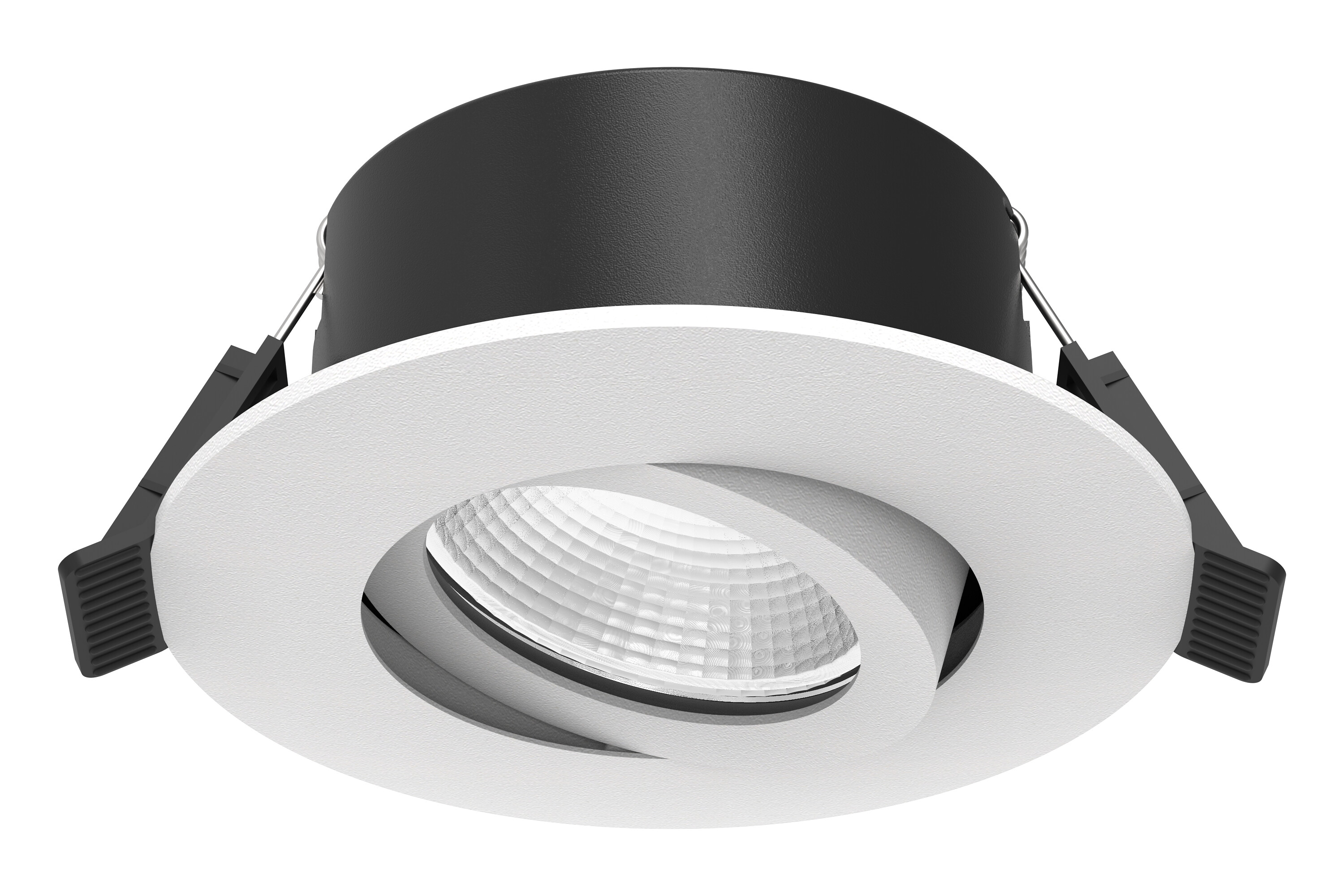

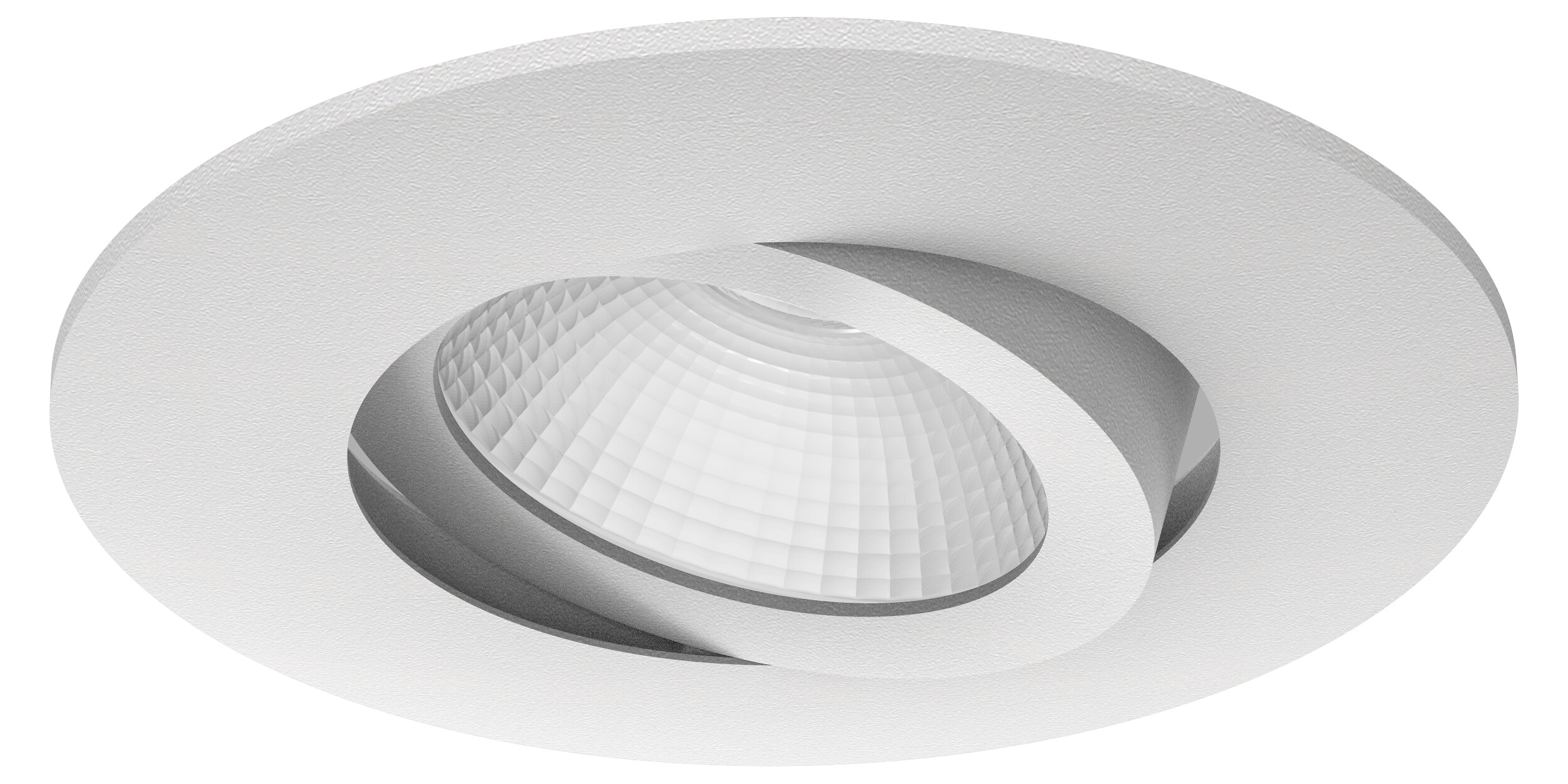

Compact Multi IP54 7W DIM WH
Compact Multi Downlight 7W 2700K 500lm Beam angle Medium beam 20-40°; Dim phase cut-off; Dim phase cut-on; IP54; IK02; Protection cl. II; L70B50 100000h; LED exchangeable; Lamp included; CRI>90; SDCM3; Suitable for through wiring; 3x1.5mm²; Housing Plastic; Colour wh; Cover Plastic, transparent; C16 max.238
Compact Multi is a responsibly manufactured and high-quality downlight. The light fixture is made of recycled aluminum and plastic. Compact Multi is an ecological choice, as its light source is easily replaceable by the user, which extends the life of the fixture. This adjustable unit is suitable both for general lighting and for highlighting details. It is used in residential buildings and public spaces that require high-quality color rendering, such as museums, restaurants, galleries and hotels. The color temperature of the fixture can be selected from three options before installation. The downlight is dimmable, which offers additional options for atmospheric lighting in the space.
Body recycled aluminium, frame and protective cup recycled plastic.
White RAL 9010, black RAL 9005.
Protection class II.
Recessed mounting on a ceiling.
Linkable, max 3 x 1,5 mm2.
Installation height 2–6 m.
Integraded LED 7 W / 500 lm.
Beam angle 36°.
Colour temperatures 2700 K, 3300 K and 4000 K, selectable from the luminaire. CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP20/IP54.
IK02.
Dimming: rising- and trailing-edge control.
Ambient temperature range 0 … 25 °C.
Rated life time L70 100 000 h (Ta25°C).
Rated life time L80 65 000 h (Ta25°C).
- Code
- 4146965
Downloads
Technical info
- Electrical number (FIN)
- 4146965
- Electrical number (SWE)
- 7477476
- GTIN
- 6435200307163
- Airam code
- A1COE1
- Code
- 4146965
- Installation height (max) (mm)
- 6000
- Length (mm)
- 90
- Fit for workplace acc. EN 12464-1
- No
- Adjustability
- Swivelling
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 70
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- Yes
- Surface brushed
- No
- Unified Glare Rating (UGR)
- 22
- Number of poles
- 3
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 0.75
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 1.5
- Conductor cross section (mm²)
- 1.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Suitable for light-track mounting
- No
- Dimming DMX
- No
- Containing product according to 2019/2020/EU
- Yes
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 7
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 500
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Built-in width (min) (mm)
- 68
- Installation height (min) (mm)
- 2000
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP20

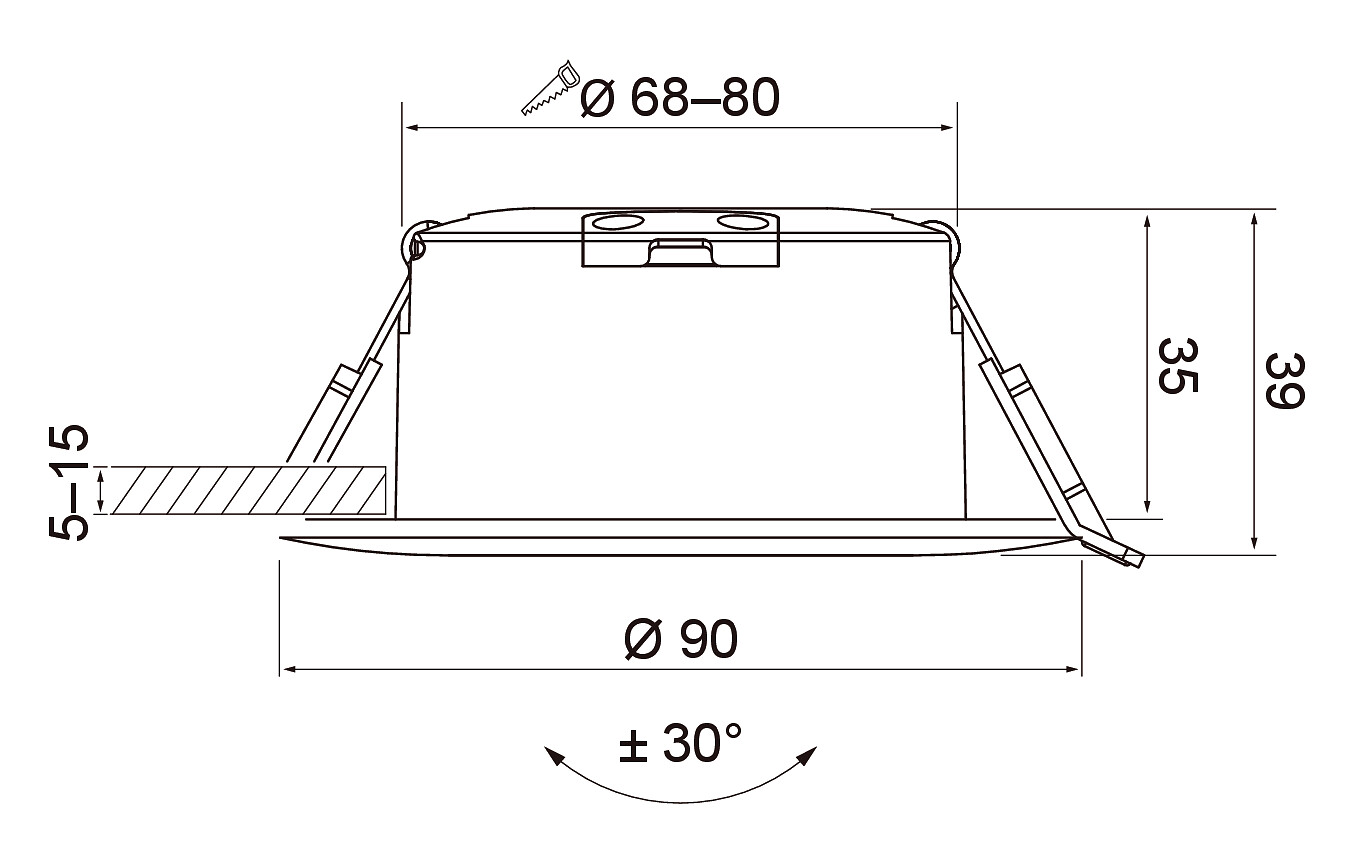

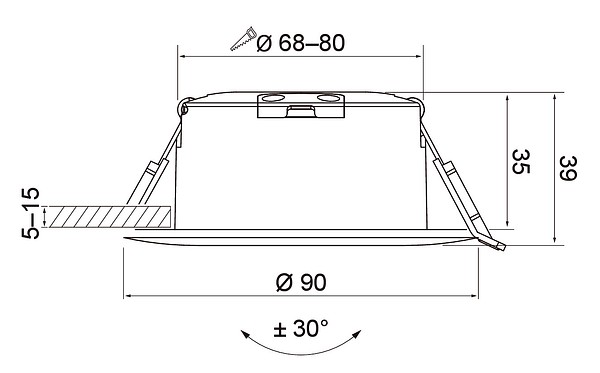

- Recess diameter (min) (mm)
- 68
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Built-in width (mm)
- 80
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 500
- Rated life time L80/B50 at 25 °C
- 65000
- IFTTT support available
- No
- Reflector colour
- Silver
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Recess diameter (max) (mm)
- 80
- Dimming potentiometer (integrated)
- No
- Width (mm)
- 90
- Suitable for surface mounting
- No
- Luminaire efficacy (lm/W)
- 70
- Dimming with push-button
- No
- Outer diameter (mm)
- 90
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 350
- Type of wiring
- Suitable for through wiring
- Built-in width (max) (mm)
- 80
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 90-100
- Dimming DSI
- No
- Luminous flux (min) (lm)
- 450
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 7
- Suitable for pedestal/floor mounting
- No
- No dimming function
- No
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Reflector
- High-gloss
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Impact strength
- IK02
- Max. number of luminaires per miniature circuit breaker C16
- 238
- Lamp type
- LED exchangeable
- Light distributor
- Reflector
- Total harmonic distortion (THD) (%)
- 20
- Built-in height/depth (mm)
- 35
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Surface protection
- Plastic-coated
- Energy efficiency class of light source according to EU regulation 2019/2015
- F
- Degree of protection (IP), front side
- IP54
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 2700
- Degree of protection (IP)
- IP54
- Dimming Touch and Dim
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Suitable for traverse mounting
- No
- Power factor
- 0.9
- Beam angle
- Medium beam 20-40°
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 450
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 7
- Luminous flux (max) (lm)
- 500
- Dimming DALI
- No
- With light sensor
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 70
- Voltage type
- AC
- Suitable for low voltage cable system
- No
- Colour temperature switchable
- Discrete positions
- Built-in length (mm)
- 80
- Luminaire may be covered with thermally insulating material
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Plastic
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 39
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- Yes
- Protection class according to IEC 61140
- II
- Suitable for wall mounting
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 350
- Cover material
- Plastic, transparent
- Max. number of luminaires per miniature circuit breaker B16
- 119
Product versions
Compact Multi Dim
| Item description | Code | |
|---|---|---|
| Compact Multi IP54 7W DIM WH | 4146965 |
|
| Compact Multi IP54 7W DIM BK | 4146966 |
Compact Multi Dim 6-pack
| Item description | Code | |
|---|---|---|
| Compact Multi IP54 7W DIM WH 6-pack | 4146967 |
|
| Compact Multi IP54 7W DIM BK 6-pack | 4146968 |
