Plateia UQ

PLATEIA UQA 33W/830 WH

PLATEIA UQ Modular luminaire 33W 3000K 4000lm No dim; IP40; Protection cl. II; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Steel; Colour wh; Cover Plastic, opal; C16 max. 33

See product details
Code
4289856

Technical info

Mounting

Suitable for wall mounting
No
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP)
IP40
Max. number of luminaires per miniature circuit breaker B16
22
Max. number of luminaires per miniature circuit breaker C16
33
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
No
Suitable for emergency lighting
No
Luminaire may be covered with thermally insulating material
No
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2.5 mm²

Structure

Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Steel
Housing colour
White
Cover material
Plastic, opal
Control gear included
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
Not required
With air slots
No

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Type of control gear
LED operating device current-controlled
Protection class according to IEC 61140
II
Suitable for lamp power (min) (W)
33 W
Suitable for lamp power (max) (W)
33 W
Maximum system power (W)
33 W

Dimming and control

Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With movement sensor
No
With light sensor
No
Compatible with Casambi
No

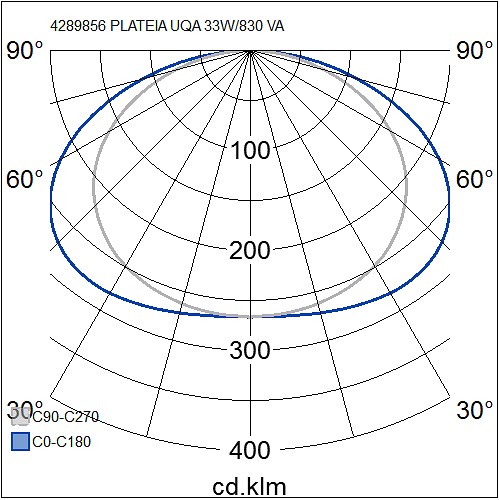

Photometric data

Colour consistency (McAdam ellipse)
SDCM3
Light outlet
Direct
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
4000 lm
Colour temperature (min) (K)
3000 K
Colour temperature (max) (K)
3000 K
Colour rendering index (CRI/Ra)
80-89

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
100000 h
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25 °C

Measurements

Width (mm)
596 mm
Height/depth (mm)
12 mm
Length (mm)
596 mm
