Plateia Q 1200x300 35W/840 ACO
Plateia Q Modular luminaire 35W 4000K 4000lm No dim; IP40; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing al; Colour wh; Cover Plastic, opal; C16 max. 49

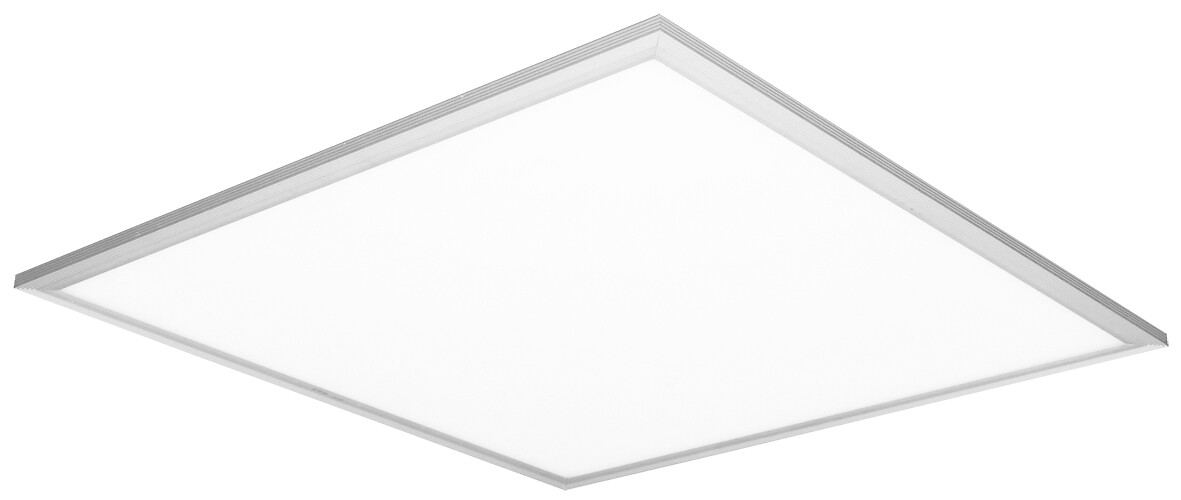

An extensive range of low-profile luminaires designed for offices and other public spaces. Available in five housing sizes with opal and nano-prismatic diffusers. UGR<19 with the nano-prismatic diffuser. Recessed mounting on a T-grid ceiling or on a plasterboard ceiling with accessories. Surface mounting with a separate mounting frame.
Aluminium or steel housing, white, RAL 9003.
Acrylic diffuser, opal (O) or nano prismatic (MP).
Protection class II.
Surface or recessed mounting.
Linkable, 3/5 × 2.5 mm2.
Installation height 2–4 m.
Integrated LED 9–111 W, 700–12,500 lm.
Colour temperatures: 3,000 K and 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP40.
The standard range includes On/Off and Dali-2 models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100,000 h (Ta25°C).
Rated lifetime L80 80,000 h (Ta25°C).
Power source service life 50,000 h.
Accessories include surface mounting frames 4289973, D2PSXB, 4289974, D2PSXD and D2PSXE and an universal suspension wire 4107113, universal 4-wire suspension set 4146595 and ceiling mounting frames 4297812 (size 1200*300) and 4297811 (size 600*600).
WH = white, DA2 = Dali-2.
Also available as Casambi, 1–10 V and Switch Dim solutions. CRI > 90 available for order. Also available with various connecting wire solutions. Anodised aluminium housing available via special order.
- Code
- 4289609
Downloads
Technical info
- Electrical number (FIN)
- 4289609
- Electrical number (SWE)
- 7011229
- GTIN
- 6435200199263
- Airam code
- D2PLCB
- Code
- 4289609
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- Dimming 1-10 V
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- With air slots
- No
- Compatible with Google Assistant
- No
- Luminaire efficacy (max) (lm/W)
- 114
- Light sharing
- Symmetric
- Beam angle
- Extreme wide beam >80°
- Fit for workplace acc. EN 12464-1
- No
- With presence indicator
- No
- Dimming DSI
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 4000
- Effective luminous flux (lm)
- 4000
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Light source included
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 4000
- No dimming function
- Yes
- Max. number of luminaires per miniature circuit breaker B16
- 29
- Housing material
- Aluminium

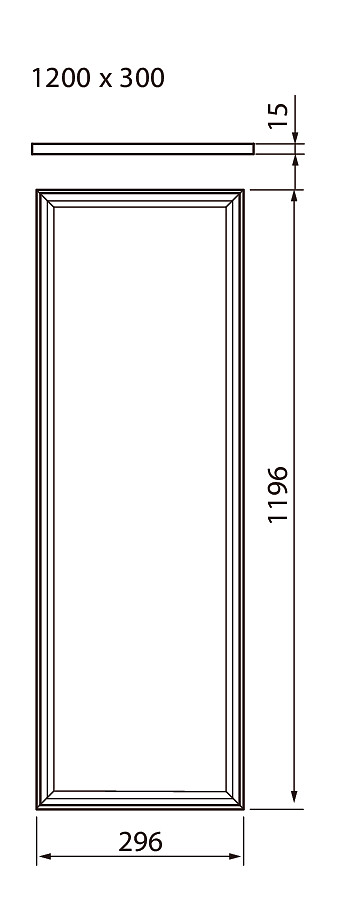

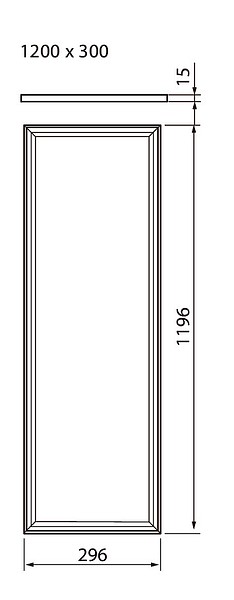

- Width (mm)
- 296
- Suitable for suspended mounting
- Yes
- Type of grid
- White
- Luminaire may be covered with thermally insulating material
- No
- Bluetooth operated
- No
- Colour temperature switchable
- No
- Dimming DMX
- No
- Compatible with Casambi
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 35
- Dimming programmable
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Diffuser lens/optic/panel
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 114
- Dimming 0-10 V
- No
- Height/depth (mm)
- 15
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 1196
- Dimming Touch and Dim
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- No
- Built-in height/depth (mm)
- 80
- Nominal current (min) (mA)
- 700
- With mounting material
- Yes
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Built-in width (mm)
- 300
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Dimming DALI-2
- No
- Suitable for recessed mounting
- Yes
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Max. number of luminaires per miniature circuit breaker C16
- 49
- Rated life time L80/B50 at 25 °C
- 80000
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- With movement sensor
- No
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Degree of protection (IP), front side
- IP40
- Type of wiring
- Suitable for through wiring
- Dimming with push-button
- No
- Built-in length (mm)
- 1200
- Emergency power supply system
- None
- Protection class according to IEC 61140
- II
- Degree of protection (IP), rear side
- IP40
- Power factor
- 0.9
- Dimming Zigbee
- No
- Dimming DALI
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 30
- Suitable for clamp-mounting
- No
- Unified Glare Rating (UGR)
- 22
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimmable
- No
- Cover material
- Plastic, opal
- With switch
- No
- Conductor cross section (mm²)
- 2.5
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Suitable for lamp power (max) (W)
- 35
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 4000
- Luminaire efficacy (min) (lm/W)
- 114
- Suitable for light line configuration
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- Housing colour
- White
- Number of poles
- 3
- Suitable for emergency lighting
- No
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Suitable for number of lamps
- 1
- Dimming manufacturer's proprietary system
- No
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Light outlet
- Direct
- Housing surface protection
- Powder coating
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 700
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP40
- Maximum system power (W)
- 35
- Lumen setting adjustable
- No
Product versions
Plateia Q opal 600 x 600
| Item description | Code | |
|---|---|---|
| Plateia Q 600x600 34W/830 ACO | 4289693 |
|
| Plateia Q 600x600 34W/840 ACO | 4289694 |
|
| Plateia Q 600x600 52W/830 ACO | 4289600 |
|
| Plateia Q 600x600 52W/840 ACO | 4289601 |
Plateia Q opal 1200 x 300
| Item description | Code | |
|---|---|---|
| Plateia Q 1200x300 35W/830 ACO | 4289608 |
|
| Plateia Q 1200x300 35W/840 ACO | 4289609 |
|
| Plateia Q 1200x300 54W/830 ACO | 4289614 |
|
| Plateia Q 1200x300 54W/840 ACO | 4289615 |
Plateia Q opal 1200 x 600
| Item description | Code | |
|---|---|---|
| Plateia Q 1200x600 111W/830 ACO | 4289620 |
|
| Plateia Q 1200x600 111W/840 ACO | 4289621 |
Plateia Q opal 600 x 300
| Item description | Code | |
|---|---|---|
| Plateia Q 600x300 17W/830 ACO | 4289606 |
|
| Plateia Q 600x300 17W/840 ACO | 4289607 |
|
| Plateia Q 300x300 9W/830 ACO | 4289622 |
|
| Plateia Q 300x300 9W/840 ACO | 4289623 |
Plateia Q microprismatic 600 x 600
| Item description | Code | |
|---|---|---|
| Plateia Q 600x600 34W/830 ACMP | 4289872 |
|
| Plateia Q 600x600 34W/840 ACMP | 4289873 |
|
| Plateia Q 600x600 52W/830 ACMP | 4289876 |
|
| Plateia Q 600x600 52W/840 ACMP | 4289877 |
Plateia Q microprismatic 1200 x 300
| Item description | Code | |
|---|---|---|
| Plateia Q 1200x300 35W/830 ACMP | 4289880 |
|
| Plateia Q 1200x300 35W/840 ACMP | 4289881 |
|
| Plateia Q 1200x300 54W/830 ACMP | 4289884 |
|
| Plateia Q 1200x300 54W/840 ACMP | 4289885 |
Plateia Q Dali opal 600 x 600
| Item description | Code | |
|---|---|---|
| Plateia Q 600x600 34W/830 DA2 ACO | 4209694 |
|
| Plateia Q 600x600 34W/840 DA2 ACO | 4209695 |
|
| Plateia Q 600x600 52W/830 DA2 ACO | 4289604 |
|
| Plateia Q 600x600 52W/840 DA2 ACO | 4289605 |
Plateia Q Dali opal 1200 x 300
| Item description | Code | |
|---|---|---|
| Plateia Q 1200x300 35W/830 DA2 ACO | 4289612 |
|
| Plateia Q 1200x300 35W/840 DA2 ACO | 4289613 |
|
| Plateia Q 1200x300 54W/830 DA2 ACO | 4289618 |
|
| Plateia Q 1200x300 54W/840 DA2 ACO | 4289619 |
Plateia Q Dali opal 1200 x 600
| Item description | Code | |
|---|---|---|
| Plateia Q 1200x600 111W/830 DA2 ACO | D2PLDA-DALI |
|
| Plateia Q 1200x600 111W/840 DA2 ACO | D2PLDB-DALI |
Plateia Q Dali opal 600 x 300
| Item description | Code | |
|---|---|---|
| Plateia Q 600x300 17W/830 DA2 ACO | D2PLBA-DALI |
|
| Plateia Q 600x300 17W/840 DA2 ACO | D2PLBB-DALI |
Plateia Q Dali opal 300 x 300
| Item description | Code | |
|---|---|---|
| Plateia Q 300x300 9W/830 DA2 ACO | 4289626 |
|
| Plateia Q 300x300 9W/840 DA2 ACO | 4289627 |
Plateia Q Dali microprismatic 600 x 600
| Item description | Code | |
|---|---|---|
| Plateia Q 600x600 34W/830 DA2 ACMP | 4289874 |
|
| Plateia Q 600x600 34W/840 DA2 ACMP | 4289875 |
|
| Plateia Q 600x600 52W/830 DA2 ACMP | 4289878 |
|
| Plateia Q 600x600 52W/840 DA2 ACMP | 4289879 |
Plateia Q Dali microprismatic 1200 x 300
| Item description | Code | |
|---|---|---|
| Plateia Q 1200x300 35W/830 DA2 ACMP | 4289882 |
|
| Plateia Q 1200x300 35W/840 DA2 ACMP | 4289883 |
|
| Plateia Q 1200x300 54W/830 DA2 ACMP | 4289886 |
|
| Plateia Q 1200x300 54W/840 DA2 ACMP | 4289887 |
