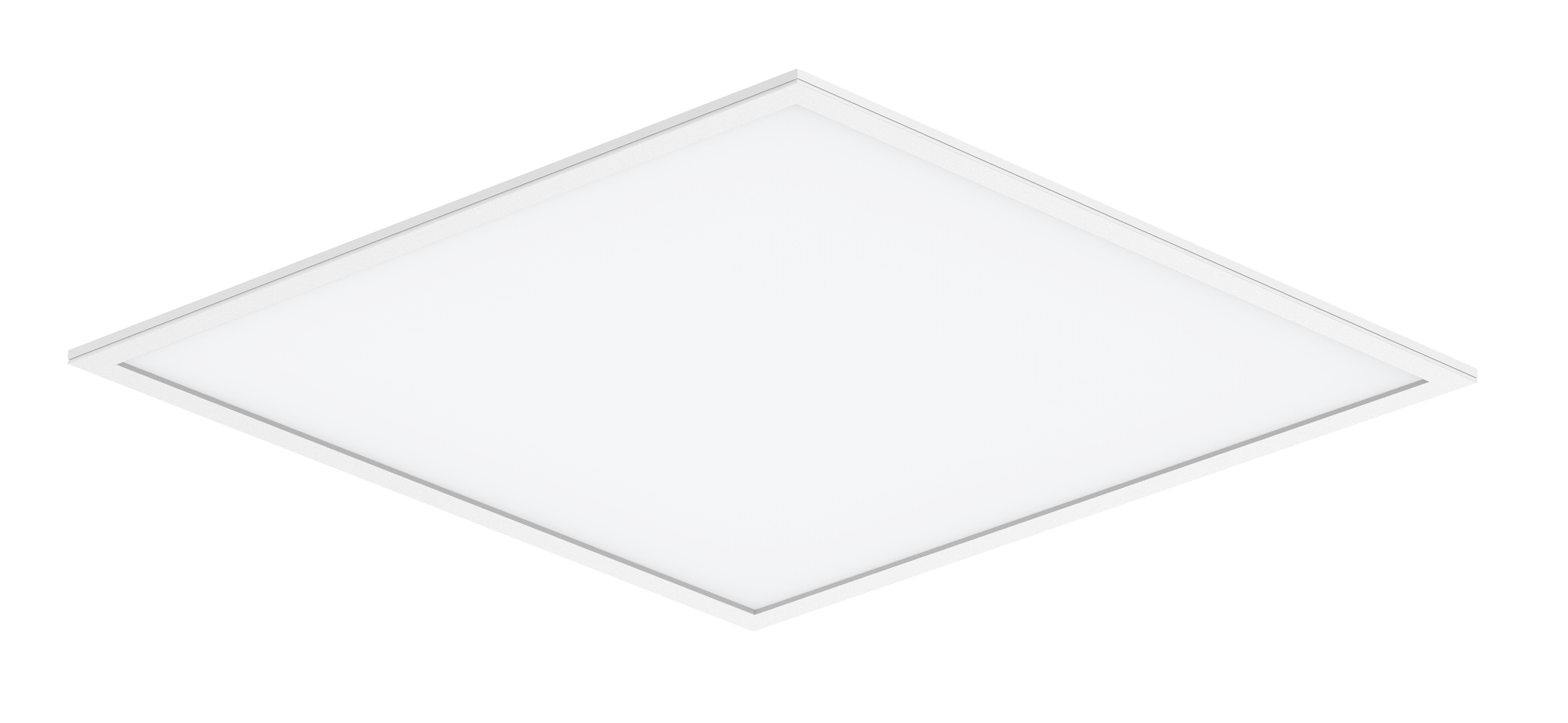

Plata Pro MP

Plata Pro MP 40W/840 ACMP DA2

Plata Pro MP Modul luminaire 40W 4000K 5000lm Dim DALI-2; Dim programmable; Dim with push-button; IP20; IK02; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing al; Colour wh; Cover Plastic, structured; C16 max. 31

See product details
Code
4146979

Technical info

Mounting

Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for clamp-mounting
No
Fit for workplace acc. EN 12464-1
Yes
Degree of protection (IP)
IP20
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
Max. number of luminaires per miniature circuit breaker C10 (MCB)
18
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C16
31
Impact strength
IK02
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
Yes
Suitable for emergency lighting
No
Emergency function monitoring system
None
Luminaire may be covered with thermally insulating material
No
Type of wiring
Suitable for through wiring
Number of poles
5
Conductor cross section (mm²)
2.5 mm²
Connection type
Screwless terminal
Connectable conductor cross section (min) (mm²)
1.5 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²

Structure

With mounting material
Yes
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Housing surface protection
Powder coating
Housing colour
White
Cover material
Plastic, structured
Type of grid
None
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
D
Containing product according to 2019/2020/EU
Yes
Emergency power supply system
None
Emergency power supply integrated
No
With switch
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Nominal current (min) (mA)
300 mA
Nominal current (max) (mA)
1050 mA
Type of control gear
LED operating device current-controlled
Protection class according to IEC 61140
II
Suitable for lamp power (min) (W)
12 W
Suitable for lamp power (max) (W)
40 W
Luminaire efficacy (min) (lm/W)
125 lm/W
Luminaire efficacy (max) (lm/W)
125 lm/W
Maximum system power (W)
40 W
Luminaire efficacy (lm/W)
125 lm/W
Power factor
0.9
Total harmonic distortion (THD) (%)
10 %
Total harmonic distortion
10 THD

Dimming and control

Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DALI-2
Yes
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
Yes
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
Yes
No dimming function
No
With presence indicator
No
With movement sensor
No
With light sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

Photometric data

Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Wide beam 40-80°
Colour consistency (McAdam ellipse)
SDCM3
Light outlet
Direct
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
1500 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
5000 lm
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
5000 lm
Colour temperature (min) (K)
4000 K
Colour temperature (max) (K)
4000 K
Flickering value Pst LM
1
Colour rendering index (CRI/Ra)
80-89
Stroboscope effect value SVM
0.4
Photobiological safety according to EN 62471
RG0
Unified Glare Rating (UGR)
19
Colour temperature switchable
No
Lumen setting adjustable
Continuously variable
Beam angle adjustable
No

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
100000 h
Rated life time L80/B50 at 25 °C
80000 h
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
90 %
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
85 %
Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
80 %
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
10 %
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25 °C

Measurements

Width (mm)
595 mm
Height/depth (mm)
9 mm
Length (mm)
595 mm
Built-in length (mm)
600 mm
Built-in width (mm)
600 mm
Built-in height/depth (mm)
80 mm

ETIM

With connection cord and plug
No
