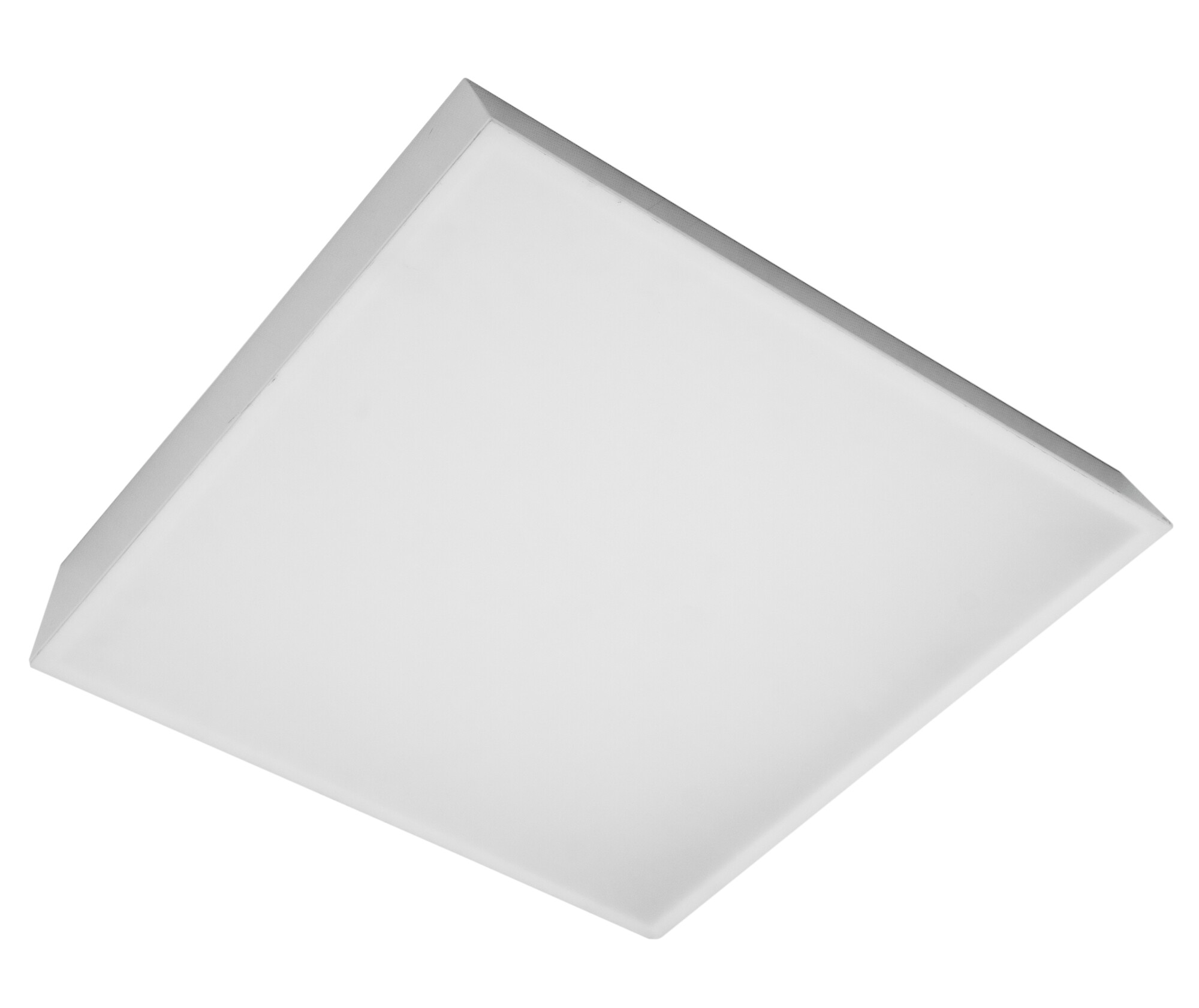

Medic IP65 23W/830 DA2 PSO WH
Medic Modular luminaire 23W 3000K 3100lm Dali-2; IP65; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing Steel; Colour wh; Cover Plastic, opal; C16 max. 96
A special lighting solution for hospitals, industrial kitchens, and other public-space applications where IP65 protection and additional durability are required. Recessed mounting on a T-grid ceiling. The Medic luminaires have been certified in accordance with ISO 14644-1 standard and they have been granted the ISO 3 cleanroom classification.
Steel housing and opal or micro-prismatic polystyrene diffuser (PSO or PSMP).
White RAL9016.
Protection class I.
Recessed mounting.
Linkable, 3/5 x 2.5 mm2
The luminaire comes with IP65-classified connectors.
Installation height: 2–5 m.
Fixed LED: 23–55 W / 3,100–6,500 lm.
Colour temperatures: 3,000 K and 4,000 K CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65.
The standard range includes on/off and Dali-2 models.
Ambient temperature range: 0 ... 25 °C.
Rated lifetime: L70 100 000 h (Ta 25 °C).
Rated lifetime: L80 80 000 h (Ta25°C).
The luminaire has an integrated power source. Power source lifespan: 100,000 h.
Accessories: surface-mounting frame 600x600/143 mm (4245223) and recessed mounting frame 600x600 mm (4297811).
WH = white, DA2 = Dali-2, PS = polystyrene, O = opal, MP = micro-prismatic optics.
Also available as Casambi, 1–10 V and Switch Dim solutions. The colour temperature options available are: 2,700 K, 5,700 K and 6,500 K as well as Tunable White. CRI > 90 available by special order. Also available with various connecting wire solutions. The product can be customised for different efficacies. A model with 300x1200 mm and with an opal polycarbonate (PCO) diffuser is available by special order.
- Code
- 4245201
Downloads
Technical info
- Electrical number (FIN)
- 4245201
- Electrical number (SWE)
- 7018182
- GTIN
- 6435200253675
- Airam code
- D2MEBA
- Code
- 4245201
- Length (mm)
- 596
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 135
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 3000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 22
- Number of poles
- 5
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 10
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- With light sensor
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 23
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 3100
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- Other
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Built-in width (mm)
- 600
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 3100
- Rated life time L80/B50 at 25 °C
- 80000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Dimming potentiometer (integrated)
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 59
- Width (mm)
- 596
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 135
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 250
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 23
- No dimming function
- No
- Degree of protection (IP), front side
- IP65
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwed terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 96
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- None
- Light distributor
- Diffuser lens/optic/panel
- Luminaire may be covered with thermally insulating material
- No
- Total harmonic distortion (THD) (%)
- 10
- Built-in height/depth (mm)
- 200
- Suitable for light line configuration
- No
- Dimming DALI-2
- Yes
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP65
- Power factor
- 0.9
- Beam angle
- Extreme wide beam >80°
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 3100
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 23
- Protection class according to IEC 61140
- I
- Dimming DALI
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 135
- Voltage type
- AC
- Colour temperature switchable
- No
- Built-in length (mm)
- 600
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Steel
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 85
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- No
- Suitable for wall mounting
- No
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 250
- Cover material
- Plastic, opal
- Max. number of luminaires per miniature circuit breaker B16
- 57
Product versions
Medic opal
| Item description | Code | |
|---|---|---|
| Medic IP65 23W/830 PSO WH | 4222799 |
|
| Medic IP65 23W/840 PSO WH | 4245200 |
|
| Medic IP65 32W/830 PSO WH | 4245203 |
|
| Medic IP65 32W/840 PSO WH | 4245204 |
|
| Medic IP65 55W/830 PSO WH | 4245207 |
|
| Medic IP65 55W/840 PSO WH | 4245208 |
Medic microprismatic
| Item description | Code | |
|---|---|---|
| Medic IP65 23W/830 PSMP WH | 4245211 |
|
| Medic IP65 23W/840 PSMP WH | 4245212 |
|
| Medic IP65 32W/830 PSMP WH | 4245215 |
|
| Medic IP65 32W/840 PSMP WH | 4245216 |
|
| Medic IP65 55W/830 PSMP WH | 4245219 |
|
| Medic IP65 55W/840 PSMP WH | 4245220 |
Medic Dali opal
| Item description | Code | |
|---|---|---|
| Medic IP65 23W/830 DA2 PSO WH | 4245201 |
|
| Medic IP65 23W/840 DA2 PSO WH | 4245202 |
|
| Medic IP65 32W/830 DA2 PSO WH | 4245205 |
|
| Medic IP65 32W/840 DA2 PSO WH | 4245206 |
|
| Medic IP65 55W/830 DA2 PSO WH | 4245209 |
|
| Medic IP65 55W/840 DA2 PSO WH | 4245210 |
Medic Dali microprismatic
| Item description | Code | |
|---|---|---|
| Medic IP65 23W/830 DA2 PSMP WH | 4245213 |
|
| Medic IP65 23W/840 DA2 PSMP WH | 4245214 |
|
| Medic IP65 32W/830 DA2 PSMP WH | 4245217 |
|
| Medic IP65 32W/840 DA2 PSMP WH | 4245218 |
|
| Medic IP65 55W/830 DA2 PSMP WH | 4245221 |
|
| Medic IP65 55W/840 DA2 PSMP WH | 4245222 |
