Ceiling
Designed for suspended ceilings, the Ceiling aluminium profile can be mounted at the ceiling line or used to frame areas with light. Use Airam’s 12 V or 24 V LED strips with the profiles. LED strips and ballasts must be ordered separately.
Anodised aluminium body, transparent or opal UV-protected polycarbonate diffuser.
IP20.
The profile is available in 1 m and 2 m lengths and with a clear or opal diffuser.
Custom-made profile lengths (max. 6 m) are available on a project-specific basis.
Check the compatibility table for our LED strips and profiles.
Product versions
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
|
Ceiling Profile 1m AL PCC | 4222757 |
4222757 |

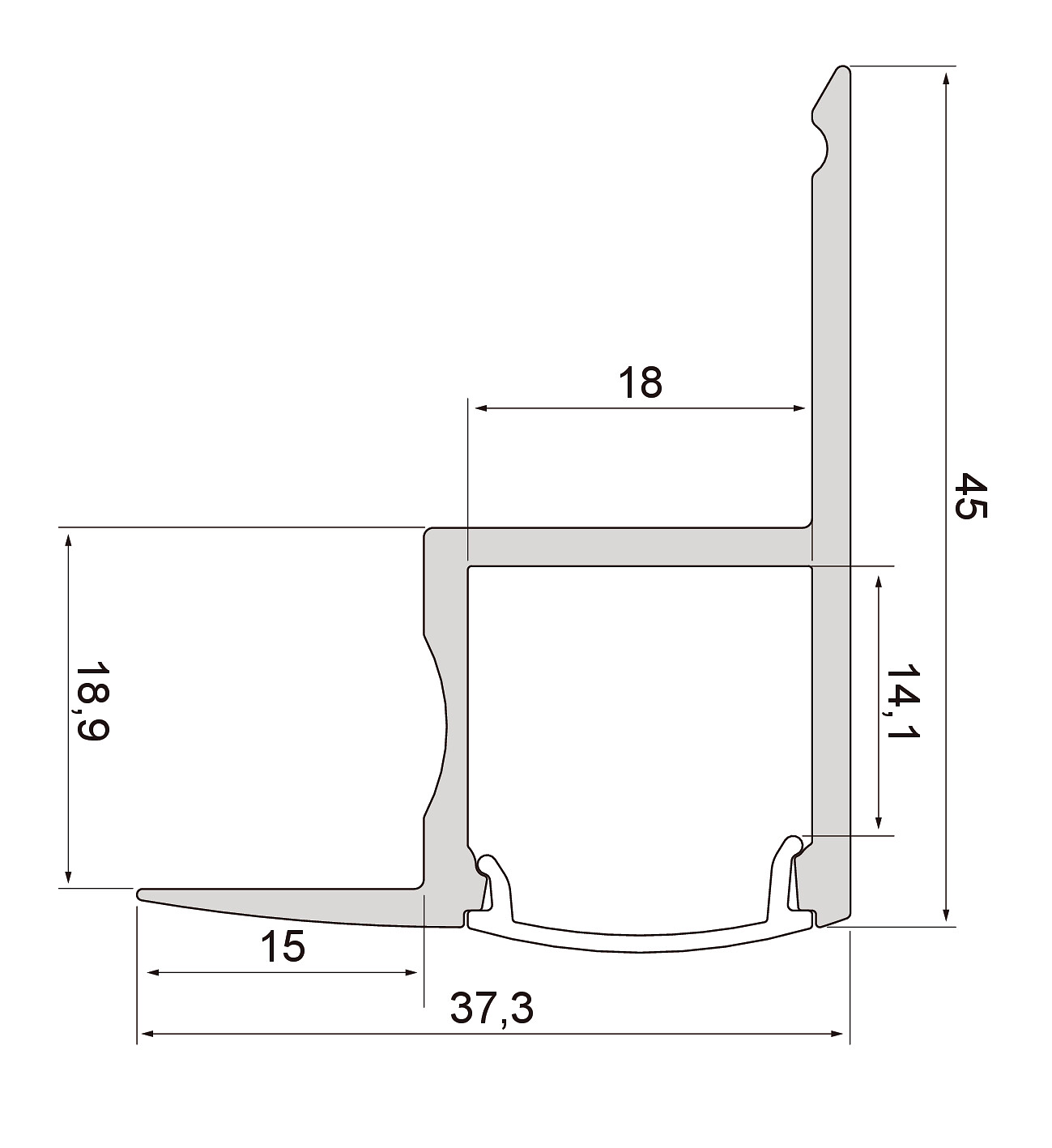

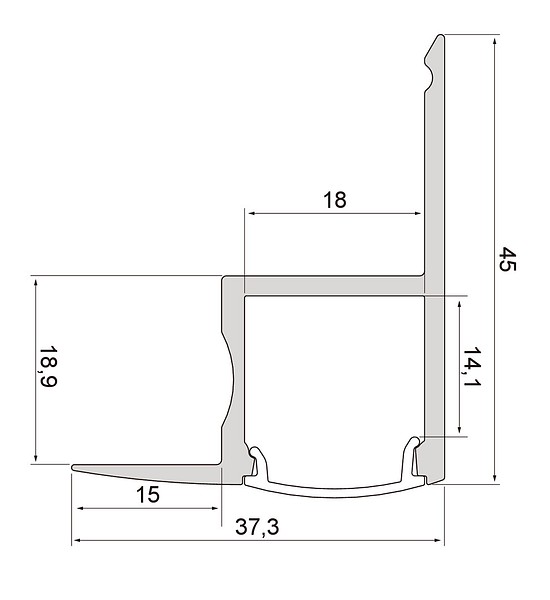

1000x37x45mm |
||||
|
|
Ceiling Profile 1m AL PCO | 4222758 |
4222758 |
1000x37x45mm |
||||
|
|
Ceiling Profile 2m AL PCC | 4222759 |
4222759 |
2000x37x45mm |
||||
|
|
Ceiling Profile 2m AL PCO | 4222760 |
4222760 |
2000x37x45mm |
