Slimline 7 R

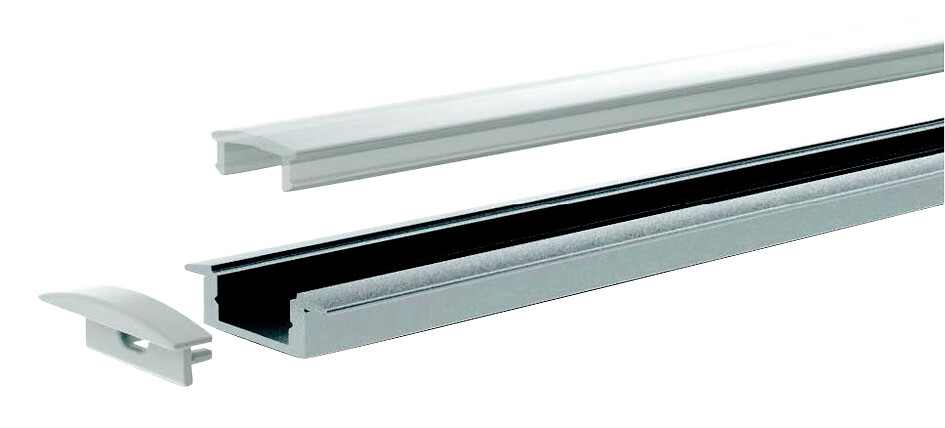

Slimline 7 R is a clean-lined, aluminium profile with a low structure for LED strips with a maximum width of 12 mm. Recessed mounting on a ceiling, on a wall, or in a groove beneath worktops. End pieces with or without wire opening are available as accessories. Read more about the other Slimline products.

Anodised aluminium body, transparent or opal UV-protected polycarbonate diffuser.
Suitable for use with IP20-protected LED strips with a maximum width of 12 mm. Without a diffuser, can be used with IP65-protected strips with a maximum width of 12 mm.
When used with the diffuser and end caps available as accessories, the profile meets the IP21 protection class requirements.
The profile is available in 1 m and 2 m lengths and with a clear or opal diffuser.
End caps are available as accessories.

Custom-made profile lengths (max. 6 m) are available on a project-specific basis.

Check the compatibility table for our LED strips and profiles.
