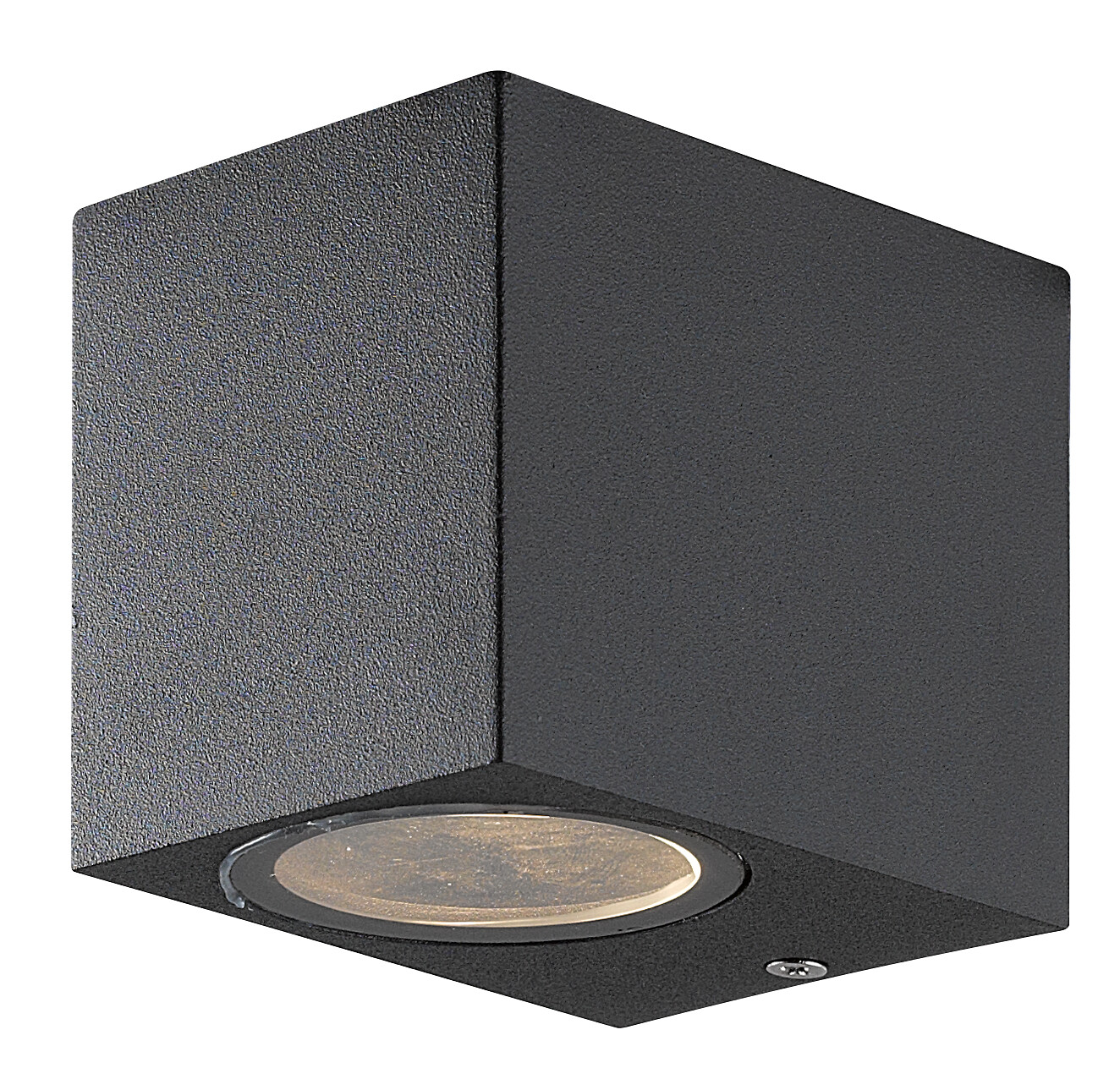

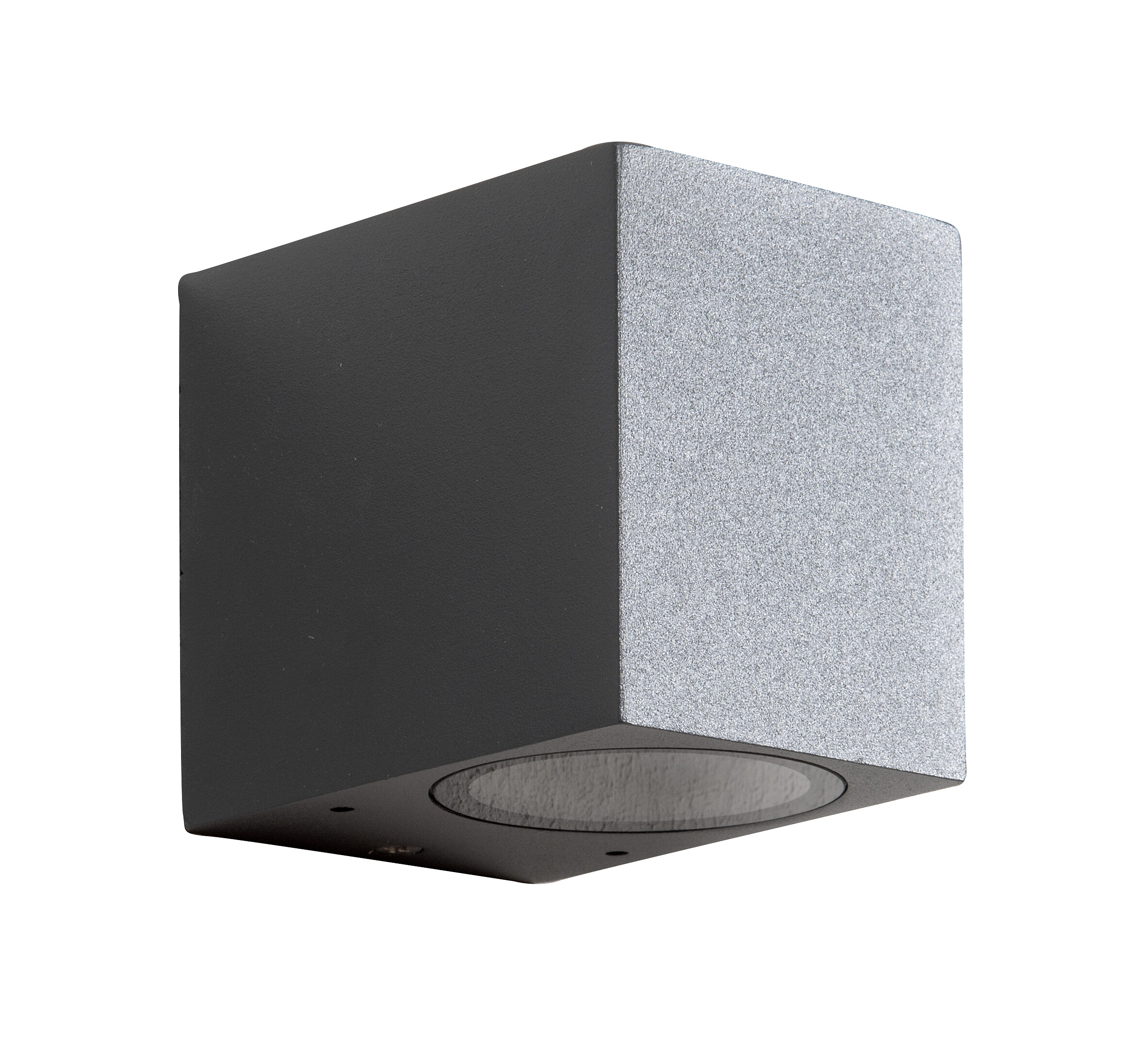

Sund IP44 GU10 GLC ANT
Sund Surface mnt. univ. luminaire No dim; IP44; IK06; Protection cl. I; LED exchangeable; Ending; 3x2.5mm²; Housing al; Colour ant; Cover Glass transparent
The elegant Sund distributes light downwards. Thanks to its compact size, Sund offers an ideal solution for a wide range of applications indoors and outdoors. As a light source, you can select a GU10 lamp with a colour temperature, luminous flux and beam of your choice. Spotlights with a narrow beam can be used to create interesting patterns of light.
Body made of aluminium, dome made of tempered glass.
White and anthracite.
Wall mount.
Screw connectors 3 x 2.5 mm², one cable entry, cannot be chained together.
Enclosure class IP44.
LED lamp max. 7W GU10, not included.
Temperature of environment of use -20 … 25 °C , depending on the bulb.
- Code
- 4118745
Technical info
Mounting
- Suitable for wall mounting
- Yes
- Suitable for suspended mounting
- No
- Suitable for ceiling mounting
- No
- Suitable for recessed mounting
- No
- Suitable for surface mounting
- Yes
- Suitable for light line configuration
- No
- Suitable for clamp-mounting
- No
- Fit for workplace acc. EN 12464-1
- No
- Degree of protection (IP)
- IP44
- Degree of protection (IP), rear side
- IP44
- Degree of protection (IP), front side
- IP44
- Impact strength
- IK06
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Suitable for emergency lighting
- No
- Type of wiring
- Ending
- Number of poles
- 3
- Conductor cross section (mm²)
- 2.5 mm²
- Connection type
- Screwed terminal
Structure
- With mounting material
- Yes
- Lamp type
- LED exchangeable
- Light source included
- No
- Suitable for number of lamps
- 1
- Lamp holder
- GU10
- Housing material
- Aluminium
- Housing surface protection
- Powder coating
- Housing colour
- Anthracite
- Cover material
- Glass transparent
- Type of grid
- None
- Control gear included
- No
- Exchangeable control gear
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- Emergency power supply integrated
- No
- With switch
- No
- With air slots
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- Not required
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 1 W
- Suitable for lamp power (max) (W)
- 7 W
Dimming and control
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DALI-2
- No
- Dimming DMX
- No
- Dimming DSI
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming trailing edge
- No
- Dimming leading edge
- No
- Dimming programmable
- No
- Dimming potentiometer (integrated)
- No
- Dimming RF
- No
- Dimming Sine Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dimming function
- Yes
- With movement sensor
- No
- With light sensor
- No
- Constant luminous flux control
- No
- Bluetooth operated
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
Photometric data
- Light distributor
- None
- Light sharing
- Symmetric
- Light outlet
- Direct
- Colour temperature switchable
- No
- Lumen setting adjustable
- No
- Beam angle adjustable
- No
Lifetime and capacity
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -20 °C
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25 °C
Measurements
- Width (mm)
- 68 mm
- Height/depth (mm)
- 80 mm
- Length (mm)
- 93 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Sund IP44 GU10 GLC WH | 4118740 |
4118740 |
1-7W |
93x68x80mm |
|||
|
Sund IP44 GU10 GLC ANT | 4118745 |
4118745 |
1-7W |
93x68x80mm |
- Electrical number (FIN)
- 4118745
- Electrical number (SWE)
- 7703102
- GTIN
- 6435200226228
- Airam code
- A1SUAA
- Code
- 4118745
