Olivia IP65 13W/840 GLFR WH
Olivia Outdoors wall luminaire 13W 4000K 1050lm No dim; IP65; IK06; Protection cl. I; L70B50 50000h; LED not exchangeable; CRI>80; Ending; 3x1.5mm²; Housing al; Colour wh; Cover Glass matt/satinized; C16 max. 45

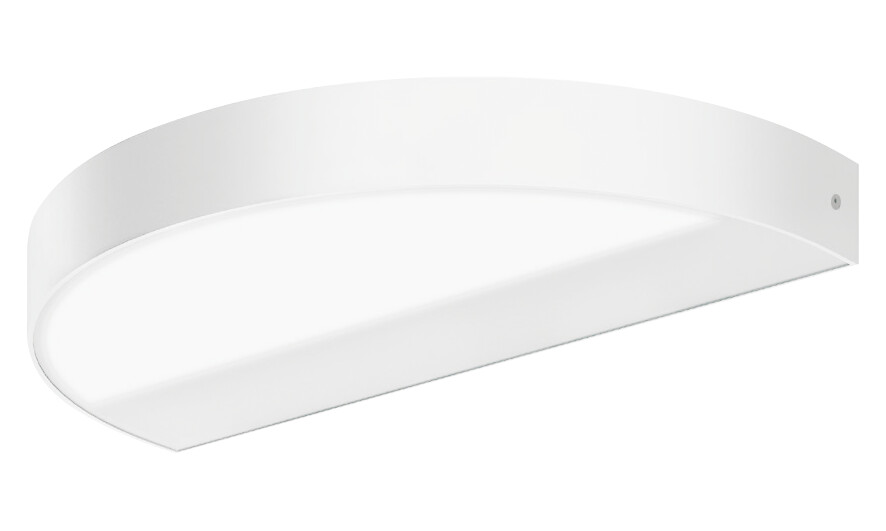

Olivia is a low-profile wall luminaire for indoor and outdoor use. The clean-lined, rounded design is ideal for a wide range of applications. The luminaire housing is coated with polyester paint that is resistant to corrosion and UV radiation, and the screws are made of stainless steel.
Aluminium housing and frosted glass diffuser.
Anthracite, silver, black and white.
Protection class I.
Surface mounting.
Not linkable, 3 x 1.5 mm2.
Installation height 0–3 m.
Integrated LED 13 W / 1,000–2,100 lm.
Colour temperatures 3,000 K and 4,000. CRI >80 / Ra > 80.
IP65.
IK06.
On/off.
Ambient temperature range -25 … 25 °C
Rated lifetime L70 50,000 h (Ta25°C).
Power source service life 50,000 h.
AN = anthracite, SI = silver, BK = black, WH = white.
Also available in Corten colour on a project-specific basis.
- Code
- 4512388
Downloads
Technical info
- Electrical number (FIN)
- 4512388
- GTIN
- 6435200225696
- Airam code
- B5OLAF
- Code
- 4512388
- Length (mm)
- 175
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 81
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- No
- Number of poles
- 3
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 1.5
- Conductor cross section (mm²)
- 1.5
- Rated life time L70/B50 at 25 °C (h)
- 50000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- With light sensor
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 13
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- No
- Suitable for ceiling mounting
- No
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 1050
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 70
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- Other
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 80
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -25
- Effective luminous flux (lm)
- 1050
- Rated life time L80/B50 at 25 °C
- 35000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK06
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 28
- Width (mm)
- 320
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 81
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Type of wiring
- Ending
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 13
- No dimming function
- Yes
- Degree of protection (IP), front side
- IP65
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwed terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 45
- Lamp type
- LED not exchangeable
- Type of grid
- Matt
- Light distributor
- Diffuser lens/optic/panel
- Luminaire may be covered with thermally insulating material
- -
- Total harmonic distortion (THD) (%)
- 20
- Suitable for light line configuration
- No
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- No
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 4000
- Degree of protection (IP)
- IP65
- Power factor
- 0.9
- Beam angle
- Extreme wide beam >80°
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1050
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 13
- Protection class according to IEC 61140
- I
- Dimming DALI
- No
- Light sharing
- Asymmetric
- Luminaire efficacy (min) (lm/W)
- 81
- Voltage type
- AC
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 35
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- No
- Suitable for wall mounting
- Yes
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Cover material
- Glass matt/satinized
- Max. number of luminaires per miniature circuit breaker B16
- 27
Product versions
Olivia 830
| Item description | Code | |
|---|---|---|
| Olivia IP65 13W/830 GLFR AN | 4512380 |
|
| Olivia IP65 13W/830 GLFR SI | 4512381 |
|
| Olivia IP65 13W/830 GLFR WH | 4512383 |
Olivia 840
| Item description | Code | |
|---|---|---|
| Olivia IP65 13W/840 GLFR AN | 4512385 |
|
| Olivia IP65 13W/840 GLFR SI | 4512386 |
|
| Olivia IP65 13W/840 GLFR WH | 4512388 |
