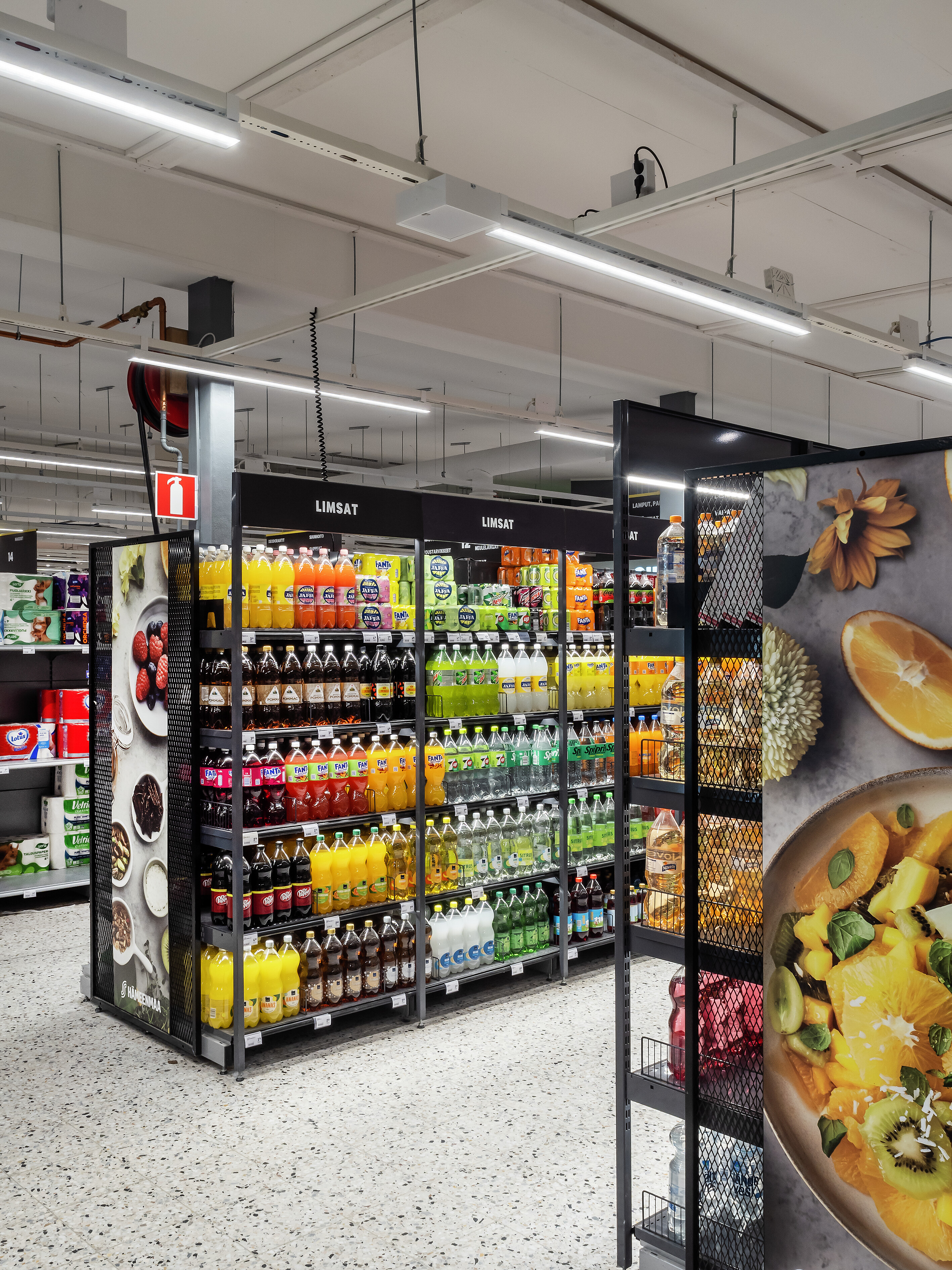

Commercial premises & retail

Marketta

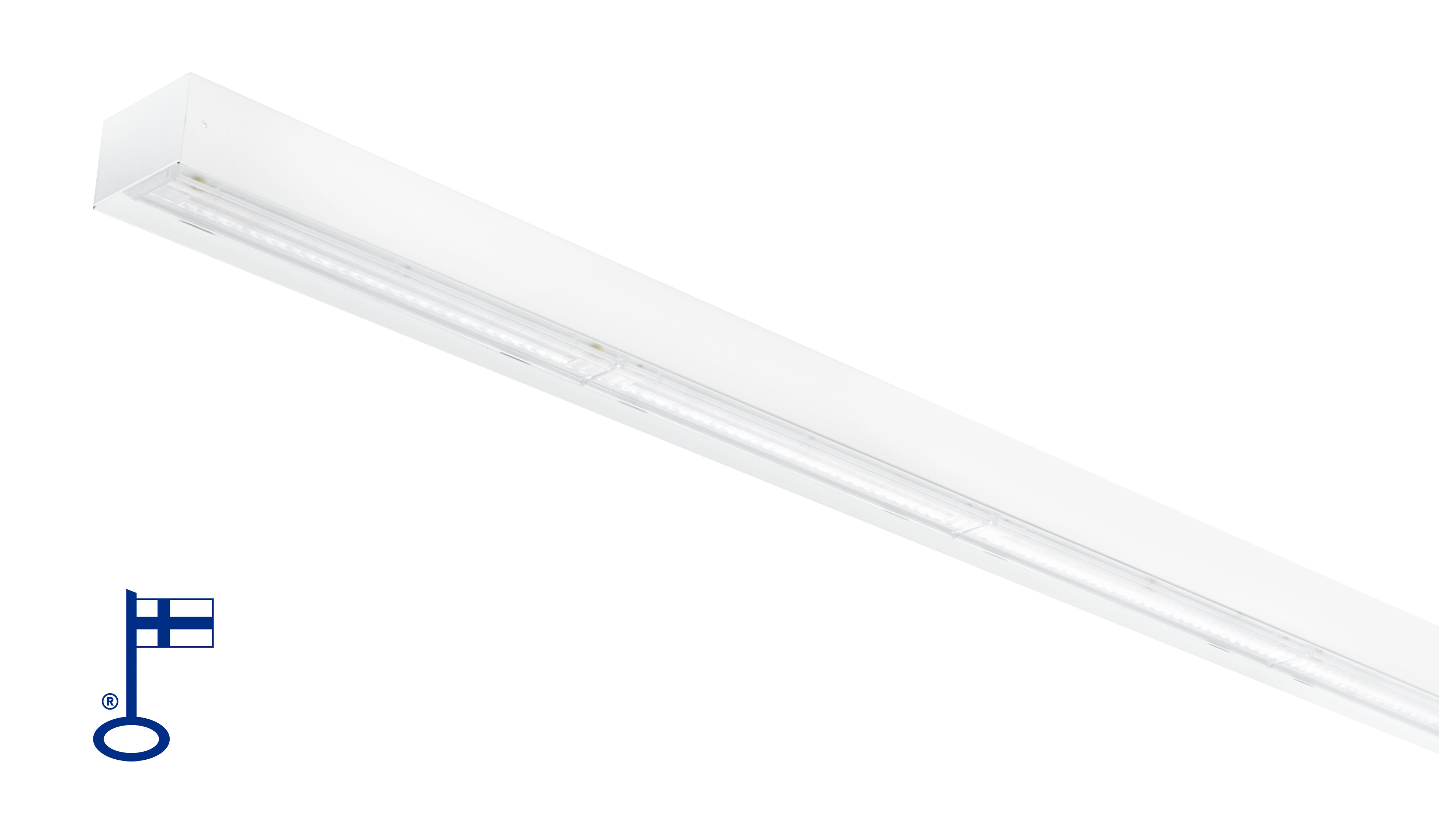

Marketta 1140 14000lm 840 90D WH

Marketta Basic batten luminaire 89W 4000K 14000lm No dim; IP20; Protection cl. I; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; Suitable for through wiring; 5x2.5mm²; Material Steel; Colour wh

See product details
Code
4338610

Technical info

Structure

Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Material
Steel
Housing colour
White
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
B
Containing product according to 2019/2020/EU
Yes
With lamp protection cage
No
Emergency power supply integrated
No
Emergency power supply system
None
Filament test according to IEC 60695-2-11
650 °C - 30 s
With switch
No

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Nominal current (min) (mA)
525 mA
Nominal current (max) (mA)
525 mA
Type of control gear
LED operating device current-controlled
Protection class according to IEC 61140
I
Suitable for lamp power (min) (W)
89 W
Suitable for lamp power (max) (W)
89 W
Maximum system power (W)
89 W
Luminaire efficacy (lm/W)
157 lm/W
Power factor
0.9

Dimming and control

Dimmable
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming manufacturer's proprietary system
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming potentiometer (integrated)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming with push-button
No
Dimming Zigbee
No
No dimming function
Yes
Constant luminous flux control
No
With movement sensor
No
With presence indicator
No
With light sensor
No
Bluetooth operated
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
IFTTT support available
No

Photometric data

Light distributor
Diffuser lens/optic/panel
Effective luminous flux (lm)
14000 lm
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
14000 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
14000 lm
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
4000 K
Colour temperature (max) (K)
4000 K
Colour rendering index (CRI/Ra)
80-89
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Colour consistency (McAdam ellipse)
SDCM3

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
100000 h
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
90 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5 %

Mounting

Degree of protection (IP)
IP20
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
Yes
Luminaire may be covered with thermally insulating material
-
Suitable for emergency lighting
No
Emergency function monitoring system
None
Type of wiring
Suitable for through wiring
Number of poles
5
Conductor cross section (mm²)
2.5 mm²
Connection type
Screwless terminal
Connectable conductor cross section (min) (mm²)
1.5 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²

Measurements

Width (mm)
78 mm
Height/depth (mm)
49 mm
Length (mm)
1140 mm
