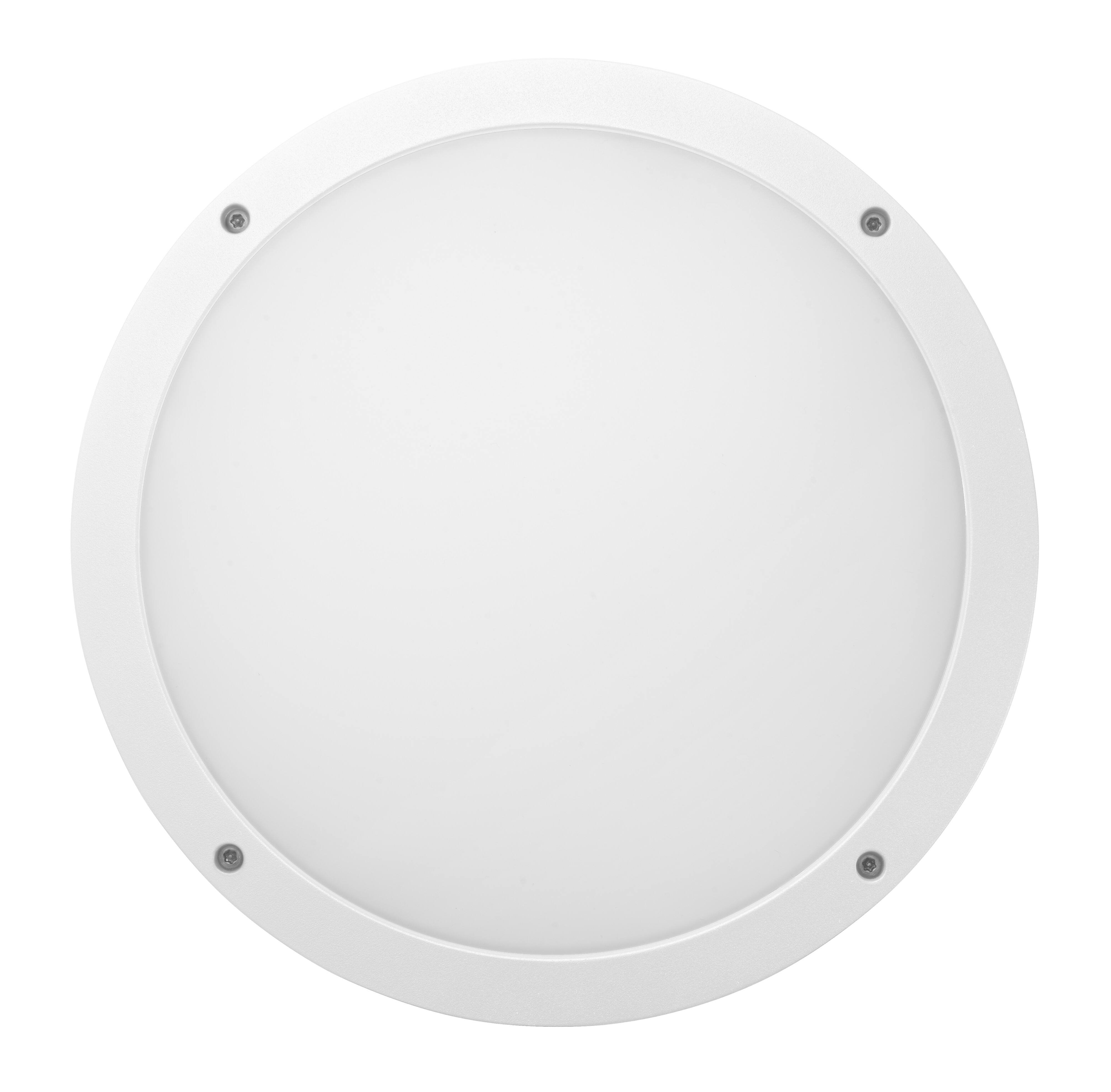

Halo IP65 14W 830/840 DA2 PCO WH
Halo Outdoors wall/ceiling luminair 8W/9W/12W/14W; 600lm/750lm/1000lm/1100lm; 3000K/4000K; Dim DALI-2; Dim programmable; Dim with push-button; IP65; IK10; Protection cl. I; L70B50 75000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing al; Colour wh; Cover Plastic, opal; C16 max. 80

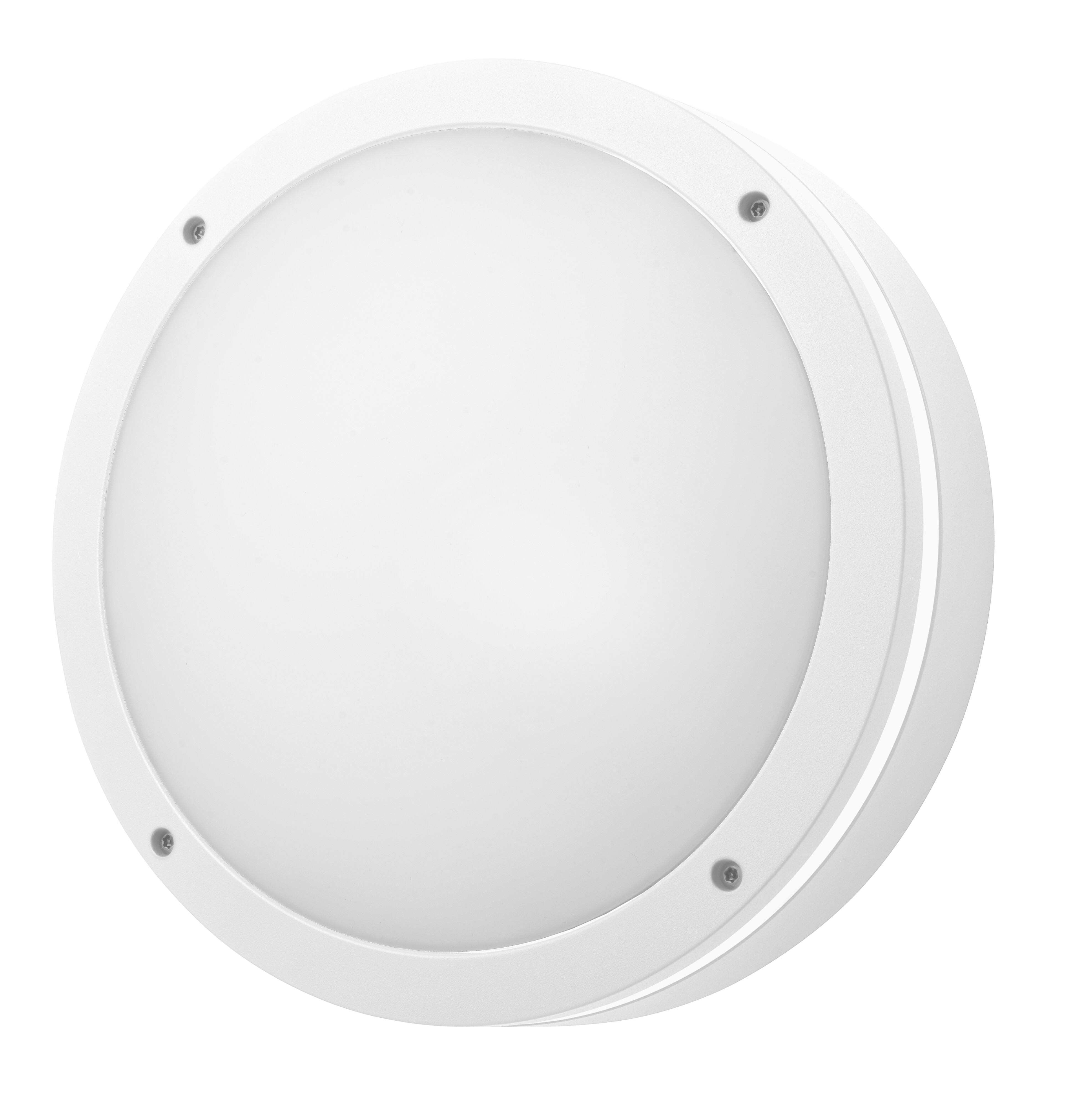

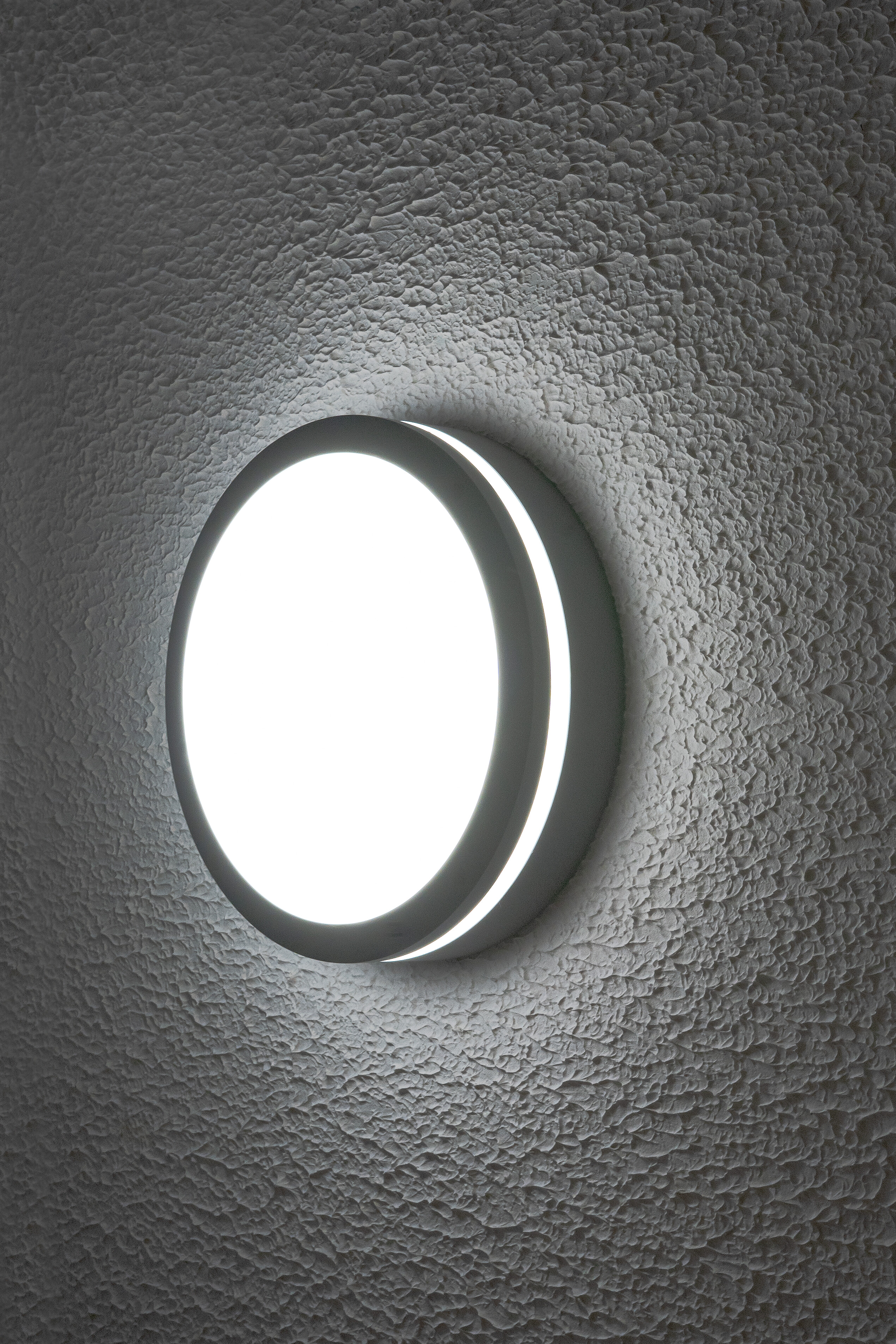

Halo is an elegant and versatile façade luminaire with an adjustable colour temperature. Made of high-quality, UV-protected materials, the luminaire is designed for applications where high impact resistance is required. Die-cast aluminium housing and polycarbonate diffuser. The luminaire’s applications include the outdoor spaces and façades of residential properties. In addition to the colour temperature, the lumen output can be selected; four options are available. Both settings are selected in conjunction with installation. The luminaire is easy to install and offers a polished appearance, thanks to its inconspicuous screw fixtures. As an eye-catching design feature, the luminaire has a ring that provides illumination to the sides and creates an interesting lighting effect on the wall surface, giving your outdoor lighting solution a new and modern look.
Die-cast aluminium housing and polycarbonate opal diffuser with UV protection.
Grey, RAL 7024 and white, RAL 9016.
Protection class I.
Mounting on a wall or ceiling.
Linkable 3 x 2.5 mm2, Dali-models 5 x 2,5 mm2.
Installation height 2–4 m.
Colour temperature 3,000/4,000 K, adjustable on the luminaire. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65.
IK10.
Integrated LED: 8 W 600 lm / 9 W 750 lm / 12 W 1,000 lm / 14 W 1,100 lm. The efficacy and lumen output can be adjusted on the luminaire.
On/off and Dali-2, with pushbutton control (230V).
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 20 pcs.
The length of the cable between the switch and the luminaire is max. 20 meters.
Ambient temperature range -30 … 25 °C.
Rated lifetime: L70 75,000 h (Ta25°C).
Also available as Casambi model on a project-specific basis.
- Code
- A5HAAC-DA
Downloads
Technical info
- Electrical number (SWE)
- 7706192
- GTIN
- 6435200300638
- Airam code
- A5HAAC-DA
- Code
- A5HAAC-DA
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- With air slots
- No
- Compatible with Google Assistant
- No
- Fit for workplace acc. EN 12464-1
- No
- Luminaire efficacy (max) (lm/W)
- 79
- Light sharing
- Symmetric
- Energy efficiency class of light source according to EU regulation 2019/2015
- C
- Beam angle
- Open beam
- Impact strength
- IK10
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- No dimming function
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 1100
- Effective luminous flux (lm)
- 1100
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Light source included
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1100
- Max. number of luminaires per miniature circuit breaker B16
- 45
- Housing material
- Aluminium

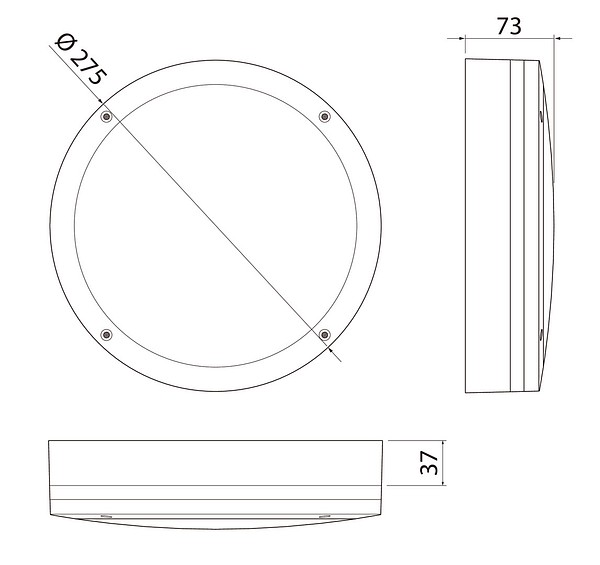

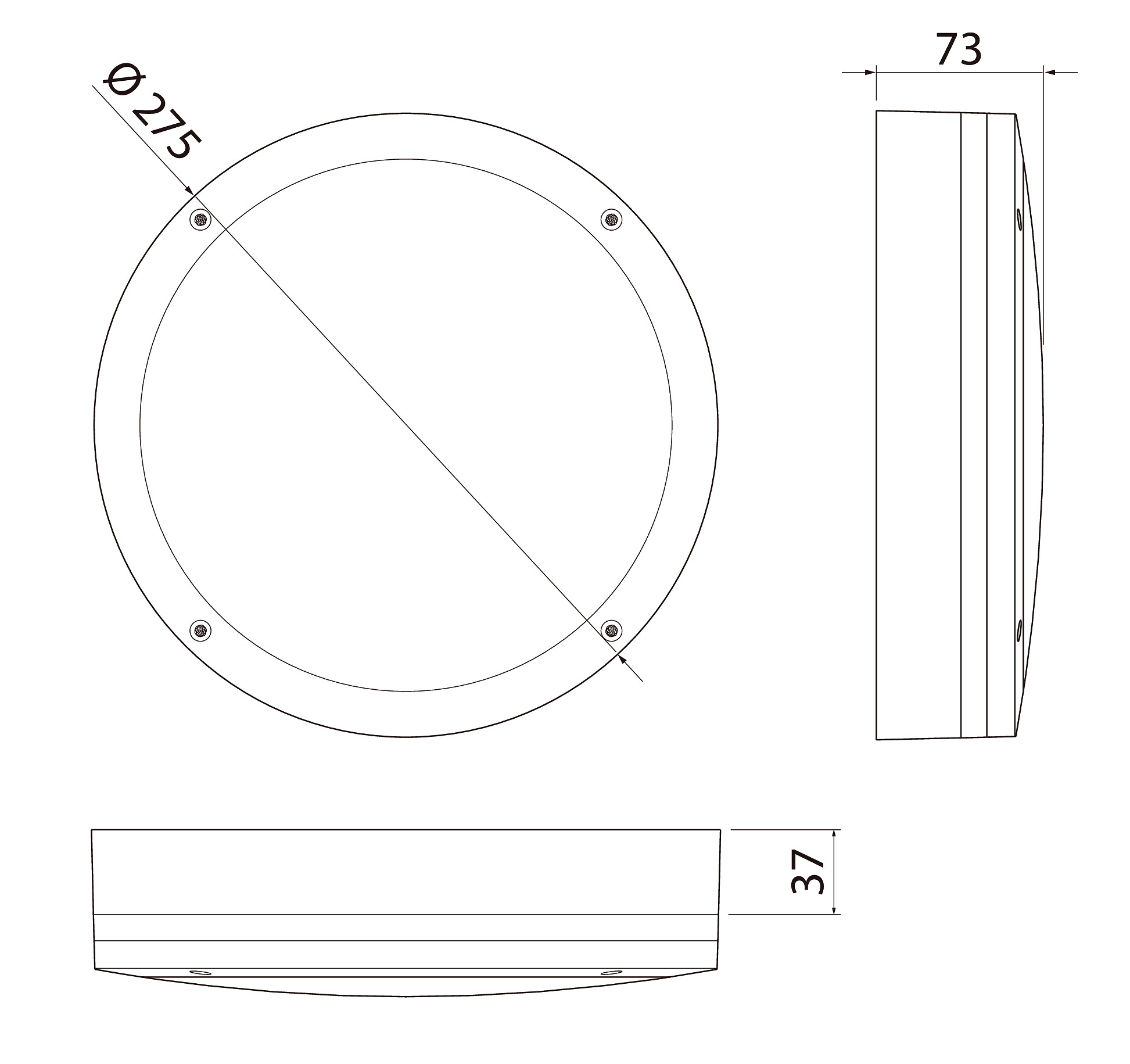

- Width (mm)
- 275
- Suitable for suspended mounting
- No
- Type of grid
- Matt
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Outer diameter (mm)
- 275
- Colour temperature switchable
- Discrete positions
- Dimming DMX
- No
- Compatible with Casambi
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 8
- Dimming programmable
- Yes
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Diffuser lens/optic/panel
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 79
- Dimming 0-10 V
- No
- Total harmonic distortion (THD) (%)
- 20
- Height/depth (mm)
- 75
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 275
- Dimming Touch and Dim
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 850 °C - 30 s
- Suitable for wall mounting
- Yes
- Nominal current (min) (mA)
- 150
- With mounting material
- Yes
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 75000
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming Sine Wave Reduction
- No
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Suitable for recessed mounting
- No
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Max. number of luminaires per miniature circuit breaker C16
- 80
- Rated life time L80/B50 at 25 °C
- 50000
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- With movement sensor
- No
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 85
- Degree of protection (IP), front side
- IP65
- Type of wiring
- Suitable for through wiring
- Dimming with push-button
- Yes
- Emergency power supply system
- None
- Protection class according to IEC 61140
- I
- Degree of protection (IP), rear side
- IP65
- Power factor
- 0.9
- Dimming Zigbee
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 46
- Suitable for clamp-mounting
- Yes
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimming 1-10 V
- No
- Dimmable
- Yes
- Dimming DALI
- Yes
- Cover material
- Plastic, opal
- With switch
- No
- Total harmonic distortion
- 20
- Conductor cross section (mm²)
- 2.5
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -30
- Suitable for lamp power (max) (W)
- 14
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 3000
- Luminaire efficacy (min) (lm/W)
- 79
- Suitable for light line configuration
- No
- Housing colour
- White
- Dimming DALI-2
- Yes
- Number of poles
- 5
- Suitable for emergency lighting
- No
- Dimming manufacturer's proprietary system
- No
- Suitable for number of lamps
- 1
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Housing surface protection
- Powder coating
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 70
- Light outlet
- Direct/indirect
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 550
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 80
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP65
- Maximum system power (W)
- 14
- Lumen setting adjustable
- No
Product versions
Halo
| Item description | Code | |
|---|---|---|
| Halo IP65 14W 830/840 PCO ANT | 4546500 |
|
| Halo IP65 14W 830/840 PCO WH | 4546516 |
Halo Dali
| Item description | Code | |
|---|---|---|
| Halo IP65 14W 830/840 DA2 PCO ANT | A5HAAA-DA |
|
| Halo IP65 14W 830/840 DA2 PCO WH | A5HAAC-DA |
