Halo Eye IP65 14W 830/840 DA2 WH
Halo Eye Outdoors wall/ceiling luminair 7W/8W/12W/14W; 350lm/450lm/650lm/750lm; 3000K/4000K; Dim DALI-2; Dim programmable; Dim with push-button; IP65; IK10; Protection cl. I; L70B50 75000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing al; Colour wh; Cover Plastic, opal; C16 max. 80

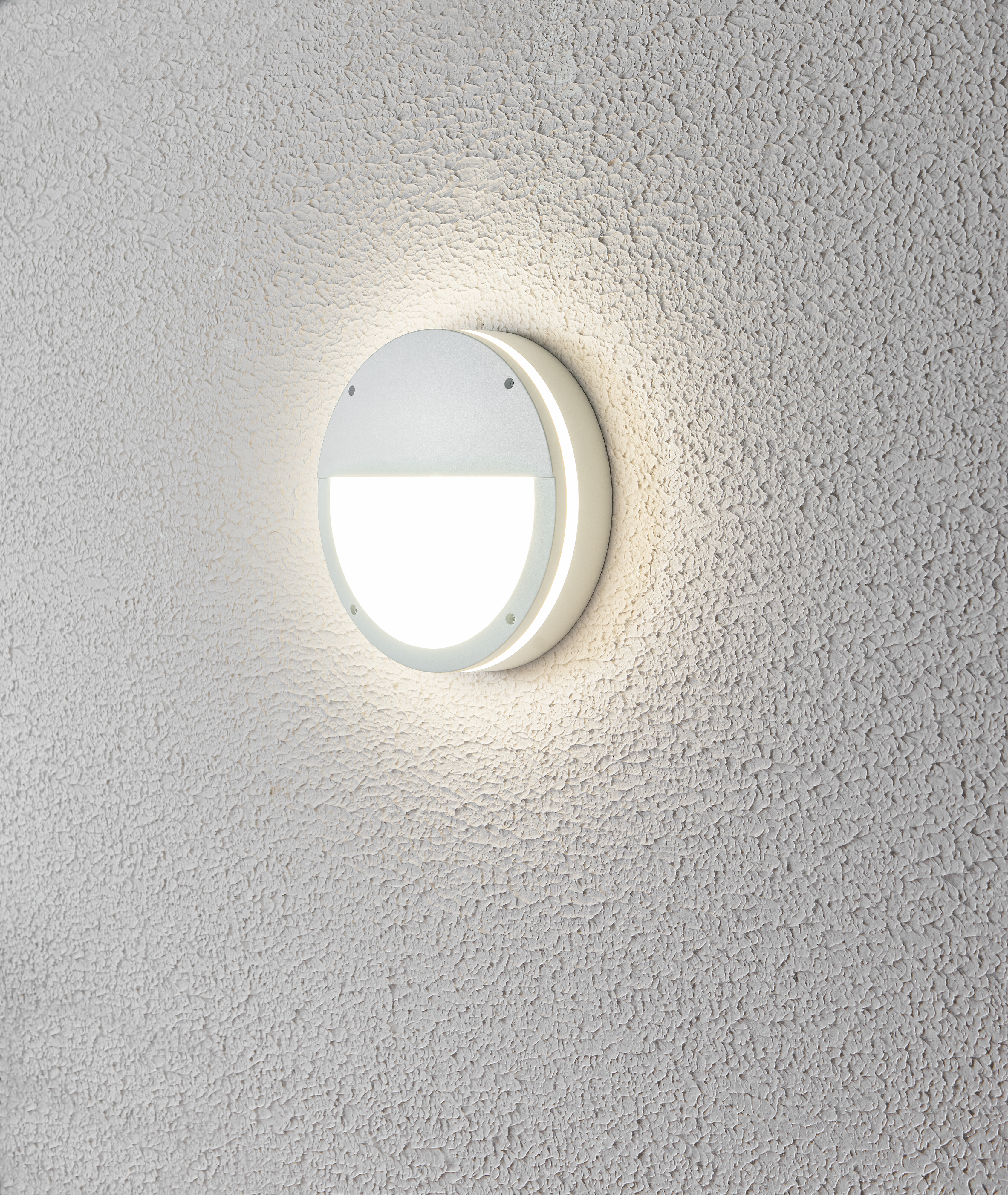

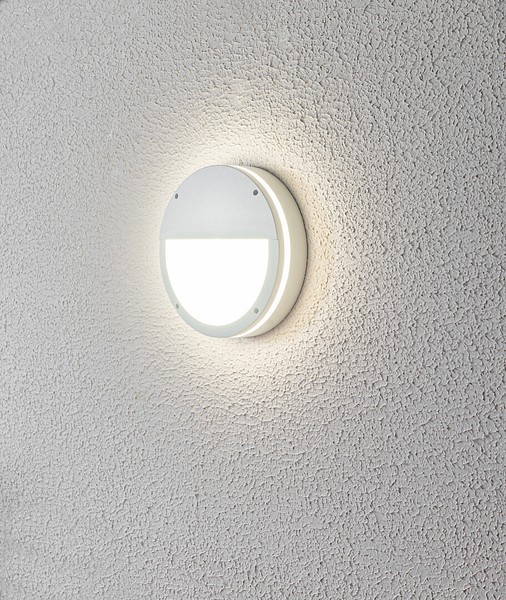

The Halo Eye is an elegant and versatile façade luminaire with an adjustable colour temperature. Made of high-quality, UV-protected materials, the luminaire is designed for applications where high impact resistance is required. Die-cast aluminium housing and polycarbonate diffuser. The luminaire’s applications include the outdoor spaces and façades of residential properties. In addition to the colour temperature, the lumen output can be selected; four options are available. Both settings are selected in conjunction with installation. The luminaire is easy to install and offers a polished appearance, thanks to its inconspicuous screw fixtures. As an eye-catching design feature, the luminaire has a ring that provides illumination to the sides and creates an interesting lighting effect on the wall surface, giving your outdoor lighting solution a new and modern look. The Halo Eye’s diffuser is equipped with a lid that directs its light downwards.
Die-cast aluminium housing and polycarbonate opal diffuser with UV protection.
Grey, RAL 7024 and white, RAL 9016.
Protection class I.
Mounting on a wall or ceiling.
Linkable, 3 x 2.5 mm2, Dali-models 5 x 2,5 mm2.
Installation height 2–4 m.
Colour temperature: 3,000/4,000 K, adjustable on the luminaire. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65.
IK10.
Integrated LED: 7 W 350 lm / 8 W 450 lm / 12 W 650 lm / 14 W 750 lm. The efficacy and lumen output can be adjusted on the luminaire.
On/off and Dali-2, with pushbutton control (230V).
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 20 pcs.
The length of the cable between the switch and the luminaire is max. 20 meters.
Ambient temperature range -30 … 25 °C.
Rated lifetime: L70 75,000 h (Ta25°C).
Also available as Casambi model on a project-specific basis.
- Code
- A5HAAD-DA
Downloads
Technical info
- Electrical number (SWE)
- 7706193
- GTIN
- 6435200300652
- Airam code
- A5HAAD-DA
- Code
- A5HAAD-DA
- Length (mm)
- 275
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 54
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- Yes
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- No
- Number of poles
- 5
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 75000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- With light sensor
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 14
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 750
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- Yes
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 80
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- Other
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 70
- Filament test according to IEC 60695-2-11
- 850 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 85
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -30
- Effective luminous flux (lm)
- 750
- Rated life time L80/B50 at 25 °C
- 50000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK10
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 46
- Width (mm)
- 275
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 54
- Dimming with push-button
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- C
- Outer diameter (mm)
- 275
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 150
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct/indirect
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 7
- No dimming function
- No
- Degree of protection (IP), front side
- IP65
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 80
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- Matt
- Light distributor
- Diffuser lens/optic/panel
- Total harmonic distortion (THD) (%)
- 20
- Suitable for light line configuration
- No
- Dimming DALI-2
- Yes
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- No
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP65
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 750
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 14
- Protection class according to IEC 61140
- I
- Dimming DALI
- Yes
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 54
- Voltage type
- AC
- Colour temperature switchable
- Discrete positions
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 75
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- No
- Suitable for wall mounting
- Yes
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 550
- Cover material
- Plastic, opal
- Max. number of luminaires per miniature circuit breaker B16
- 45
Product versions
Halo Eye
| Item description | Code | |
|---|---|---|
| Halo Eye IP65 14W 830/840 PCO ANT | 4546501 |
|
| Halo Eye IP65 14W 830/840 PCO WH | 4546517 |
Halo Eye Dali
| Item description | Code | |
|---|---|---|
| Halo Eye IP65 14W 830/840 DA2 ANT | A5HAAB-DA |
|
| Halo Eye IP65 14W 830/840 DA2 WH | A5HAAD-DA |
