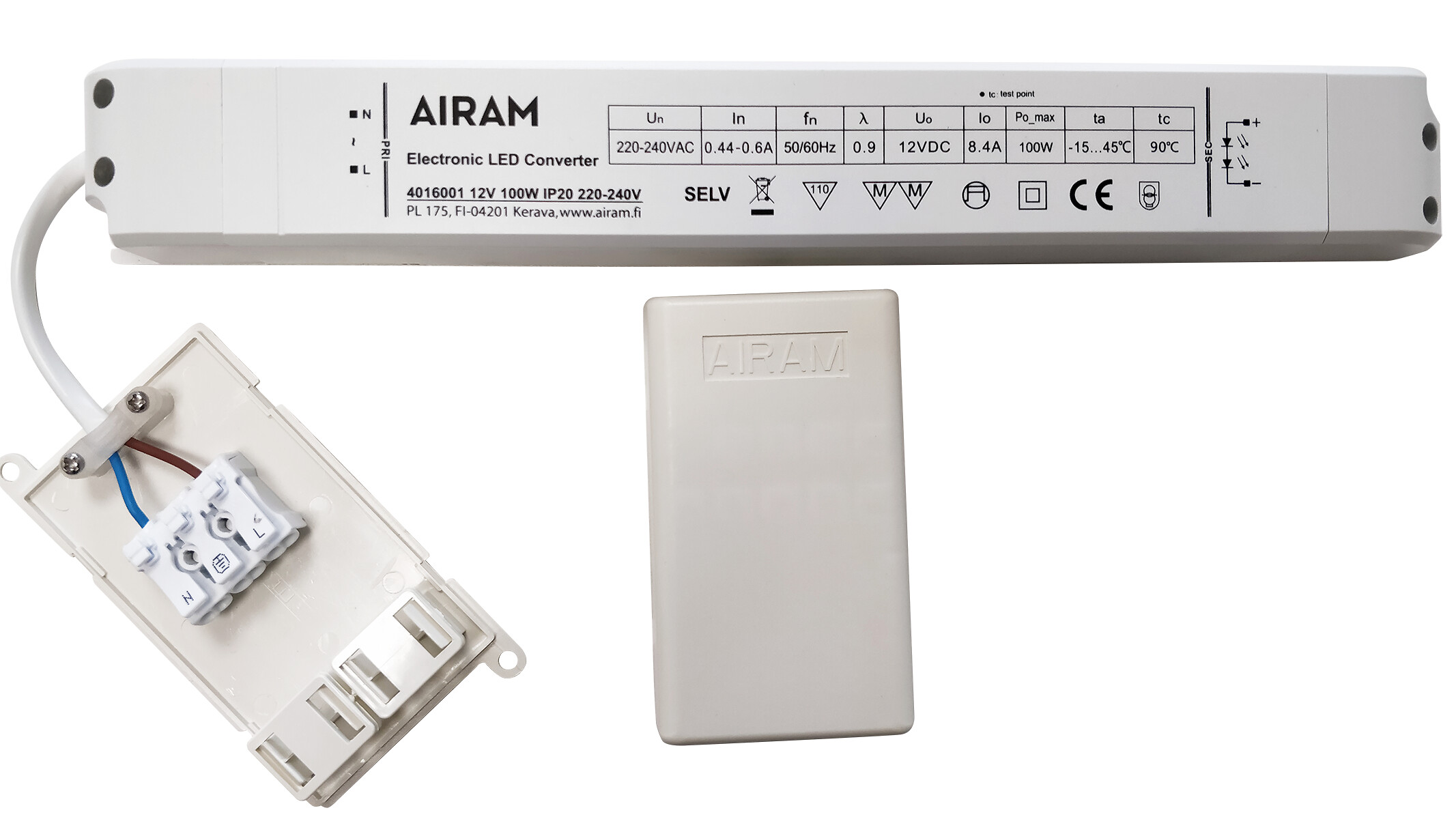

CV-DRIVER 12V 100W IP20 220-240V

Structure

Model

Static

Housing

Plastic housing

Emergency power supply system

None

Dimming and control

Dimmable

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming D4i

No

Dimming DALI

No

Dimming DALI-2

No

Dimming DMX

No

Dimming DSI

No

Dimming LineSwitch

No

Dimming mains voltage modulation

No

Dimming manufacturer's proprietary system

No

Dimming trailing edge

No

Dimming leading edge

No

Dimming potentiometer (integrated)

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming with push-button

No

Dimming Zigbee

No

No dimming function

Yes

Constant luminous flux control

No

Bluetooth operated

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Compatible with Casambi

No

IFTTT support available

No

Mounting

Suitable for outdoor use

No

Degree of protection (IP)

IP20

Electrotechnical data

Suitable for constant current

No

Suitable for constant voltage

Yes

Output voltage (min) (V)

12 V

Output voltage (max) (V)

12 V

Output current (min) (mA)

8400 mA

Output current (max) (mA)

8400 mA

Suitable for DC-voltage (primary side)

No

Output power (min) (W)

1 W

Output power (max) (W)

100 W

Input voltage (min) (V)

220 V

Input voltage (max) (V)

240 V

Power consumption (W)

10 W

Frequency input voltage (min) (Hz)

50 Hz

Frequency input voltage (max) (Hz)

60 Hz

Protection class according to IEC 61140

II

Lifetime and capacity

Ambient temperature (min) (°C)

0 °C

Ambient temperature (max) (°C)

25 °C

Driver lifetime (h)

50000 Hz

Measurements

Length (mm)

290 mm

Width (mm)

40 mm

Height (mm)

30 mm
