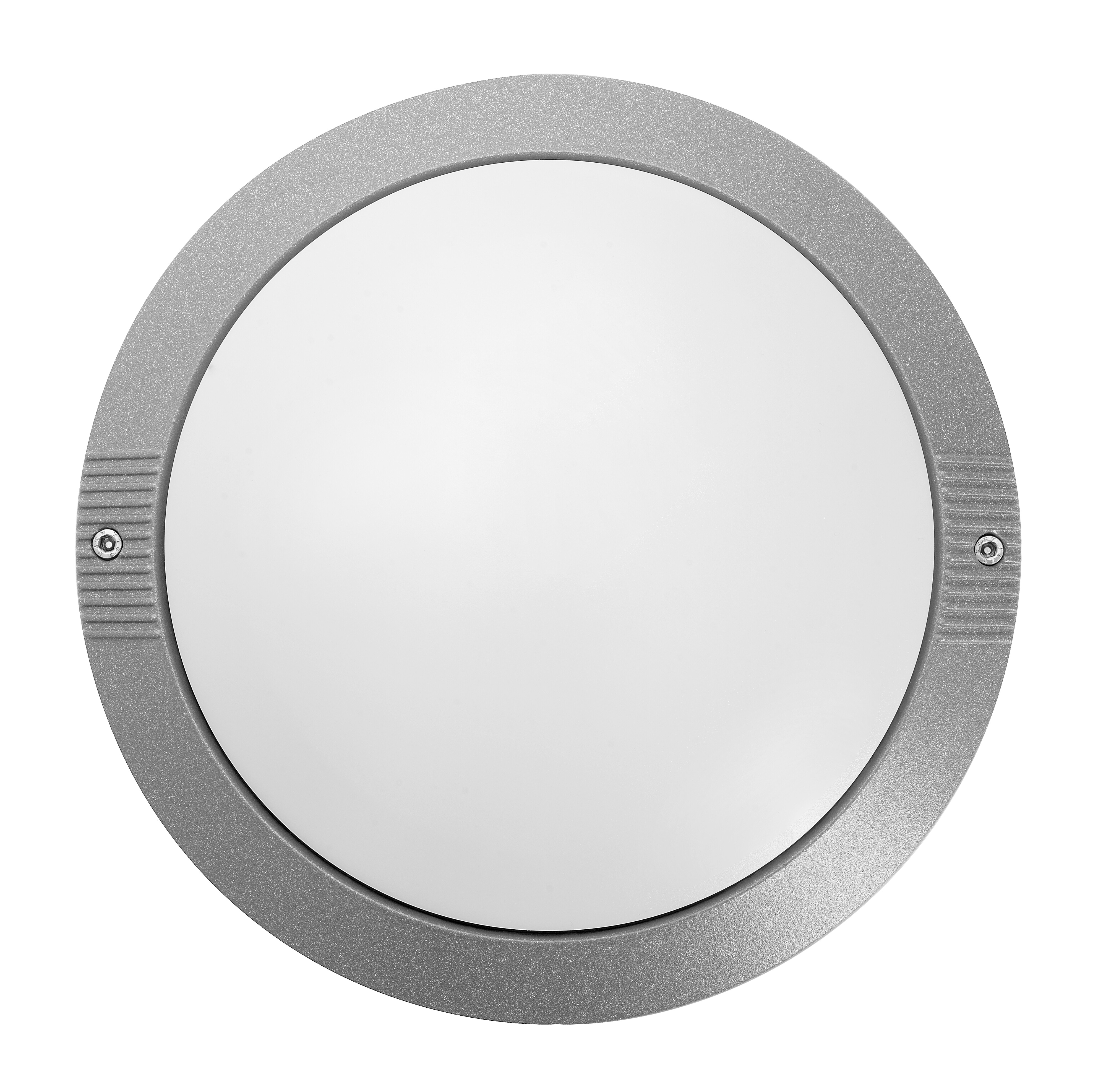

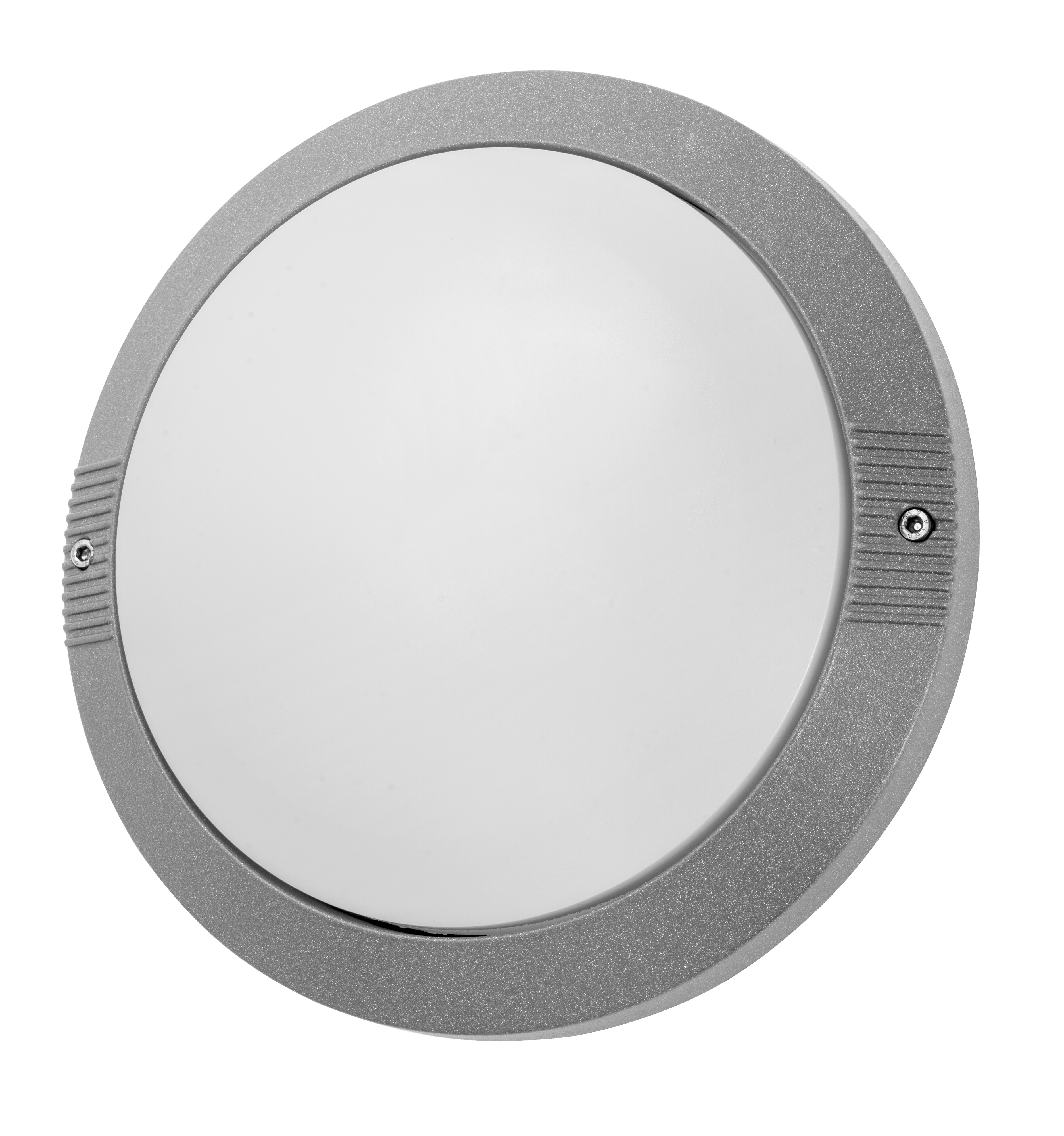

Circle IP65 E27 PCO IK07 SI
Circle Outdoors wall luminaire No dim; IP65; IK07; Protection cl. I; LED exchangeable; Suitable for through wiring; 3x1.5mm²; Housing al; Colour sil; Cover Plastic, opal
Circle is a durable and reliable wall luminaire for outdoor use, made of high-quality materials. The housing is made of die-cast aluminium, and it has a surface finish made with polyester paint that is resistant to corrosion and UV radiation. The opal diffuser also has UV protection. With its clean-lined design, the wall luminaire is suitable for installation on building facades, and in staircases and storage areas. Choose from variety of E27 lamps (max 11W) to suit your liking.
Die-cast aluminium housing and polycarbonate opal diffuser with UV protection. Surface finishing is made with corrosion-resistant polyester paint.
Anthracite RAL 7016 and black RAL 9005.
Protection class I.
Mounting on a wall.
Linkable, 3 x 1.5 mm2.
IP65.
IK07.
On/off.
Ambient temperature range -25 … 25 °C, in line with the recommendations for the lamp.
A60 LED lamp max. 11 W E27, not included.
Colour options black, white and silver, and a glass diffuser (IK03) are available on request.
- Code
- A5CIRD
Downloads
Technical info
- GTIN
- 6435200278623
- Airam code
- A5CIRD
- Code
- A5CIRD

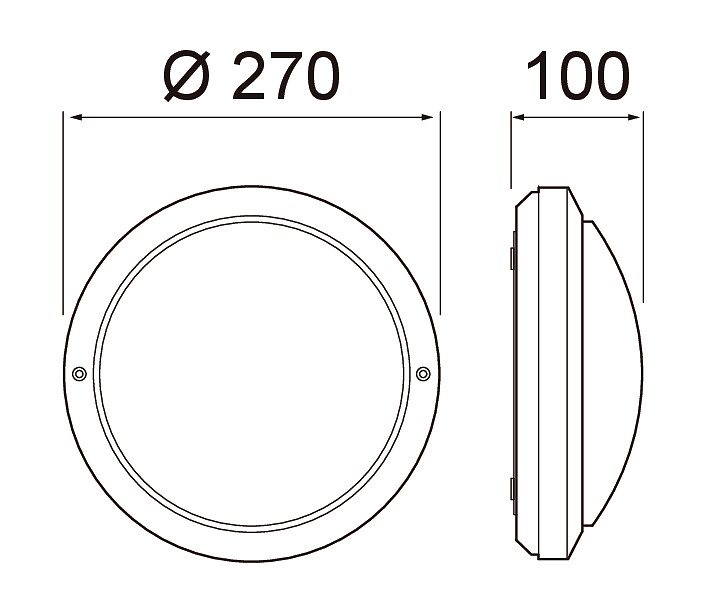

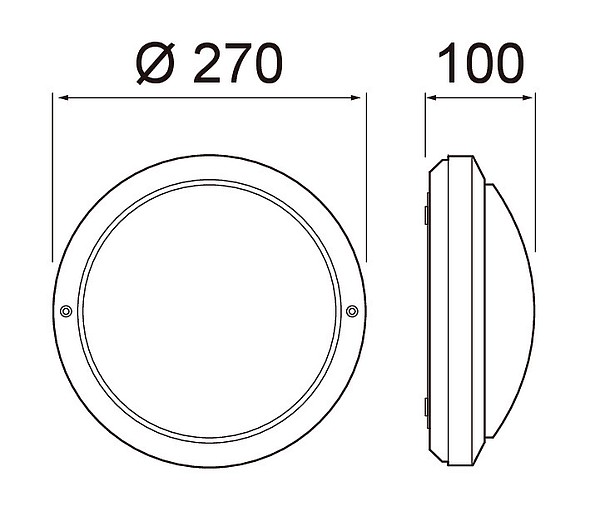

- Length (mm)
- 270
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Lamp holder
- E27
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Dimming leading edge
- No
- Number of poles
- 3
- Connectable conductor cross section (min) (mm²)
- 1.5
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 1.5
- Conductor cross section (mm²)
- 1.5
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- No
- Suitable for emergency lighting
- No
- With light sensor
- No
- With presence indicator
- No
- Emergency power supply system
- None
- Suitable for ceiling mounting
- Yes
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- Silver
- Emergency power supply integrated
- No
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- Other
- Filament test according to IEC 60695-2-11
- 850 °C - 30 s
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- No
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -25
- IFTTT support available
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK07
- Width (mm)
- 270
- Suitable for surface mounting
- Yes
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- Outer diameter (mm)
- 270
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Dimming DSI
- No
- Light outlet
- Direct
- No dimming function
- Yes
- Degree of protection (IP), front side
- IP65
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- No
- Lamp type
- LED exchangeable
- Type of grid
- White
- Light distributor
- Diffuser lens/optic/panel
- Luminaire may be covered with thermally insulating material
- -
- Suitable for light line configuration
- No
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- No
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- Not required
- Degree of protection (IP)
- IP65
- Beam angle
- Open beam
- Lumen setting adjustable
- No
- Protection class according to IEC 61140
- I
- Dimming DALI
- No
- Light sharing
- Symmetric
- Voltage type
- AC
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 100
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Dimming trailing edge
- No
- Suitable for wall mounting
- Yes
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Cover material
- Plastic, opal
Product versions
| Item description | Code | |
|---|---|---|
| Circle IP65 E27 PCO IK07 ANT | 4546511 |
|
| Circle IP65 E27 PCO IK07 WH | A5CIRB |
|
| Circle IP65 E27 PCO IK07 BK | A5CIRC |
|
| Circle IP65 E27 PCO IK07 SI | A5CIRD |
