Alppila
Residential spaces, outdoor

Alppila

Alppila IP44 GU10 RST

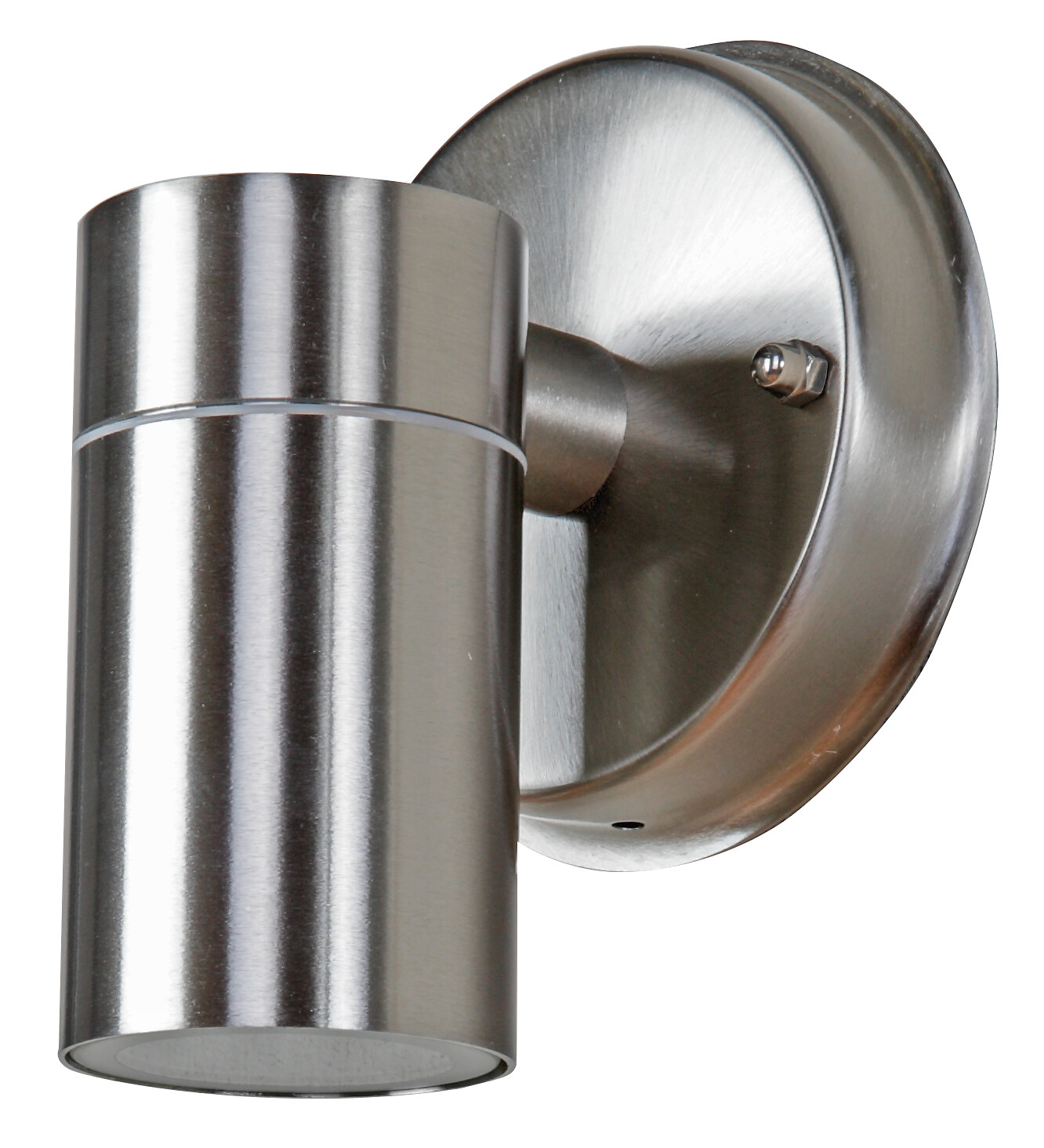

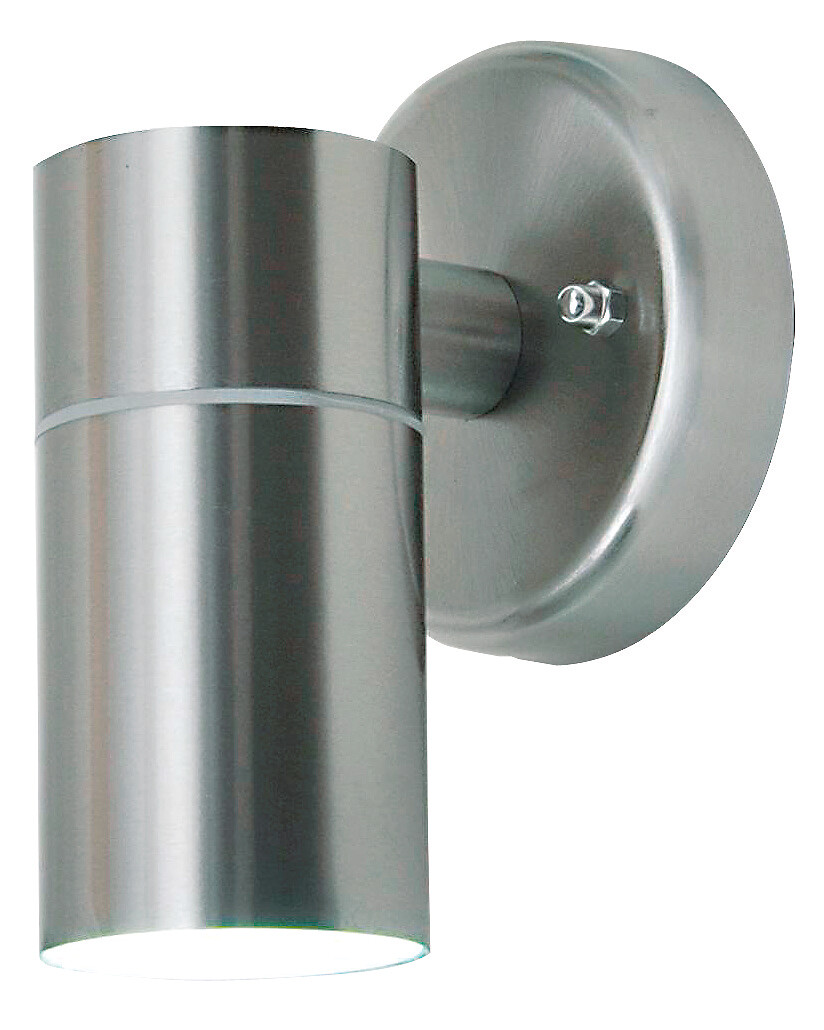

Alppila Outdoors wall luminaire No dim; IP44; IK03; Protection cl. I; LED exchangeable; Ending; 3x2.5mm²; Housing st; Colour st; Cover Glass transparent

See product details
Code
4107269

Technical info

Mounting

Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for clamp-mounting
No
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP)
IP44
Degree of protection (IP), rear side
IP44
Degree of protection (IP), front side
IP44
Impact strength
IK03
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
No
Suitable for emergency lighting
No
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
2.5 mm²
Connection type
Screwed terminal

Structure

With mounting material
Yes
Lamp type
LED exchangeable
Light source included
No
Suitable for number of lamps
1
Lamp holder
GU10
Housing material
Stainless steel
Housing surface protection
Untreated
Housing colour
Stainless steel
Cover material
Glass transparent
Type of grid
None
Control gear included
No
Exchangeable control gear
No
Energy efficiency class of light source according to EU regulation 2019/2015
Not required
Emergency power supply integrated
No
With switch
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Type of control gear
Not required
Protection class according to IEC 61140
I
Suitable for lamp power (min) (W)
1 W
Suitable for lamp power (max) (W)
7 W

Dimming and control

Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With movement sensor
No
With light sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

Photometric data

Light distributor
None
Light sharing
Symmetric
Light outlet
Direct
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No

Lifetime and capacity

Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-20 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25 °C

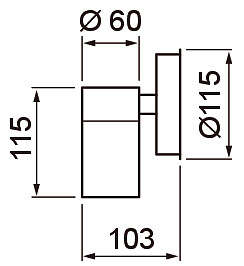

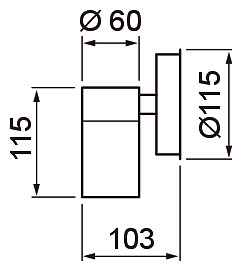

Measurements

Width (mm)
60 mm
Height/depth (mm)
115 mm
Length (mm)
60 mm
Outer diameter (mm)
60 mm
