Olympos IP65 25W/840 PCC ANT H700
Olympos Bollard luminaire 25W 4000K 1000lm IP65; IK07; Protection cl. I; LED not exchangeable; CRI>80; Ending; 3x1mm²; Housing al; Colour ant; Cover Plastic, transparent; C16 max. 85

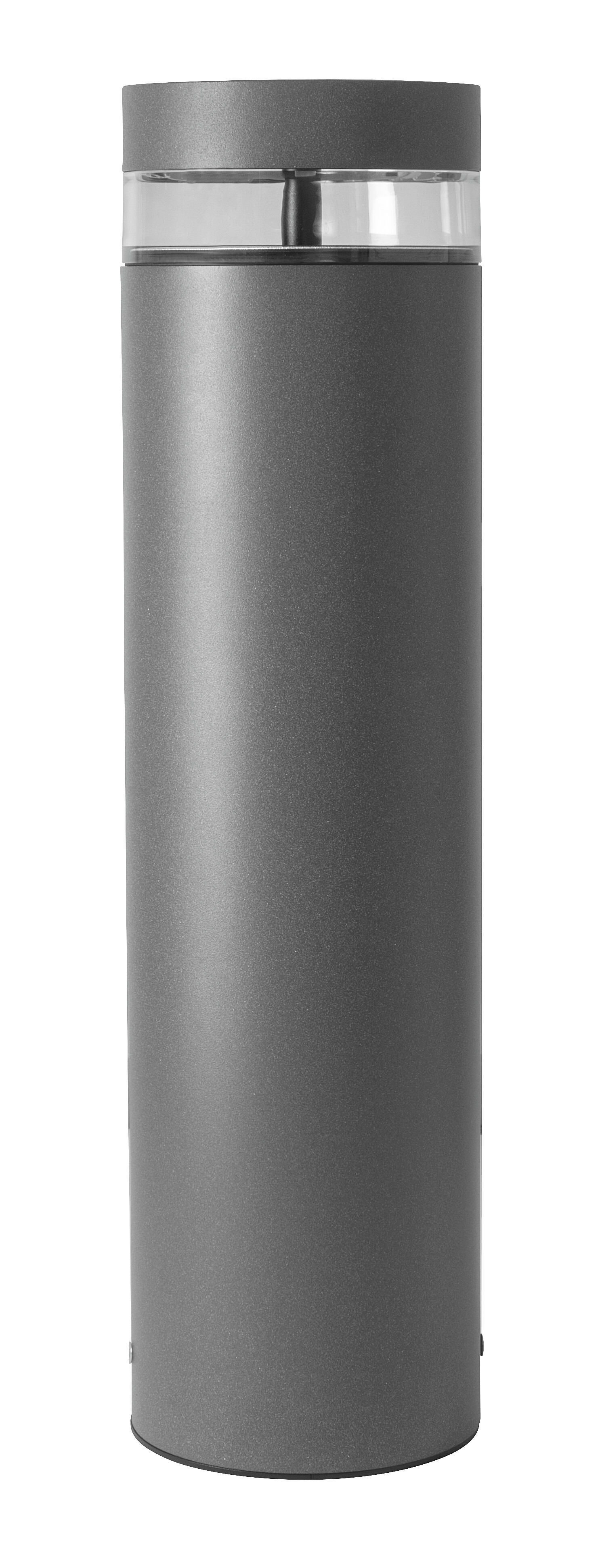

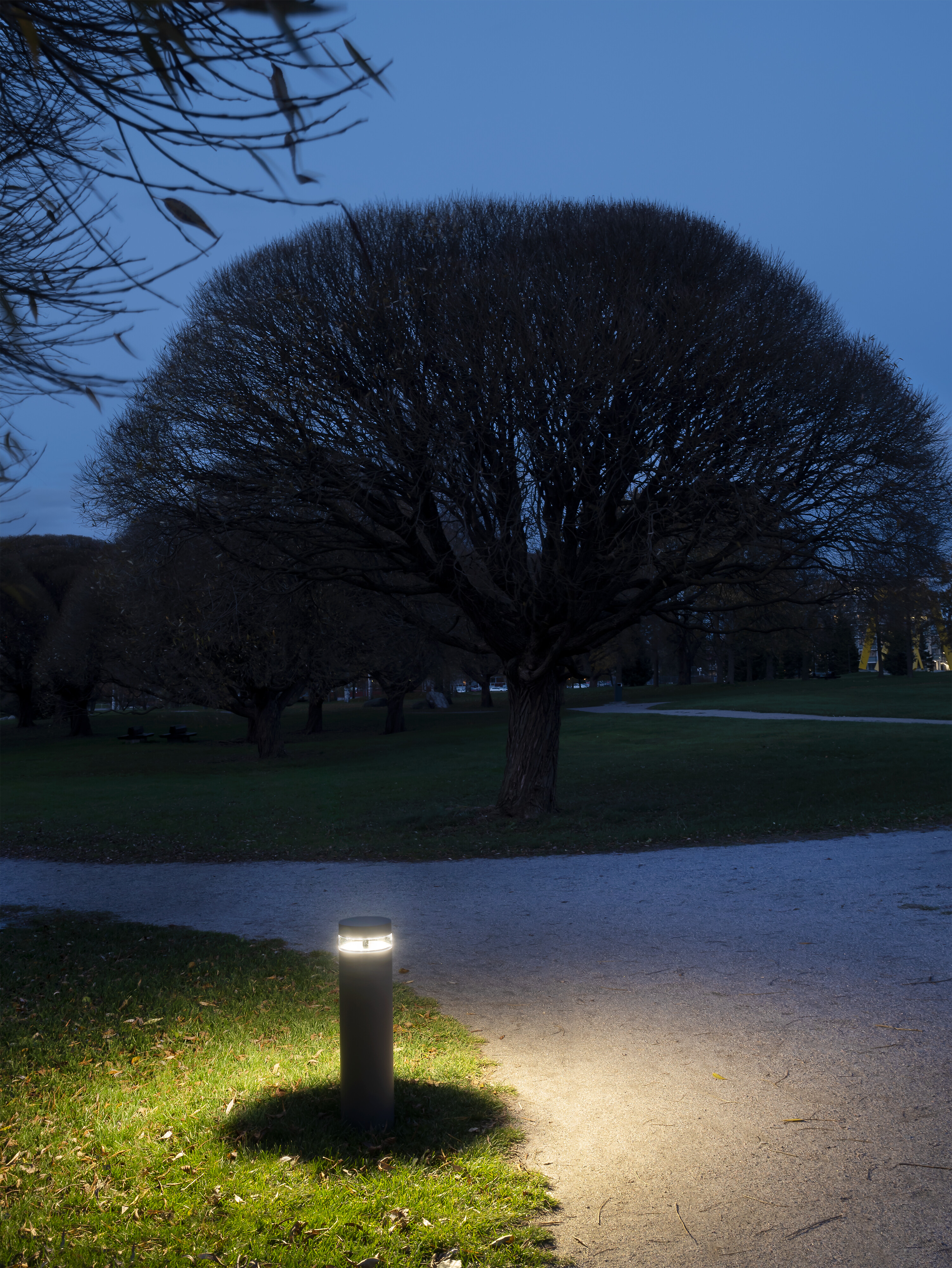

Olympos is a high-quality bollard luminaire for outdoor areas, parks and pathways. The luminaire has a solid structure and high-quality materials, such as an aluminium housing and UV-protected finishing. With its clean-lined design, the luminaire is suitable for many types of environments. The luminaire distributes light evenly in all directions, and comes with several mounting options that facilitate installation in any location. Olympos is available in three sizes.
The housing is made of extruded aluminium, with the top made of cast aluminium. The diffuser is made of clear UV-protected polycarbonate.
Black RAL 9005 and anthracite.
Protection class I.
Installation: 1. Bolt fastening directly to a concrete slab. 2. On concrete casting using a mounting stand or a pry bar (4546510) that must be bought separately. 3. Using ground support MTS-2N 4146704 together with ground support P (4107104), or 4. Ground support MTS-2N 4146704 with a 60 mm concrete base on soft ground.
Connection in a separate junction box 3 x 1.0 mm2, not linkable.
Linkable using separate mini junction box 1602606.
Fixed LED: 25 W / 1,000 lm and 40 W / 1,400 lm.
Colour temperature of the fixed LED: 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65.
IK07.
Ambient temperature range –20 … 25 °C
Rated lifetime L70 100,000 h (Ta25°C).
Power source lifespan 100,000 h.
AN = anthracite, BK = black.
Available with the Casambi control system on a project-specific basis. Available by special order in 3000 K colour temperature and with silver colour (RAL 9006).
- Code
- 4546506
Technical info
Structure
- Lamp type
- LED not exchangeable
- Light source included
- Yes
- Suitable for number of lamps
- 1
- Lamp holder
- Other
- Housing colour
- Anthracite
- Cover material
- Plastic, transparent
- Control gear included
- Yes
- Exchangeable control gear
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- Containing product according to 2019/2020/EU
- Yes
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- LED operating device current-controlled
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 25 W
- Suitable for lamp power (max) (W)
- 25 W
- Maximum system power (W)
- 25 W
- Luminaire efficacy (lm/W)
- 40 lm/W
- Power factor
- 0.9
Photometric data
- Light distributor
- Focal lens
- Light sharing
- Symmetric
- Light outlet
- Direct
- Effective luminous flux (lm)
- 1000 lm
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1000 lm
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 1000 lm
- Colour of light (alphanumeric)
- White
- Colour temperature (min) (K)
- 4000 K
- Colour temperature (max) (K)
- 4000 K
- Colour rendering index (CRI/Ra)
- 80-89
- Colour temperature switchable
- No
- Lumen setting adjustable
- No
- Beam angle adjustable
- No
- Flickering value Pst LM
- 1
- Stroboscope effect value SVM
- 0.4
Dimming and control
- With movement sensor
- No
- With light sensor
- No
- Constant luminous flux control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- IFTTT support available
- No
Lifetime and capacity
- Rated life time L70/B50 at 25 °C (h)
- 100000 h
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 95 %
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5 %

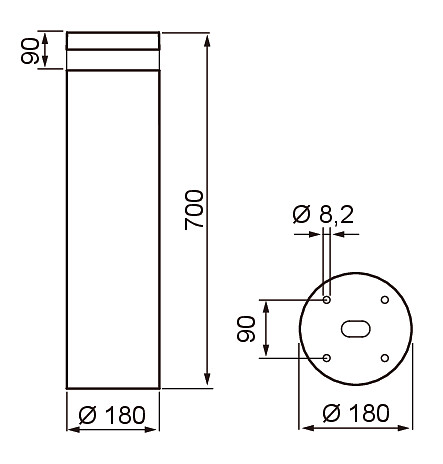

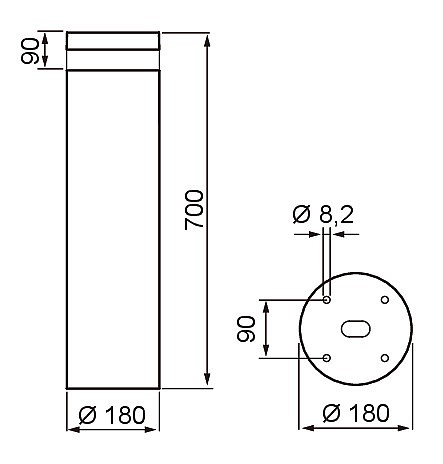

Measurements
- Width (mm)
- 180 mm
- Height/depth (mm)
- 700 mm
- Length (mm)
- 180 mm
- Diameter (mm)
- 180 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Olympos H400 | |||||||||
|
Olympos IP65 25W/840 PCC ANT H400 | 4546504 |
4546504 |
4000K |
1000lm |
25W |
180x180x400mm |
||
|
Olympos IP65 40W/840 PCC ANT H400 | 4546505 |
4546505 |
4000K |
1400lm |
40W |
180x180x400mm |
||
|
Olympos IP65 25W/840 PCC BK H400 | A5OLYH |
4000K |
1000lm |
25W |
180x180x400mm |
|||
|
Olympos IP65 40W/840 PCC BK H400 | A5OLYI |
4000K |
1400lm |
40W |
180x180x400mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Olympos H700 | |||||||||
|
Olympos IP65 25W/840 PCC ANT H700 | 4546506 |
4546506 |
4000K |
1000lm |
25W |
180x180x700mm |
||
|
Olympos IP65 40W/840 PCC ANT H700 | 4546507 |
4546507 |
4000K |
1400lm |
40W |
180x180x700mm |
||
|
Olympos IP65 25W/840 PCC BK H700 | A5OLYJ |
4000K |
1000lm |
25W |
180x180x700mm |
|||
|
Olympos IP65 40W/840 PCC BK H700 | A5OLYK |
4000K |
1400lm |
40W |
180x180x700mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Olympos H1040 | |||||||||
|
Olympos IP65 25W/840 PCC ANT H1040 | 4546508 |
4546508 |
4000K |
1000lm |
25W |
180x180x1040mm |
||
|
Olympos IP65 40W/840 PCC ANT H1040 | 4546509 |
4546509 |
4000K |
1400lm |
40W |
180x180x1040mm |
||
|
Olympos IP65 25W/840 PCC BK H1040 | A5OLYL |
4000K |
1000lm |
25W |
180x180x1040mm |
|||
|
Olympos IP65 40W/840 PCC BK H1040 | A5OLYM |
4000K |
1400lm |
40W |
180x180x1040mm |
|||
- Electrical number (FIN)
- 4546506
- Electrical number (SWE)
- 7748775
- GTIN
- 6435200278067
- Airam code
- A5OLYC
- Code
- 4546506
