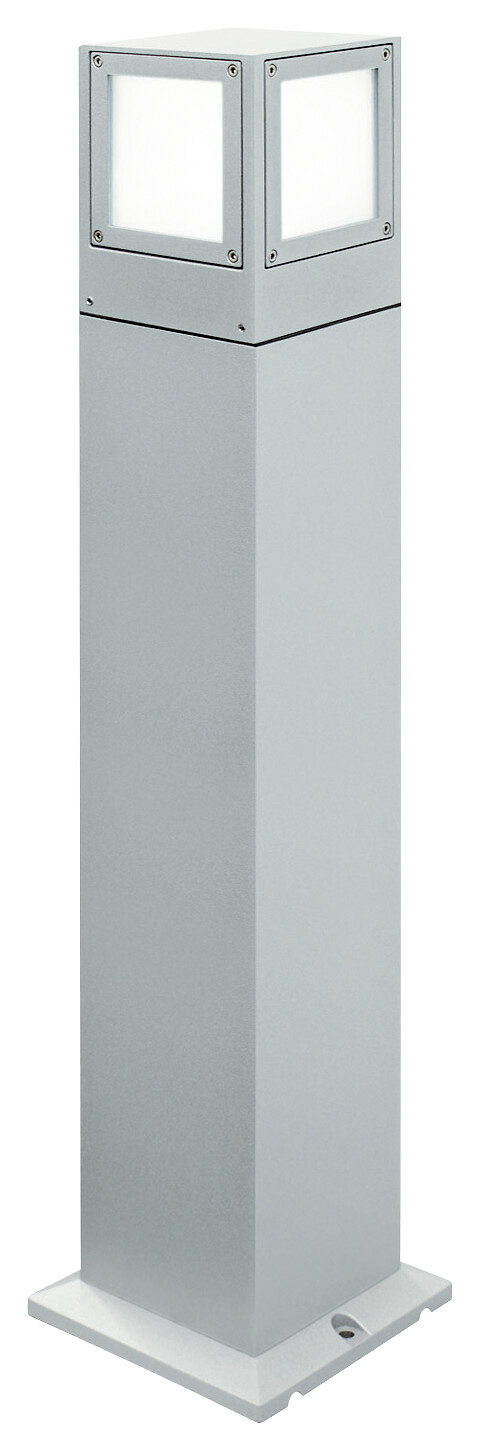

DM4 Stelo
Stylistically, this bollard luminaire for outdoor use is an excellent match with the wall-mounted DM4 luminaires. The DM4 Stelo bollard luminaire reflects light in four directions. Available with an integrated LED and an E27 base. High-quality surface treatment: the aluminium housing is coated with polyester paint that is resistant to corrosion and UV radiation, the screws are made of stainless steel. Installation with a separate mounting base (ground mounting tube MTS-2N 4146704).
Aluminium housing and frosted glass diffuser (GLFR).
Anthracite, silver, black and white.
Protection class I.
Screw couplers, 3 x 2.5 mm2, one cable inlet.
Linkable using separate mini junction box 1602606.
Fixed LED: 18 W / 800 lm
Fixed LED colour temperatures: 3,000 K and 4,000 K. CRI > 80 / Ra > 80.
In E27 models LED lamp max. 11 W, not included.
Recommended lamps: Airam Frost LED lamps.
MacAdam 3 SDCM.
IP65.
IK05.
On/off.
Ambient temperature range -25 … 25 °C, in line with the recommendations for the lamp on E27 base models.
Rated lifetime L70 100,000 h (Ta 25 °C).
Power source lifespan 100,000 h.
AN = anthracite, SI = silver, BK = black, WH = white, GL = glass, FR = frosted diffuser.
300 and 500 mm-high models available on a project-specific basis. A cover sheet that can be used to cover one or more of the luminaire’s four openings is available as an accessory. A root mounting kit is also an available accessory.
Downloads
Product versions
DM4 Stelo 830
| Item description | Code | |
|---|---|---|
| DM4 Stelo IP65 18W/830 GLFR AN H800 | 4509934 |
|
| DM4 Stelo IP65 18W/830 GLFR SI H800 | 4509933 |
|
| DM4 Stelo IP65 18W/830 GLFR BK H800 | 4509931 |
|
| DM4 Stelo IP65 18W/830 GLFR WH H800 | 4509929 |
DM4 Stelo 840
| Item description | Code | |
|---|---|---|
| DM4 Stelo IP65 18W/840 GLFR AN H800 | 4509938 |
|
| DM4 Stelo IP65 18W/840 GLFR SI H800 | 4509937 |
|
| DM4 Stelo IP65 18W/840 GLFR BK H800 | 4509936 |
|
| DM4 Stelo IP65 18W/840 GLFR WH H800 | 4509935 |
DM4 Stelo E27
| Item description | Code | |
|---|---|---|
| DM4 Stelo IP65 E27 GLFR AN H800 | 4509942 |
|
| DM4 Stelo IP65 E27 GLFR SI H800 | 4509941 |
|
| DM4 Stelo IP65 E27 GLFR BK H800 | 4509940 |
|
| DM4 Stelo IP65 E27 GLFR WH H800 | 4509939 |
