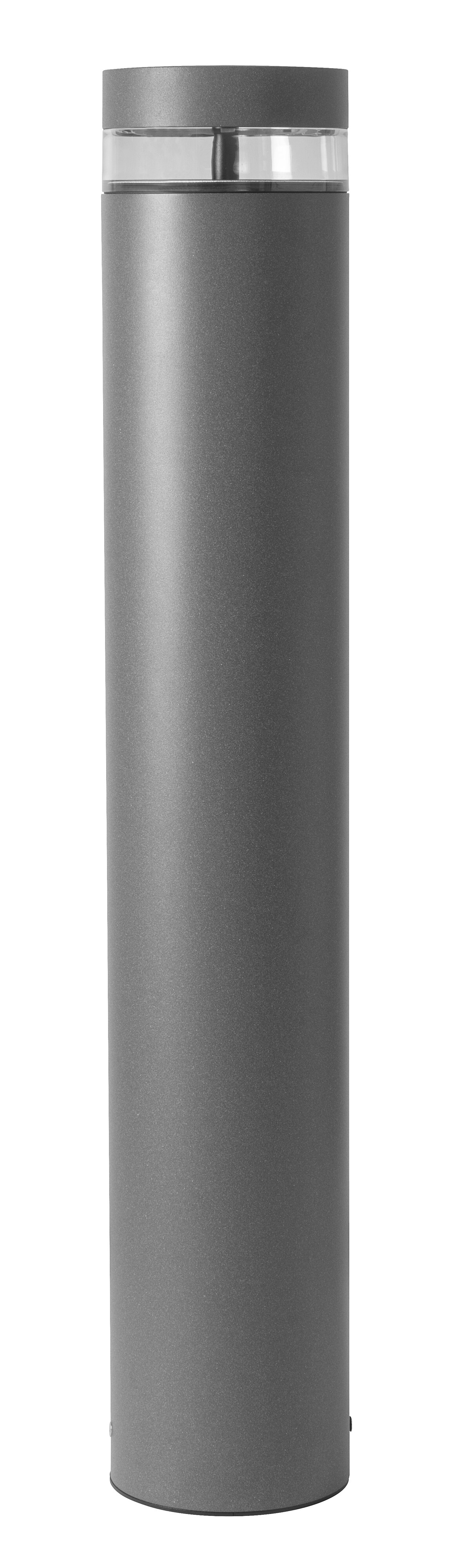

Olympos IP65 25W/840 PCC ANT H1040

Olympos is a high-quality bollard luminaire for outdoor areas, parks and pathways. The luminaire has a solid structure and high-quality materials, such as an aluminium housing and UV-protected finishing. With its clean-lined design, the luminaire is suitable for many types of environments. The luminaire distributes light evenly in all directions, and comes with several mounting options that facilitate installation in any location. Olympos is available in three sizes.

The housing is made of extruded aluminium, with the top made of cast aluminium. The diffuser is made of clear UV-protected polycarbonate.
Black RAL 9005 and anthracite.
Protection class I.
Installation: 1. Bolt fastening directly to a concrete slab. 2. On concrete casting using a mounting stand or a pry bar (4546510) that must be bought separately. 3. Using ground support MTS-2N 4146704 together with ground support P (4107104), or 4. Ground support MTS-2N 4146704 with a 60 mm concrete base on soft ground.
Connection in a separate junction box 3 x 1.0 mm2, not linkable.
Linkable using separate mini junction box 1602606.
Fixed LED: 25 W / 1,000 lm and 40 W / 1,400 lm.
Colour temperature of the fixed LED: 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65.
IK07.
Ambient temperature range –20 … 25 °C
Rated lifetime L70 100,000 h (Ta25°C).
Power source lifespan 100,000 h.
AN = anthracite, BK = black.

Available with the Casambi control system on a project-specific basis. Available by special order in 3000 K colour temperature and with silver colour (RAL 9006).
