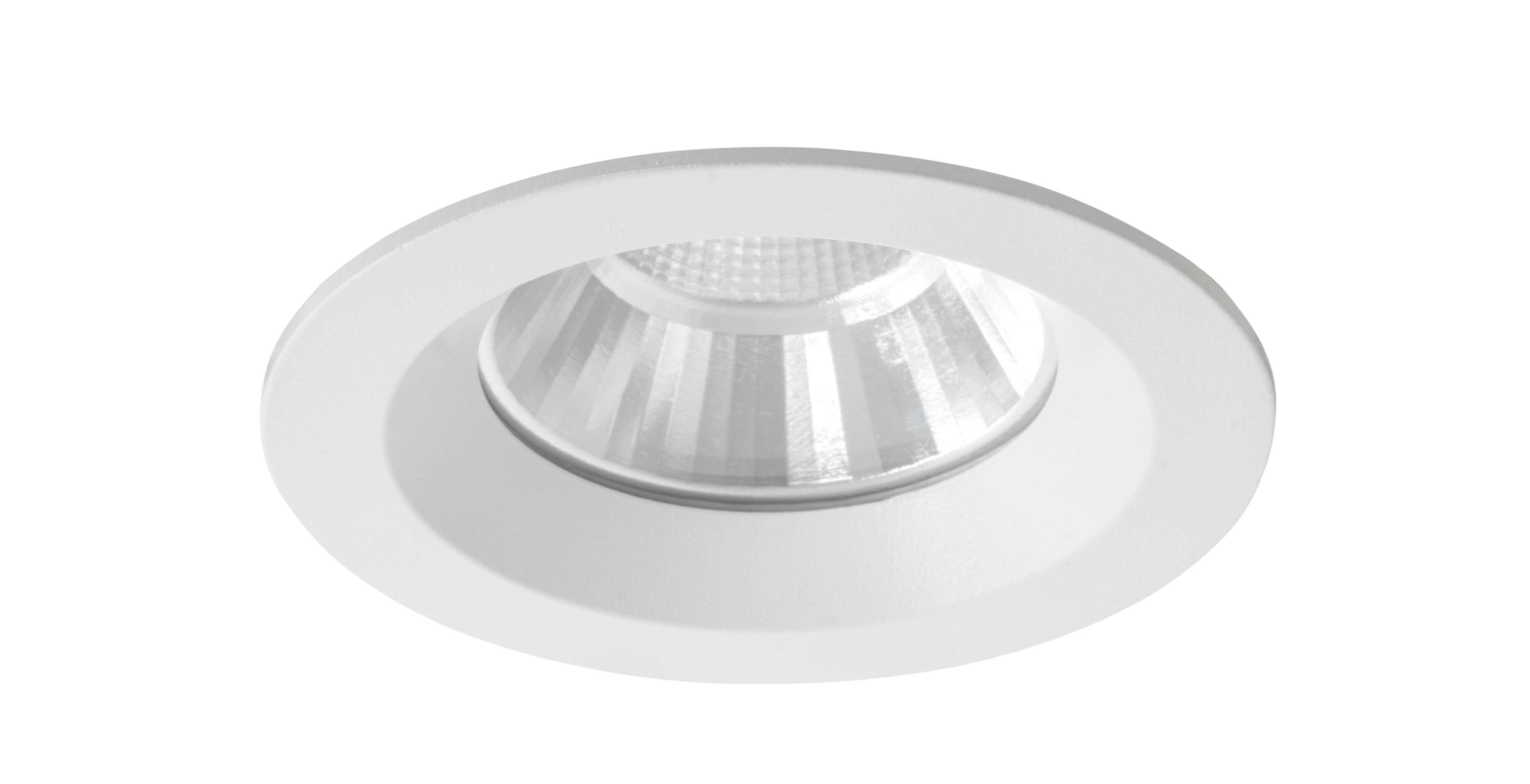

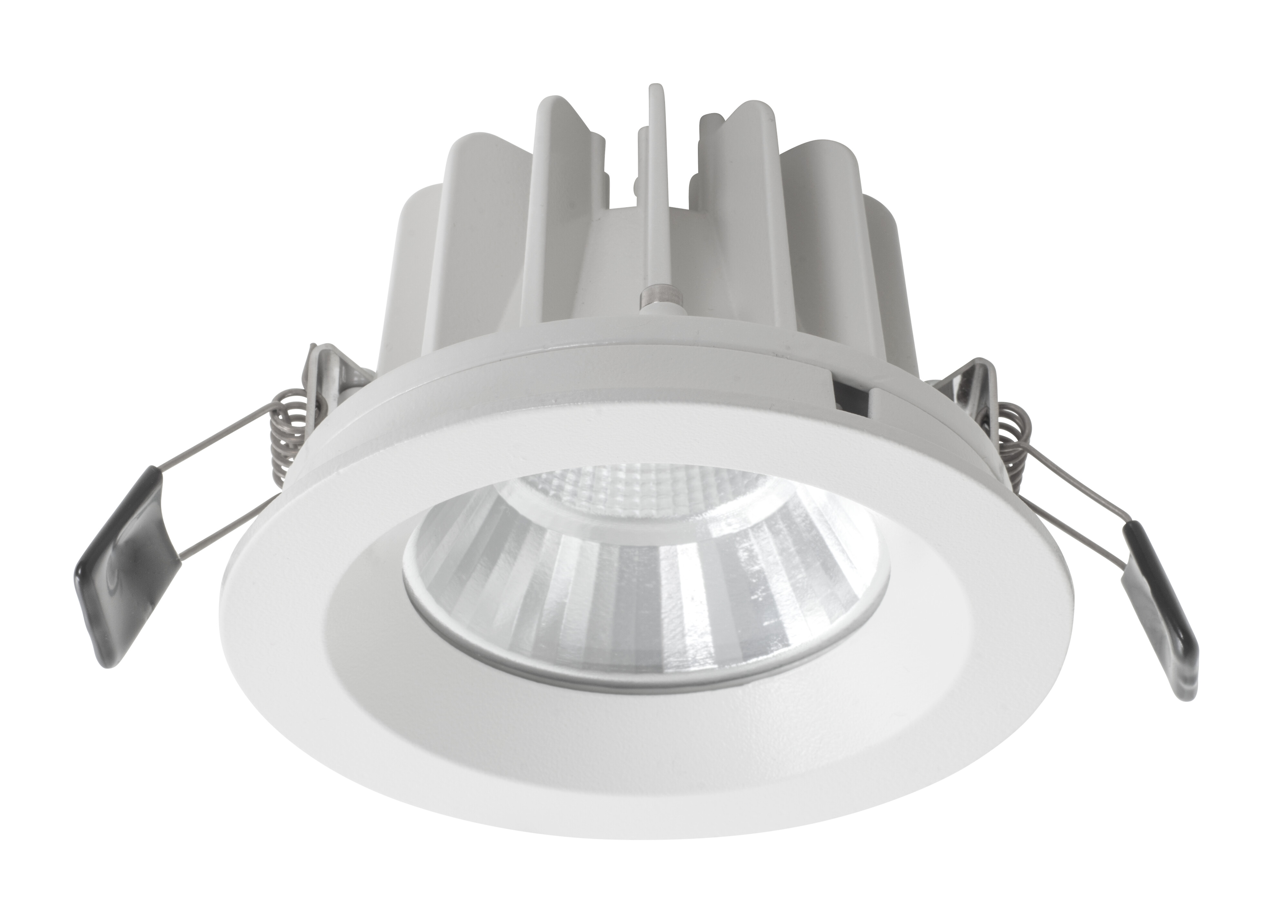

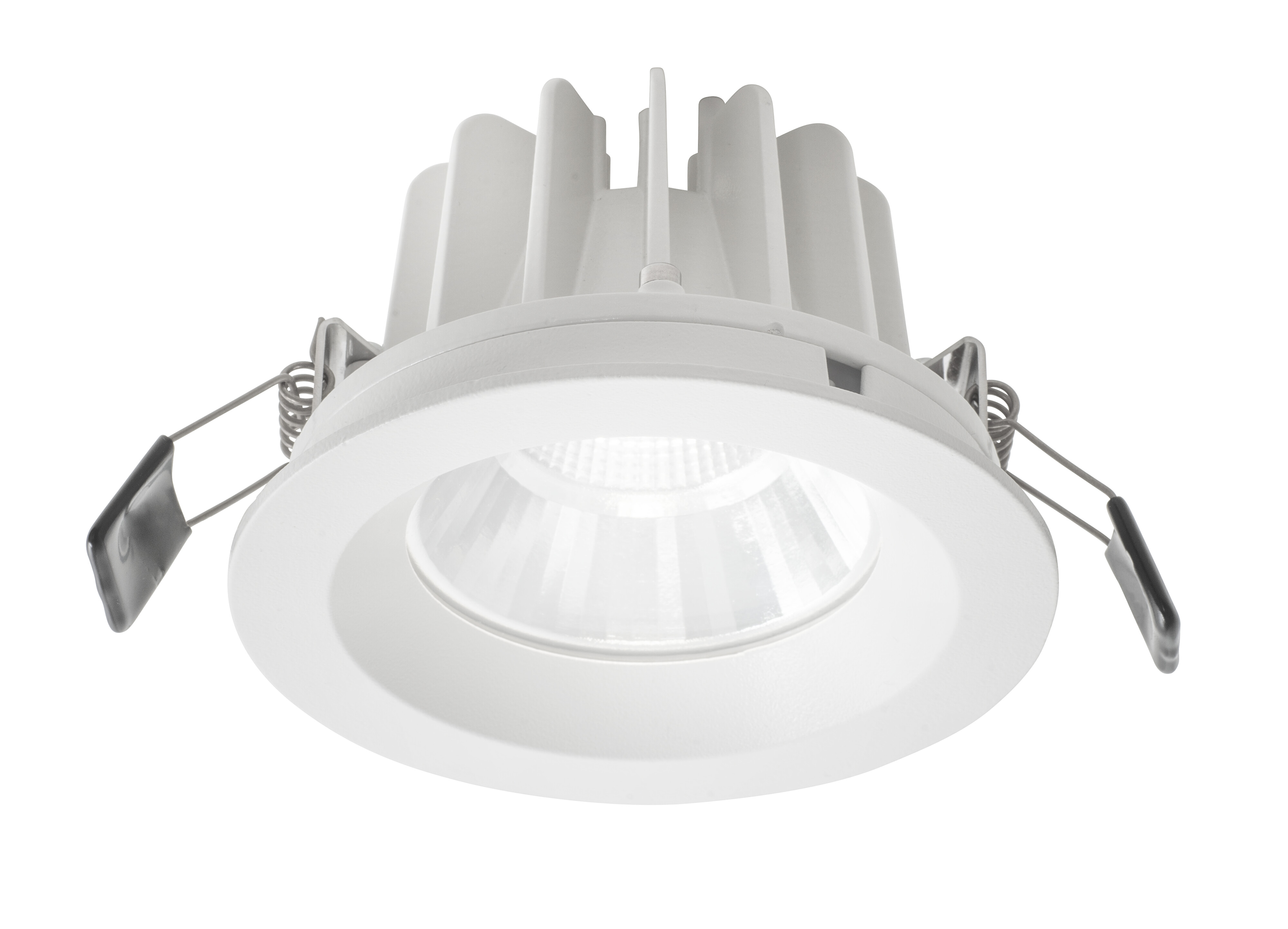

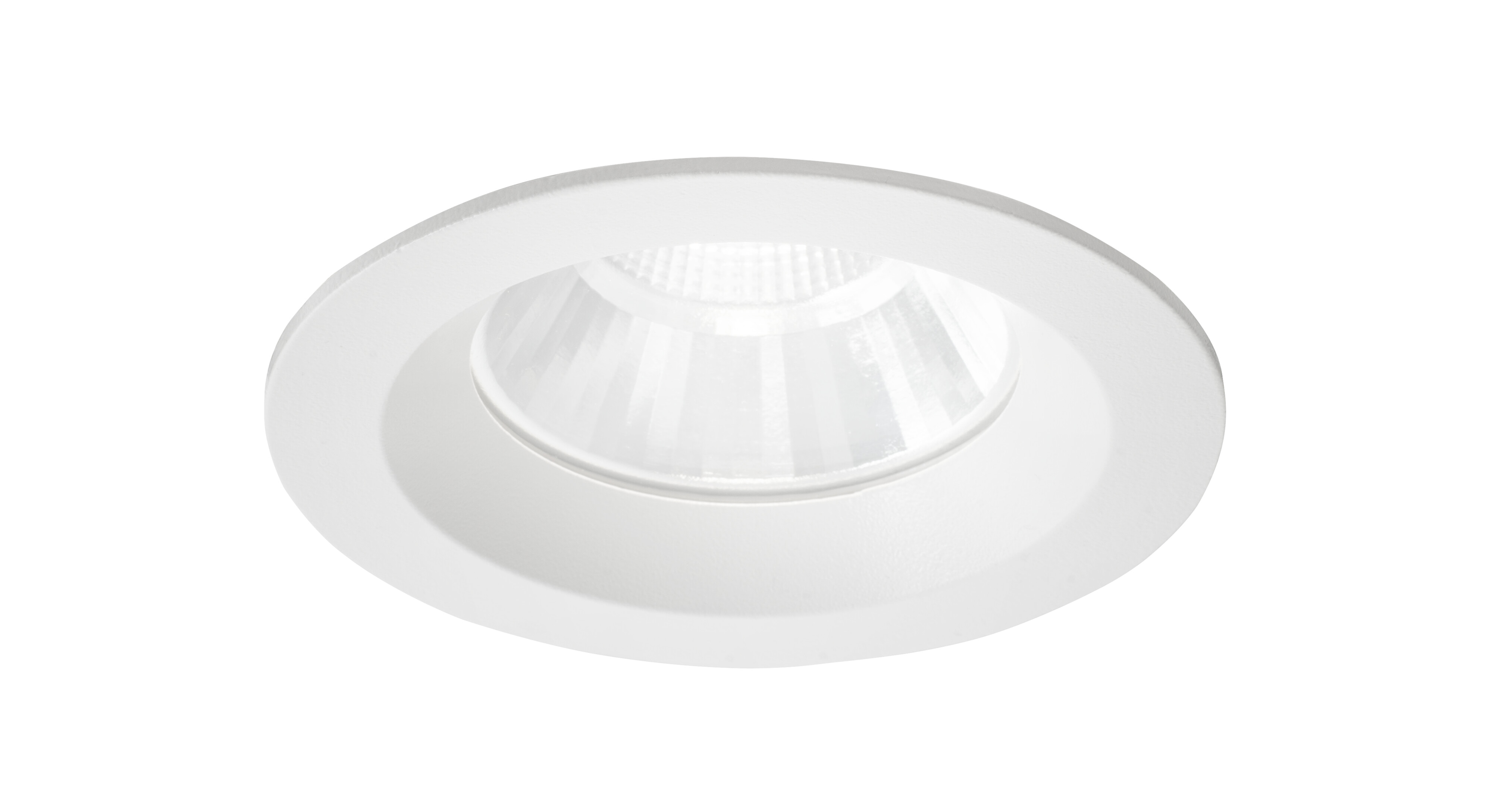

Drop 180 IP65 26W/840 70D GLC WH
Drop Downlight 26W 4000K 3600lm Beam angle Wide beam 40-80°; No dim; IP65; IK05; Protection cl. III; LED not exchangeable; CRI>80; SDCM3; Ending; 3x1.5mm²; Housing al; Colour wh; Cover Glass clear; C16 max. 8
Drop is a downlight range with full IP65 classification. The luminaires are made of durable, high-quality materials with UV and corrosion protection, which make them suitable for outdoor and indoor use in public spaces. With its IP classification, Drop is suitable for installation on overhangs and other external building surfaces. Choose the most suitable model for your space from three optional sizes and output levels, and two colour options.
Aluminium housing and hardened glass diffuser.
Satin-matt bevelled aluminium reflector. 20 W 50 D, 26 W 70 D and 39 W 70 D.
White RAL 9003, silver RAL 9006, and anthracite.
Protection class III
Recessed mounting on a ceiling.
Connection in a separate box.
Installation height 2–6 m
Fixed LED: 20 W 2,500 lm, 26 W 3,600 lm or 39 W 5,000 lm.
Colour temperature: 4000. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65/IP65.
IK05.
On/off.
Ambient temperature range: -25 … 25 °C
Rated lifetime L80 100 000 h. (Ta25°C).
Also available in 3000 K colour temperature, in black (RAL9005), and with the Dali system (IP21).
- Code
- 4146597
Downloads
Technical info
- Electrical number (FIN)
- 4146597
- Electrical number (SWE)
- 7474951
- GTIN
- 6435200278425
- Airam code
- A1DROC
- Code
- 4146597
- Suitable for pedestal/floor mounting
- No
- Compatible with Apple HomeKit
- No
- Recess diameter (max) (mm)
- 165
- Beam angle adjustable
- No
- Reflector colour
- Silver
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1
- Compatible with Google Assistant
- No
- Fit for workplace acc. EN 12464-1
- No
- Luminaire efficacy (max) (lm/W)
- 138
- Light sharing
- Symmetric
- Energy efficiency class of light source according to EU regulation 2019/2015
- C
- Beam angle
- Wide beam 40-80°
- Impact strength
- IK05
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- No dimming function
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 3600
- Effective luminous flux (lm)
- 3600
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 3600
- Light source included
- Yes
- Luminous flux (min) (lm)
- 3600
- Housing material
- Aluminium
- Width (mm)
- 180
- Suitable for suspended mounting
- No
- Max. number of luminaires per miniature circuit breaker B16
- 5
- Luminaire may be covered with thermally insulating material
- No
- Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
- 80
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Outer diameter (mm)
- 180
- Colour temperature switchable
- No
- Dimming DMX
- No
- Compatible with Casambi
- No
- Surface protection
- Powder coating
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 26
- Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
- 10
- Dimming programmable
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Reflector
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 138
- Dimming 0-10 V
- No
- Total harmonic distortion (THD) (%)
- 10
- Height/depth (mm)
- 96
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 180
- Dimming Touch and Dim
- No
- Adjustability
- Not adjustable
- Photobiological safety according to EN 62471
- RG1
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- No
- Suitable for low voltage cable system
- No
- Built-in height/depth (mm)
- 145
- Nominal current (min) (mA)
- 700
- Suitable for surface mounting
- No
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Built-in width (mm)
- 165
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Suitable for recessed mounting
- Yes
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Reflector
- Matt
- Max. number of luminaires per miniature circuit breaker C16
- 8
- Rated life time L80/B50 at 25 °C
- 100000
- Recess diameter (min) (mm)
- 157
- Surface brushed
- No
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Suitable for traverse mounting
- No
- Suitable for light-track mounting
- No
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Degree of protection (IP), front side
- IP65
- Type of wiring
- Ending
- With movement sensor
- No
- Dimming with push-button
- No
- Built-in length (mm)
- 165
- Emergency power supply system
- None
- Protection class according to IEC 61140
- III
- Degree of protection (IP), rear side
- Other
- Power factor
- 0.9
- Dimming Zigbee
- No
- Suitable for clamp-mounting
- No
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimming 1-10 V
- No
- Dimmable
- No
- Dimming DALI
- No
- Cover material
- Glass transparent
- Total harmonic distortion
- 10
- Conductor cross section (mm²)
- 1
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -25
- Luminous flux (max) (lm)
- 3600
- Suitable for lamp power (max) (W)
- 26
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 4000
- Luminaire efficacy (min) (lm/W)
- 138
- Housing colour
- White
- Dimming DALI-2
- No
- Number of poles
- 3
- Dimming manufacturer's proprietary system
- No
- Suitable for number of lamps
- 1
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Light outlet
- Direct
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 700
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP65
- Maximum system power (W)
- 26
- Lumen setting adjustable
- No
Product versions
Drop 140
| Item description | Code | |
|---|---|---|
| Drop 140 IP65 20W/840 50D GLC WH | 4107133 |
|
| Drop 140 IP65 20W/840 50D GLC SI | 4146596 |
|
| Drop 140 IP65 20W/840 50D GLC BK | A1DROG |
Drop 180
| Item description | Code | |
|---|---|---|
| Drop 180 IP65 26W/840 70D GLC WH | 4146597 |
|
| Drop 180 IP65 26W/840 70D GLC SI | 4146598 |
|
| Drop 180 IP65 26W/840 70D GLC BK | A1DROH |
Drop 230
| Item description | Code | |
|---|---|---|
| Drop 230 IP65 39W/840 70D GLC WH | 4146599 |
|
| Drop 230 IP65 39W/840 70D GLC SI | 4146600 |
|
| Drop 230 IP65 39W/840 70D GLC BK | A1DROI |
