Drop

Drop 140 IP65 20W/840 50D GLC SI

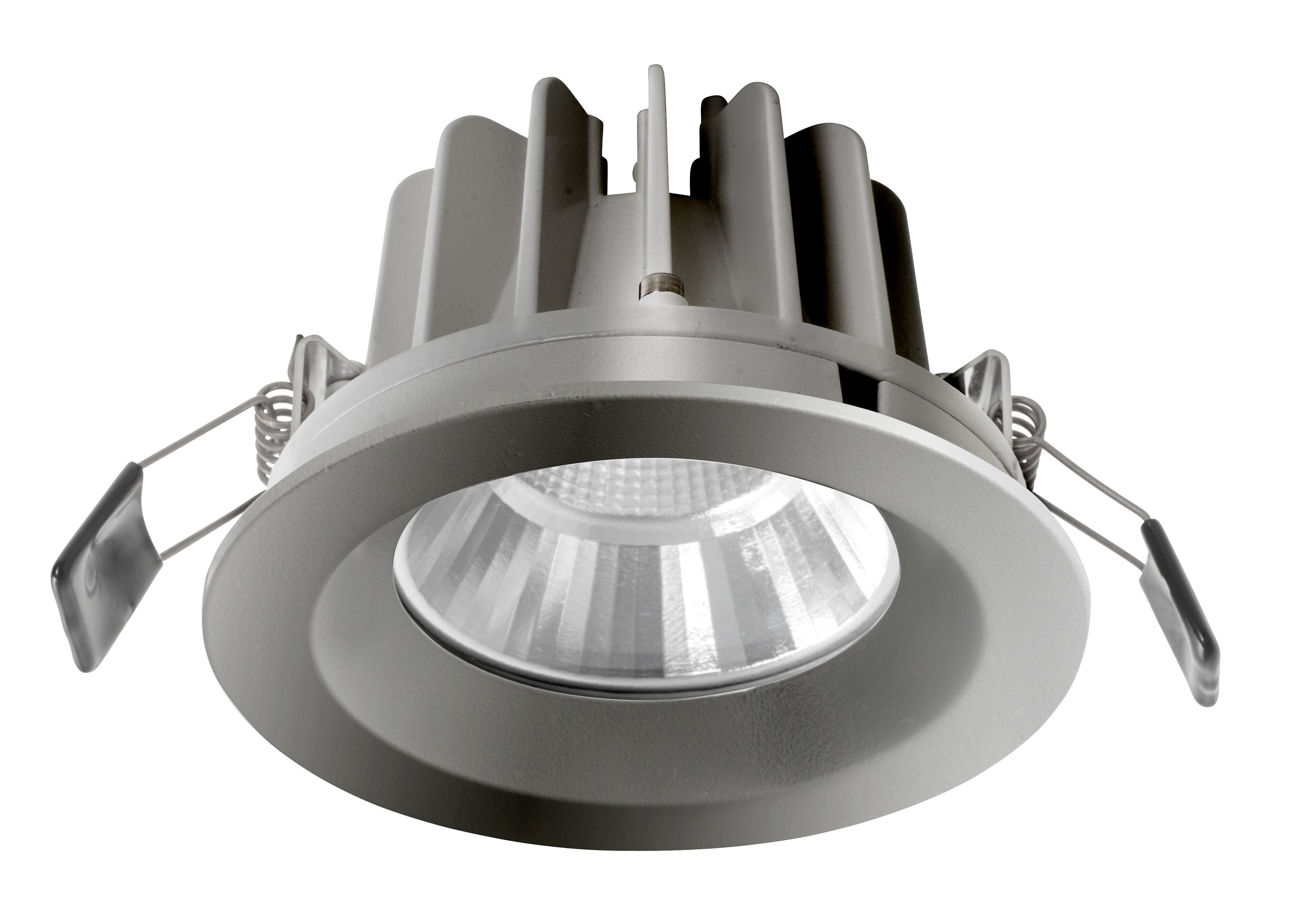

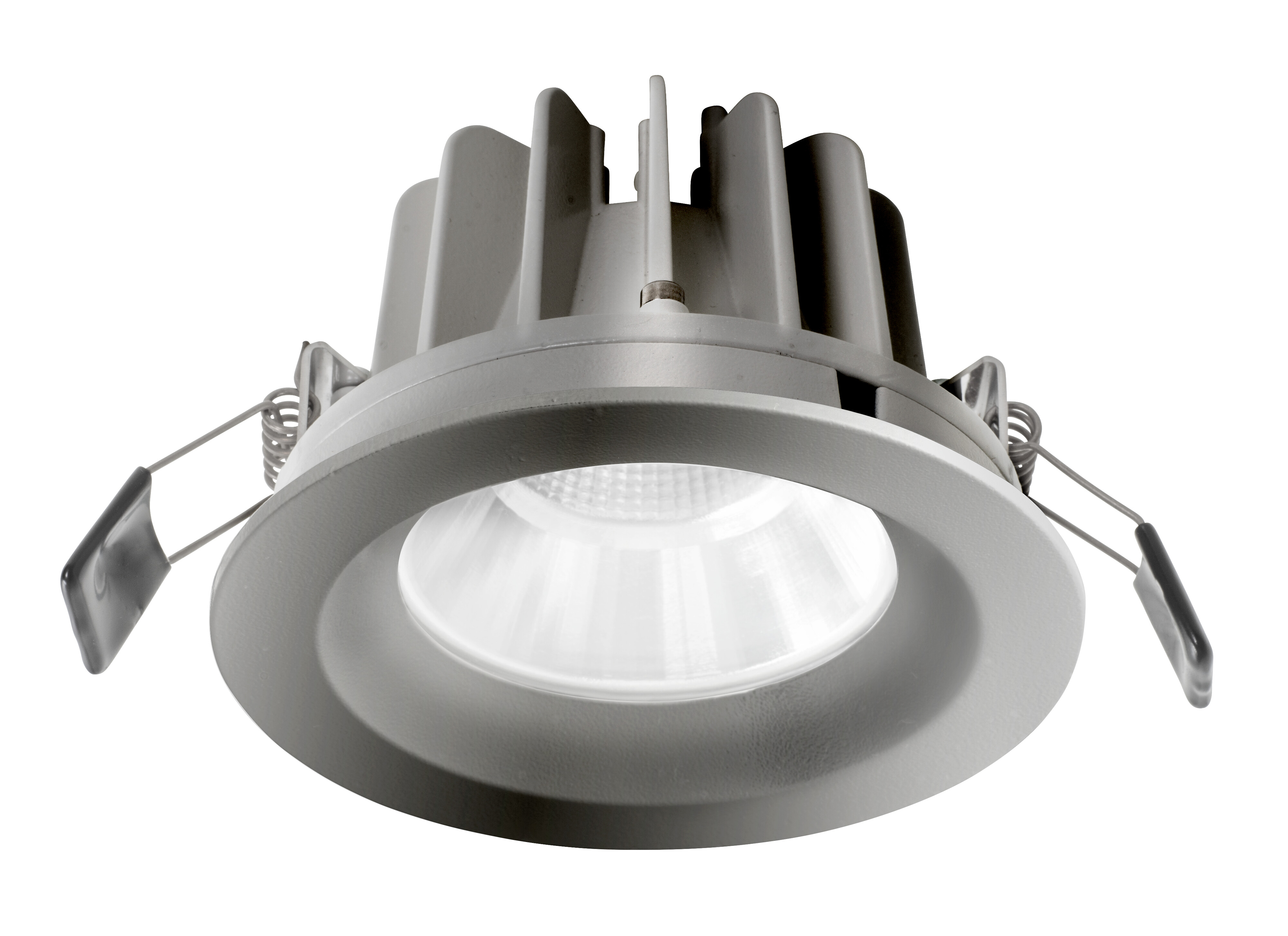

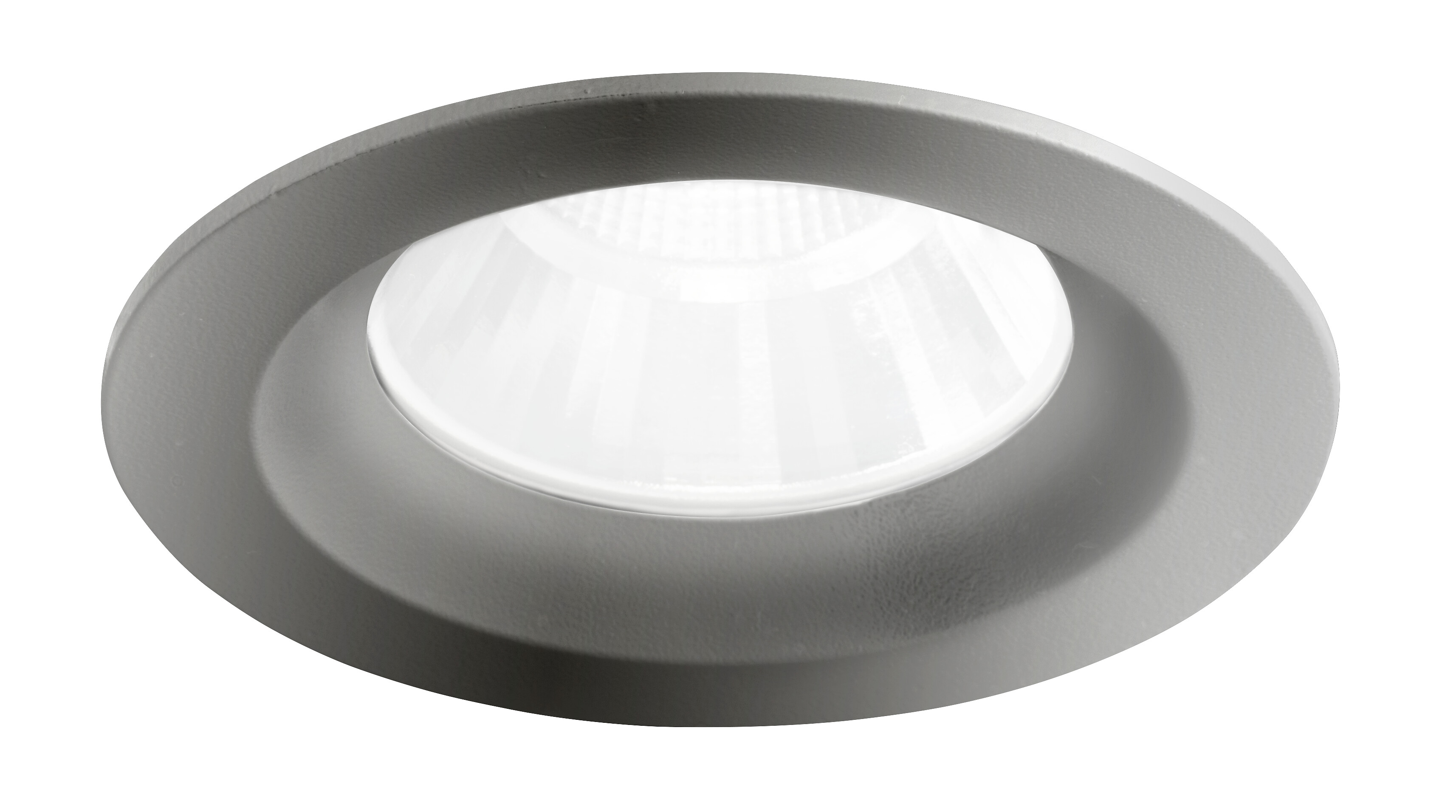

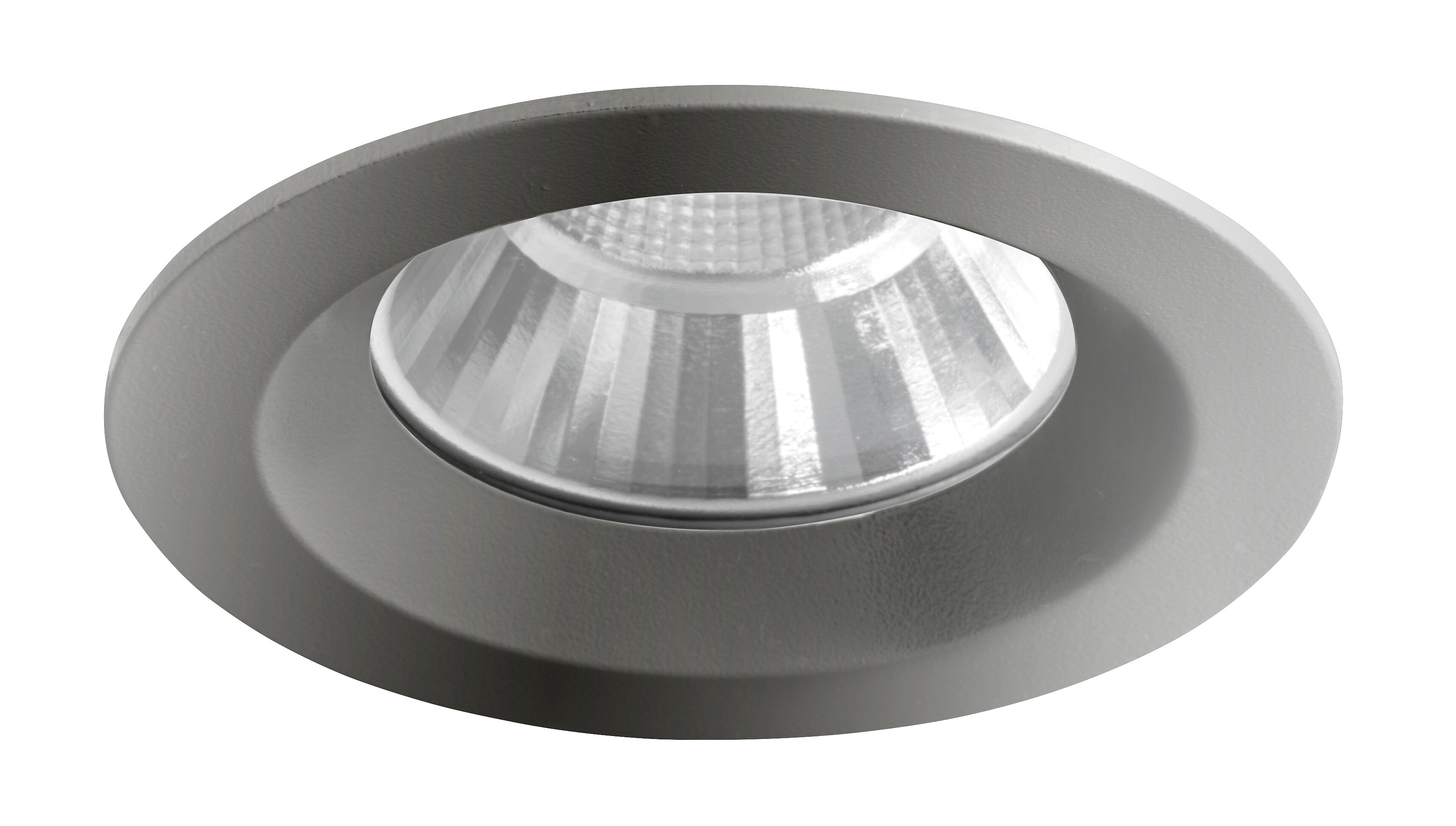

Drop Downlight 20W 4000K 2500lm Beam angle Wide beam 40-80°; No dim; IP65; IK05; Protection cl. III; LED not exchangeable; CRI>80; SDCM3; Ending; 3x1.5mm²; Housing al; Colour sil; Cover Glass clear; C16 max. 8

See product details
Code
4146596

Technical info

Mounting

Suitable for surface mounting
No
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Degree of protection (IP)
IP65
Degree of protection (IP), rear side
IP65
Degree of protection (IP), front side
IP65
Impact strength
IK05
Emergency function monitoring system
None
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
1 mm²
Connectable conductor cross section (min) (mm²)
1 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²
Connection type
Screwless terminal
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
5
Max. number of luminaires per miniature circuit breaker C16
8
Fit for workplace acc. EN 12464-1
No
Luminaire may be covered with thermally insulating material
No

Structure

Adjustability
Not adjustable
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Silver
Cover material
Glass transparent
Surface brushed
No
Control gear included
Yes
Exchangeable control gear
Yes
Reflector
Matt
Reflector colour
Silver
Energy efficiency class of light source according to EU regulation 2019/2015
C
Containing product according to 2019/2020/EU
Yes
Emergency power supply system
None
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s

Dimming and control

With movement sensor
No
With presence indicator
No
With light sensor
No
Dimmable
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
Constant luminous flux control
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Bluetooth operated
No
Compatible with Google Assistant
No
Compatible with Casambi
No
Compatible with Amazon Alexa
No

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Type of control gear
LED operating device current-controlled
Total harmonic distortion (THD) (%)
10 %
Total harmonic distortion
10 THD
Protection class according to IEC 61140
III
Suitable for lamp power (min) (W)
20 W
Suitable for lamp power (max) (W)
20 W
Maximum system power (W)
20 W
Luminaire efficacy (min) (lm/W)
125 lm/W
Luminaire efficacy (max) (lm/W)
125 lm/W
Power factor
0.9
Luminaire efficacy (lm/W)
125 lm/W

Photometric data

Light distributor
Reflector
Light sharing
Symmetric
Beam angle
Wide beam 40-80°
Light outlet
Direct
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
4000 K
Colour temperature (max) (K)
4000 K
Colour temperature switchable
No
Colour rendering index (CRI/Ra)
80-89
Luminous flux (min) (lm)
2500 lm
Luminous flux (max) (lm)
2500 lm
Effective luminous flux (lm)
2500 lm
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
2500 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
2500 lm
Lumen setting adjustable
No
Flickering value Pst LM
1
Beam angle adjustable
No
Stroboscope effect value SVM
0.4
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM3

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
100000 h
Rated life time L80/B50 at 25 °C
100000 h
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
95 %
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
90 %
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
80 %
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
10 %
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-25 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25 °C

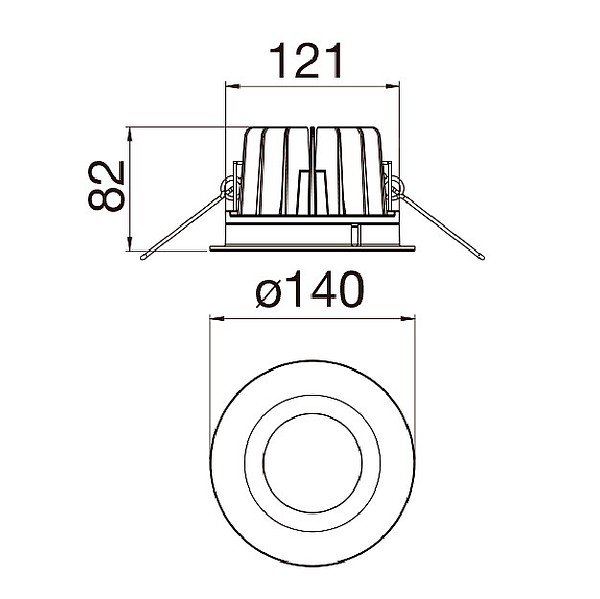

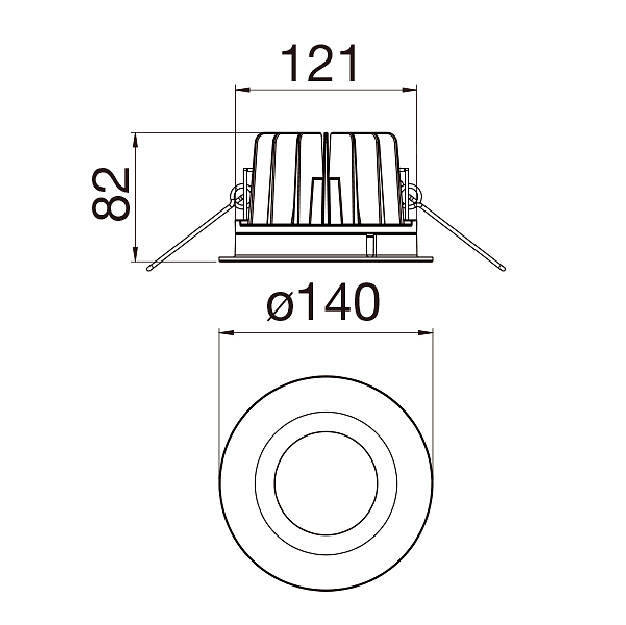

Measurements

Length (mm)
140 mm
Width (mm)
140 mm
Height/depth (mm)
82 mm
Outer diameter (mm)
140 mm
Built-in length (mm)
130 mm
Built-in width (mm)
130 mm
Built-in height/depth (mm)
131 mm
Recess diameter (min) (mm)
122 mm
Recess diameter (max) (mm)
130 mm
