Compact XL Mechanical Accessories

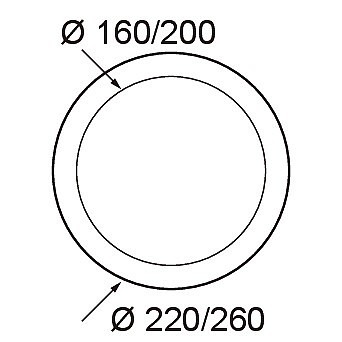

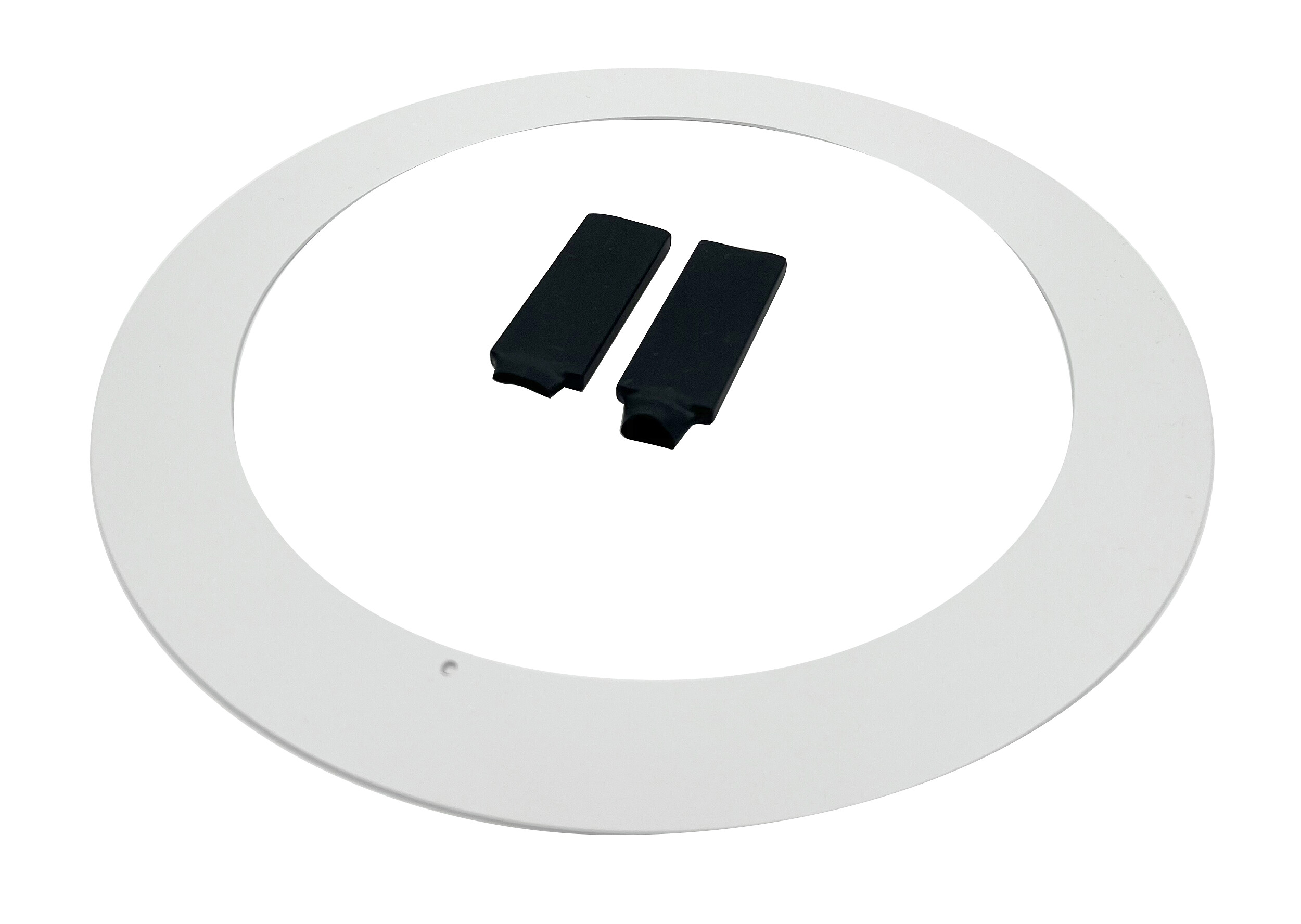

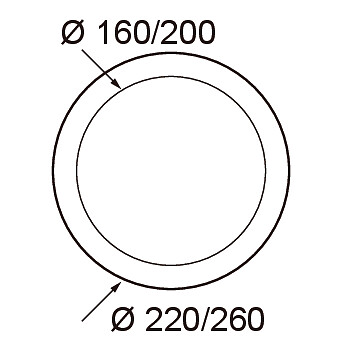

Accessories for the Compact XL series include adapter frames that allow the luminaire to be adapted to larger recessed cut-outs in sizes 150, 170 and 210. The adapter frames are available in all colours. The range also includes a black front ring for all sizes and a white mounting frame for surface installation in sizes 170 and 210.
Product versions
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Compact XL Adaptor ring 150/210 WH | 4146716 |
4146716 |
220x220x1mm |
||||
|
Compact XL Adaptor ring 170/220 WH | 4146976 |
4146976 |
220x220x1mm |
||||
|
Compact XL Adaptor ring 210/250 WH | 4146977 |
4146977 |
260x260x1mm |
||||
|
Compact XL Adaptor ring 150/210 BK | A1EMS8 |
220x220x1mm |
|||||
|
Compact XL Adaptor ring 170/210 BK | A1EMS3 |
220x220x1mm |
|||||
|
Compact XL Adaptor ring 210/250 BK | A1EMS4 |
260x260x1mm |
|||||
|
Compact XL Adaptor ring 150/210 GR | A1EMS9 |
220x220x1mm |
|||||
|
Compact XL Adaptor ring 170/210 GR | A1EMS5 |
220x220x1mm |
|||||
|
Compact XL Adaptor ring 210/250 GR | A1EMS6 |
260x260x1mm |
|||||
|
Compact XL 130 bezel BK | 100155 |
145x145x8mm |
|||||
|
Compact XL 150 bezel BK | 100163 |
170x170x8mm |
|||||
|
Compact XL 170 bezel BK | 100168 |
190x190x8mm |
|||||
|
Compact XL 210 bezel BK | 100171 |
228x228x8mm |
|||||
|
Compact XL 170 surface frame WH | 100169 |
193x193x93mm |
|||||
|
Compact XL 210 surface frame WH | 100172 |
232x232x100mm |
