Base

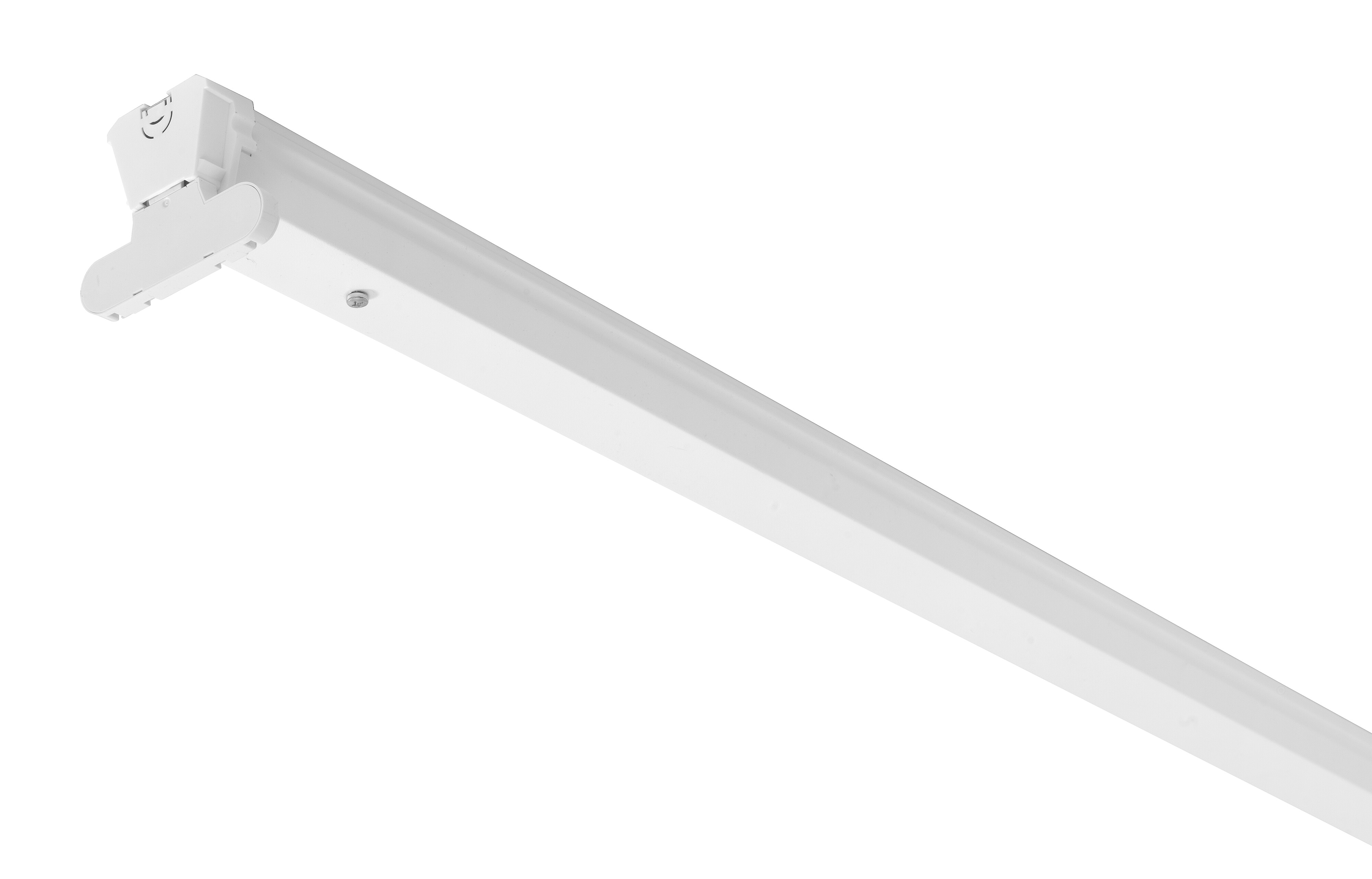

Base is a cost-efficient basic batten luminaire designed for use with LED tubes that correspond to fluorescent tubes with the G13 base. Its typical applications include the dry spaces of warehouses, stores and offices. The luminaires are suitable for surface mounting.

Steel housing, plastic end caps and lamp holders.
White, RAL 9003.
Protection class I.
Surface mounting on a ceiling.
Linkable, 3 x 2.5 mm2. Two cable lead-throughs in the centre of the luminaire. Knock-outs at the ends.
We recommend LED tubes from the Airam Pro range, which can be installed in either direction in the luminaire.
A short-circuit protective device delivered with the LED tubes must be used in the luminaire instead of a fuse.
IP20.

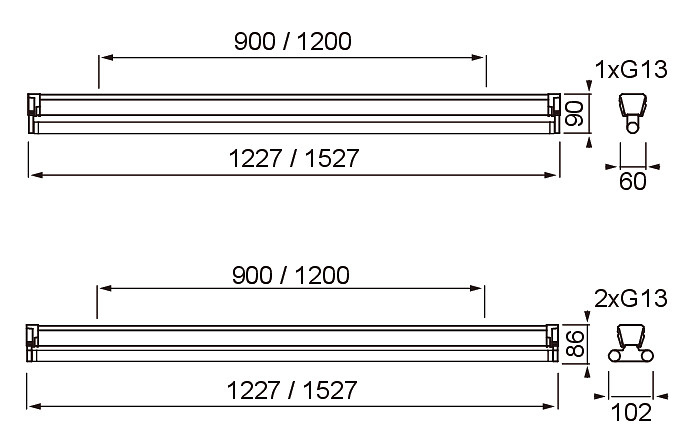

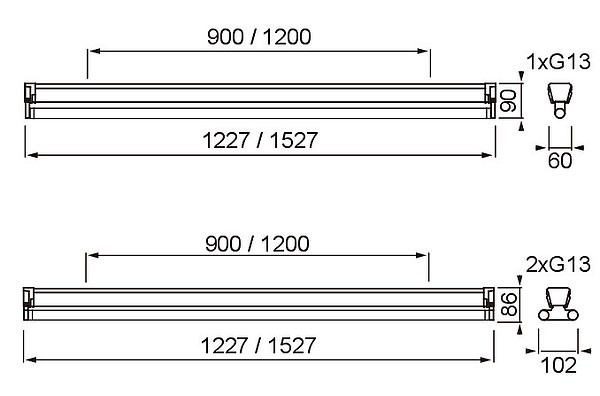

1 x G13 1200 mm / 1500 mm.
2 x G13 1200 mm / 1500 mm.
On/off.
Ambient temperature range 0 … 25 °C, or according to the selected lamp.
Reflectors, sold in packs of 10, are available as accessories for each luminaire.
