Base 1200 IP20 2xG13 LED WH

Name: Base 1200 IP20 2xG13 LED WH
SKU: 4338507

Base Industrial luminaire open No dim; IP20; Protection cl. I; LED exchangeable; 2xG13 not incl; Suitable for through wiring; 3x2.5mm²; Material Steel; Colour wh

See product details

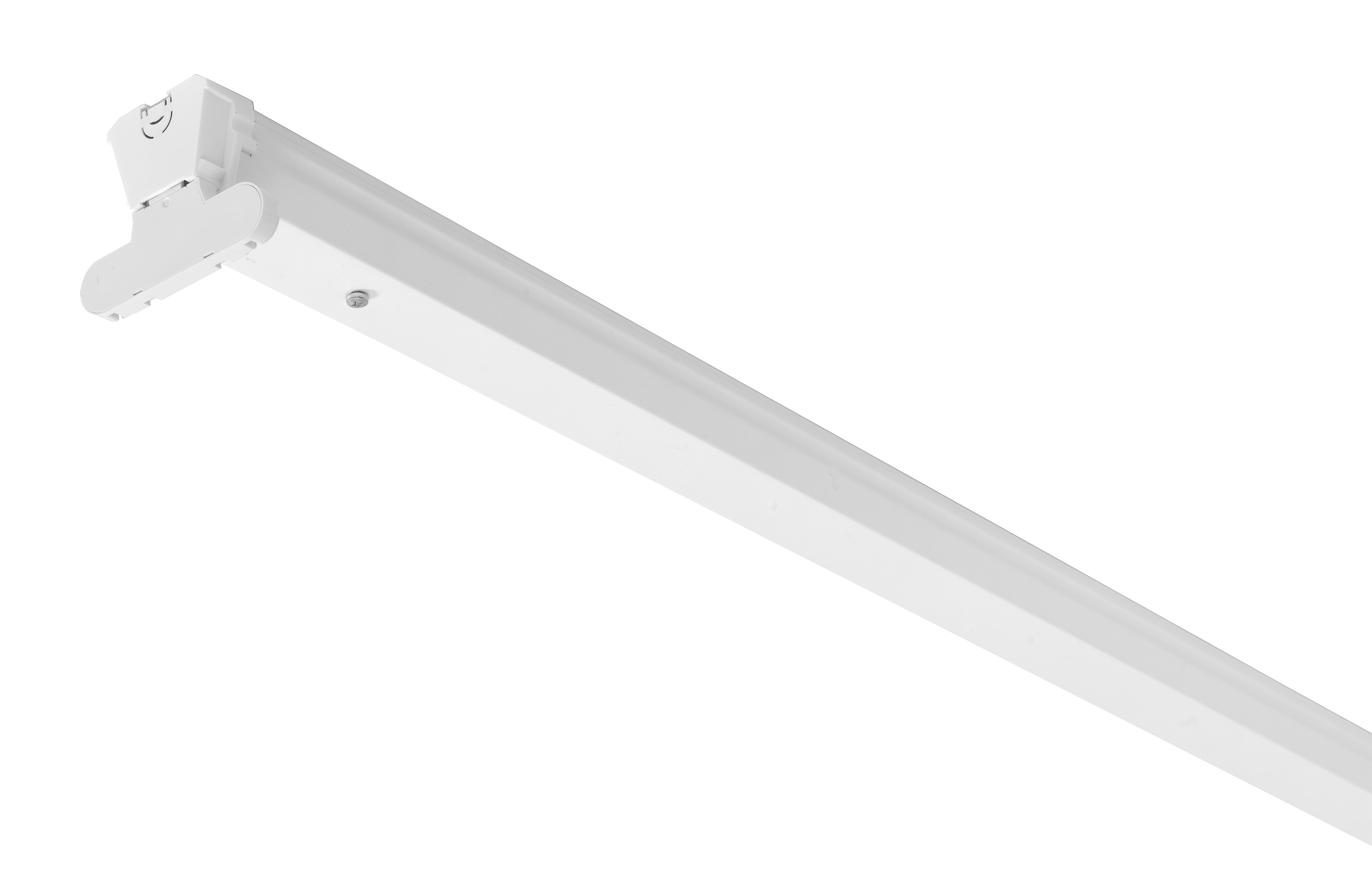

Base is a cost-efficient basic batten luminaire designed for use with LED tubes that correspond to fluorescent tubes with the G13 base. Its typical applications include the dry spaces of warehouses, stores and offices. The luminaires are suitable for surface mounting.

Steel housing, plastic end caps and lamp holders.
White, RAL 9003.
Protection class I.
Surface mounting on a ceiling.
Linkable, 3 x 2.5 mm2. Two cable lead-throughs in the centre of the luminaire. Knock-outs at the ends.
We recommend LED tubes from the Airam Pro range, which can be installed in either direction in the luminaire.
A short-circuit protective device delivered with the LED tubes must be used in the luminaire instead of a fuse.
IP20.
1 x G13 1200 mm / 1500 mm.
2 x G13 1200 mm / 1500 mm.
On/off.
Ambient temperature range 0 … 25 °C, or according to the selected lamp.

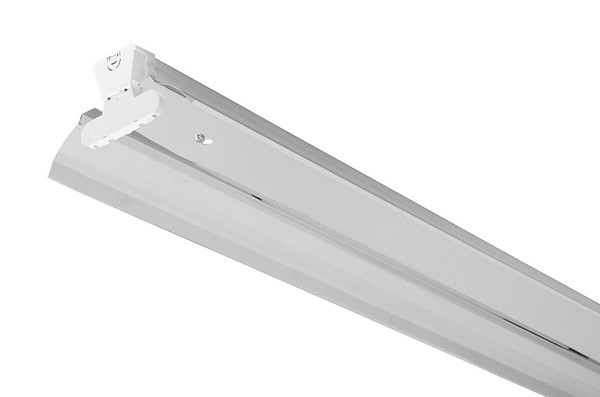

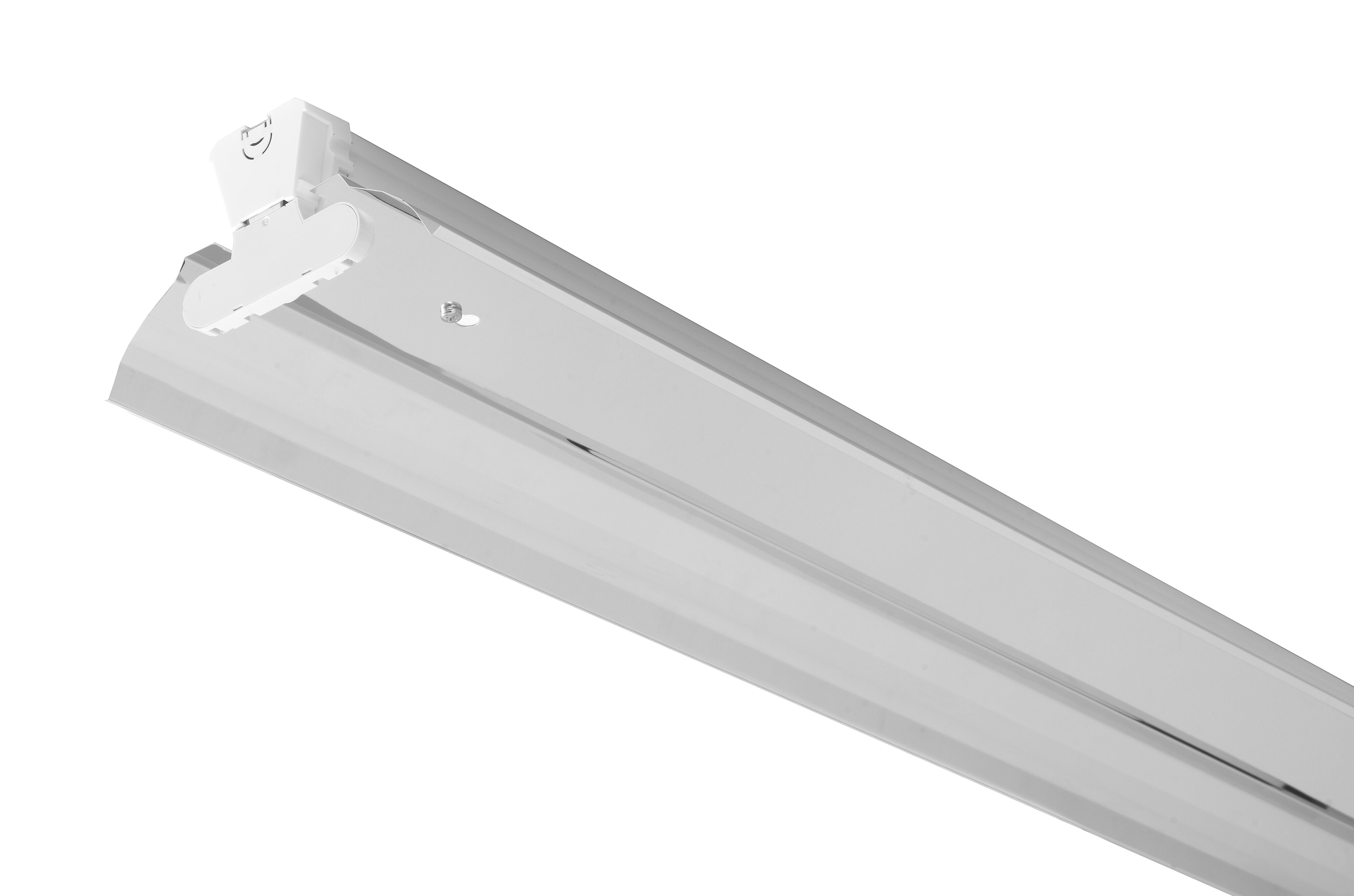

Reflectors, sold in packs of 10, are available as accessories for each luminaire.

Code: 4338507

Technical info

Structure

Lamp type: LED exchangeable
Light source included: No
Suitable for number of lamps: 2
Lamp holder: G13
Material: Steel
Housing colour: White
Control gear included: No
Exchangeable control gear: No
Energy efficiency class of light source according to EU regulation 2019/2015: Not required
Containing product according to 2019/2020/EU: No
With lamp protection cage: No
Emergency power supply integrated: No
Emergency power supply system: None
Filament test according to IEC 60695-2-11: 650 °C - 30 s
With switch: No

Electrotechnical data

Voltage type: AC
Type of control gear: Not required
Protection class according to IEC 61140: I

Dimming and control

Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming DALI-2: No
Dimming DMX: No
Dimming DSI: No
Dimming LineSwitch: No
Dimming mains voltage modulation: No
Dimming manufacturer's proprietary system: No
Dimming trailing edge: No
Dimming leading edge: No
Dimming potentiometer (integrated): No
Dimming programmable: No
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming with push-button: No
Dimming Zigbee: No
No dimming function: Yes
Constant luminous flux control: No
With movement sensor: No
With presence indicator: No
With light sensor: No
Bluetooth operated: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
Compatible with Casambi: No
IFTTT support available: No

Photometric data

Light distributor: None
Colour temperature switchable: No
Lumen setting adjustable: No
Beam angle adjustable: No

Mounting

Degree of protection (IP): IP20
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24: No
Suitable for emergency lighting: No
Emergency function monitoring system: None
Type of wiring: Suitable for through wiring
Number of poles: 3
Conductor cross section (mm²): 2.5 mm²
Connection type: Screwless terminal
Connectable conductor cross section (min) (mm²): 1.5 mm²
Connectable conductor cross section (max) (mm²): 2.5 mm²
Electrical connection with connector system: No

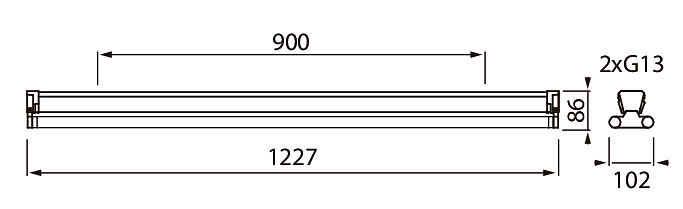

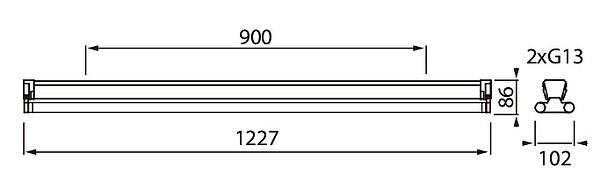

Measurements

Width (mm): 102 mm
Height/depth (mm): 86 mm
Length (mm): 1227 mm

Item description	Code	Electrical number (FIN)	Dimensions
Base 1200 IP20 1xG13 LED WH	4338506	4338506	1227x60x90mm
Base 1200 IP20 2xG13 LED WH	4338507	4338507	1227x102x86mm
Base 1500 IP20 1xG13 LED WH	4338508	4338508	1527x60x90mm
Base 1500 IP20 2xG13 LED WH	4338509	4338509	1527x102x86mm
