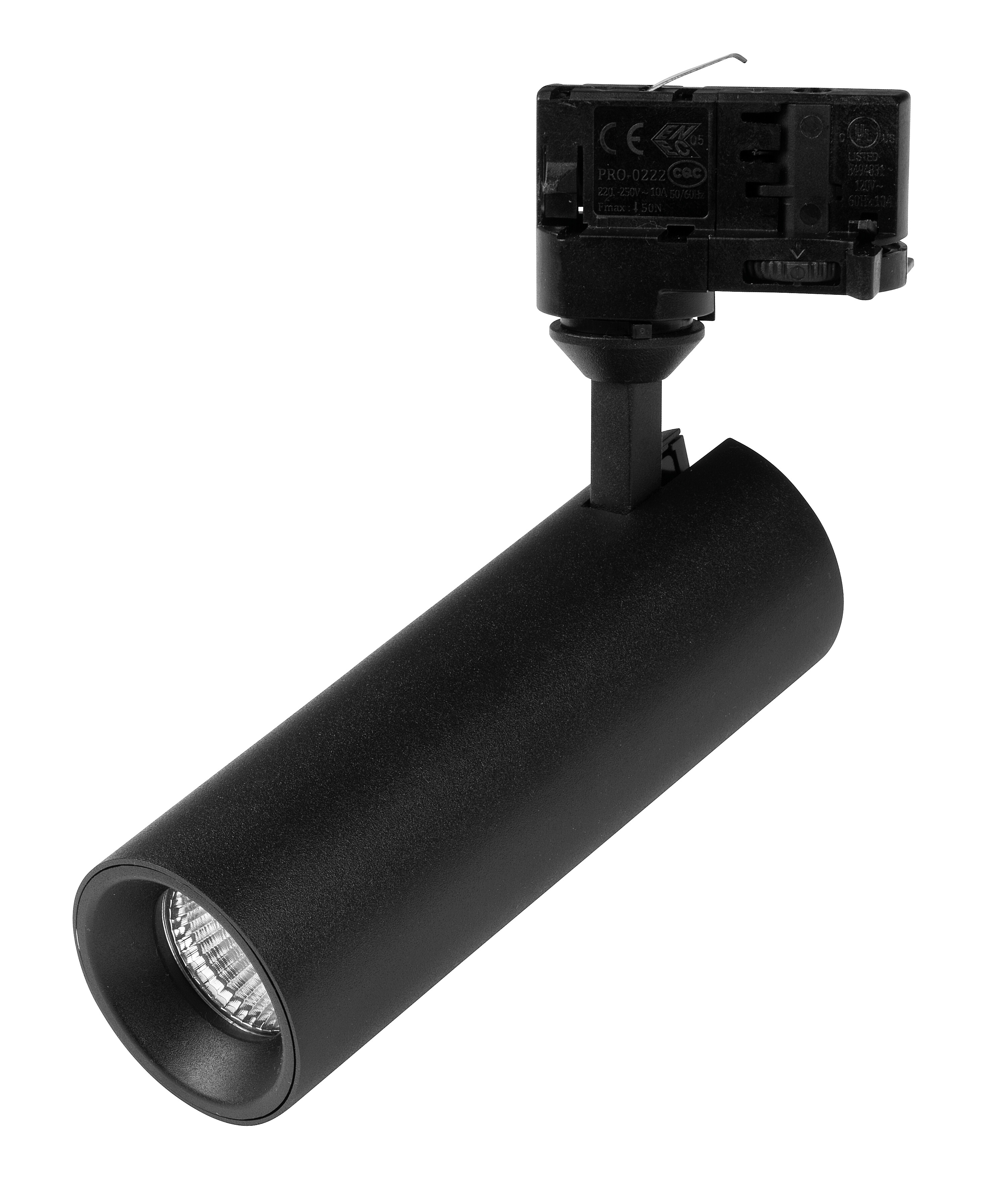

Spot-On 13W 930/940 36D DIM BK
Spot-On Spotlight 13W 3000K/4000K 900lm Beam angle Medium beam 20-40°; Dim phase cut-off; Dim phase cut-on; IP20; IK02; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>90; SDCM3; Ending; 3x0.75mm²;Housing al; Colour bk; Cover Plastic, transparent; C16 max. 182
The elegant Spot-On luminaire with adjustable colour temperature offers an ideal lighting solution for cafés, restaurants, and small shop properties. Equipped with a dimming feature, this spotlight provides numerous options for illuminating your space. By selecting a suitable colour temperature and brightness, you can create an intimate, tranquil atmosphere and highlight specific features of the space. Our luminaires provide excellent colour-rendering properties and are made from high-quality materials. The product’s colour options are black and white, and you can choose either a model with a switch for dimming and adjusting the colour temperature or one in which the colour temperature automatically grows warmer upon dimming.
Housing is made of injection-moulded aluminium. Acrylic diffuser. Bevelled aluminium reflector, 36°.
White, RAL 9010 and black, RAL 9005.
Protection class I.
Mounting on a three-phase-contact rail.
Compatible three-phase-contact rails: Global Pro (formerly Nokia); XTS, XTTS, and XTSC three-circuit tracks; and Erco, iGuzzini, Unipro T3, and Eutrac tracks.
Surface mounting possible with adapter 1452093 and 1453093, to be ordered separately.
Installation height 3–5 m.
Colour temperatures: 3000 K and 4000 K, changeable from the luminaire. The colour temperature of the DTW models changes from 3000K to 1800 K with dimming. CRI > 90 / Ra > 90.
IP20.
IK02.
Integrated LED 13 W, 900 lm.
MacAdam 3 SDCM.
Dimmable.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100 000 (Ta25°C).
Rated lifetime L80 65 000 (Ta25°C).
Comes with a honeycomb anti-glare screen and two optional reflectors for narrower light beam (12D and 24D).
- Code
- 4146591
Downloads
Technical info
- Electrical number (FIN)
- 4146591
- Electrical number (SWE)
- 7403095
- GTIN
- 6435200275899
- Airam code
- A1SPOA
- Code
- 4146591
- Suitable for pedestal/floor mounting
- No
- Compatible with Apple HomeKit
- No
- Reflector colour
- Silver
- Beam angle adjustable
- Positions
- Dimming 1-10 V
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1
- Compatible with Google Assistant
- No
- Luminaire efficacy (max) (lm/W)
- 70
- Light sharing
- Symmetric
- Beam angle
- Medium beam 20-40°
- Fit for workplace acc. EN 12464-1
- No
- Impact strength
- IK02
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 900
- Effective luminous flux (lm)
- 900
- Constant luminous flux control
- No
- Dimming trailing edge
- Yes
- Light source included
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 900
- Luminous flux (min) (lm)
- 900
- No dimming function
- No
- Max. number of luminaires per miniature circuit breaker B16
- 90
- Housing material
- Aluminium

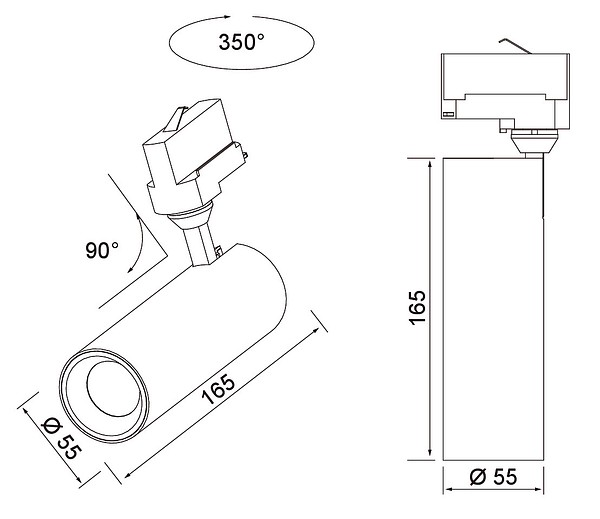

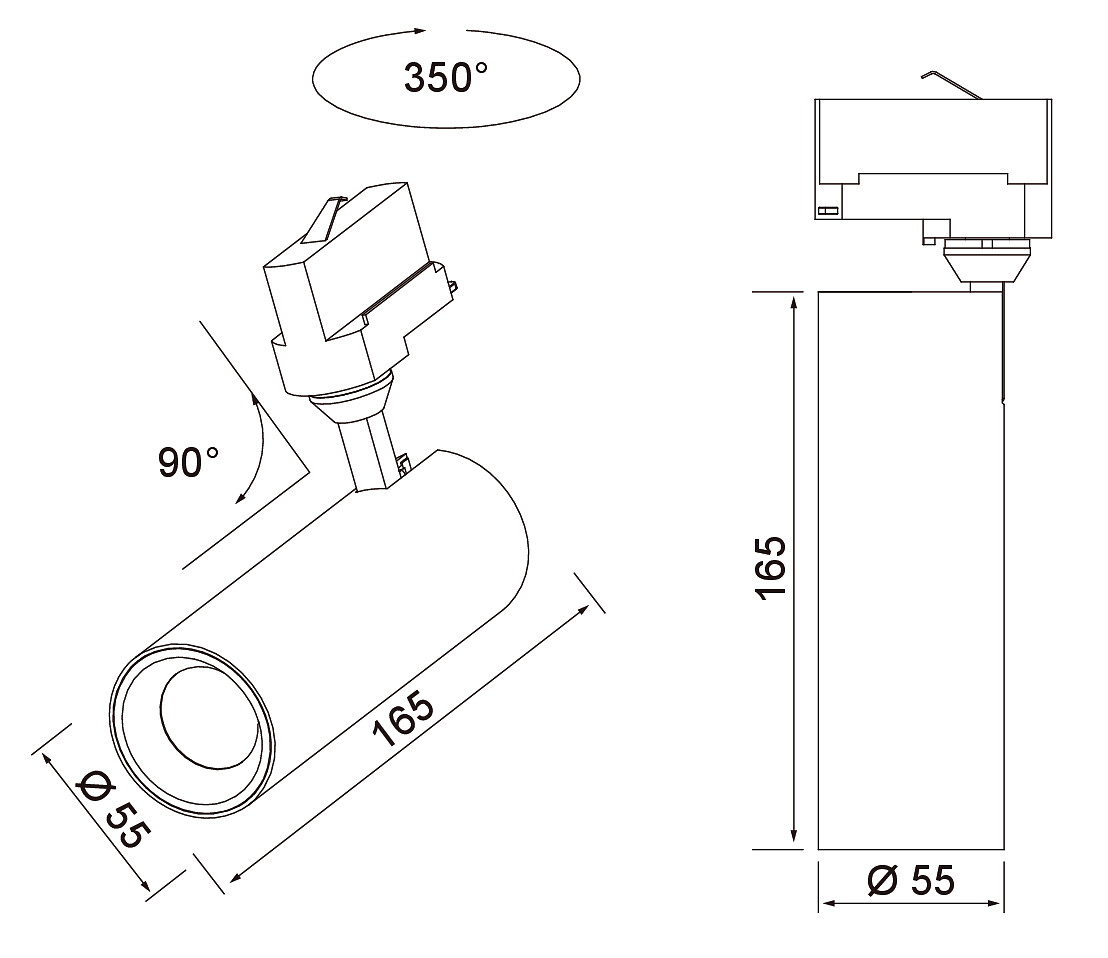

- Width (mm)
- 55
- Suitable for suspended mounting
- No
- Luminaire may be covered with thermally insulating material
- -
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Outer diameter (mm)
- 55
- Colour temperature switchable
- Discrete positions
- Dimming DMX
- No
- Compatible with Casambi
- No
- Surface protection
- Powder coating
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 13
- Dimming programmable
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Luminous intensity (min) (cd)
- 2900
- Light distributor
- Reflector
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 70
- Dimming 0-10 V
- No
- Total harmonic distortion (THD) (%)
- 20
- Height/depth (mm)
- 165
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 165
- Dimming Touch and Dim
- No
- Adjustability
- Rotating and swivelling
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- Yes
- Suitable for low voltage cable system
- No
- Nominal current (min) (mA)
- 300
- Suitable for surface mounting
- No
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 90-100
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Luminous intensity (max) (cd)
- 2900
- Dimming leading edge
- Yes
- Dimming DALI-2
- No
- Suitable for recessed mounting
- No
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Reflector
- High-gloss
- Max. number of luminaires per miniature circuit breaker C16
- 182
- Rated life time L80/B50 at 25 °C
- 65000
- Surface brushed
- No
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Suitable for traverse mounting
- No
- With movement sensor
- No
- Suitable for light-track mounting
- Yes
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 80
- Degree of protection (IP), front side
- IP20
- Type of wiring
- Ending
- Dimming with push-button
- No
- Emergency power supply system
- None
- Protection class according to IEC 61140
- I
- Degree of protection (IP), rear side
- IP20
- Power factor
- 0.9
- Dimming Zigbee
- No
- Dimming DALI
- No
- Suitable for clamp-mounting
- No
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimmable
- Yes
- Luminous intensity (cd)
- 2900
- Cover material
- Plastic, transparent
- Total harmonic distortion
- 20
- Conductor cross section (mm²)
- 0.75
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Luminous flux (max) (lm)
- 900
- Suitable for lamp power (max) (W)
- 13
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 3000
- Luminaire efficacy (min) (lm/W)
- 70
- Energy efficiency class of light source according to EU regulation 2019/2015
- G
- Housing colour
- Black
- Number of poles
- 3
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Suitable for number of lamps
- 1
- Dimming manufacturer's proprietary system
- No
- Light outlet
- Direct
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 300
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 70
- Connection type
- Busbar adapter
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP20
- Maximum system power (W)
- 13
- Lumen setting adjustable
- No
Product versions
| Item description | Code | |
|---|---|---|
| Spot-On 13W 930/940 36D DIM BK | 4146591 |
|
| Spot-On 13W 930/940 36D DIM WH | 4146592 |
|
| Spot-On 14W 918-930 36D DTW BK | 4146691 |
|
| Spot-On 14W 918-930 36D DTW WH | 4146692 |
