Direct M

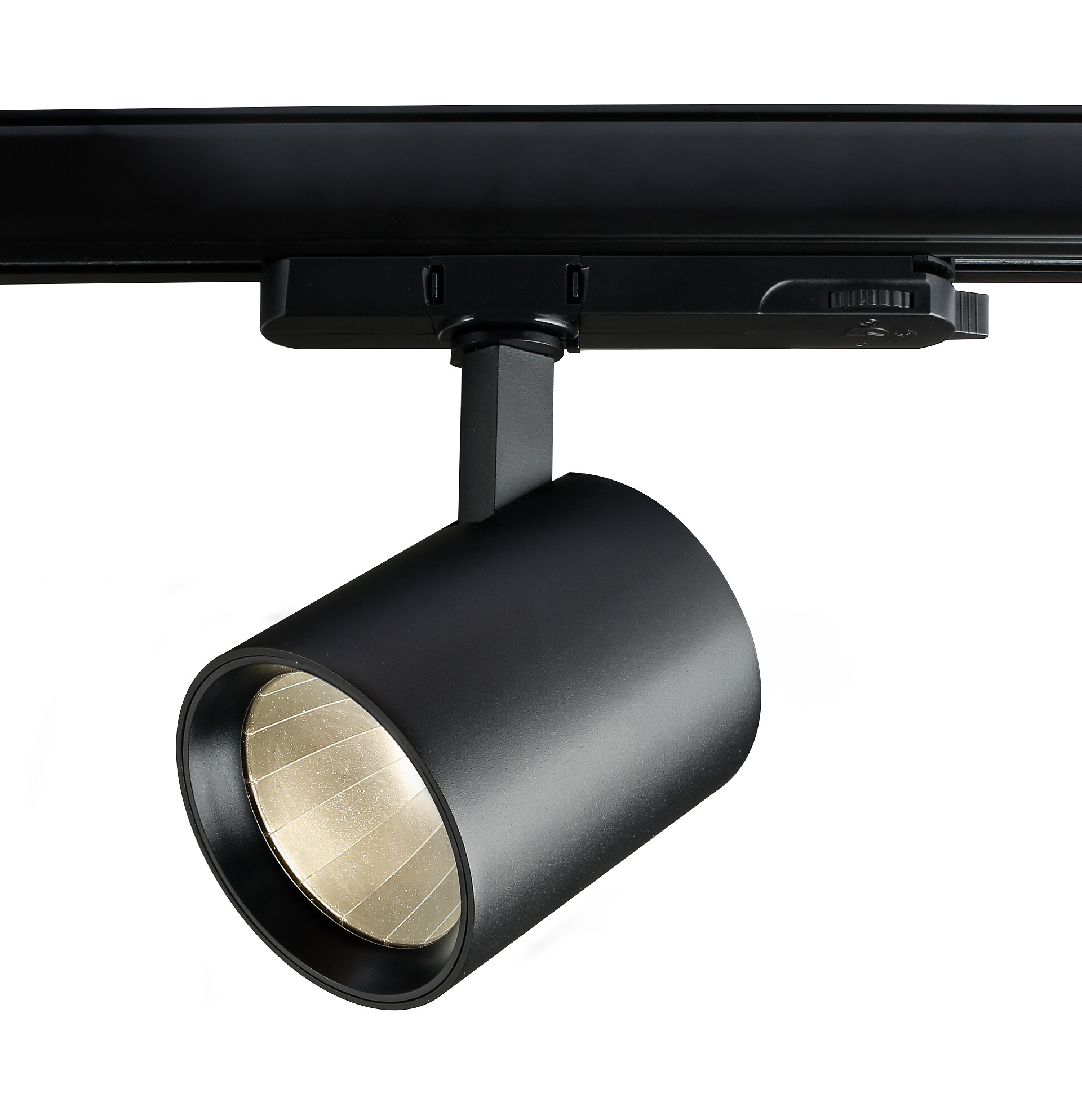

Direct M is an energy-efficient and adjustable spotlight with a long lifespan. Its compact size, high-quality light, and excellent color rendering make it an excellent choice for public spaces. Applications include stores, shops, hotels and restaurants. Direct is installed on a track, making its installation easy and flexible. The luminaire has an almost invisible driver integrated directly into the track adapter. The Direct M model is particularly well-suited for store lighting. Its light output and adjustability offer numerous options for illuminating store spaces; the luminaire is easy to move and redirect as needed. Adjusting the direction of the light provides options for illuminating different spaces; the luminaire is easy to move and direct as needed.
Aluminium housing. Reflector 36°.
White, RAL 9010 and black, RAL 9005.
Protection class II.
Mounting on a three-phase contact rail. Dali-2 models on a Dali contact rail.
Compatible three-phase contact rails: Global Trac Pro, Unipro and Stucchi OneTrack.
Compatible Dali contact rails: Nordic Aluminium Global Pulse and Stucchi OneTrack.
Installation height 3–6 m.
Colour temperatures 3000 K and 4000 K. CRI > 90 / Ra > 90.
IP20.
Integrated LED 20 W: 2500/2550 lm, 26 W: 3350/3450 lm.
MacAdam 3 SDCM.
Ambient temperature range 0 … 25 °C.
Accessories: reflectors 20D and 65D, honeycomb anti-glare screen and two decorative rings, colour options gold and silver.
Rated lifetime L70B50 100 000 h (Ta25°C).
Rated lifetime L80B50 100 000 h (Ta25°C).
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Direct M | |||||||||
|
|
Direct M IP20 2550lm 940 36D WH | 4146985 |
4146985 |
4000K |
2550lm |
20W |

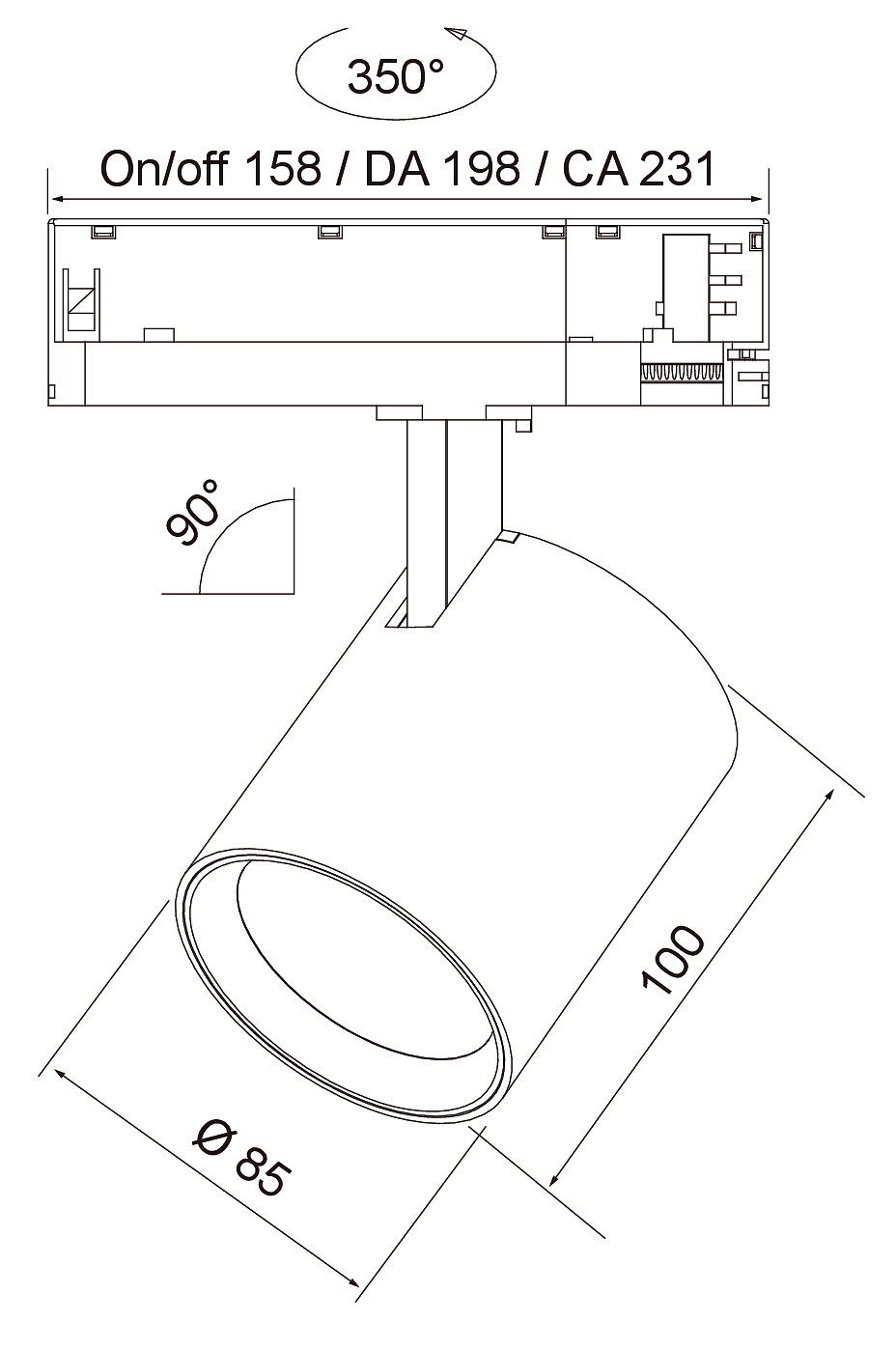

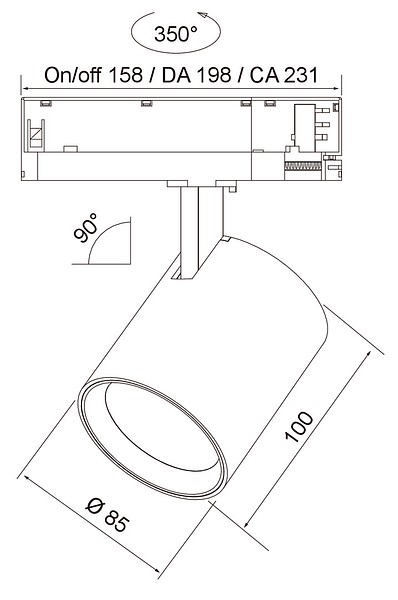

100x85x85mm |
||
|
|
Direct M IP20 2500lm 930 36D WH | 4146986 |
4146986 |
3000K |
2500lm |
20W |
100x85x85mm |
||
|
|
Direct M IP20 2550lm 940 36D BK | 4146987 |
4146987 |
4000K |
2550lm |
20W |
100x85x85mm |
||
|
|
Direct M IP20 2500lm 930 36D BK | 4146988 |
4146988 |
3000K |
2500lm |
20W |
100x85x85mm |
||
|
|
Direct M IP20 3450lm 940 36D WH | A1DIRK |
4000K |
3450lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3350lm 930 36D WH | A1DIRL |
3000K |
3350lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3450lm 940 36D BK | A1DIRM |
4000K |
3450lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3350lm 930 36D BK | A1DIRN |
3000K |
3350lm |
26W |
100x85x85mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Direct M Dali | |||||||||
|
|
Direct M IP20 2550lm 940 36D DA2 WH | 4146989 |
4146989 |
4000K |
2550lm |
20W |
100x85x85mm |
||
|
|
Direct M IP20 2500lm 930 36D DA2 WH | 4146990 |
4146990 |
3000K |
2500lm |
20W |
100x85x85mm |
||
|
|
Direct M IP20 2550lm 940 36D DA2 BK | 4146991 |
4146991 |
4000K |
2550lm |
20W |
100x85x85mm |
||
|
|
Direct M IP20 2500lm 930 36D DA2 BK | 4146992 |
4146992 |
3000K |
2500lm |
20W |
100x85x85mm |
||
|
|
Direct M IP20 3450lm 940 36D DA2 WH | A1DIRK-DALI |
4000K |
3450lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3350lm 930 36D DA2 WH | A1DIRL-DALI |
3000K |
3350lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3450lm 940 36D DA2 BK | A1DIRM-DALI |
4000K |
3450lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3350lm 930 36D DA2 BK | A1DIRN-DALI |
3000K |
3350lm |
26W |
100x85x85mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Direct M Casambi | |||||||||
|
|
Direct M IP20 2550lm 940 36D CA WH | A1DIRI-CA |
4000K |
2550lm |
20W |
100x85x85mm |
|||
|
|
Direct M IP20 2500lm 930 36D CA WH | A1DIRE-CA |
3000K |
2500lm |
20W |
100x85x85mm |
|||
|
|
Direct M IP20 2550lm 940 36D CA BK | A1DIRJ-CA |
4000K |
2550lm |
20W |
100x85x85mm |
|||
|
|
Direct M IP20 2500lm 930 36D CA BK | A1DIRF-CA |
3000K |
2500lm |
20W |
100x85x85mm |
|||
|
|
Direct M IP20 3450lm 940 36D CA WH | A1DIRK-CA |
4000K |
3450lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3350lm 930 36D CA WH | A1DIRL-CA |
3000K |
3350lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3450lm 940 36D CA BK | A1DIRM-CA |
4000K |
3450lm |
26W |
100x85x85mm |
|||
|
|
Direct M IP20 3350lm 930 36D CA BK | A1DIRN-CA |
3000K |
3350lm |
26W |
100x85x85mm |
|||
