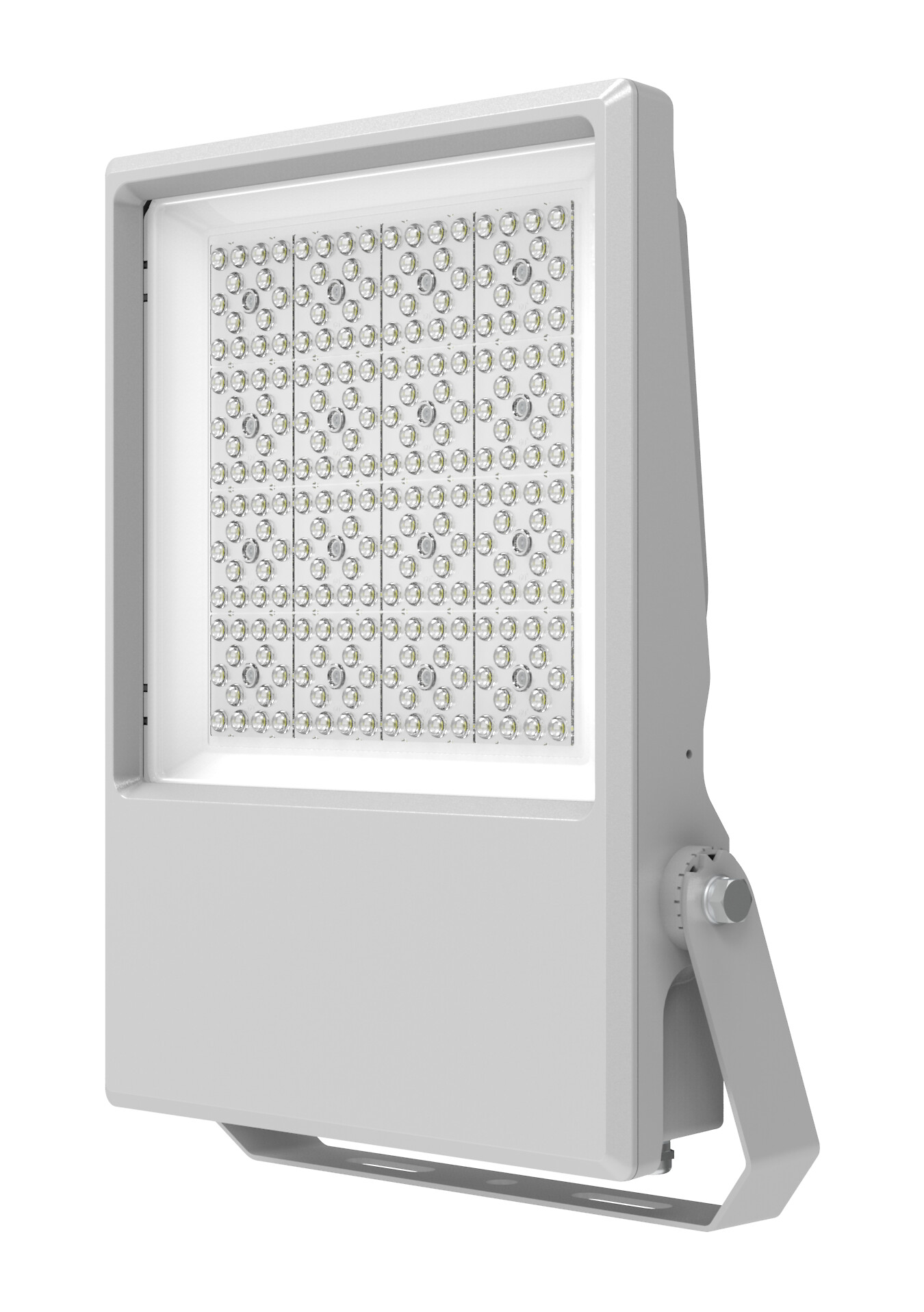

Range

Range floodlight is a maintenance-free and cost-effective option for demanding use. The floodlight has high-quality materials and its impact resistance rating is IK08. Range is suitable for general lighting as well as area lighting; an excellent choice for building facades, parking areas and billboard lighting. The luminaire has a very good efficiency.

Aluminium body, hardened glass diffuser, polycarbonate lenses with UV protection. Polarized 45 degrees asymmetric light distribution.
Saltwater and seawater resistant body and surface treatment.
Grey, RAL 9006.
Protection class I.
Mounting on a wall or ceiling and on a 60 mm straight pole with a special fixture.
Rubber cable 650 mm.
Wiring -0 3 x 1,0 mm2, using the quick connector included with the luminaire. Use a separate connection box for chaining the luminaires.
Wind catchment area:
50 W / 100 W: front 0,0656 m2, side 0,0126 m2.
150 W: front 0,0840 m2, side 0,0170 m2.
240 W: front 0,1240 m2, side 0,0220 m2.
300 W: front 0,1240 m2, side 0,0220 m2.
Colour temperature 4000 K. CRI > 70 / Ra > 70.
MacAdam 5 SDCM.
IP66.
IK08.
Integrated LED.
50 W / 6000 lm; 100 W / 12 000 lm; 150 W / 18 000 lm; 240 W / 28 800 lm; 300 W / 36 000 lm.
On/off.
Ambient temperature range -30 … 50 °C.
Rated lifetime L80 50 000 h (Ta25°C).
Ventilation to prevent frost.
