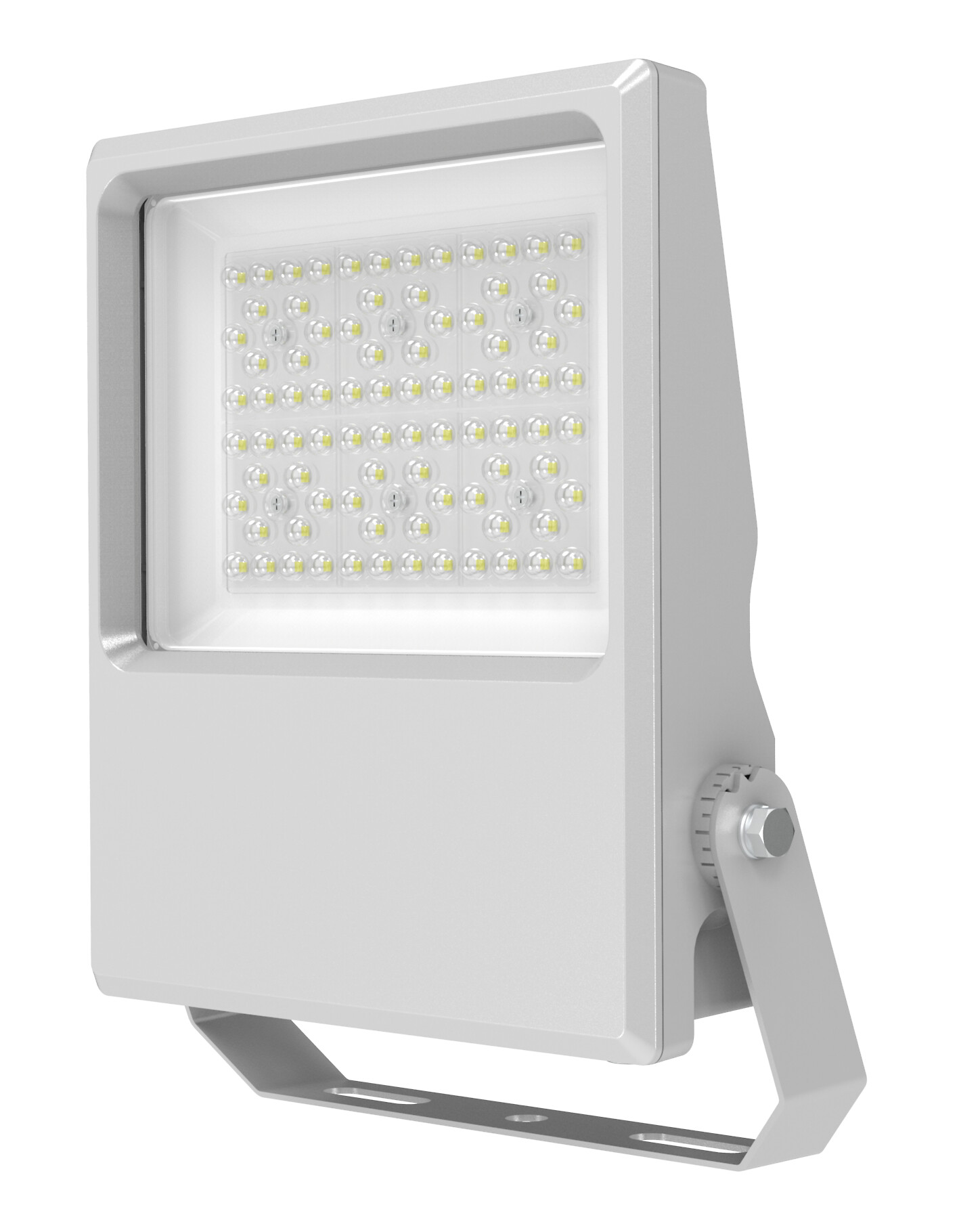

Range IP66 12000lm 100W/740 ASYM
100W 4000K 12000lm Beam angle Wide beam 40-80°; No dim; IP66; IK08; Protection cl. I; L70B50 100000h; LED not exchangeable; Lamp included; CRI>70; SDCM5; Ending; 3x1mm²; Housing al; Colour gr; Cover Glass transparent
Range floodlight is a maintenance-free and cost-effective option for demanding use. The floodlight has high-quality materials and its impact resistance rating is IK08. Range is suitable for general lighting as well as area lighting; an excellent choice for building facades, parking areas and billboard lighting. The luminaire has a very good efficiency.

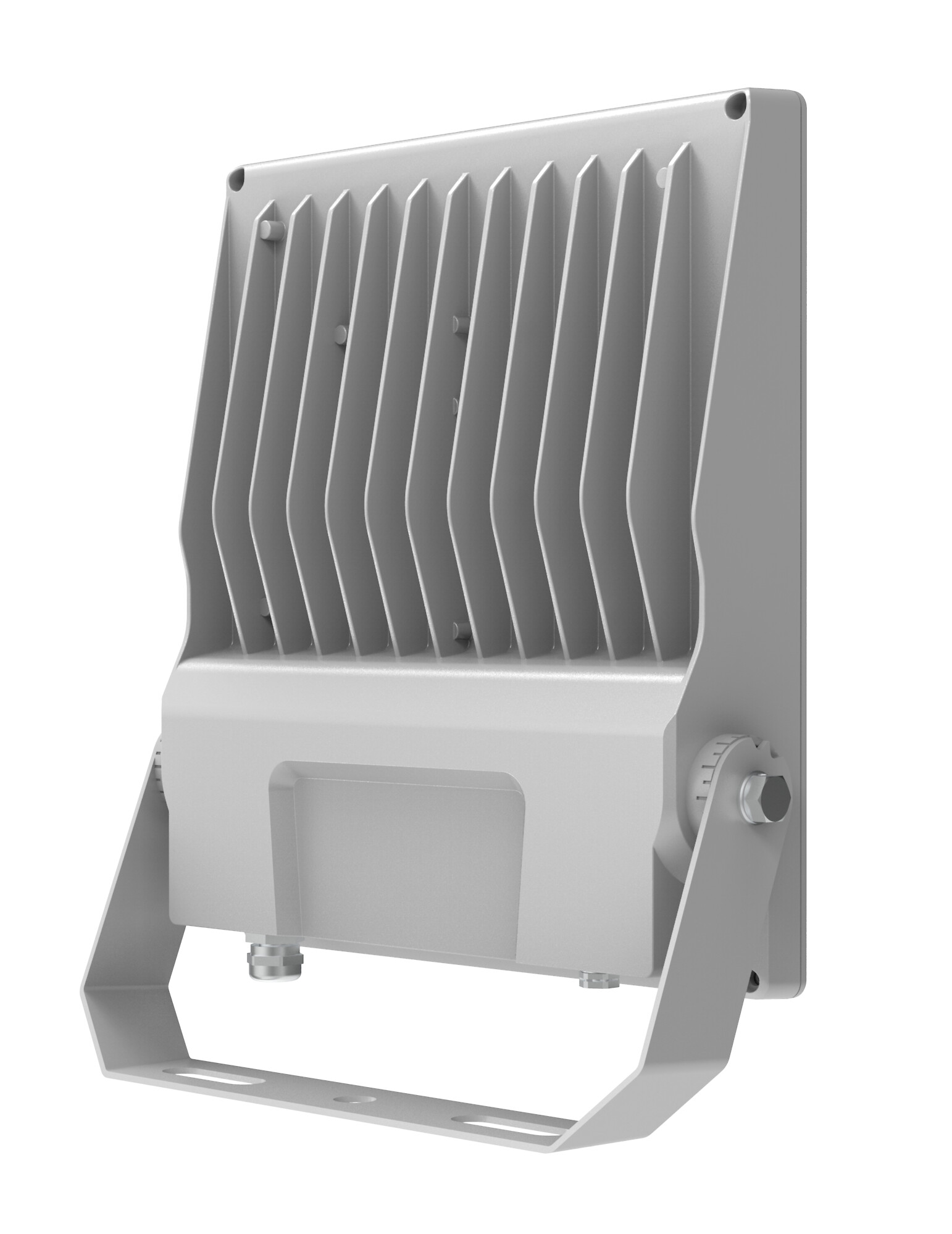

Aluminium body, hardened glass diffuser, polycarbonate lenses with UV protection. Polarized 45 degrees asymmetric light distribution.
Saltwater and seawater resistant body and surface treatment.
Grey, RAL 9006.
Protection class I.
Mounting on a wall or ceiling and on a 60 mm straight pole with a special fixture.
Rubber cable 650 mm.
Wiring -0 3 x 1,0 mm2, using the quick connector included with the luminaire. Use a separate connection box for chaining the luminaires.
Wind catchment area:
50 W / 100 W: front 0,0656 m2, side 0,0126 m2.
150 W: front 0,0840 m2, side 0,0170 m2.
240 W: front 0,1240 m2, side 0,0220 m2.
300 W: front 0,1240 m2, side 0,0220 m2.
Colour temperature 4000 K. CRI > 70 / Ra > 70.
MacAdam 5 SDCM.
IP66.
IK08.
Integrated LED.
50 W / 6000 lm; 100 W / 12 000 lm; 150 W / 18 000 lm; 240 W / 28 800 lm; 300 W / 36 000 lm.
On/off.
Ambient temperature range -30 … 50 °C.
Rated lifetime L80 50 000 h (Ta25°C).
Ventilation to prevent frost.
- Code
- 4546535
Downloads
Technical info
- Electrical number (FIN)
- 4546535
- Electrical number (SWE)
- 7770140
- GTIN
- 6435200308542
- Airam code
- A5RANB
- Code
- 4546535
- Suitable for pedestal/floor mounting
- Yes
- Compatible with Apple HomeKit
- No
- Reflector colour
- White
- Beam angle adjustable
- No
- Dimming 1-10 V
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1
- Compatible with Google Assistant
- No
- Luminaire efficacy (max) (lm/W)
- 120
- Light sharing
- Asymmetric
- Beam angle
- Wide beam 40-80°
- Fit for workplace acc. EN 12464-1
- No
- Impact strength
- IK08
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 12000
- Effective luminous flux (lm)
- 12000
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Light source included
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 12000
- Luminous flux (min) (lm)
- 12000
- No dimming function
- Yes
- Max. number of luminaires per miniature circuit breaker B16
- 13
- Housing material
- Aluminium

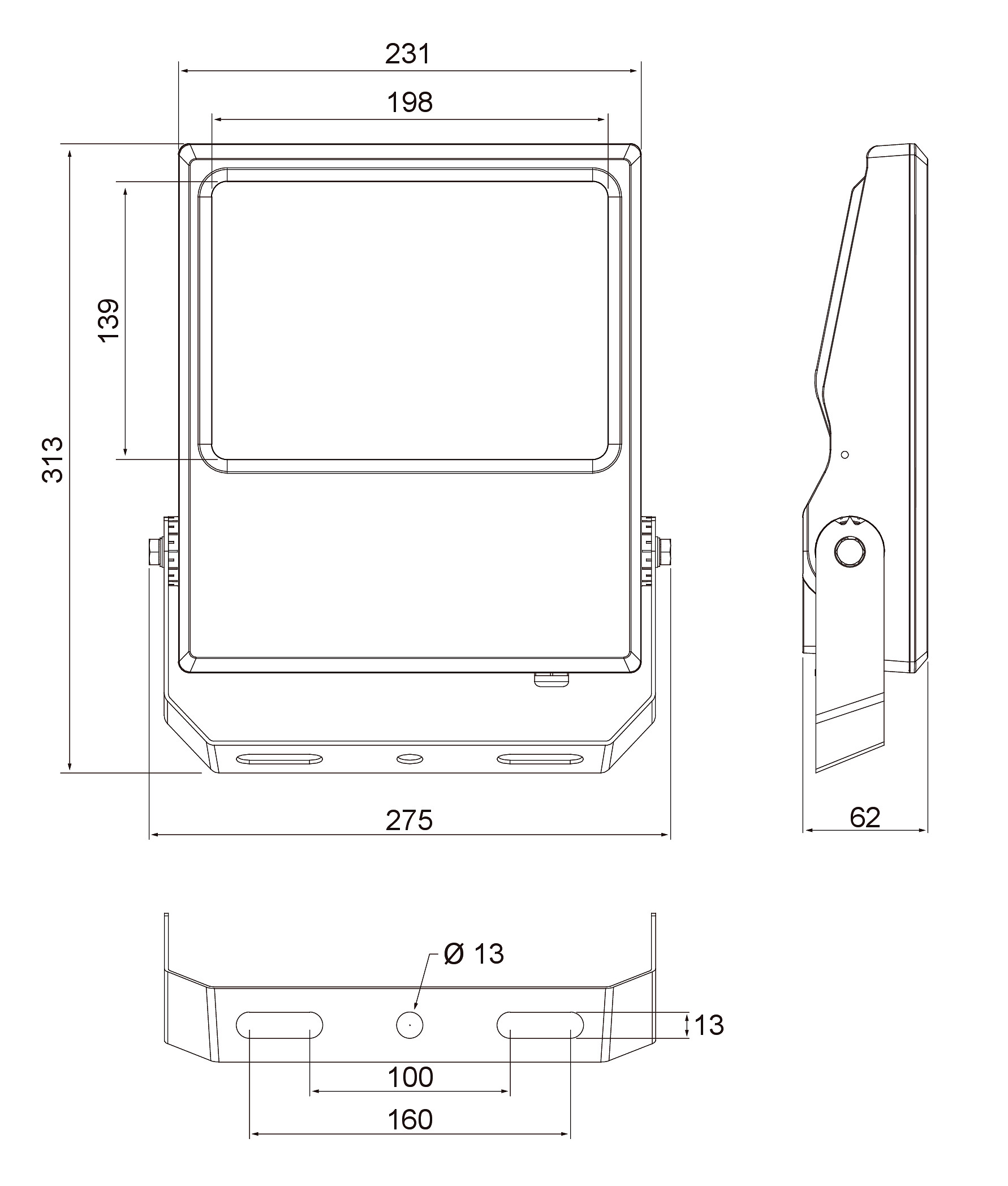

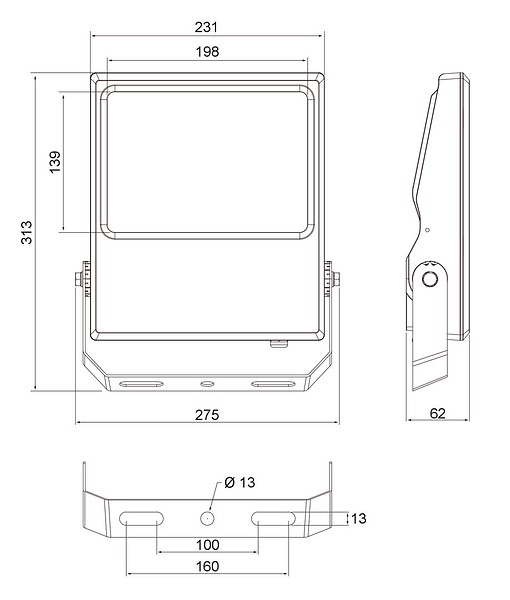

- Width (mm)
- 275
- Suitable for suspended mounting
- No
- Luminaire may be covered with thermally insulating material
- -
- Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
- 70
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Colour temperature switchable
- No
- Dimming DMX
- No
- Compatible with Casambi
- No
- Surface protection
- Powder coating
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 100
- Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
- 10
- Dimming programmable
- No
- With movement sensor
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Focal lens
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 120
- Dimming 0-10 V
- No
- Height/depth (mm)
- 62
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 313
- Dimming Touch and Dim
- No
- Adjustability
- Swivelling
- Photobiological safety according to EN 62471
- RG1
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- Yes
- Suitable for low voltage cable system
- No
- Nominal current (min) (mA)
- 390
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 70-79
- Colour consistency (McAdam ellipse)
- SDCM5
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Dimming DALI-2
- No
- Suitable for recessed mounting
- No
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Reflector
- High-gloss
- Max. number of luminaires per miniature circuit breaker C16
- 22
- Surface brushed
- Yes
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Suitable for traverse mounting
- Yes
- Suitable for light-track mounting
- No
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Degree of protection (IP), front side
- IP66
- Type of wiring
- Ending
- Dimming with push-button
- No
- Emergency power supply system
- None
- Protection class according to IEC 61140
- I
- Degree of protection (IP), rear side
- IP66
- Power factor
- 0.9
- Dimming Zigbee
- No
- Dimming DALI
- No
- Suitable for clamp-mounting
- No
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimmable
- No
- Cover material
- Glass transparent
- Total harmonic distortion
- 15
- Conductor cross section (mm²)
- 1
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -30
- Luminous flux (max) (lm)
- 12000
- Suitable for lamp power (max) (W)
- 100
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 4000
- Luminaire efficacy (min) (lm/W)
- 120
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Housing colour
- Grey
- Number of poles
- 3
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 50
- Suitable for number of lamps
- 1
- Dimming manufacturer's proprietary system
- No
- Light outlet
- Direct
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 390
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP66
- Maximum system power (W)
- 100
- Lumen setting adjustable
- No
Product versions
| Item description | Code | |
|---|---|---|
| Range IP66 6000lm 50W/740 ASYM | 4546534 |
|
| Range IP66 12000lm 100W/740 ASYM | 4546535 |
|
| Range IP66 18000lm 150W/740 ASYM | 4546536 |
|
| Range IP66 28000lm 240W/740 ASYM | 4546537 |
|
| Range IP66 36000lm 300W/740 ASYM | 4546539 |
