Puistoprisma IP54 E27 PCC GR

Name: Puistoprisma IP54 E27 PCC GR
SKU: 4513123

Puistoprisma Pole mount. luminaire 100W No dim; IP54; Protection cl. I; LED exchangeable; Cable 4m; Ending; 3x1.5mm²; Housing al; Colour gr; Cover Plastic, structured

See product details

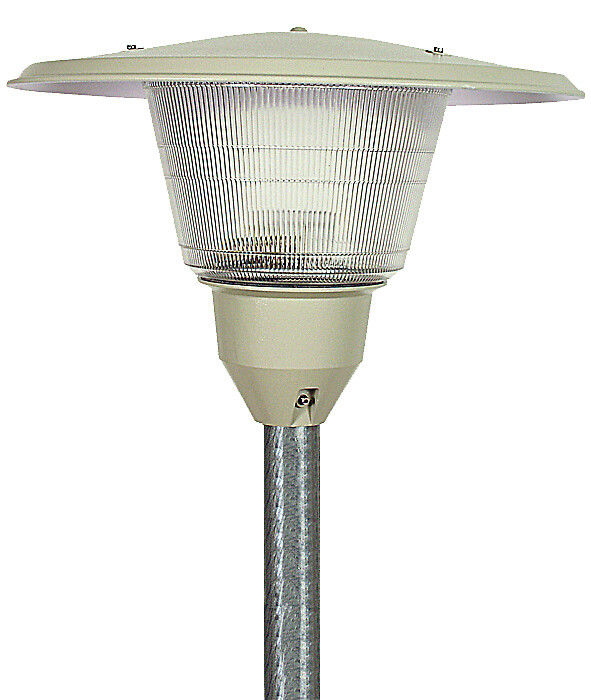

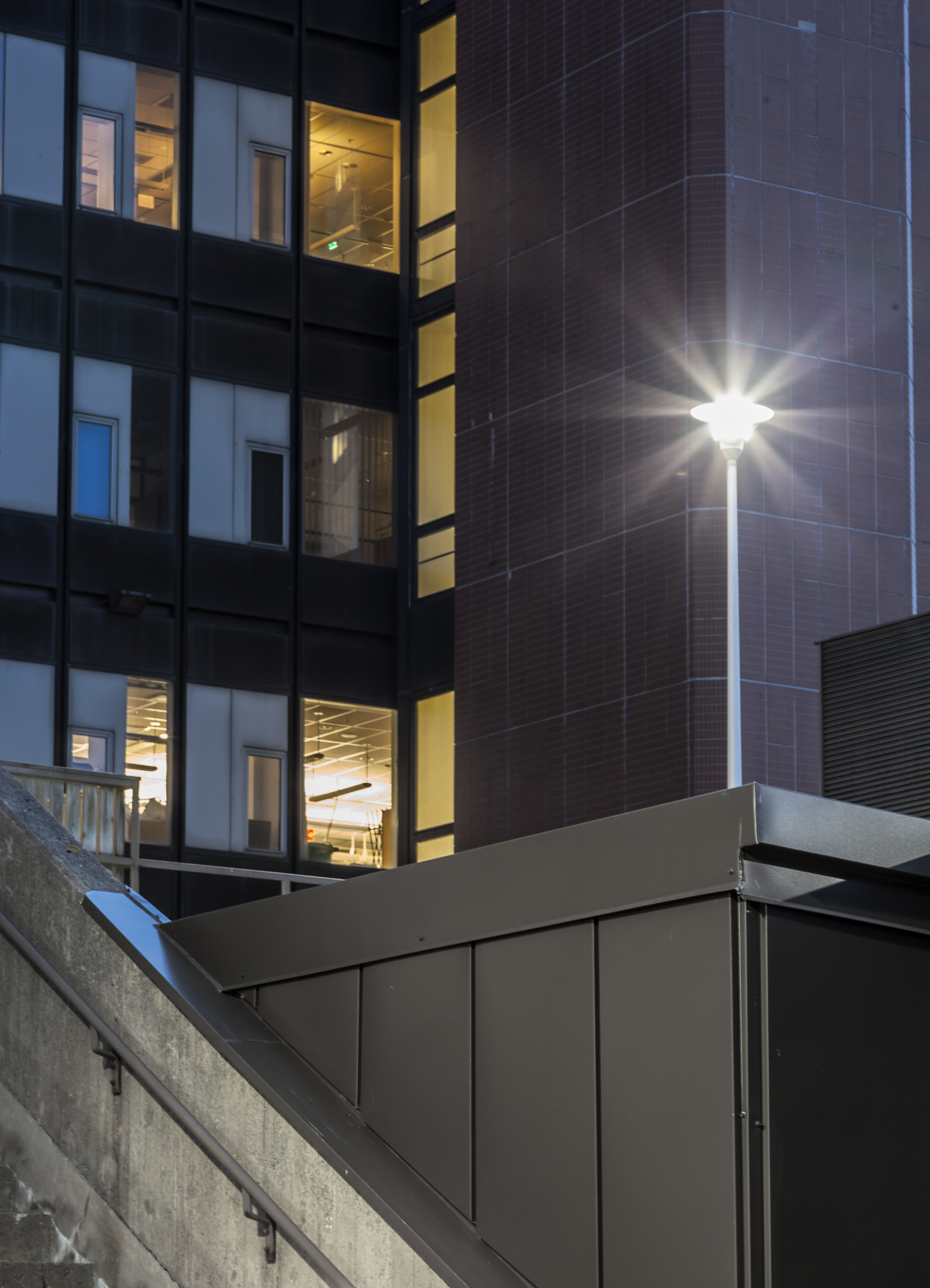

Puistoprisma is a sturdy luminaire for illuminating yards, parks, parking areas and other public outdoor spaces. The luminaire is mounted on a 48–60 mm column at a height of 3–5 m. Puistoprisma has an anti-glare diffuser with an interior prism, which gives it an extremely high luminous efficacy. The luminaire is available as models with an integrated LED and an E27 base.

Aluminium body and polycarbonate diffuser.
Grey.
Protection class I.
Mounting on a 48–60 mm column.
Comes with an 4 m, 3 x 1.5 mm2 rubber cable.
Installation height 3–5 m.
LED colour temperature 4,000 K. CRI > 80 / Ra > 80.
IP54.
Fixed LED 31 W / 2,600 lm.
MacAdam 3 SDCM in LED models.
Ambient temperature range -20 … 35 °C.
Rated lifetime L80 50,000 h (Ta25°C).
On/off.
Lamp recommendation: High power LED max. 18W ED75 E27, not included.

Code: 4513123

Technical info

Mounting

Mounting method: Post-top
Degree of protection (IP): IP54
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24: No
Type of wiring: Ending
Number of poles: 3
Conductor cross section (mm²): 1.5 mm²
Connectable conductor cross section (min) (mm²): 1.5 mm²
Connectable conductor cross section (max) (mm²): 2.5 mm²
Connection type: Other

Structure

Lamp type: LED exchangeable
Light source included: No
Suitable for number of lamps: 1
Lamp holder: E27
Housing material: Aluminium
Surface protection: Powder coating
Housing colour: Grey
Cover material: Plastic, structured
Solar powered: No
With integrated PV panel: No
Built-in battery: No
Suitable for off-grid power system: No
Control gear included: No
Exchangeable control gear: No
Adjustable optics: No
Energy efficiency class of light source according to EU regulation 2019/2015: G
With connection cable: Yes
Cable length (m): 4 m
Suitable for top end size (min) (mm): 48 mm
Suitable for top end size (max) (mm): 60 mm
Type of connection for sensor/communication module: None

Electrotechnical data

Voltage type: AC
Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Type of control gear: Not required
Protection class according to IEC 61140: I
Suitable for lamp power (min) (W): 20 W
Suitable for lamp power (max) (W): 20 W

Dimming and control

Dimmable: No
Dimming DALI-2: No
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming D4i: No
Dimming DMX: No
Dimming DSI: No
Dimming potentiometer (integrated): No
Dimming LineSwitch: No
Dimming manufacturer's proprietary system: No
Dimming mains voltage modulation: No
Dimming trailing edge: No
Dimming leading edge: No
Dimming programmable: No
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with push-button: No
No dimming function: Yes
Remote control: None
With wireless control: No
Constant luminous flux control: No
With light regulation program control: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Zhaga-D4i certified: No
Bluetooth operated: No
With light sensor: No
With movement sensor: No
With presence indicator: No

Photometric data

Light distributor: Diffuser lens/optic/panel
Colour of light (alphanumeric): White

Lifetime and capacity

Rated ambient temperature acc. IEC62722-2-1 (min) (°C): -20 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C): 35 °C

Measurements

Width (mm): 580 mm
Height/depth (mm): 400 mm
Length (mm): 580 mm
Diameter (mm): 580 mm

	Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
	Puistoprisma IP54 31W/840 PCC GR	4510218	4510218		2600lm	31W	580x580x400mm
	Puistoprisma IP54 E27 PCC GR	4513123	4513123			20W	580x580x400mm
