Moon
Outdoor applications

Moon

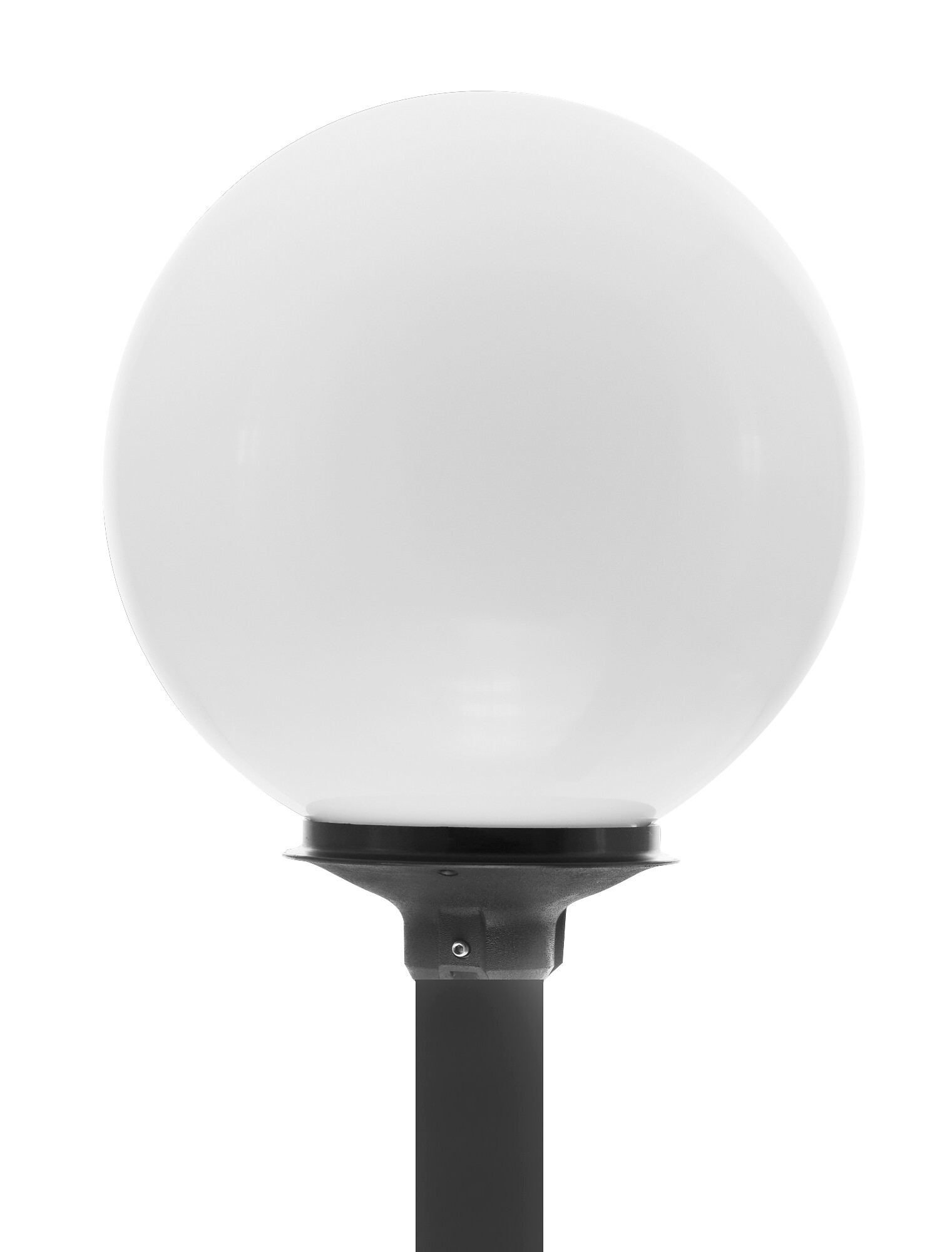

MOON IP65 45W/840 OP

Moon Pole mount. luminaire 45W 4000K 4300lm No dim; IP65; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Plastic; Cover Plastic, opal

See product details
Code
4513145

Technical info

Mounting

Mounting method
Post-top
Max. number of luminaires per miniature circuit breaker B16
20
Max. number of luminaires per miniature circuit breaker C16
33
Degree of protection (IP)
IP65
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
No
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2.5 mm²
Connectable conductor cross section (min) (mm²)
1.5 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²
Connection type
Other

Structure

Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Surface protection
Plastic-coated
Cover material
Plastic, opal
Solar powered
No
With integrated PV panel
No
Built-in battery
No
Suitable for off-grid power system
No
Control gear included
Yes
Exchangeable control gear
Yes
Adjustable optics
No
Containing product according to 2019/2020/EU
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
Not required
With connection cable
No
Suitable for top end size (min) (mm)
60 mm
Suitable for top end size (max) (mm)
60 mm
Type of connection for sensor/communication module
None

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Type of control gear
LED operating device current-controlled
Protection class according to IEC 61140
I
Suitable for lamp power (min) (W)
45 W
Suitable for lamp power (max) (W)
45 W
Maximum system power (W)
45 W
Luminaire efficacy (lm/W)
96 lm/W
Power factor
0.9

Dimming and control

Dimmable
No
Dimming DALI-2
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming D4i
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
Remote control
None
With wireless control
No
Constant luminous flux control
No
With light regulation program control
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Zhaga-D4i certified
No
Bluetooth operated
No
With light sensor
No
With movement sensor
No
With presence indicator
No

Photometric data

Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Effective luminous flux (lm)
4300 lm
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
4300 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
4300 lm
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
4000 K
Colour temperature (max) (K)
4000 K
Colour rendering index (CRI/Ra)
80-89

Lifetime and capacity

Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
95 %
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
90 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
10 %
Rated life time L70/B50 at 25 °C (h)
100000 h
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-20 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
35 °C

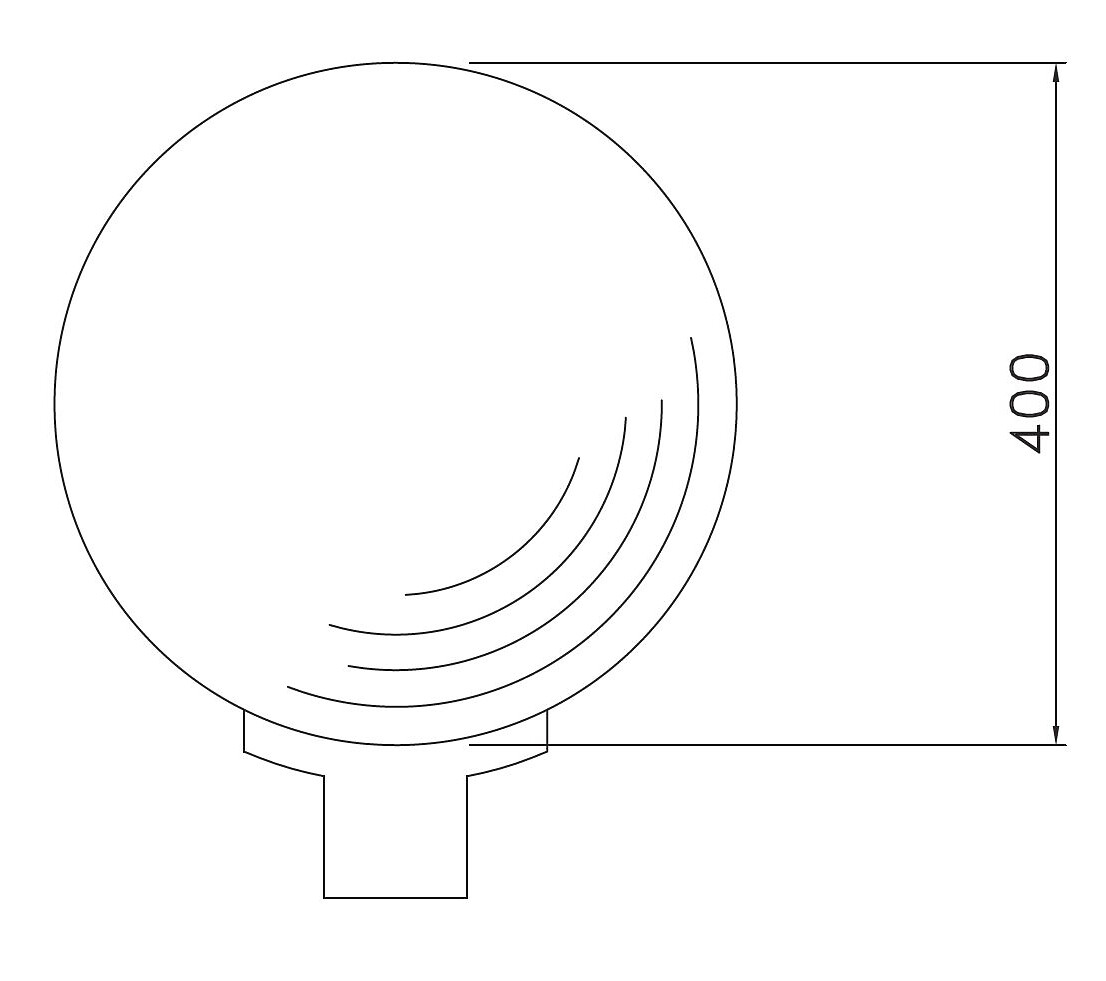

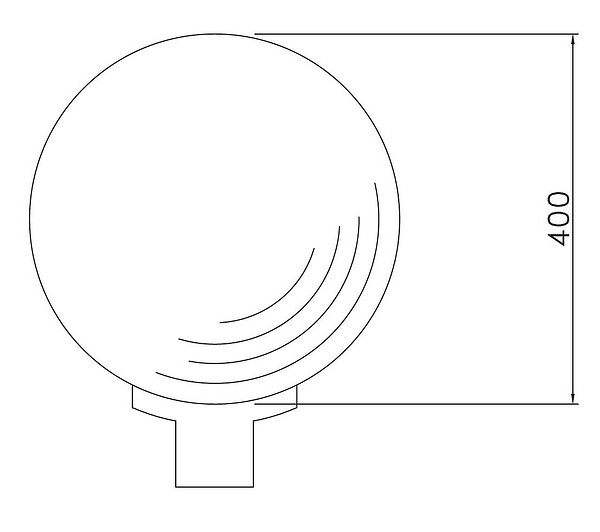

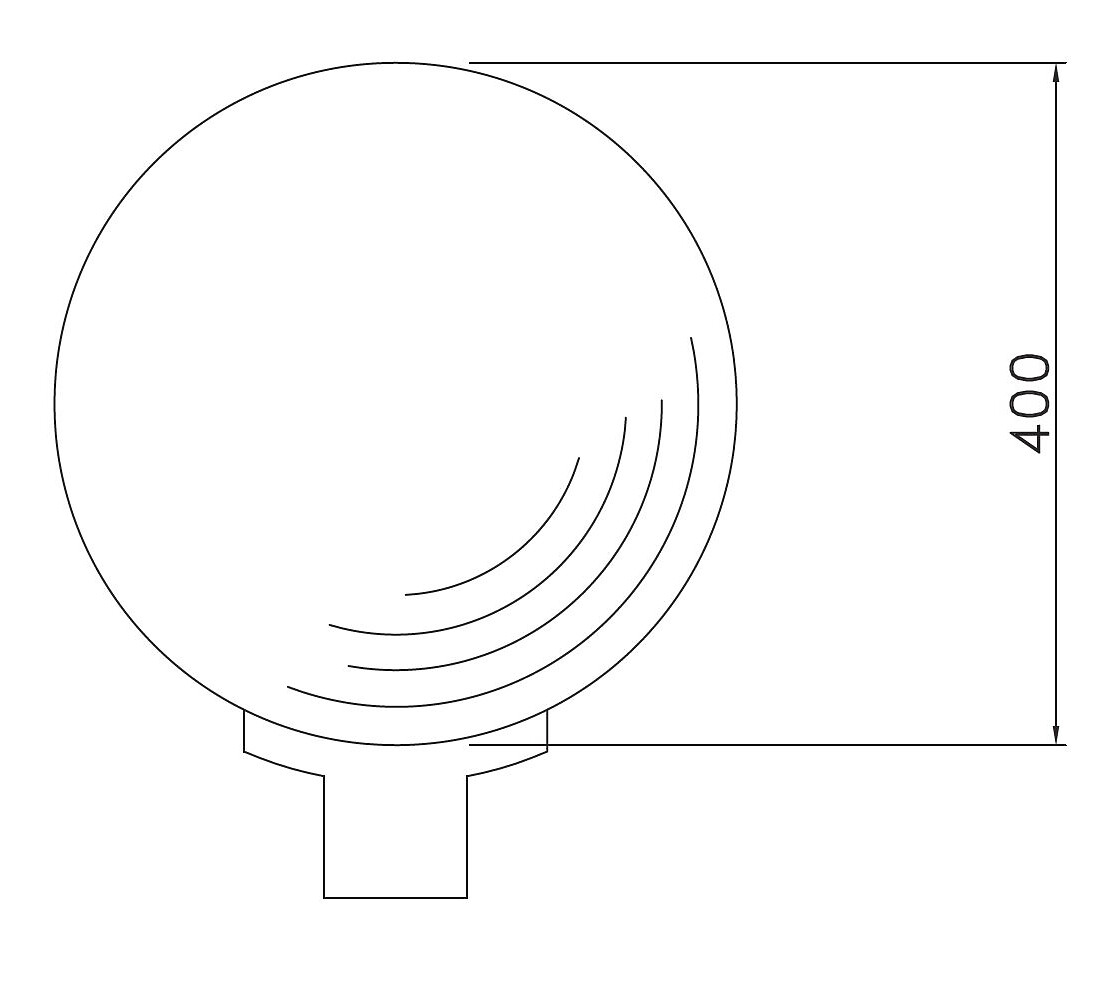

Measurements

Width (mm)
400 mm
Height/depth (mm)
470 mm
Length (mm)
400 mm
Diameter (mm)
400 mm
