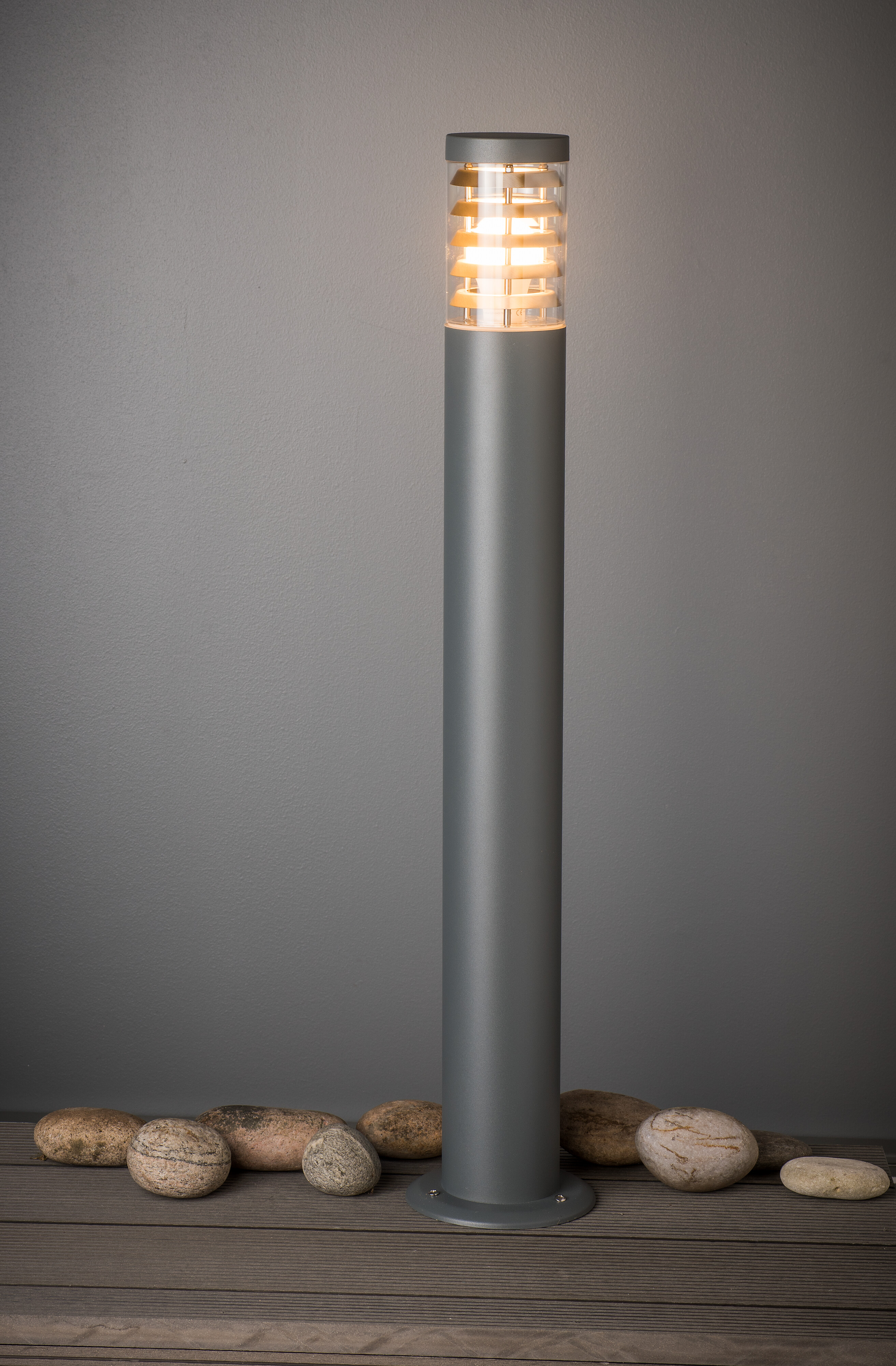

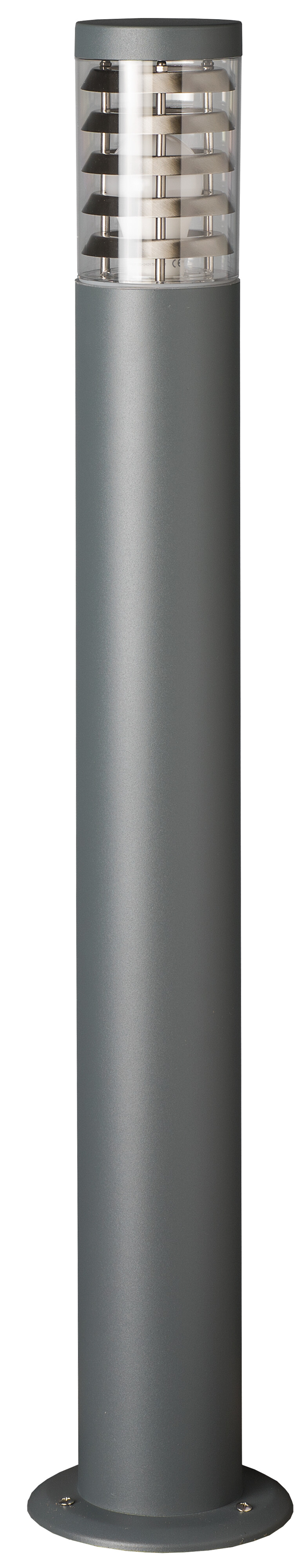

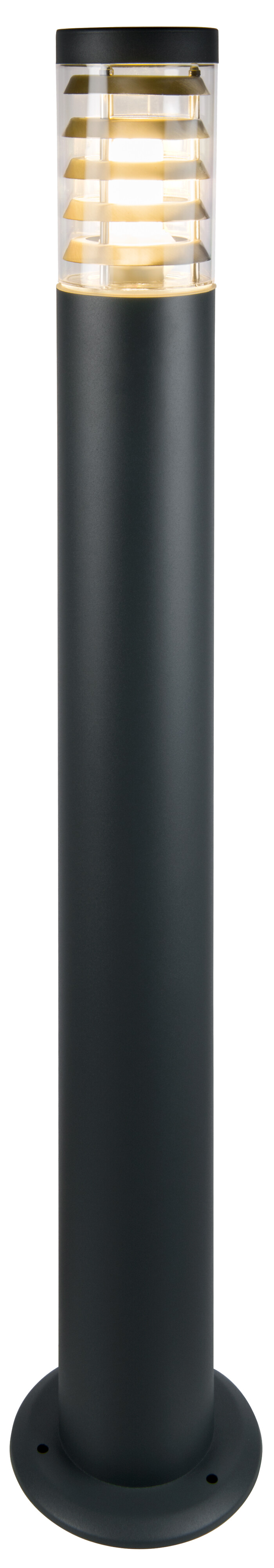

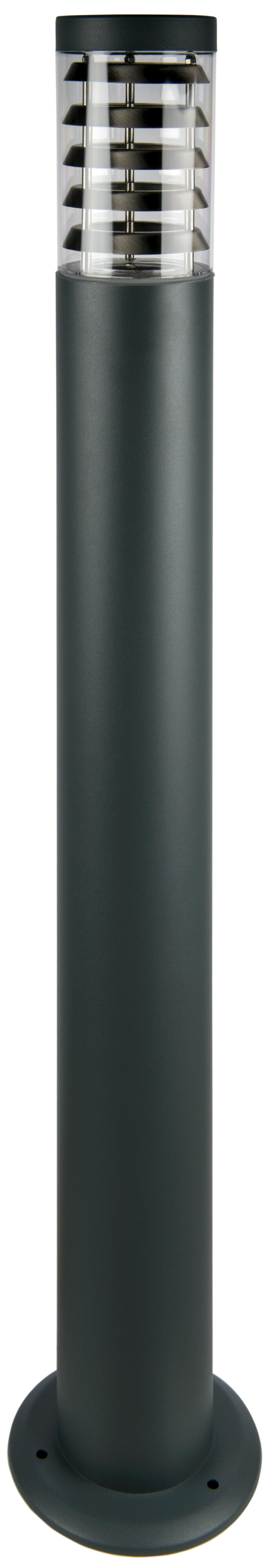

Park Bollard IP44 E27 PCC GR H920
Park Bollard Outdoor luminaire IP44; Protection cl. I; LED exchangeable; Suitable for through wiring; 3x2.5mm²; Housing st; Colour gr; Cover Plastic, transparent

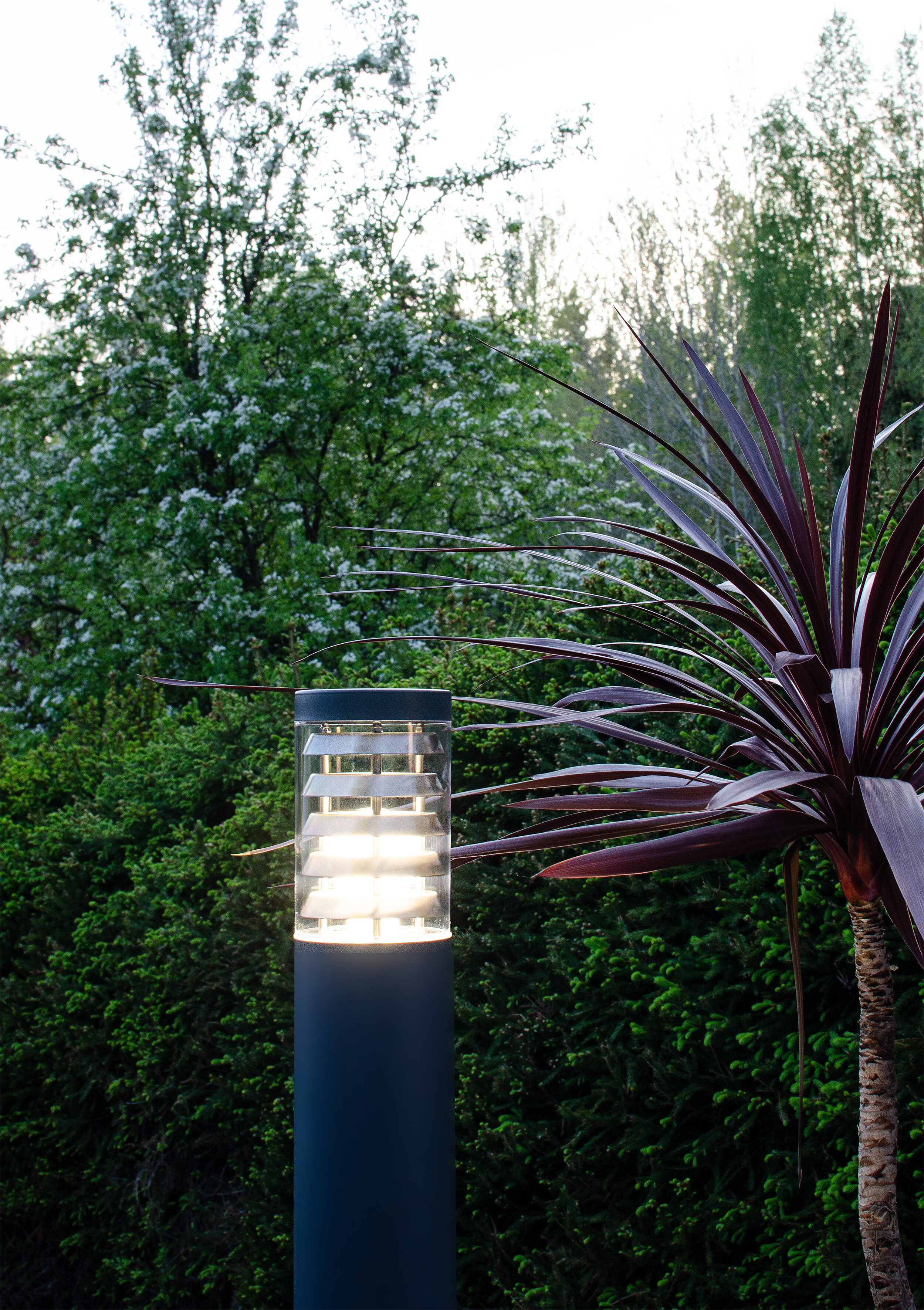

The clean-lined Park Bollard luminaires are designed for gardens and access routes. The steel rings inside the diffuser prevent glare and bring the modern design to life. You can create a harmonious entity by combining the bollard-mounted models with Park Wall luminaires. You can change the atmosphere and level of illumination through the choice of lamp. You can install the luminaires using a concrete base and ground mounting tube (4107058) or alternatively you can use a ground mounting tube (4107104) that can be installed without a separate base.
Body made of steel, dome made of polycarbonate.
Brushed steel and grey.
Can be chained together. 3 x 2.5 mm² connectors.
LED lamp max. 10,5 W A60 E27, not included.
IP44.
Temperature of environment of use -20 … 25 °C, depending on the bulb.
- Code
- 4116104
Technical info
Structure
- Lamp type
- LED exchangeable
- Light source included
- No
- Suitable for number of lamps
- 1
- Lamp holder
- E27
- Housing colour
- Grey
- Cover material
- Plastic, transparent
- Control gear included
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- Not required
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 1 W
- Suitable for lamp power (max) (W)
- 10.5 W
Photometric data
- Light distributor
- Reflector
- Light sharing
- Symmetric
- Light outlet
- Direct
- Colour temperature switchable
- No
- Lumen setting adjustable
- No
- Beam angle adjustable
- No
Dimming and control
- With movement sensor
- No
- With light sensor
- No
- Constant luminous flux control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- IFTTT support available
- No

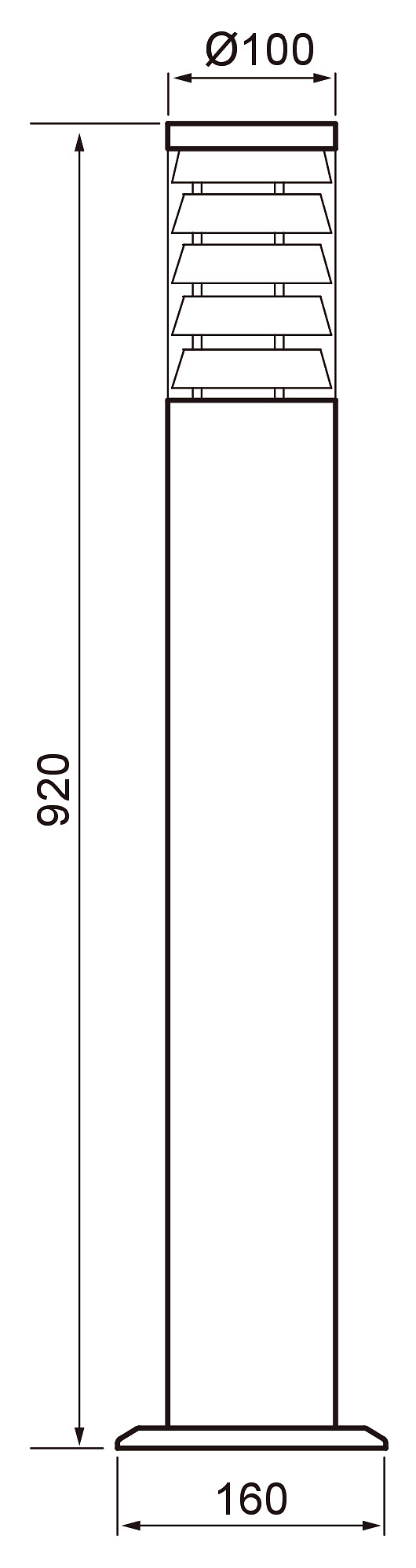

Measurements
- Width (mm)
- 160 mm
- Height/depth (mm)
- 920 mm
- Length (mm)
- 100 mm
- Diameter (mm)
- 100 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Park Bollard IP44 E27 PCC GR H920 | 4116104 |
4116104 |
1-10.5W |
100x160x920mm |
|||
|
Park Bollard IP44 E27 PCC RST H920 | 4546531 |
4546531 |
1-10.5W |
100x160x920mm |
- Electrical number (FIN)
- 4116104
- Electrical number (SWE)
- 7747903
- GTIN
- 6435200188069
- Airam code
- A1PUBB
- Code
- 4116104
