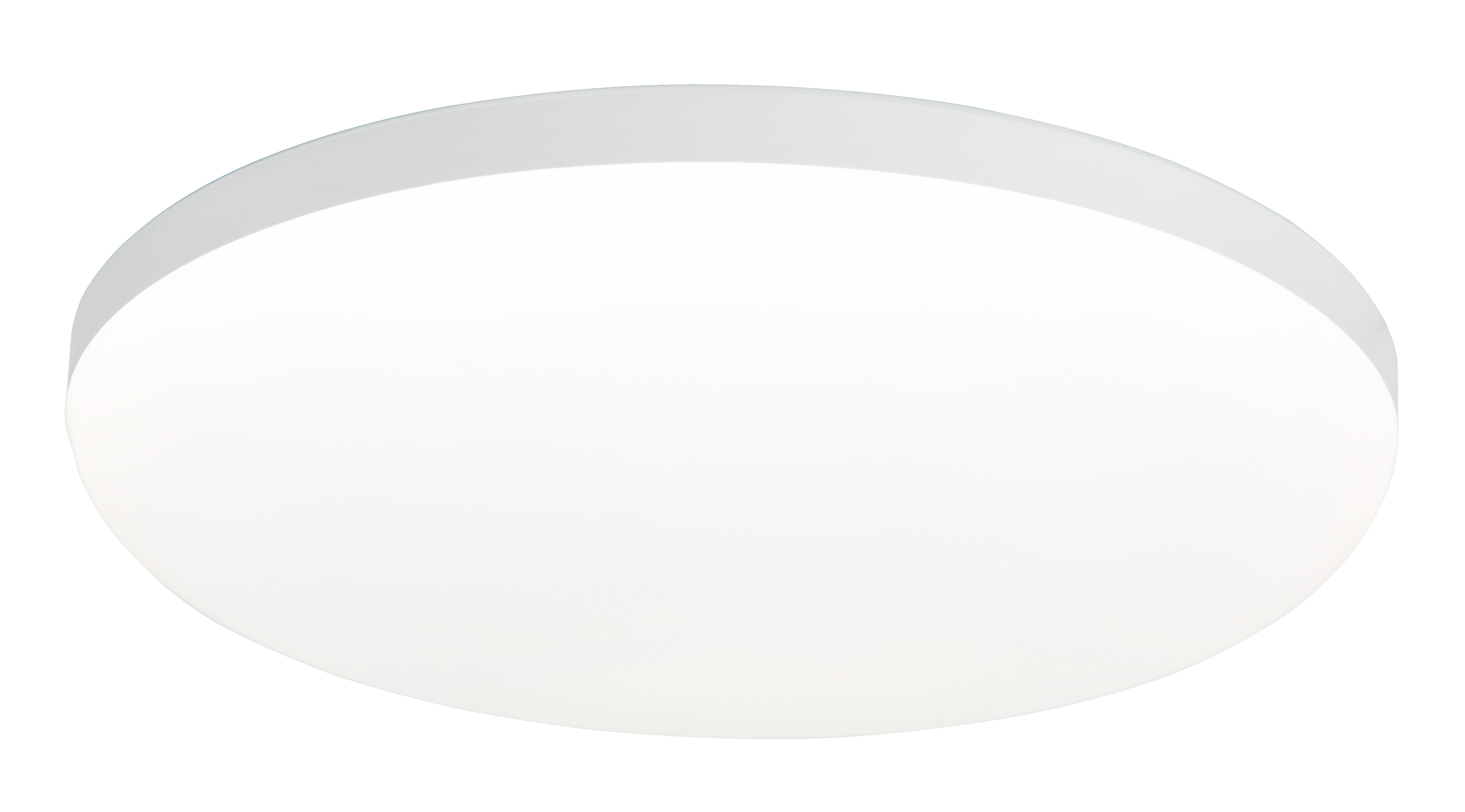

Lumino 400 IP44 22W 830/840 PCO DA2
Lumino Surface mounted luminaire 22W 3000K/4000K 2150lm Dim DALI-2; Dim with push-button; IP44; IK10; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing Plastic; Colour wh; Cover Plastic, opal; C16 max. 76
Lumino is a low-profile, high-quality and long-lasting universal luminaire for residential buildings and public places. The appearance of the luminaire is finished and the light it gives is uniform and high-quality. Thanks to its low structure, the luminaire fits elegantly and discreetly into various spaces and interiors. The luminaire is suitable for indoor and outdoor wall and ceiling installations in stairwells and public spaces. You can also install Lumino outdoors, as it can withstand cold temperatures. Thanks to the IP44 class, you can install the luminaire in the bathroom and other damp areas. The luminaire can also be installed with a surface cable using the raising frame which is available as an accessory. The luminaire has two color temperatures. You can choose from two size options and PIR- and sensor versions from both sizes. For the 400 model, control options are also available as Dali-2 and Casambi. Lumino is designed in Kerava, Finland for Nordic contitions.
UV-stabilised polycarbonate housing and diffuser.
White, RAL 9003.
Protection class II.
Surface mounting on a wall or ceiling.
Linking: on/off and Casambi 3 x 1,5/2,5 mm2. PIR and Radar 4 x 1,5/2,5 mm2. Dali-2 5 x 1,5/2,5 mm2.
Installation height 1,5–6 m.
Comes in two sizes: Ø 300 and 400 mm.
Colour temperature 3,000/4,000 K, adjustable on the luminaire. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP44.
IK10. PIR IK05.
Integrated LED:
300 model: 12 W 1100 lm / 15 W 1500 lm.
400 model: 17 W 1800 lm / 25 W 2500 lm.
400 Dali-2 and Casambi -models: 22 W 2150 lm.
Each size is available as on/off and Radar models. 400 model available with Dali-2 (with pushbutton control 230V) and Casambi.
Radar model work on the microwave sensor principle (5.8GHz) and PIR model detects infrared radiation. Both are suitable for master/slave (M/S) installation, enabling the use of up to 10 slave luminaires.
The ambient temperature range on/off -30 … 25 °C, PIR, Radar, Dali-2 and Casambi -20 ... 25 °C.
Rated lifetime L70B50 100 000 h (Ta25°C).
Rated lifetime L80B10 80 000 h (Ta25°C).
Rated lifetime L90B10 50 000 h (Ta25°C).
- Code
- A1LUKC-DALI
Downloads
Technical info
- Electrical number (SWE)
- 7027220
- GTIN
- 6435200309556
- Airam code
- A1LUKC-DALI
- Code
- A1LUKC-DALI
- Length (mm)
- 400
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 98
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 22
- Number of poles
- 5
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- With light sensor
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 22
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 2150
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- Yes
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP44
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 85
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Housing surface protection
- Plastic-coated
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -20
- Effective luminous flux (lm)
- 2150
- Rated life time L80/B50 at 25 °C
- 80000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK10
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 76
- Width (mm)
- 400
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 98
- Dimming with push-button
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Outer diameter (mm)
- 400
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 550
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 22
- No dimming function
- No
- Degree of protection (IP), front side
- IP44
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 76
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- None
- Light distributor
- Diffuser lens/optic/panel
- Luminaire may be covered with thermally insulating material
- -
- Total harmonic distortion (THD) (%)
- 20
- Suitable for light line configuration
- No
- Dimming DALI-2
- Yes
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- No
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP44
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 2150
- Lumen setting adjustable
- Continuously variable
- Suitable for lamp power (max) (W)
- 22
- Protection class according to IEC 61140
- II
- Dimming DALI
- Yes
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 98
- Voltage type
- AC
- Colour temperature switchable
- Discrete positions
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Plastic
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 53
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- No
- Suitable for wall mounting
- Yes
- With connection cord and plug
- No
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 550
- Cover material
- Plastic, opal
- Max. number of luminaires per miniature circuit breaker B16
- 76
Product versions
Lumino
| Item description | Code | |
|---|---|---|
| Lumino 300 IP44 15W 830/840 PCO | 4146668 |
|
| Lumino 400 IP44 25W 830/840 PCO | 4146670 |
Lumino sensor luminaires
| Item description | Code | |
|---|---|---|
| Lumino 300 IP44 15W 830/840 RA PCO | 4146669 |
|
| Lumino 400 IP44 25W 830/840 RA PCO | 4146671 |
|
| Lumino 300 IP44 15W 830/840 PIR PCO | 4146971 |
|
| Lumino 400 IP44 25W 830/840 PIR PCO | 4146972 |
Lumino Dali
| Item description | Code | |
|---|---|---|
| Lumino 400 IP44 22W 830/840 PCO DA2 | A1LUKC-DALI |
Lumino Casambi
| Item description | Code | |
|---|---|---|
| Lumino 400 IP44 22W 830/840 PCO CA | A1LUKC-CA |
