Lumino 300 IP44 15W 830/840 PIR PCO

Name: Lumino 300 IP44 15W 830/840 PIR PCO
SKU: 4146971

Lumino Sensor luminaire 15W 3000K 1500lm No dim; IP44; IK05; Protection cl. II; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 4x2.5mm²; Housing Plastic; Colour wh; Cover Plastic, opal; Movement sensor; C16 max. 129

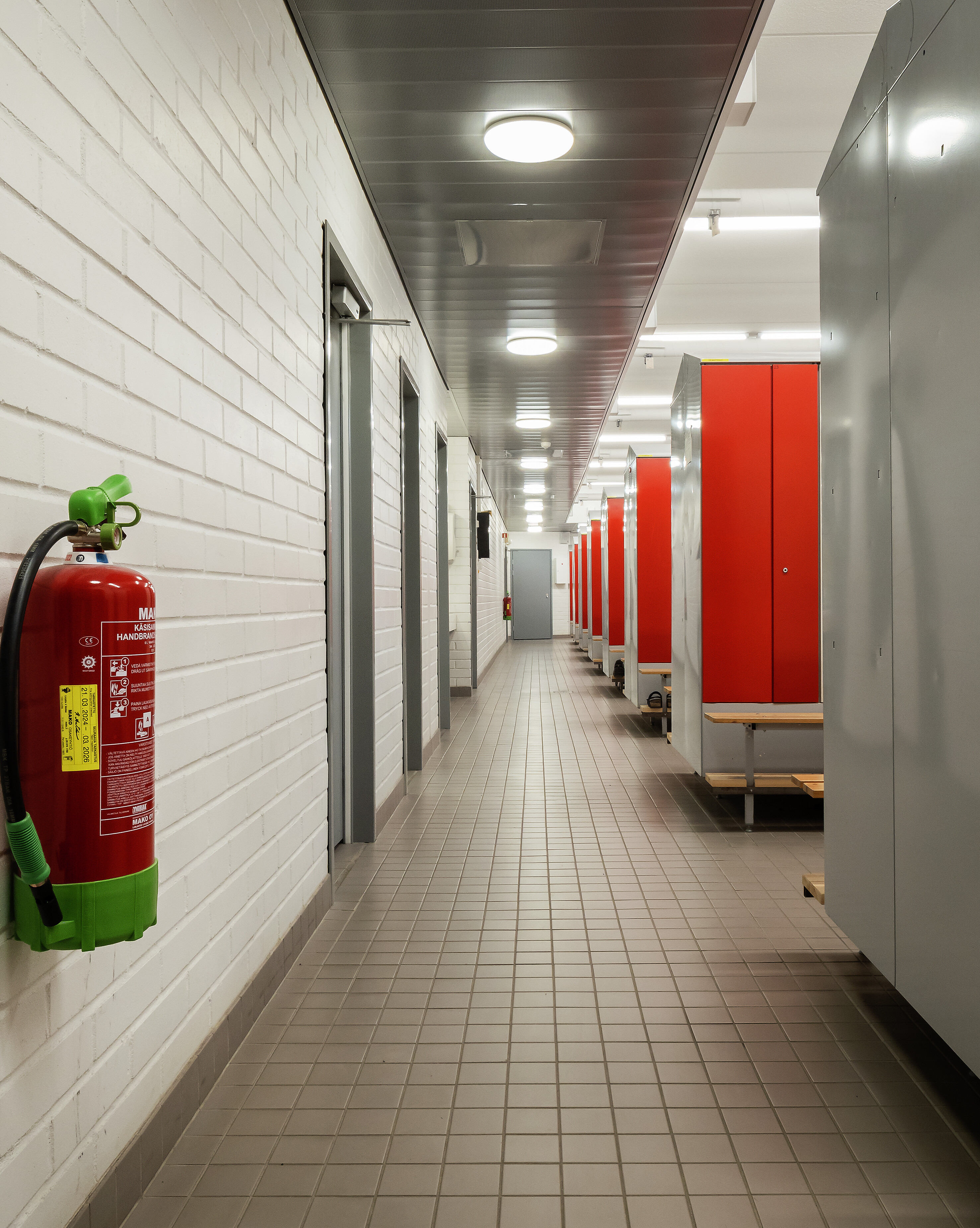

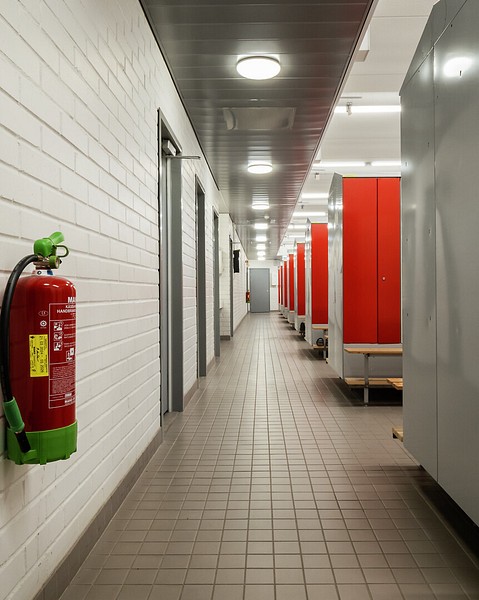

Lumino is a low-profile, high-quality and long-lasting universal luminaire for residential buildings and public places. The appearance of the luminaire is finished and the light it gives is uniform and high-quality. Thanks to its low structure, the luminaire fits elegantly and discreetly into various spaces and interiors. The luminaire is suitable for indoor and outdoor wall and ceiling installations in stairwells and public spaces. You can also install Lumino outdoors, as it can withstand cold temperatures. Thanks to the IP44 class, you can install the luminaire in the bathroom and other damp areas. The luminaire can also be installed with a surface cable using the raising frame which is available as an accessory. The luminaire has two color temperatures. You can choose from two size options and PIR- and sensor versions from both sizes. For the 400 model, control options are also available as Dali-2 and Casambi. Lumino is designed in Kerava, Finland for Nordic contitions.

UV-stabilised polycarbonate housing and diffuser.
White, RAL 9003.
Protection class II.
Surface mounting on a wall or ceiling.
Linking: on/off and Casambi 3 x 1,5/2,5 mm2. PIR and Radar 4 x 1,5/2,5 mm2. Dali-2 5 x 1,5/2,5 mm2.
Installation height 1,5–6 m.
Comes in two sizes: Ø 300 and 400 mm.
Colour temperature 3,000/4,000 K, adjustable on the luminaire. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP44.
IK10. PIR IK05.
Integrated LED:
300 model: 12 W 1100 lm / 15 W 1500 lm.
400 model: 17 W 1800 lm / 25 W 2500 lm.
400 Dali-2 and Casambi -models: 22 W 2150 lm.
Each size is available as on/off and Radar models. 400 model available with Dali-2 (with pushbutton control 230V) and Casambi.
Radar model work on the microwave sensor principle (5.8GHz) and PIR model detects infrared radiation. Both are suitable for master/slave (M/S) installation, enabling the use of up to 10 slave luminaires.
The ambient temperature range on/off -30 … 25 °C, PIR, Radar, Dali-2 and Casambi -20 ... 25 °C.
Rated lifetime L70B50 100 000 h (Ta25°C).
Rated lifetime L80B10 80 000 h (Ta25°C).
Rated lifetime L90B10 50 000 h (Ta25°C).

Code: 4146971

Downloads

Product card: Download

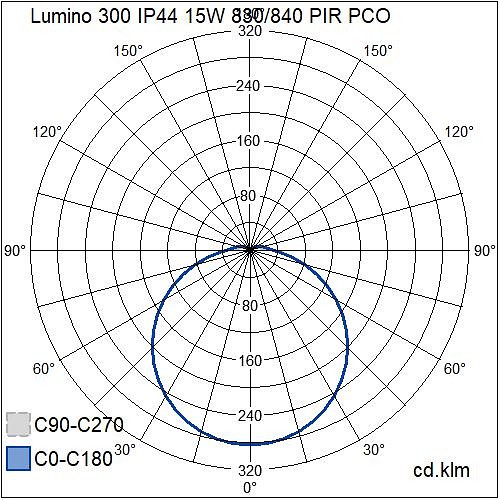

Light Distribution Curve Image: Download
Installation instructions: Download
LDT file: Download
EPD (Environmental Product Declaration): Download

Technical info

Electrical number (FIN): 4146971
Electrical number (SWE): 7027230
GTIN: 6435200310460
Airam code: A1LUKG
Code: 4146971

Compatible with Apple HomeKit: No
Beam angle adjustable: No
With light sensor: Yes
Connectable conductor cross section (min) (mm²): 1.5
With air slots: No
Compatible with Google Assistant: No
Fit for workplace acc. EN 12464-1: No
Luminaire efficacy (max) (lm/W): 100
Light sharing: Symmetric
Energy efficiency class of light source according to EU regulation 2019/2015: E
Beam angle: Open beam
Impact strength: IK05
Stroboscope effect value SVM: 0.4
With presence indicator: No
Dimming DSI: No
No dimming function: Yes
Rated luminous flux according to IEC 62722-2- 1 (max) (lm): 1500
Effective luminous flux (lm): 1500
Constant luminous flux control: No
Dimming trailing edge: No
Rated luminous flux according to IEC 62722-2- 1 (min) (lm): 1100
Light source included: Yes
Housing material: Plastic
Width (mm): 300
Suitable for suspended mounting: No
Type of grid: None
Rated ambient temperature acc. IEC62722-2-1 (max) (°C): 25
Max. number of luminaires per miniature circuit breaker B16: 127
Luminaire may be covered with thermally insulating material: -
Flickering value Pst LM: 1
Bluetooth operated: No
Outer diameter (mm): 300
Colour temperature switchable: Discrete positions
Dimming DMX: No
Compatible with Casambi: No
Lamp holder: Other
Type of control gear: LED operating device current-controlled
Suitable for lamp power (min) (W): 12
Dimming programmable: No
IFTTT support available: No
Dimming mains voltage modulation: No
Light distributor: Diffuser lens/optic/panel
Dimming RF: No
Emergency function monitoring system: None
Luminaire efficacy (lm/W): 100
Movement sensor/presence detector technology: Passive infrared
Dimming 0-10 V: No
Total harmonic distortion (THD) (%): 20
Height/depth (mm): 54
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 10
Exchangeable control gear: Yes
With connection cord and plug: No
Voltage type: AC
Length (mm): 300
Dimming Touch and Dim: No
Photobiological safety according to EN 62471: RG0
Dimming potentiometer (integrated): No
Filament test according to IEC 60695-2-11: 650 °C - 30 s
Suitable for wall mounting: Yes
Nominal current (min) (mA): 290
With mounting material: Yes
Suitable for surface mounting: Yes
Colour of light (alphanumeric): White
Colour temperature (max) (K): 4000
Rated life time L70/B50 at 25 °C (h): 100000
Dimming Sine Wave Reduction: No
Colour rendering index (CRI/Ra): 80-89
Colour consistency (McAdam ellipse): SDCM3
Nominal voltage (min) (V): 220
Connectable conductor cross section (max) (mm²): 2.5
Rated ambient temperature acc. IEC62722-2-1 (min) (°C): -20
Dimming leading edge: No
Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%): 10
Suitable for recessed mounting: No
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%): 5
Max. number of luminaires per miniature circuit breaker C16: 129
Rated life time L80/B50 at 25 °C: 80000
Containing product according to 2019/2020/EU: Yes
Control gear included: Yes
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24: Yes
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%): 90
Degree of protection (IP), front side: IP44
Type of wiring: Suitable for through wiring
With movement sensor: Yes
Dimming with push-button: No
Emergency power supply system: None
Protection class according to IEC 61140: II
Degree of protection (IP), rear side: IP44
Power factor: 0.9
Dimming Zigbee: No
Max. number of luminaires per miniature circuit breaker C10 (MCB): 127
Suitable for clamp-mounting: No
Unified Glare Rating (UGR): 22
Dimming LineSwitch: No
Compatible with Amazon Alexa: No
Dimming 1-10 V: No
Dimmable: No
Dimming DALI: No
Cover material: Plastic, opal
With switch: No
Total harmonic distortion: 20
Conductor cross section (mm²): 2.5
Suitable for lamp power (max) (W): 15
Nominal voltage (max) (V): 240
Colour temperature (min) (K): 3000
Luminaire efficacy (min) (lm/W): 100
Suitable for light line configuration: No
Housing colour: White
Dimming DALI-2: No
Number of poles: 4
Suitable for emergency lighting: No
Dimming manufacturer's proprietary system: No
Suitable for number of lamps: 1
Housing surface protection: Plastic-coated
Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%): 85
Light outlet: Direct
Suitable for ceiling mounting: Yes
Lamp type: LED not exchangeable
Nominal current (max) (mA): 370
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 90
Connection type: Screwless terminal
Emergency power supply integrated: No
Degree of protection (IP): IP44
Maximum system power (W): 15
Lumen setting adjustable: Positions

Product versions

Lumino

Item description	Code
Lumino 300 IP44 15W 830/840 PCO	4146668
Lumino 400 IP44 25W 830/840 PCO	4146670

Lumino sensor luminaires

Item description	Code
Lumino 300 IP44 15W 830/840 RA PCO	4146669
Lumino 400 IP44 25W 830/840 RA PCO	4146671
Lumino 300 IP44 15W 830/840 PIR PCO	4146971
Lumino 400 IP44 25W 830/840 PIR PCO	4146972

Lumino Dali

Item description	Code
Lumino 400 IP44 22W 830/840 PCO DA2	A1LUKC-DALI

Lumino Casambi

Item description	Code
Lumino 400 IP44 22W 830/840 PCO CA	A1LUKC-CA
