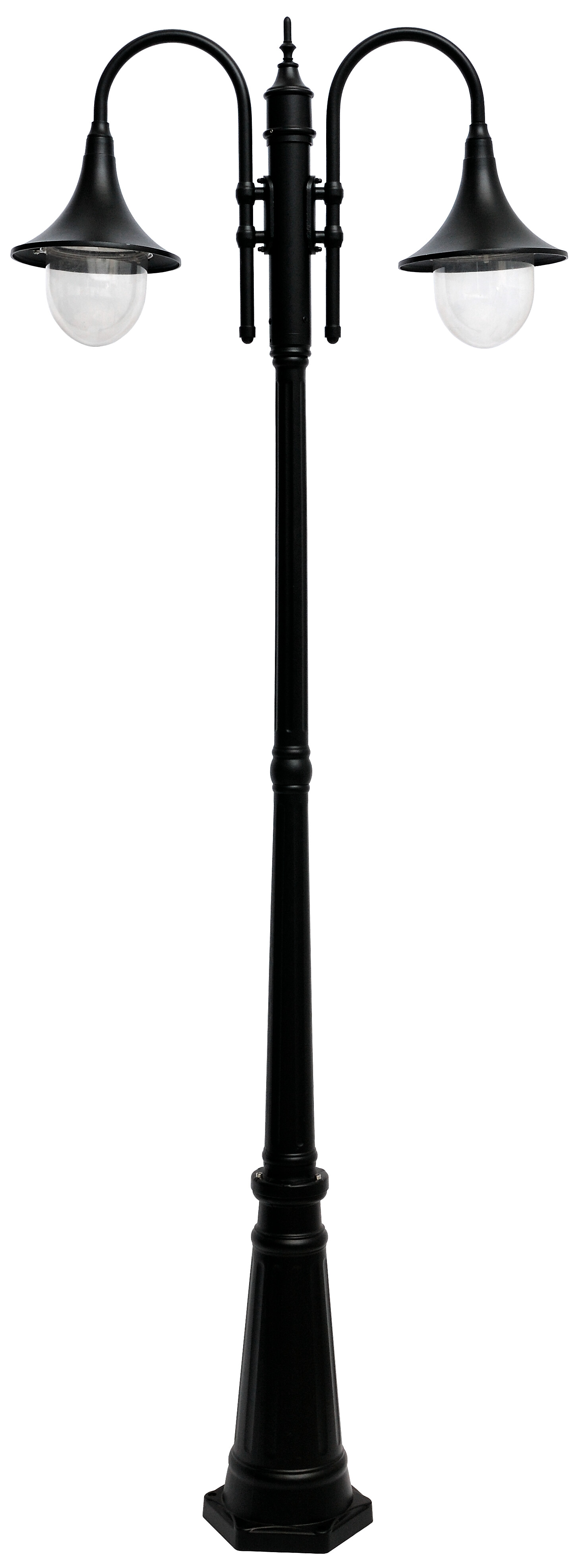

Kartano Trumpet Pole IP44 2XE27 BK
Kartano Trumpet Pole Outdoor luminaire No dim; IP44; Protection cl. I; LED exchangeable; Ending; 3x2.5mm²; Housing al; Colour bk; Cover Plastic, transparent

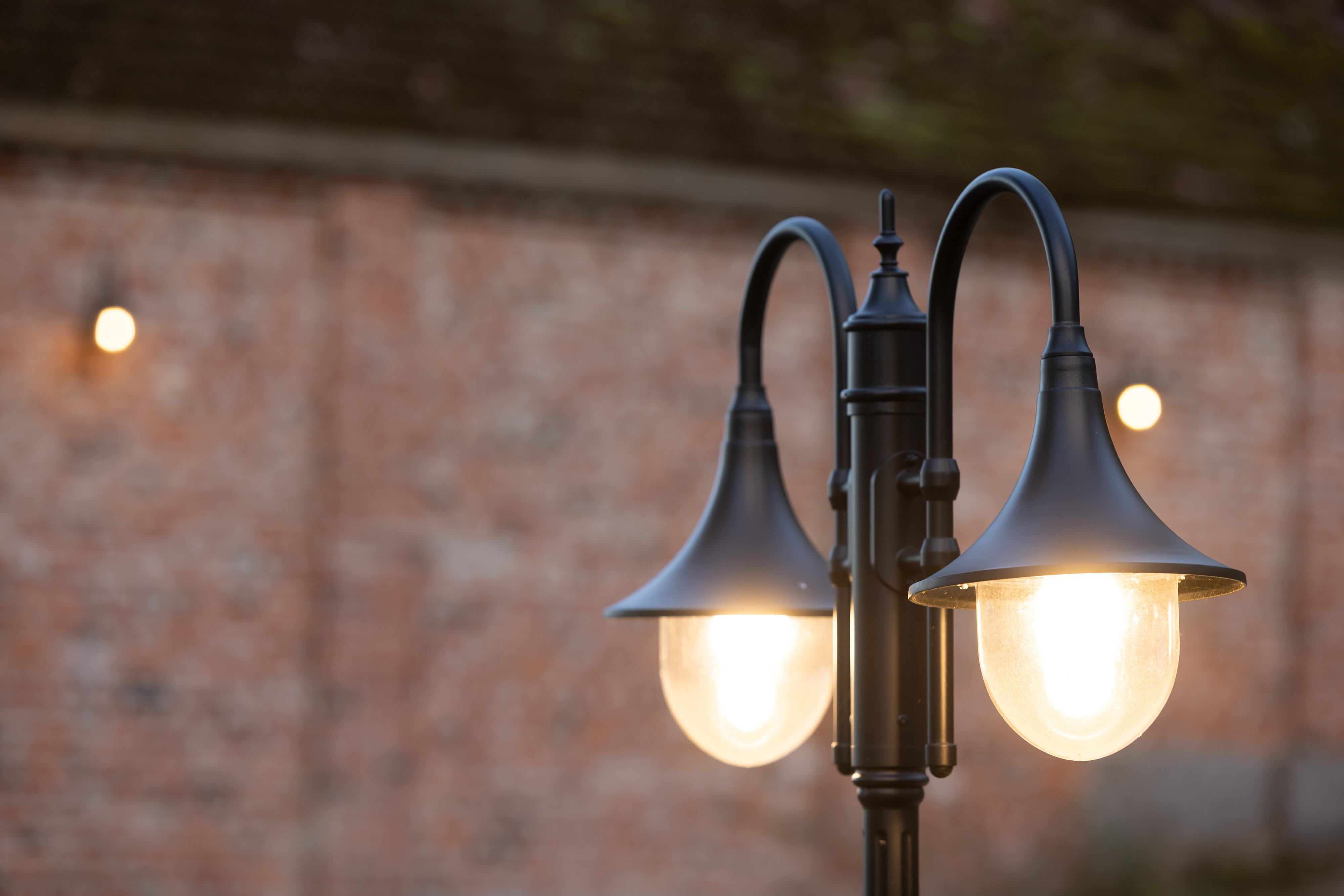

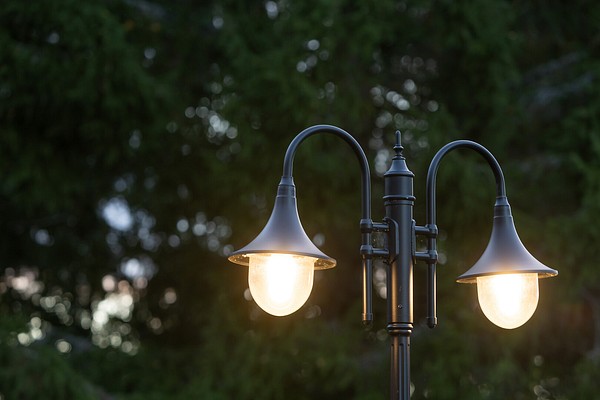

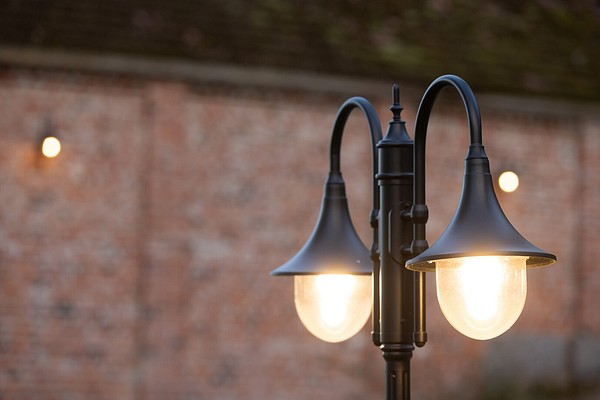

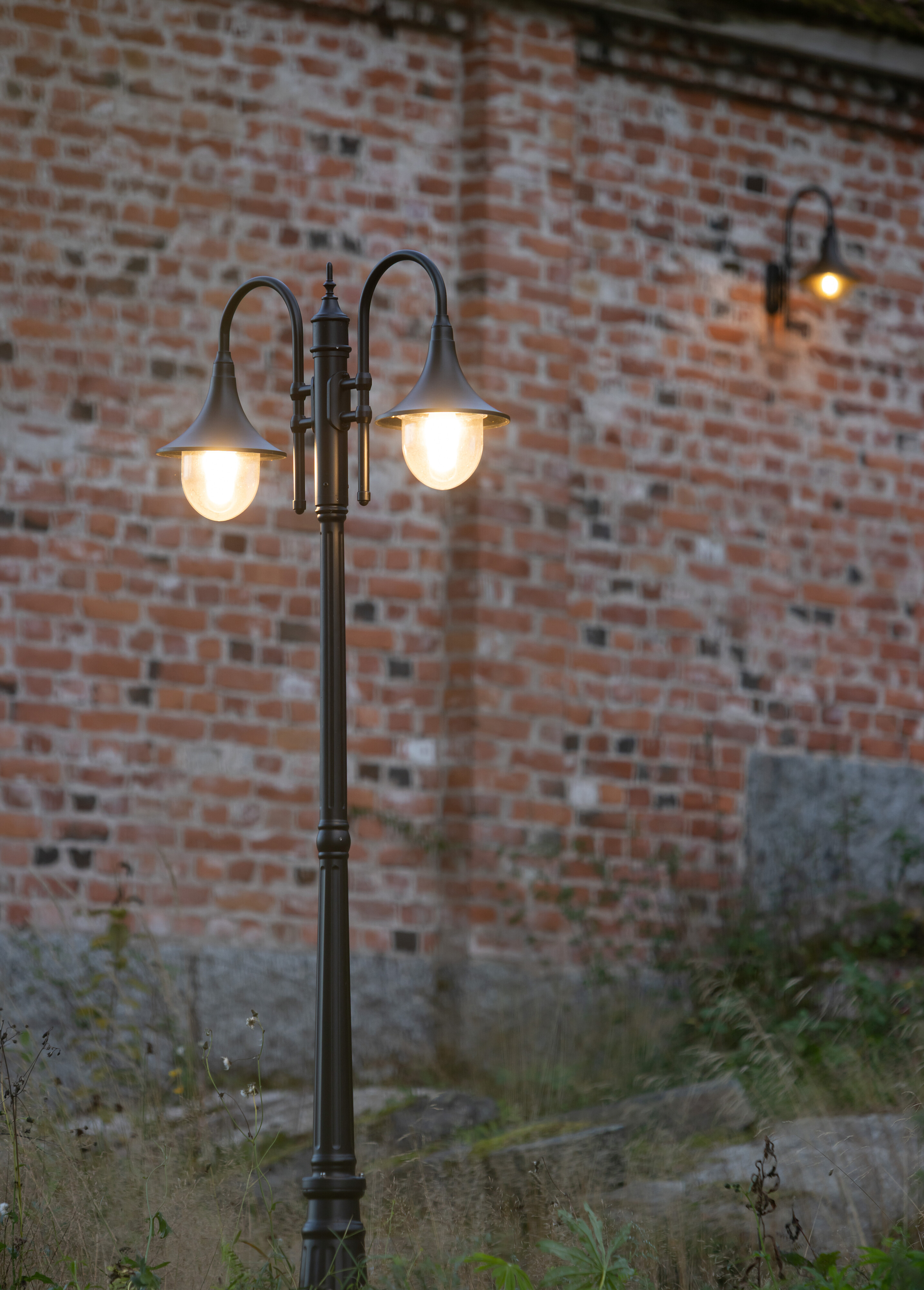

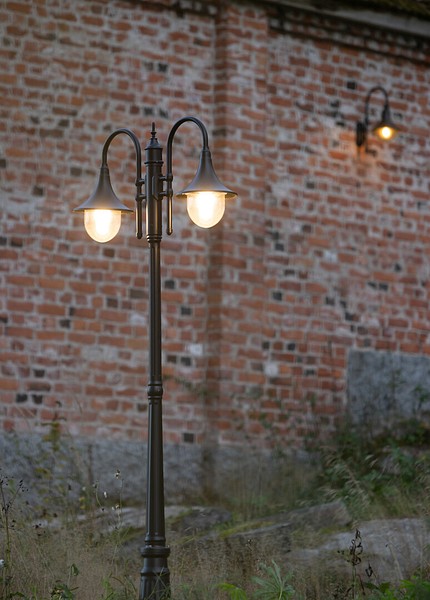

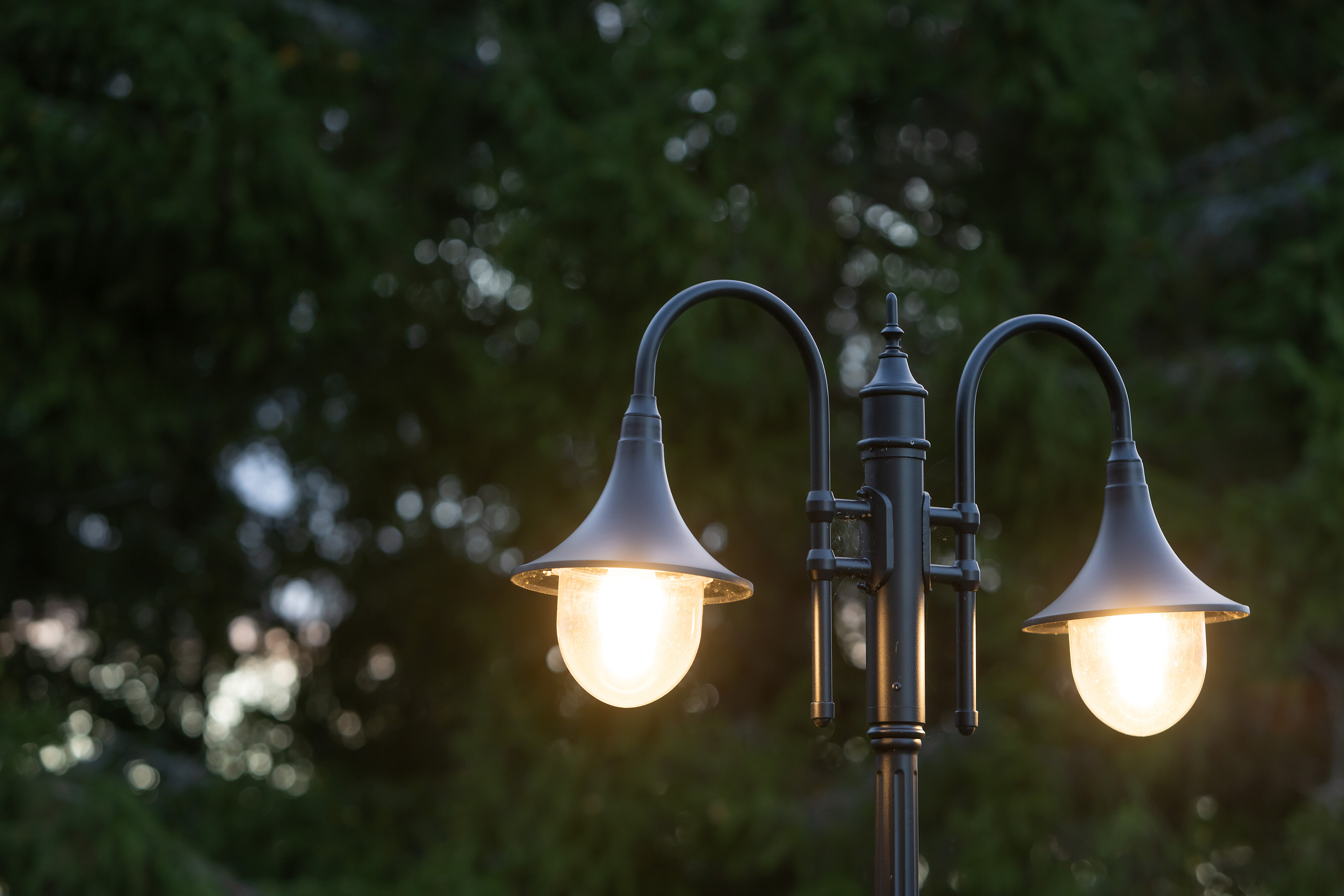

The Kartano Trumpet Pole is a modern take on an old lantern. As the shape of the lamp is clearly visible through the diffuser, you can adjust the ambience and brightness of your space with the lamp you choose. Build a harmonious lighting solution with Trumpet wall luminaires.
Body made of aluminium, dome made of polycarbonate.
White and black.
Type of wiring, ending 3 x 2.5 mm2, screw connector.
Mounting with ground support concrete base (with accessory 4146704).
Led lamp max. 11W A60 E27, not included.
IP44.
Ambient temperature range -20 … 35 °C, depending on the bulb.
Lamp recommendations: Airam Frost led -range.
- Code
- 4116406
Technical info
Mounting
- Mounting method
- Other
- Degree of protection (IP)
- IP44
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Type of wiring
- Ending
- Number of poles
- 3
- Conductor cross section (mm²)
- 2.5 mm²
- Connection type
- Screwed terminal
Structure
- Lamp type
- LED exchangeable
- Light source included
- No
- Suitable for number of lamps
- 2
- Lamp holder
- E27
- Housing material
- Aluminium
- Surface protection
- Powder coating
- Housing colour
- Black
- Cover material
- Plastic, transparent
- Adjustable optics
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- With connection cable
- Yes
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- Not required
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 1 W
- Suitable for lamp power (max) (W)
- 100 W
Dimming and control
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming DSI
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming trailing edge
- No
- Dimming leading edge
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Sine Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dimming function
- Yes
- Remote control
- None
- With wireless control
- No
- Constant luminous flux control
- No
- With light regulation program control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
Lifetime and capacity
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -20 °C
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 35 °C
Measurements
- Width (mm)
- 795 mm
- Height/depth (mm)
- 2200 mm
- Length (mm)
- 260 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Kartano Trumpet Pole IP44 2XE27 WH | 4116405 |
4116405 |
1-100W |
795x260x2200mm |
|||
|
Kartano Trumpet Pole IP44 2XE27 BK | 4116406 |
4116406 |
1-100W |
795x260x2200mm |
- Electrical number (FIN)
- 4116406
- Electrical number (SWE)
- 7747778
- GTIN
- 6435200206053
- Airam code
- A1KABU
- Code
- 4116406
