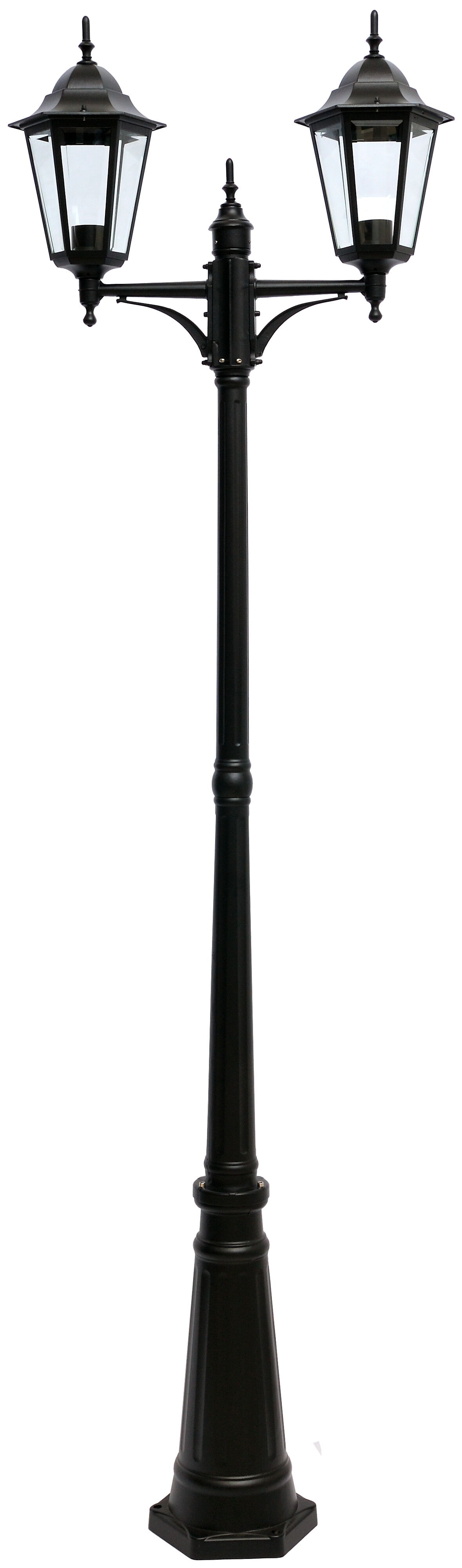

Kartano Pole Twin IP44 2XE27 GLC BK
Kartano Pole Twin Outdoor luminaire No dim; IP44; Protection cl. I; LED exchangeable; Ending; 3x2.5mm²; Housing al; Colour bk; Cover Glass transparent
With their design that brings to mind traditional lanterns, Kartano Pole Twin luminaires bring old world charm to your garden. Their classic design, ceramic lamp holders and bevelled glass panes will stand the test of time. Select the bollard- and pole-mounted models that best suit your garden and add the finishing touch with wall-mounted Kartano models.
Aluminium body, bevelled glass, porcelain lamp base.
White and black.
Ending, 3 x 2.5 mm2.
Mounting with ground support concrete base (with accessory 4146704).
Led lamp max. 11 W A60 E27, not included.
IP44.
Ambient temperature range -20 … 35 °C, depending on the bulb.
Lamp recommendations: Airam Frost led -range.
- Code
- 4116402
Technical info
Mounting
- Mounting method
- Other
- Degree of protection (IP)
- IP44
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Type of wiring
- Ending
- Number of poles
- 3
- Conductor cross section (mm²)
- 2.5 mm²
- Connection type
- Screwed terminal
Structure
- Lamp type
- LED exchangeable
- Light source included
- No
- Suitable for number of lamps
- 2
- Lamp holder
- E27
- Housing material
- Aluminium
- Surface protection
- Powder coating
- Housing colour
- Black
- Cover material
- Glass transparent
- Adjustable optics
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- With connection cable
- Yes
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- Not required
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 1 W
- Suitable for lamp power (max) (W)
- 100 W
Dimming and control
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming DSI
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming trailing edge
- No
- Dimming leading edge
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Sine Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dimming function
- Yes
- Remote control
- None
- With wireless control
- No
- Constant luminous flux control
- No
- With light regulation program control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
Lifetime and capacity
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -20 °C
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 35 °C
Measurements
- Width (mm)
- 638.5 mm
- Height/depth (mm)
- 2250 mm
- Length (mm)
- 260 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Kartano Pole Twin IP44 2XE27 GLC WH | 4116401 |
4116401 |
1-100W |
638.5x260x2250mm |
|||
|
Kartano Pole Twin IP44 2XE27 GLC BK | 4116402 |
4116402 |
1-100W |
638.5x260x2250mm |
- Electrical number (FIN)
- 4116402
- Electrical number (SWE)
- 7747772
- GTIN
- 6435200205971
- Airam code
- A1KABK
- Code
- 4116402
