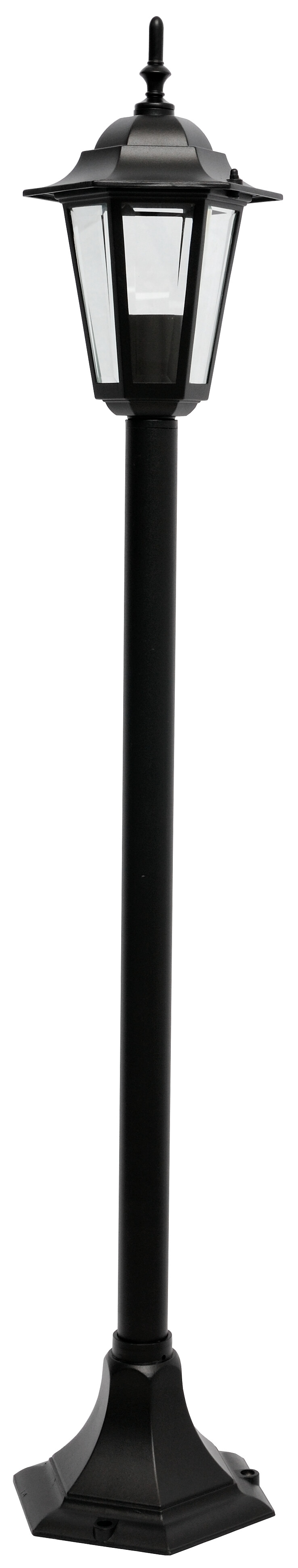

Kartano Bollard IP44 E27 GLC BK
Kartano Bollard Outdoor luminaire No dim; IP44; Protection cl. I; LED exchangeable; Ending; 3x2.5mm²; Housing al; Colour bk; Cover Glass transparent
The design of the Kartano Bollard range is reminiscent of old street lanterns. Its classic appearance and materials will stand the test of time. With its ceramic lamp holder and bevelled glass panes, the luminaire is made of high-quality materials that complement its timeless design. With our popular Kartano luminaires, you can build a harmonious lighting solution. Select the bollard- and pole-mounted models that best suit your garden and complement them with wall-mounted Kartano luminaires.
Aluminium body, bevelled glass, porcelain lamp base.
White and black.
Ending, 3 x 2.5 mm2, screw connector.
Mounting with ground support concrete base (with accessory 4146704).
Led lamp max. 11 W A60 E27, not included.
IP44.
Ambient temperature range -20 … 35 °C, depending on the bulb.
Lamp recommendations: Airam Frost led -range.
- Code
- 4107198
Technical info
Mounting
- Mounting method
- Other
- Degree of protection (IP)
- IP44
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Type of wiring
- Ending
- Number of poles
- 3
- Conductor cross section (mm²)
- 2.5 mm²
- Connection type
- Screwed terminal
Structure
- Lamp type
- LED exchangeable
- Light source included
- No
- Suitable for number of lamps
- 1
- Lamp holder
- E27
- Housing material
- Aluminium
- Surface protection
- Powder coating
- Housing colour
- Black
- Cover material
- Glass transparent
- Adjustable optics
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- With connection cable
- Yes
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- Not required
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 1 W
- Suitable for lamp power (max) (W)
- 100 W
Dimming and control
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming DSI
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming trailing edge
- No
- Dimming leading edge
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Sine Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dimming function
- Yes
- Remote control
- None
- With wireless control
- No
- Constant luminous flux control
- No
- With light regulation program control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
Lifetime and capacity
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -20 °C
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 35 °C
Measurements
- Width (mm)
- 225 mm
- Height/depth (mm)
- 1150 mm
- Length (mm)
- 225 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Kartano Bollard IP44 E27 GLC WH | 4107197 |
4107197 |
1-100W |
225x225x1150mm |
|||
|
Kartano Bollard IP44 E27 GLC BK | 4107198 |
4107198 |
1-100W |
225x225x1150mm |
- Electrical number (FIN)
- 4107198
- Electrical number (SWE)
- 7747767
- GTIN
- 6435200205919
- Airam code
- A1KABG
- Code
- 4107198
