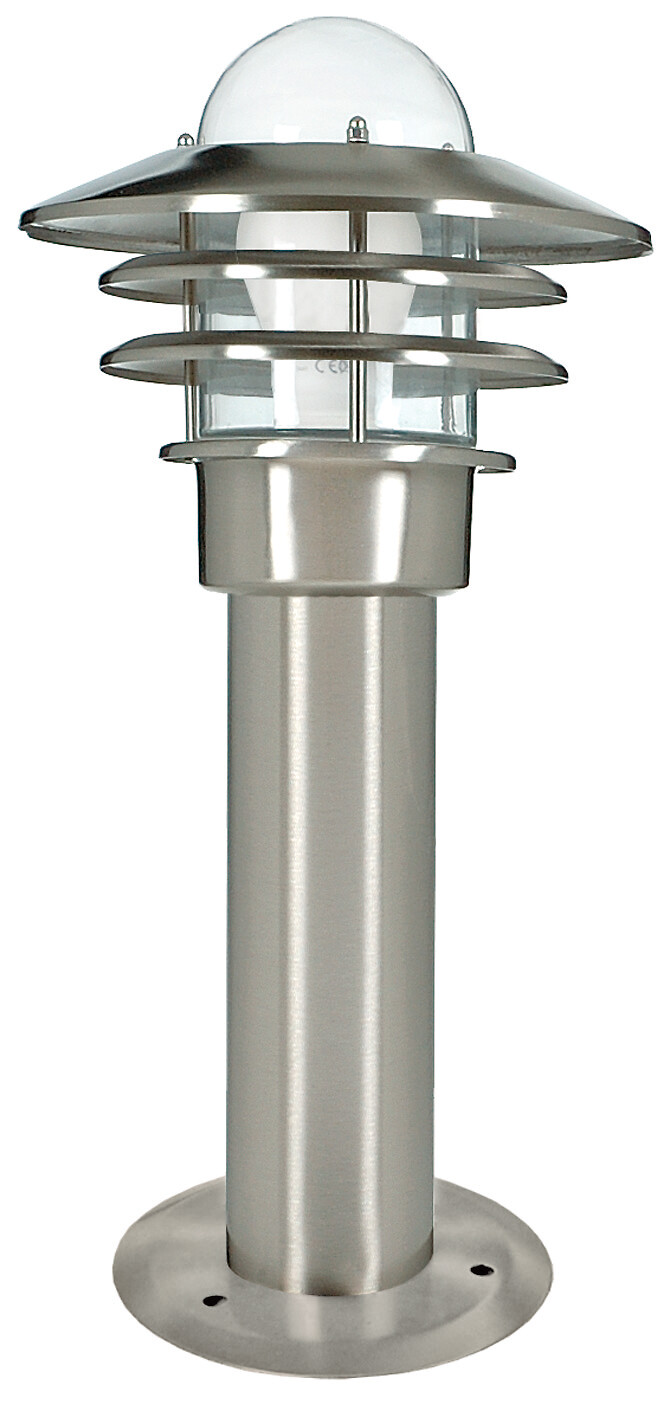

Käpylä Bollard IP44 E27 RST H450
Käpylä Bollard Outdoor luminaire IP44; IK02; Protection cl. I; LED exchangeable; Ending; 3x2.5mm²; Housing st; Colour st; Cover Glass transparent
The classic and timeless Käpylä luminaires are a great solution for lighting pathways and plantings in yards and gardens. The glass dome protects the bulb and steers the light both upwards and downwards through the body's steel rings. Install together with a concrete base and a support tube (4107058), or choose a ground support tube (4107104) that can be sunk directly into the ground. To create a harmonious look for your yard, complement the Käpylä bollards with Käpylä wall luminaires.
Color:
450 mm: steel.
1100 mm: steel, white RAL 9010 and black RAL 9011.
Screw connectors 3 x 2,5 mm2, one cable entry, cannot be chained together.
LED-lamp E27 max. 11 W, not included.
IP44.
Ambient temperature range -20 … 25 °C, depending on the bulb.
Lamp recommendations: Airam Frost led -range.
- Code
- 4107070
Technical info
Structure
- Lamp type
- LED exchangeable
- Light source included
- No
- Suitable for number of lamps
- 1
- Lamp holder
- E27
- Housing colour
- Stainless steel
- Cover material
- Glass transparent
- Control gear included
- No
- Exchangeable control gear
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- Not required
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 1 W
- Suitable for lamp power (max) (W)
- 11 W
Photometric data
- Light distributor
- Other
- Light sharing
- Symmetric
- Light outlet
- Direct/indirect
- Colour temperature switchable
- No
- Lumen setting adjustable
- No
- Beam angle adjustable
- No
Dimming and control
- With movement sensor
- No
- With light sensor
- No
- Constant luminous flux control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- IFTTT support available
- No

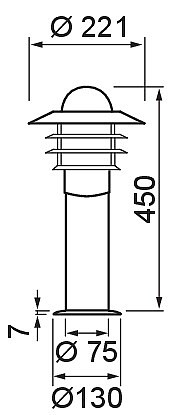

Measurements
- Width (mm)
- 221 mm
- Height/depth (mm)
- 450 mm
- Length (mm)
- 221 mm
- Diameter (mm)
- 221 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Käpylä Bollard IP44 E27 RST H450 | 4107070 |
4107070 |
1-11W |
221x221x450mm |
|||
|
Käpylä Bollard IP44 E27 RST H1100 | 4107086 |
4107086 |
1-11W |
221x221x1100mm |
|||
|
Käpylä Bollard IP44 E27 WH H1100 | 4107605 |
4107605 |
1-11W |
221x221x1100mm |
|||
|
Käpylä Bollard IP44 E27 BK H1100 | 4107608 |
4107608 |
1-11W |
221x221x1100mm |
- Electrical number (FIN)
- 4107070
- Electrical number (SWE)
- 7747571
- GTIN
- 6435200133724
- Airam code
- A1UABB
- Code
- 4107070
