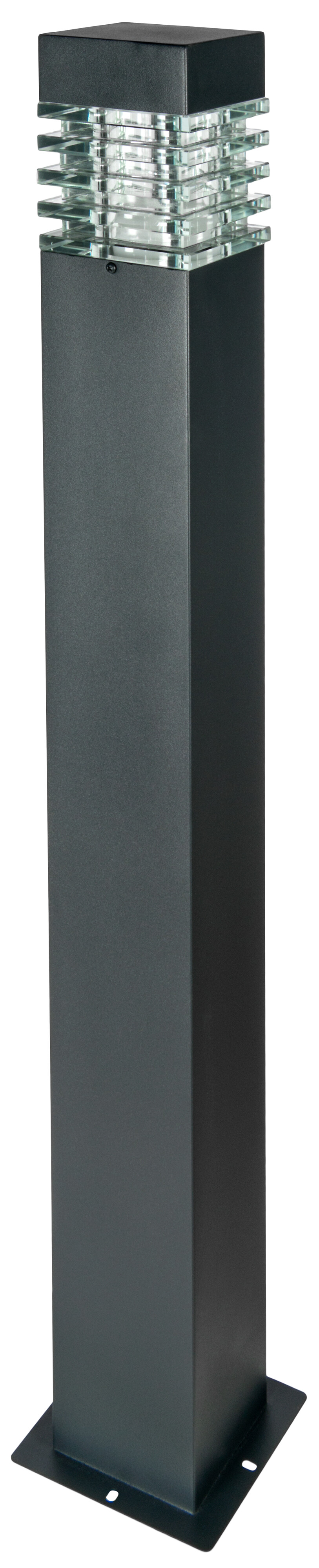

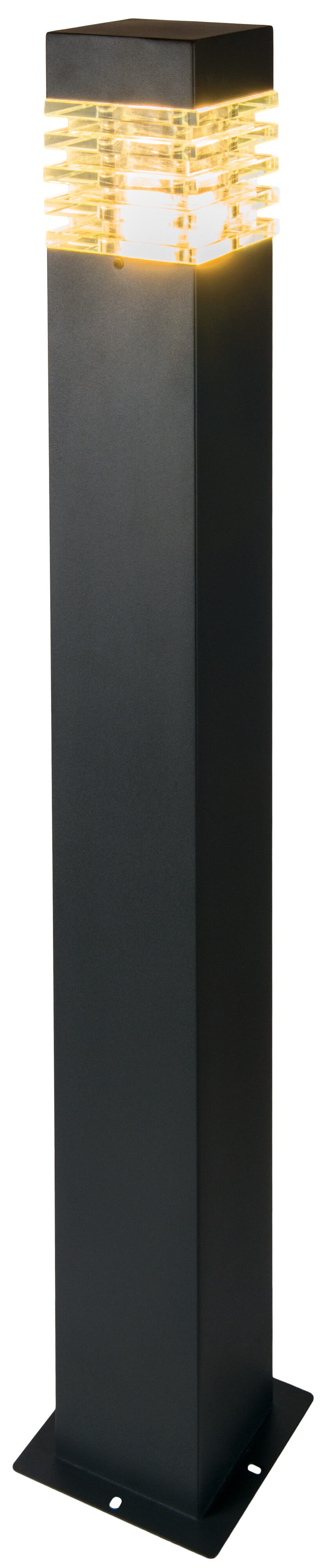

Kallio IP44 E27 GLC ANT H900
Kallio Outdoor luminaire IP44; Protection cl. I; LED exchangeable; Ending; 3x2.5mm²; Housing st; Colour ant; Cover Glass transparent

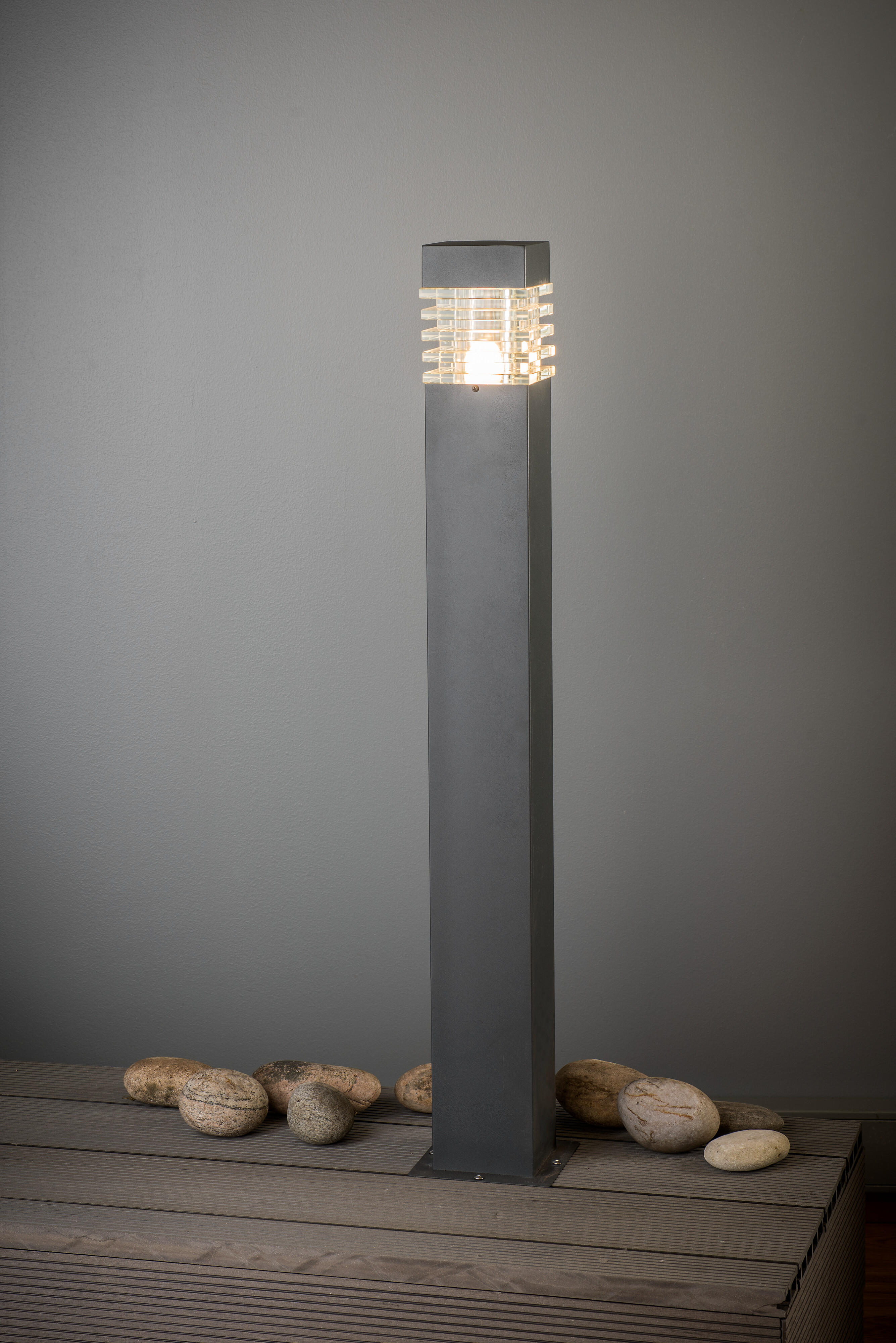

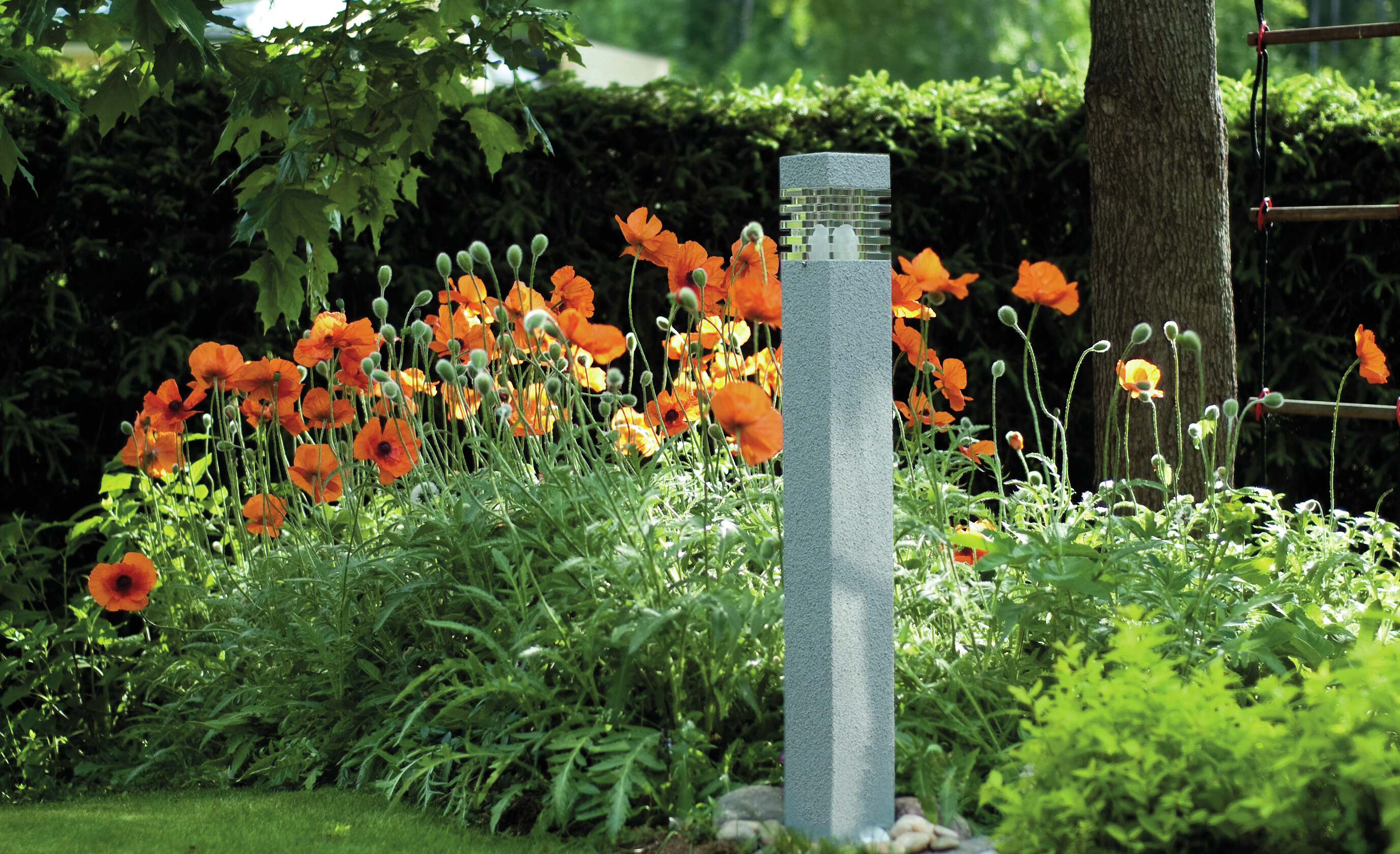

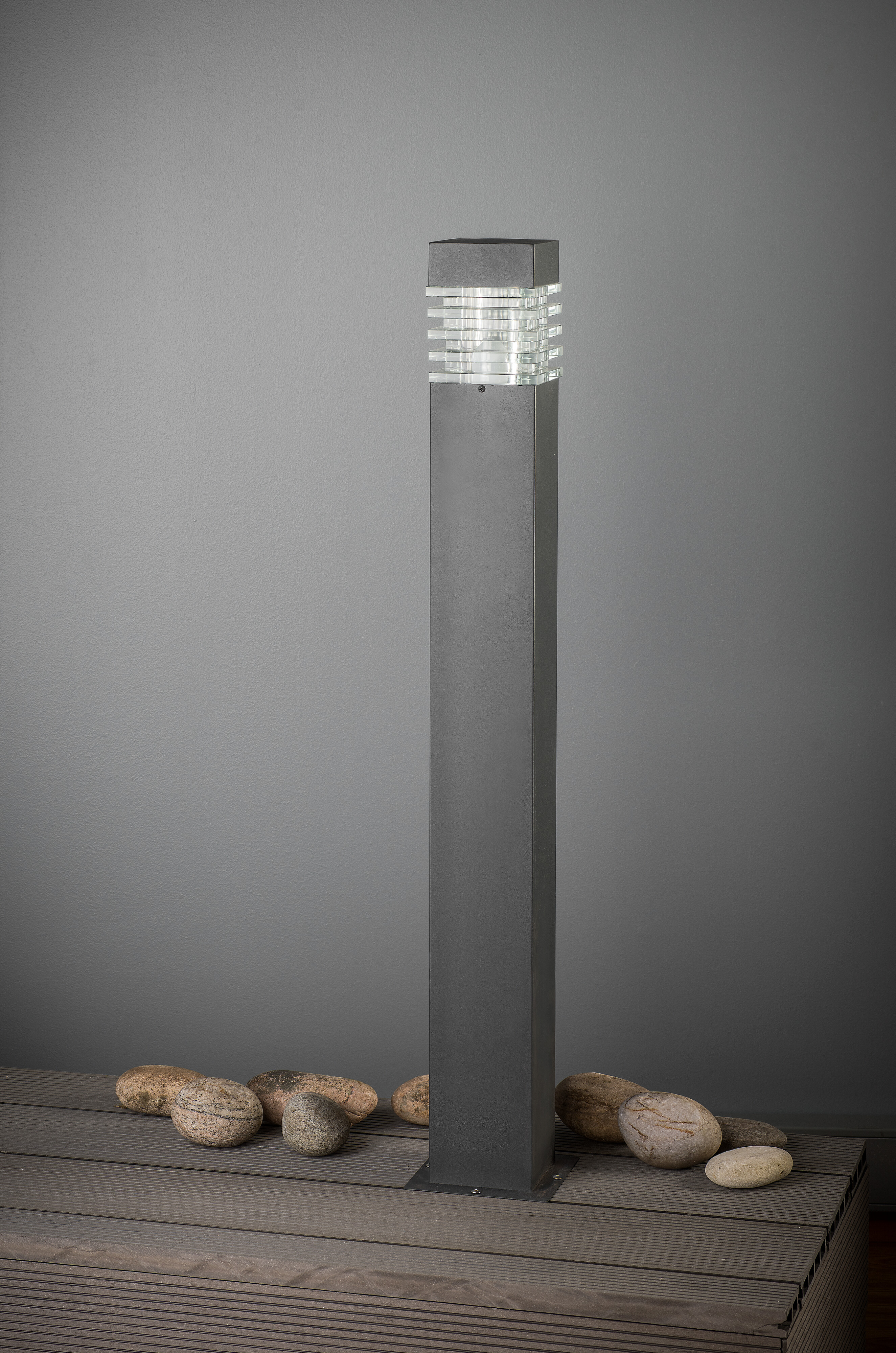

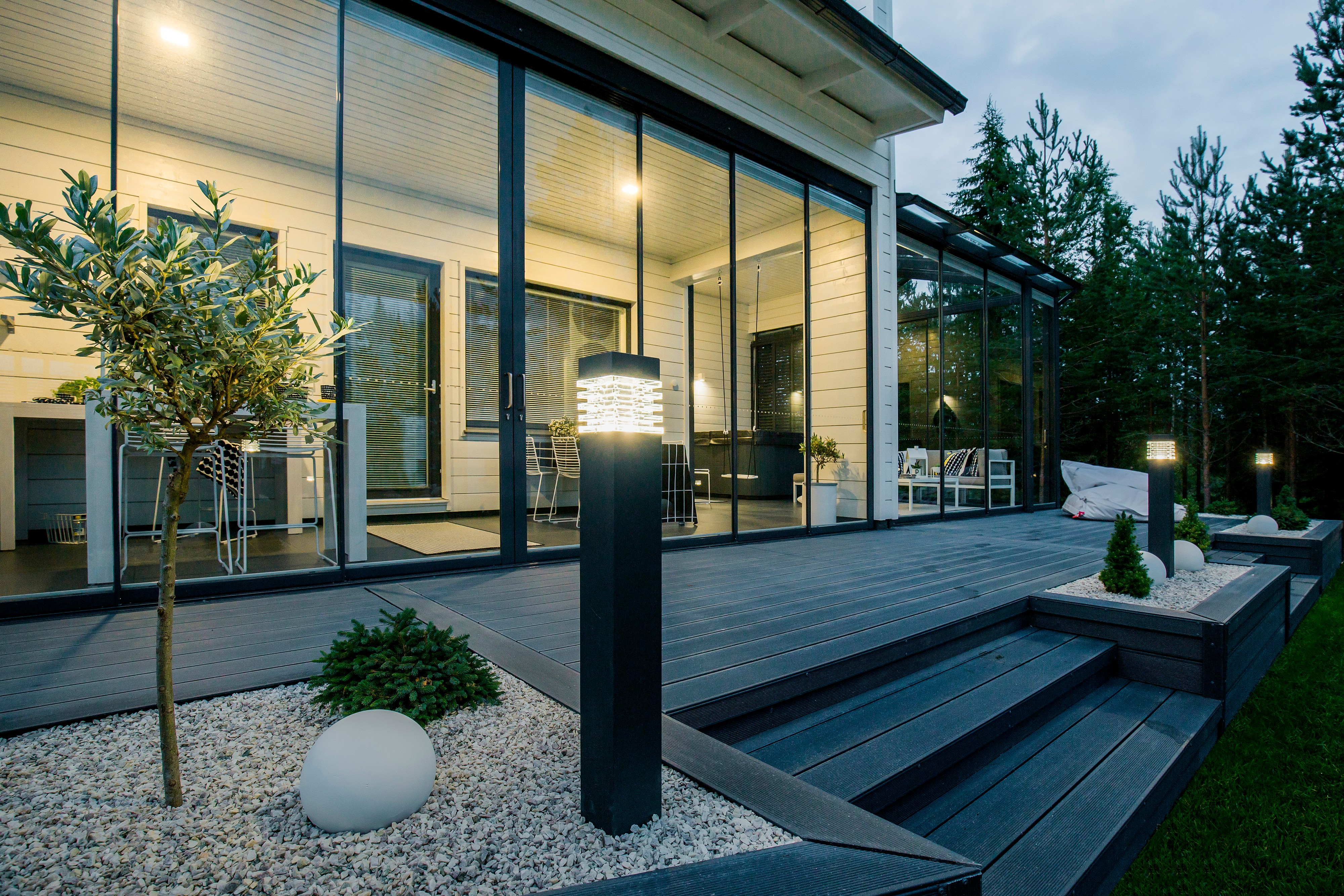

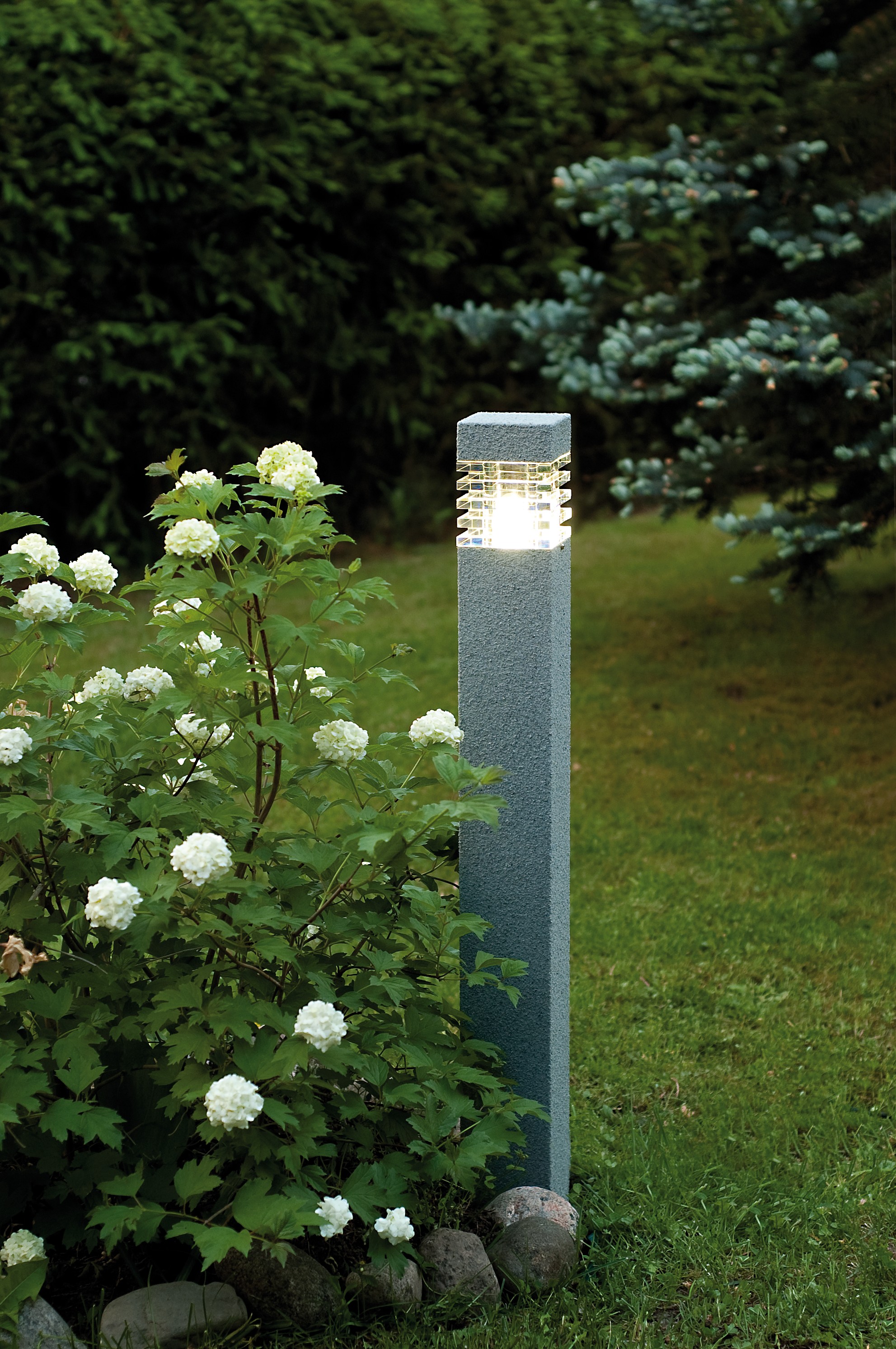

Kallio bollards are ideal for lighting pathways and plantings in the yard. The splash proof body of the upright Kallio light is made of stainless steel. You can choose between two colour and coating options for the body: grey stone coating or powder-painted anthracite grey with a matte surface. The tempered glass dome disperses the light beautifully. Install together with a concrete base and a support tube (4107058), or choose a ground support tube (4107104) that can be sunk directly into the ground.
Steel body, clear glass.
Anthracite, RAL 7016 and stone coating.
Type of wiring, ending 3 x 2.5 mm2 connectors.
Recommendation P45 bulb, E27 or Airam Tubular 7,5 W E27. Not included.
IP44.
Temperature of environment of use -20 … 25 °C, depending on the bulb.
- Code
- 4116122
Technical info
Structure
- Lamp type
- LED exchangeable
- Light source included
- No
- Suitable for number of lamps
- 1
- Lamp holder
- E27
- Housing colour
- Anthracite
- Cover material
- Glass transparent
- Control gear included
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- Not required
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 1 W
- Suitable for lamp power (max) (W)
- 7.5 W
Photometric data
- Light distributor
- Other
- Light sharing
- Symmetric
- Light outlet
- Direct
- Colour temperature switchable
- No
- Lumen setting adjustable
- No
- Beam angle adjustable
- No
Dimming and control
- With movement sensor
- No
- With light sensor
- No
- Constant luminous flux control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- IFTTT support available
- No
Measurements
- Width (mm)
- 140 mm
- Height/depth (mm)
- 900 mm
- Length (mm)
- 104 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Kallio IP44 E27 GLC GR H900 | 4107274 |
4107274 |
1-7.5W |
104x104x900mm |
|||
|
Kallio IP44 E27 GLC ANT H900 | 4116122 |
4116122 |
1-7.5W |
104x104x900mm |
- Electrical number (FIN)
- 4116122
- Electrical number (SWE)
- 7747565
- GTIN
- 6435200188960
- Airam code
- A1KLBB
- Code
- 4116122
