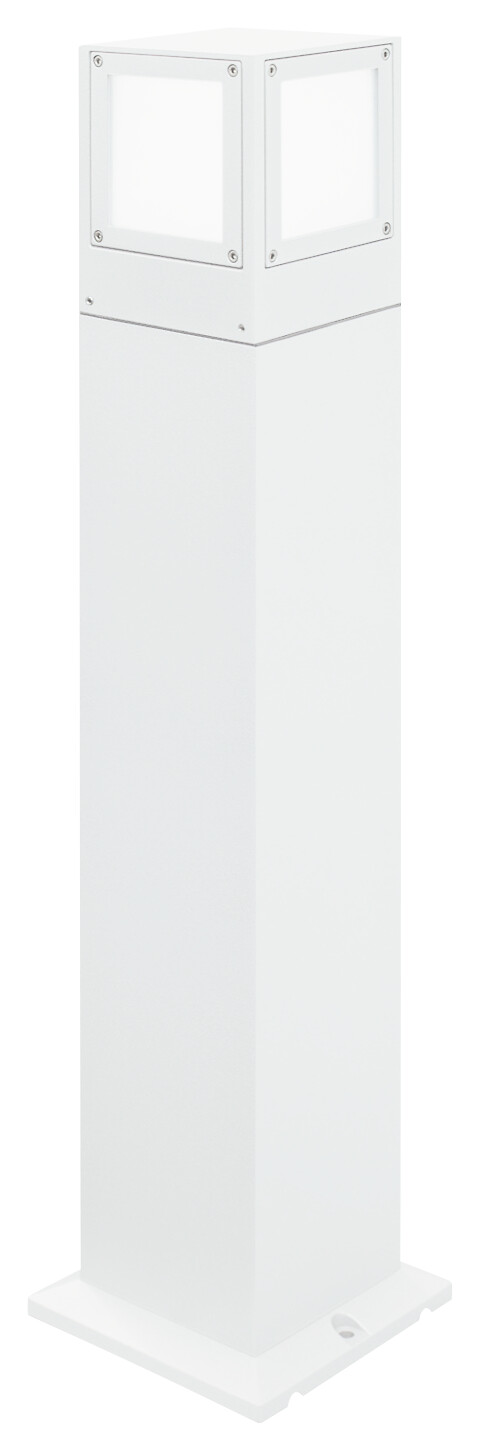

DM4 Stelo IP65 18W/830 GLFR WH H800
DM4 Stelo Bollard luminaire 18W 3000K 800lm IP65; IK05; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; Ending; 3x2.5mm²; Housing al; Colour wh; Cover Glass matt/satinised; C16 max. 147

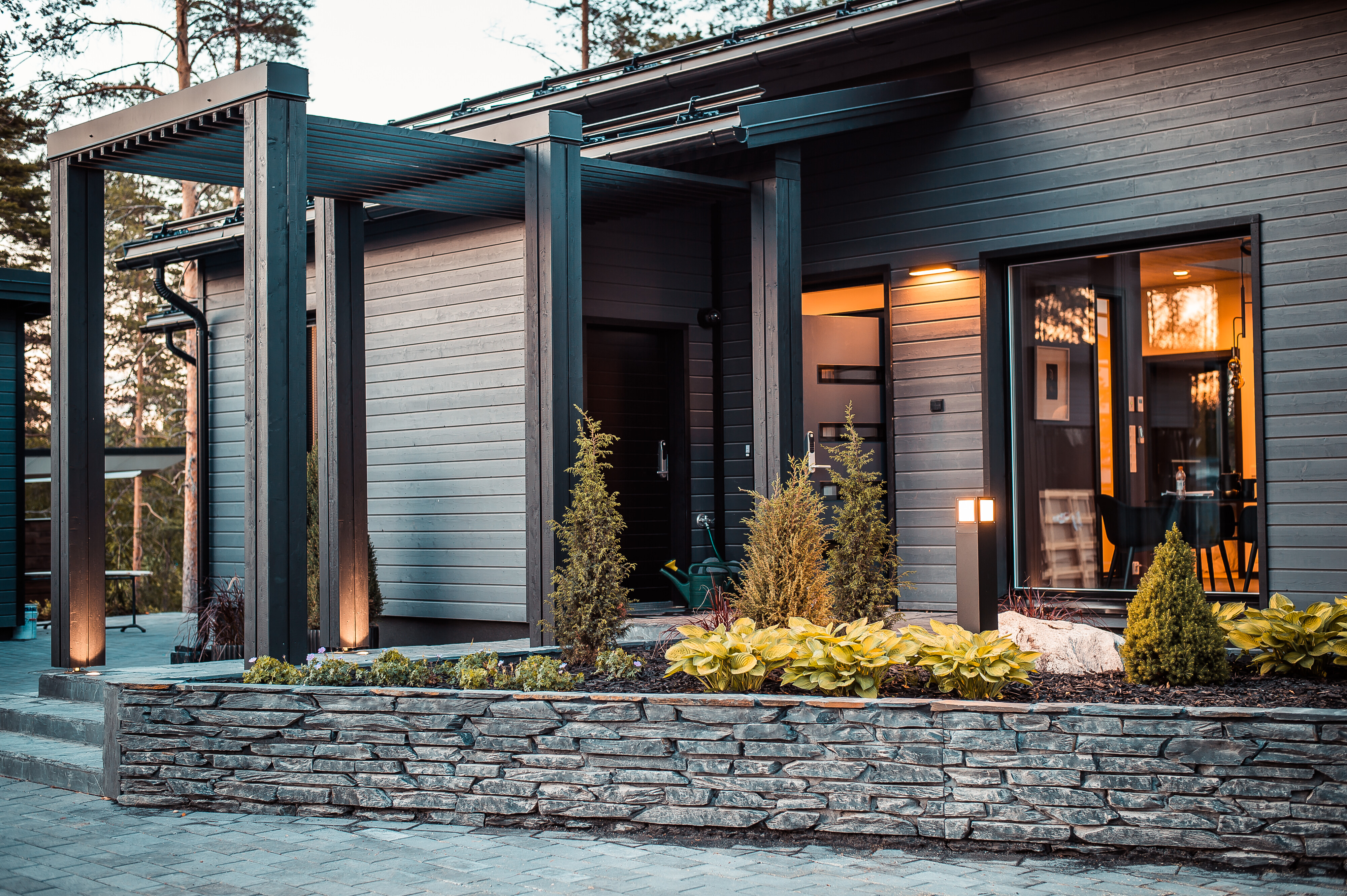

Stylistically, this bollard luminaire for outdoor use is an excellent match with the wall-mounted DM4 luminaires. The DM4 Stelo bollard luminaire reflects light in four directions. Available with an integrated LED and an E27 base. High-quality surface treatment: the aluminium housing is coated with polyester paint that is resistant to corrosion and UV radiation, the screws are made of stainless steel. Installation with a separate mounting base (ground mounting tube MTS-2N 4146704).
Aluminium housing and frosted glass diffuser (GLFR).
Anthracite, silver, black and white.
Protection class I.
Screw couplers, 3 x 2.5 mm2, one cable inlet.
Linkable using separate mini junction box 1602606.
Fixed LED: 18 W / 800 lm
Fixed LED colour temperatures: 3,000 K and 4,000 K. CRI > 80 / Ra > 80.
In E27 models LED lamp max. 11 W, not included.
Recommended lamps: Airam Frost LED lamps.
MacAdam 3 SDCM.
IP65.
IK05.
On/off.
Ambient temperature range -25 … 25 °C, in line with the recommendations for the lamp on E27 base models.
Rated lifetime L70 100,000 h (Ta 25 °C).
Power source lifespan 100,000 h.
AN = anthracite, SI = silver, BK = black, WH = white, GL = glass, FR = frosted diffuser.
300 and 500 mm-high models available on a project-specific basis. A cover sheet that can be used to cover one or more of the luminaire’s four openings is available as an accessory. A root mounting kit is also an available accessory.
- Code
- 4509929
Technical info
Structure
- Lamp type
- LED not exchangeable
- Light source included
- Yes
- Suitable for number of lamps
- 1
- Lamp holder
- Other
- Housing colour
- White
- Cover material
- Glass matt/satinized
- Control gear included
- Yes
- Exchangeable control gear
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Containing product according to 2019/2020/EU
- Yes
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- LED operating device current-controlled
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 18 W
- Suitable for lamp power (max) (W)
- 18 W
- Maximum system power (W)
- 18 W
- Luminaire efficacy (lm/W)
- 45 lm/W
- Power factor
- 0.9
Photometric data
- Light distributor
- Diffuser lens/optic/panel
- Light sharing
- Symmetric
- Light outlet
- Direct
- Effective luminous flux (lm)
- 800 lm
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 800 lm
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 800 lm
- Colour of light (alphanumeric)
- White
- Colour temperature (min) (K)
- 3000 K
- Colour temperature (max) (K)
- 3000 K
- Colour rendering index (CRI/Ra)
- 80-89
- Colour temperature switchable
- No
- Lumen setting adjustable
- No
- Beam angle adjustable
- No
- Flickering value Pst LM
- 1
- Stroboscope effect value SVM
- 0.4
Dimming and control
- With movement sensor
- No
- With light sensor
- No
- Constant luminous flux control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- IFTTT support available
- No
Lifetime and capacity
- Rated life time L70/B50 at 25 °C (h)
- 100000 h
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 95 %
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5 %
Measurements
- Width (mm)
- 130 mm
- Height/depth (mm)
- 800 mm
- Length (mm)
- 130 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| DM4 Stelo 830 | |||||||||
|
DM4 Stelo IP65 18W/830 GLFR AN H800 | 4509934 |
4509934 |
3000K |
800lm |
18W |
130x130x800mm |
||
|
DM4 Stelo IP65 18W/830 GLFR SI H800 | 4509933 |
4509933 |
3000K |
800lm |
18W |
130x130x800mm |
||
|
DM4 Stelo IP65 18W/830 GLFR BK H800 | 4509931 |
4509931 |
3000K |
800lm |
18W |
130x130x800mm |
||
|
DM4 Stelo IP65 18W/830 GLFR WH H800 | 4509929 |
4509929 |
3000K |
800lm |
18W |
130x130x800mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| DM4 Stelo 840 | |||||||||
|
DM4 Stelo IP65 18W/840 GLFR AN H800 | 4509938 |
4509938 |
4000K |
800lm |
18W |
130x130x800mm |
||
|
DM4 Stelo IP65 18W/840 GLFR SI H800 | 4509937 |
4509937 |
4000K |
800lm |
18W |
130x130x800mm |
||
|
DM4 Stelo IP65 18W/840 GLFR BK H800 | 4509936 |
4509936 |
4000K |
800lm |
18W |
130x130x800mm |
||
|
DM4 Stelo IP65 18W/840 GLFR WH H800 | 4509935 |
4509935 |
4000K |
800lm |
18W |
130x130x800mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| DM4 Stelo E27 | |||||||||
|
DM4 Stelo IP65 E27 GLFR AN H800 | 4509942 |
4509942 |
1-11W |
130x130x800mm |
||||
|
DM4 Stelo IP65 E27 GLFR SI H800 | 4509941 |
4509941 |
1-11W |
130x130x800mm |
||||
|
DM4 Stelo IP65 E27 GLFR BK H800 | 4509940 |
4509940 |
1-11W |
130x130x800mm |
||||
|
DM4 Stelo IP65 E27 GLFR WH H800 | 4509939 |
4509939 |
1-11W |
130x130x800mm |
||||
- Electrical number (FIN)
- 4509929
- Electrical number (SWE)
- 7747725
- GTIN
- 6435200196903
- Airam code
- B5DMCE
- Code
- 4509929
