Compact XL Mechanical Accessories
Compact XL 170 surface frame WH
Surface frame for Compact XL 170 luminaires, white.
As an accessory, a black front ring is also available in all sizes, as well as adapter frames that allow the Compact XL luminaire to be fitted into larger cut-out openings.
- Code
- 100169
Technical info
Structure
- Type of accessory/spare part
- Surface mounting housing
- Accessory
- Yes
- Spare part
- No
- Transparent
- No
- Colour
- White
- Material
- Aluminium
Measurements
- Length (mm)
- 193 mm
- Width (mm)
- 193 mm
- Height (mm)
- 93 mm
- Diameter (mm)
- 193 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|

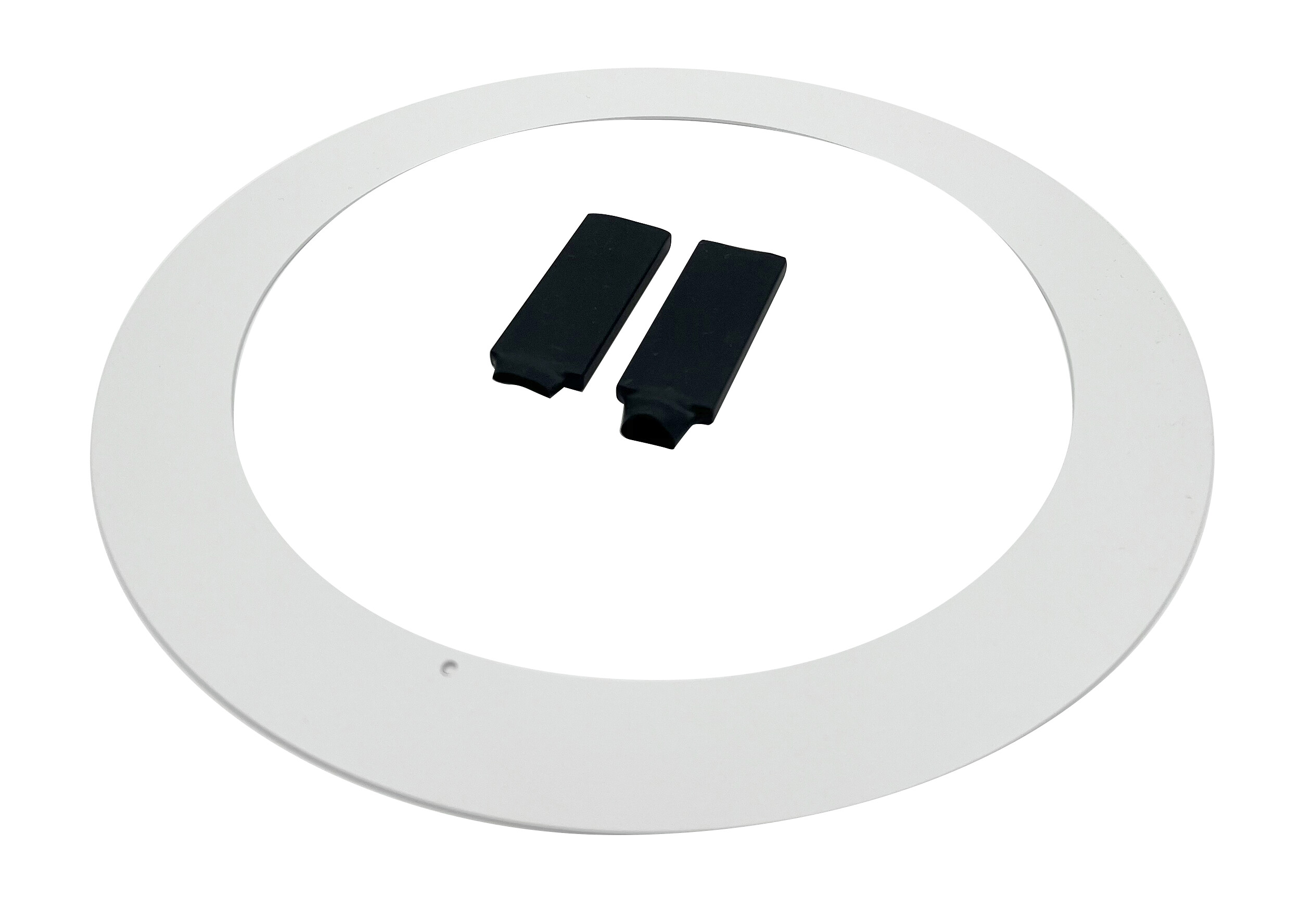

Compact XL Adaptor ring 150/210 WH | 4146716 |
4146716 |
220x220x1mm |
||||
|
Compact XL Adaptor ring 170/220 WH | 4146976 |
4146976 |
220x220x1mm |
||||
|
Compact XL Adaptor ring 210/250 WH | 4146977 |
4146977 |
260x260x1mm |
||||
|
Compact XL Adaptor ring 150/210 BK | A1EMS8 |
220x220x1mm |
|||||
|
Compact XL Adaptor ring 170/210 BK | A1EMS3 |
220x220x1mm |
|||||
|
Compact XL Adaptor ring 210/250 BK | A1EMS4 |
260x260x1mm |
|||||
|
Compact XL Adaptor ring 150/210 GR | A1EMS9 |
220x220x1mm |
|||||
|
Compact XL Adaptor ring 170/210 GR | A1EMS5 |
220x220x1mm |
|||||
|
Compact XL Adaptor ring 210/250 GR | A1EMS6 |
260x260x1mm |
|||||
|
Compact XL 130 bezel BK | 100155 |
145x145x8mm |
|||||
|
Compact XL 150 bezel BK | 100163 |
170x170x8mm |
|||||
|
Compact XL 170 bezel BK | 100168 |
190x190x8mm |
|||||
|
Compact XL 210 bezel BK | 100171 |
228x228x8mm |
|||||
|
Compact XL 170 surface frame WH | 100169 |
193x193x93mm |
|||||
|
Compact XL 210 surface frame WH | 100172 |
232x232x100mm |
Product codes
- Electrical number (SWE)
- 7478436
- GTIN
- 6435200324771
- Code
- 100169
