Compact XL 170 IP54 12W 3CCT PIR WH
Compact XL Downlight 6W-12W 3000/3500/4000K 1050-1650lm Medium beam 20-40°; Non-dimmable; IP54; IK03; SC II; L70B50 100000h; CRI>80; SDCM3; Suitable for loop-in wiring; 4x2.5mm²; Housing aluminium; Colour white; Cover transparent plastic; C16 maks. 119

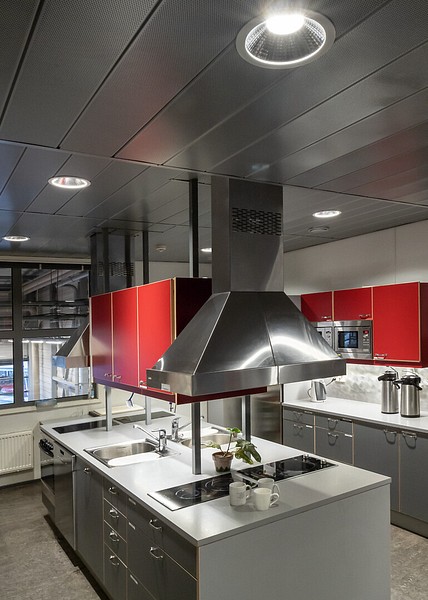

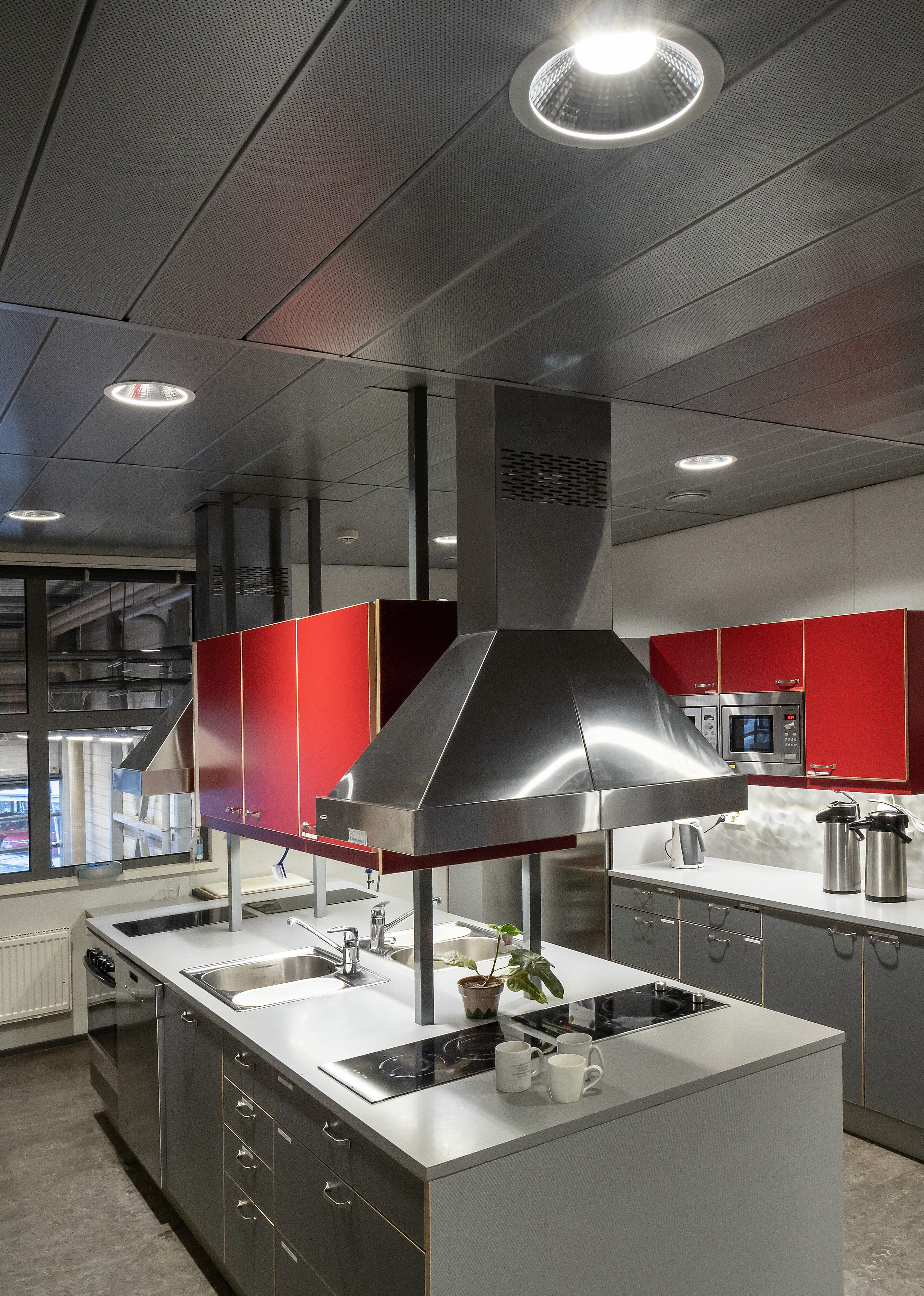

Compact XL is a versatile and high-quality downlight series that creates bright and evenly distributed light. The series is designed for public spaces, such as lobby areas and corridors, and especially for offices and educational institutions. The luminaires are designed to cause as little glare as possible, and their UGR value is less than 19. The luminaire is also suitable for renovation projects. The series offers four different sizes of luminaires, including a PIR model. The power and color temperature can be selected from several options. With three housing-colour options, you can select the models that best suit your needs. Also all RAL Classic colours for the housing are available to order. The luminaires are very energy-efficient and long-lasting, and they have a good lm/w ratio. Adaptor rings available as an accessory.
Aluminium housing and diffuser, plastic lenses.
White RAL 9016, black RAL 9005, grey RAL 7037.
Protection class II.
Recessed mounting in the ceiling.
Linkable: on/off and Casambi 3 x 1,5/2,5 mm2, Pir 4 x 1,5/2,5 mm2 and Dali 5 x 2,5 mm2.
Installation height 2–5 m.
Fixed LED, wattage and lumen are selectable from the luminaire:
150 mm: 8 W 1150 lm, 10 W 1400 lm, 12 W 1700 lm, 14 W 1800 lm.
170 mm: 18 W 2700 lm, 20 W 3000 lm, 22 W 3300 lm, 24 W 3350 lm.
210 mm: 18 W 2650 lm, 20 W 2950 lm, 22 W 3200 lm, 24 W 3250 lm.
170 mm Pir: 6 W 1050 lm, 8 W 1100 lm, 10 W 1350 lm, 11 W 1500 lm, 12 W 1650 lm.
Colour temperatures: 3000 K, 3500 K and 4000 K, selectable from the luminaire. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20/IP54.
IK03.
On/off, Dali and Casambi.
Pir models work on a passive infrared sensor principle and are suitable for master/slave (M/S) installation, enabling the use of up to 3 slave luminaires.
Ambient temperature range 0 … 25 °C.
Rated lifetime L80 100 000 h (Ta25°C).
Power source service life 50 000 h.
Power source service life in DA- and CA-models 100 000 h.
- Code
- 4146963
Downloads
Technical info
- Electrical number (FIN)
- 4146963
- Electrical number (SWE)
- 7477457
- GTIN
- 6435200307026
- Airam code
- A1EMB4
- Code
- 4146963
- Installation height (max) (mm)
- 5000
- Length (mm)
- 190
- Fit for workplace acc. EN 12464-1
- Yes
- Adjustability
- Not adjustable
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 150
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
- 80
- Dimming leading edge
- No
- Surface brushed
- No
- Unified Glare Rating (UGR)
- 19
- Number of poles
- 4
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 10
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Movement sensor/presence detector technology
- Passive infrared
- Suitable for light-track mounting
- No
- Dimming DMX
- No
- Containing product according to 2019/2020/EU
- Yes
- With light sensor
- Yes
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 12
- With presence indicator
- Yes
- Emergency power supply system
- None
- Dimmable
- No
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 1650
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Installation height (min) (mm)
- 2000
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP20
- Recess diameter (min) (mm)
- 160
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Built-in width (mm)
- 170
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 1650
- Rated life time L80/B50 at 25 °C
- 75000
- IFTTT support available
- No
- Reflector colour
- Silver
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Recess diameter (max) (mm)
- 170
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK03
- Width (mm)
- 180
- Suitable for surface mounting
- No
- Luminaire efficacy (lm/W)
- 150
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Outer diameter (mm)
- 190
- With movement sensor
- Yes
- Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
- 10
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 200
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Luminous flux (min) (lm)
- 1050
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 6
- Suitable for pedestal/floor mounting
- No
- No dimming function
- Yes
- Degree of protection (IP), front side
- IP54
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Reflector
- High-gloss
- Dimming 0-10 V
- No
- Connection type
- Crimping
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 119
- Lamp type
- LED not exchangeable
- Light distributor
- Reflector
- Luminaire may be covered with thermally insulating material
- No
- Total harmonic distortion (THD) (%)
- 10
- Built-in height/depth (mm)
- 170
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Surface protection
- Powder coating
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP54
- Suitable for traverse mounting
- No
- Power factor
- 0.9
- Beam angle
- Medium beam 20-40°
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1050
- Lumen setting adjustable
- Positions
- Suitable for lamp power (max) (W)
- 12
- Protection class according to IEC 61140
- II
- Dimming DALI
- No
- Luminous flux (max) (lm)
- 1650
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 150
- Voltage type
- AC
- Suitable for low voltage cable system
- No
- Colour temperature switchable
- Discrete positions
- Built-in length (mm)
- 59
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 61
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- No
- Suitable for wall mounting
- No
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 350
- Cover material
- Plastic, transparent
- Max. number of luminaires per miniature circuit breaker B16
- 119
Product versions
Compact XL
| Item description | Code | |
|---|---|---|
| Compact XL 150 IP54 14W 3CCT WH | 4146960 |
|
| Compact XL 170 IP54 24W 3CCT WH | 4146961 |
|
| Compact XL 210 IP54 24W 3CCT WH | 4146962 |
|
| Compact XL 150 IP54 14W 3CCT BK | A1EMB5 |
|
| Compact XL 170 IP54 24W 3CCT BK | A1EMB6 |
|
| Compact XL 210 IP54 24W 3CCT BK | A1EMB7 |
|
| Compact XL 150 IP54 14W 3CCT GR | A1EMG1 |
|
| Compact XL 170 IP54 24W 3CCT GR | A1EMG2 |
|
| Compact XL 210 IP54 24W 3CCT GR | A1EMG3 |
Compact XL Dali
| Item description | Code | |
|---|---|---|
| Compact XL 150 IP54 14W 3CCT DA2 WH | A1EMB1-DALI |
|
| Compact XL 170 IP54 24W 3CCT DA2 WH | A1EMB2-DALI |
|
| Compact XL 210 IP54 24W 3CCT DA2 WH | A1EMB3-DALI |
|
| Compact XL 150 IP54 14W 3CCT DA2 BK | A1EMB5-DALI |
|
| Compact XL 170 IP54 24W 3CCT DA2 BK | A1EMB6-DALI |
|
| Compact XL 210 IP54 24W 3CCT DA2 BK | A1EMB7-DALI |
|
| Compact XL 150 IP54 14W 3CCT DA2 GR | A1EMG1-DALI |
|
| Compact XL 170 IP54 24W 3CCT DA2 GR | A1EMG2-DALI |
|
| Compact XL 210 IP54 24W 3CCT DA2 GR | A1EMG3-DALI |
Compact XL Casambi
| Item description | Code | |
|---|---|---|
| Compact XL 150 IP54 14W 3CCT CA WH | A1EMB1-CA |
|
| Compact XL 170 IP54 24W 3CCT CA WH | A1EMB2-CA |
|
| Compact XL 210 IP54 24W 3CCT CA WH | A1EMB3-CA |
|
| Compact XL 150 IP54 14W 3CCT CA BK | A1EMB5-CA |
|
| Compact XL 170 IP54 24W 3CCT CA BK | A1EMB6-CA |
|
| Compact XL 210 IP54 24W 3CCT CA BK | A1EMB7-CA |
|
| Compact XL 150 IP54 14W 3CCT CA GR | A1EMG1-CA |
|
| Compact XL 170 IP54 24W 3CCT CA GR | A1EMG2-CA |
|
| Compact XL 210 IP54 24W 3CCT CA GR | A1EMG3-CA |
Compact XL sensor luminaires
| Item description | Code | |
|---|---|---|
| Compact XL 170 IP54 12W 3CCT PIR WH | 4146963 |
