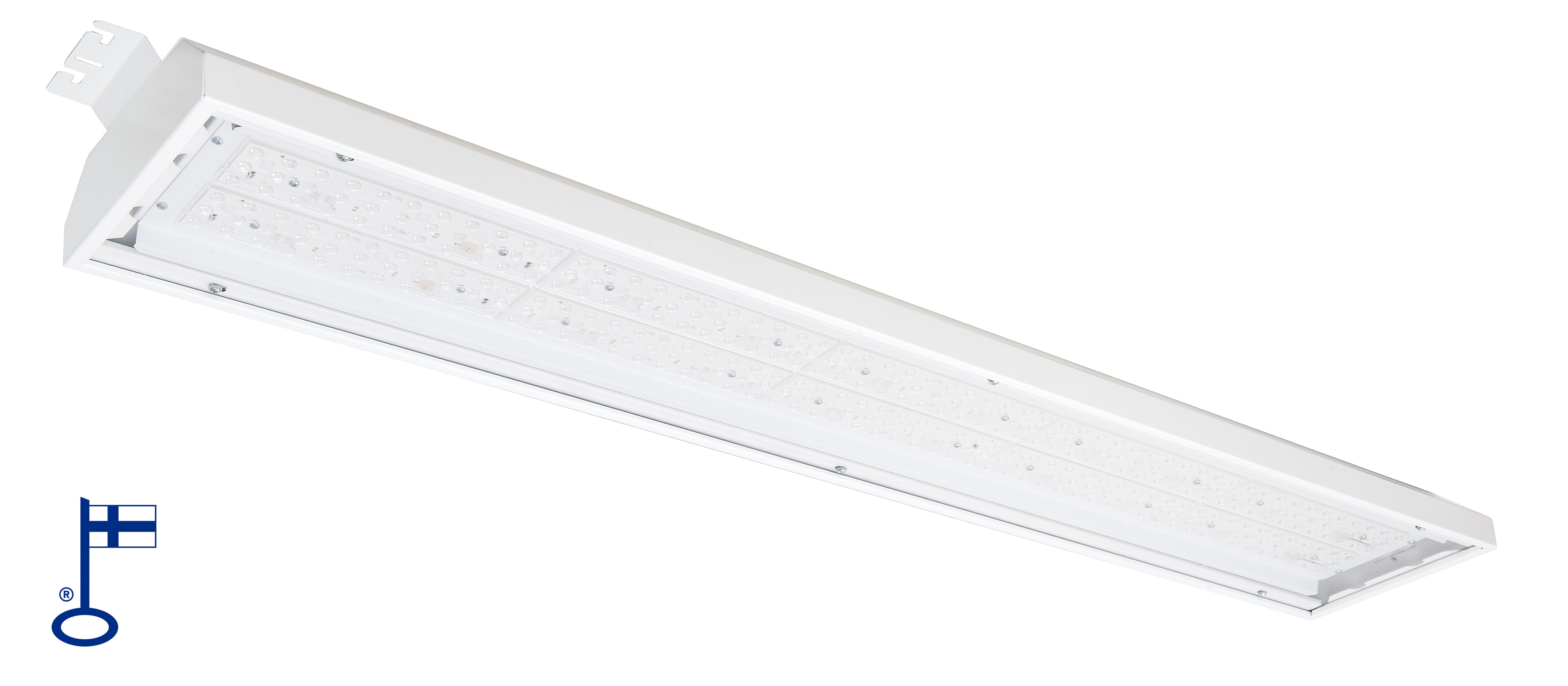

Sport 10000lm 840 90D DA2 PCC WH
Sport Sports area luminaire 56W 4000K 10000lm Dim DALI-2; Dim programmable; Dim with push-button; IP20; IK10; Protection cl. I; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing Steel; Colour wh; Cover Other; C16 max. 45
Sports facilities luminaire Sport is a made of high-quality materials for high spaces. In the design of the luminaire, we have listened the wishes of our customers as much as possible. The traditional ball protection grid has been replaced with a clear polycarbonate reflector, which gives the light distribution very evenly over the illuminated area. Luminaires pull-out connection strip and integrated surface mounting brackets make installation very easy. The surface mounting brackets are slotted to fit the most common suspension rails. The high-quality reflector material and strong steel frame safely absorb impacts from all directions. Sport is ball protection tested as required by the VDE 0710-13 standard. The 100% Finnish Sport luminaires are designed and manufactured at Airam’s factory in Lahti.
Steel housing, polycarbonate reflector, 60 and 90 degree lenses.
White, RAL 9016.
Protection class I.
Surface mounting to the ceiling.
Linkable 5 x 2,5 mm2.
Installation height 4–10 m.
Integrated LED 56–150 W: 10 000–24 000 lm.
Colour temperature 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
IK10.
Ball Protection certificate VDE 0710-13.
On/off and Dali-2, with direct pushbutton control 230 V.
Ambient temperature range 0 … 25 °C.
Rated lifetime L80B10 100 000 h (Ta25°C).
Casambi models and customised luminous flux packages are available on a project-specific basis. Through-wiring, different lense options and RAL Classic colours for the housing are available to order.
- Code
- 100233
Downloads
Technical info
- Electrical number (FIN)
- 4147070
- GTIN
- 6435200325693
- Code
- 100233
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- Dimming 1-10 V
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 0.75
- With air slots
- No
- Compatible with Google Assistant
- No
- Luminaire efficacy (max) (lm/W)
- 178
- Light sharing
- Symmetric
- Beam angle
- Extreme wide beam >80°
- Fit for workplace acc. EN 12464-1
- No
- Impact strength
- IK10
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 10000
- Effective luminous flux (lm)
- 10000
- Constant luminous flux control
- Yes
- Dimming trailing edge
- No
- Light source included
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 10000
- No dimming function
- No
- Max. number of luminaires per miniature circuit breaker B16
- 27
- Housing material
- Steel
- Width (mm)
- 260
- Suitable for suspended mounting
- No
- Type of grid
- Other
- Luminaire may be covered with thermally insulating material
- -
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Colour temperature switchable
- No
- Dimming DMX
- No
- Compatible with Casambi
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 56
- Dimming programmable
- Yes
- With movement sensor
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Diffuser lens/optic/panel
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 178
- Dimming 0-10 V
- No
- Total harmonic distortion (THD) (%)
- 10
- Height/depth (mm)
- 105
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 1640
- Dimming Touch and Dim
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- No
- Nominal current (min) (mA)
- 190
- With mounting material
- Yes
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Dimming DALI-2
- Yes
- Suitable for recessed mounting
- No
- Max. number of luminaires per miniature circuit breaker C16
- 45
- Rated life time L80/B50 at 25 °C
- 100000
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Degree of protection (IP), front side
- IP20
- Type of wiring
- Suitable for through wiring
- Dimming with push-button
- Yes
- Emergency power supply system
- None
- Protection class according to IEC 61140
- I
- Degree of protection (IP), rear side
- IP20
- Power factor
- 0.9
- Dimming Zigbee
- No
- Dimming DALI
- Yes
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 27
- Suitable for clamp-mounting
- Yes
- Compatible with Amazon Alexa
- No
- Dimmable
- Yes
- Dimming LineSwitch
- No
- Cover material
- Other
- With switch
- No
- Total harmonic distortion
- 10
- Conductor cross section (mm²)
- 2.5
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Suitable for lamp power (max) (W)
- 56
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 4000
- Luminaire efficacy (min) (lm/W)
- 178
- Suitable for light line configuration
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- B
- Housing colour
- White
- Number of poles
- 5
- Suitable for emergency lighting
- No
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Suitable for number of lamps
- 1
- Dimming manufacturer's proprietary system
- No
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Light outlet
- Direct
- Housing surface protection
- Powder coating
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 190
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP20
- Maximum system power (W)
- 56
- Lumen setting adjustable
- No
Product versions
Sport
| Item description | Code | |
|---|---|---|
| Sport 10000lm 840 90D PCC WH | 100234 |
|
| Sport 14000lm 840 90D PCC WH | 100235 |
|
| Sport 18000lm 840 60D PCC WH | 4146934 |
|
| Sport 20000lm 840 60D PCC WH | 4146935 |
|
| Sport 24000lm 840 60D PCC WH | 4146936 |
Sport Dali
| Item description | Code | |
|---|---|---|
| Sport 10000lm 840 90D DA2 PCC WH | 100233 |
|
| Sport 14000lm 840 90D DA2 PCC WH | 100236 |
|
| Sport 18000lm 840 60D DA2 PCC WH | 4146937 |
|
| Sport 20000lm 840 60D DA2 PCC WH | 4146938 |
|
| Sport 24000lm 840 60D DA2 PCC WH | 4146939 |
