Rigel 230V

Rigel 230V IP65 7W/m 840 50m

Name: Rigel 230V IP65 7W/m 840 50m
SKU: 4209542

Rigel 230V LED-light rail 350W 7W/m wh 4000K 400lm/m IP65; Protection cl. II; L70B50 50000h; LED not exchangeable; CRI>80; Ending; 2x1mm²

See product details

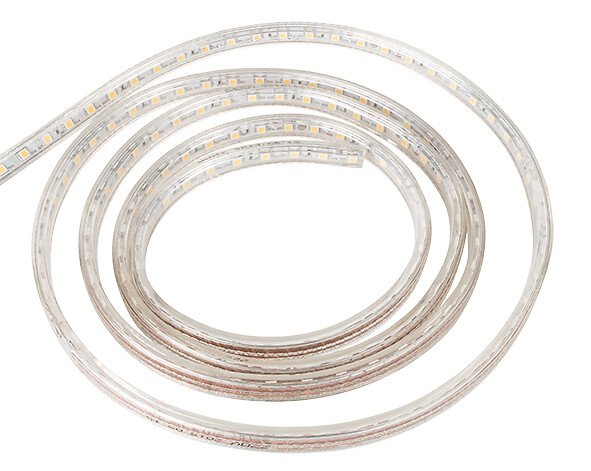

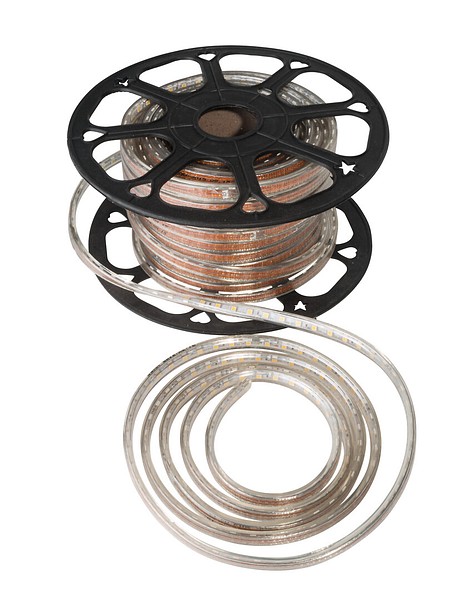

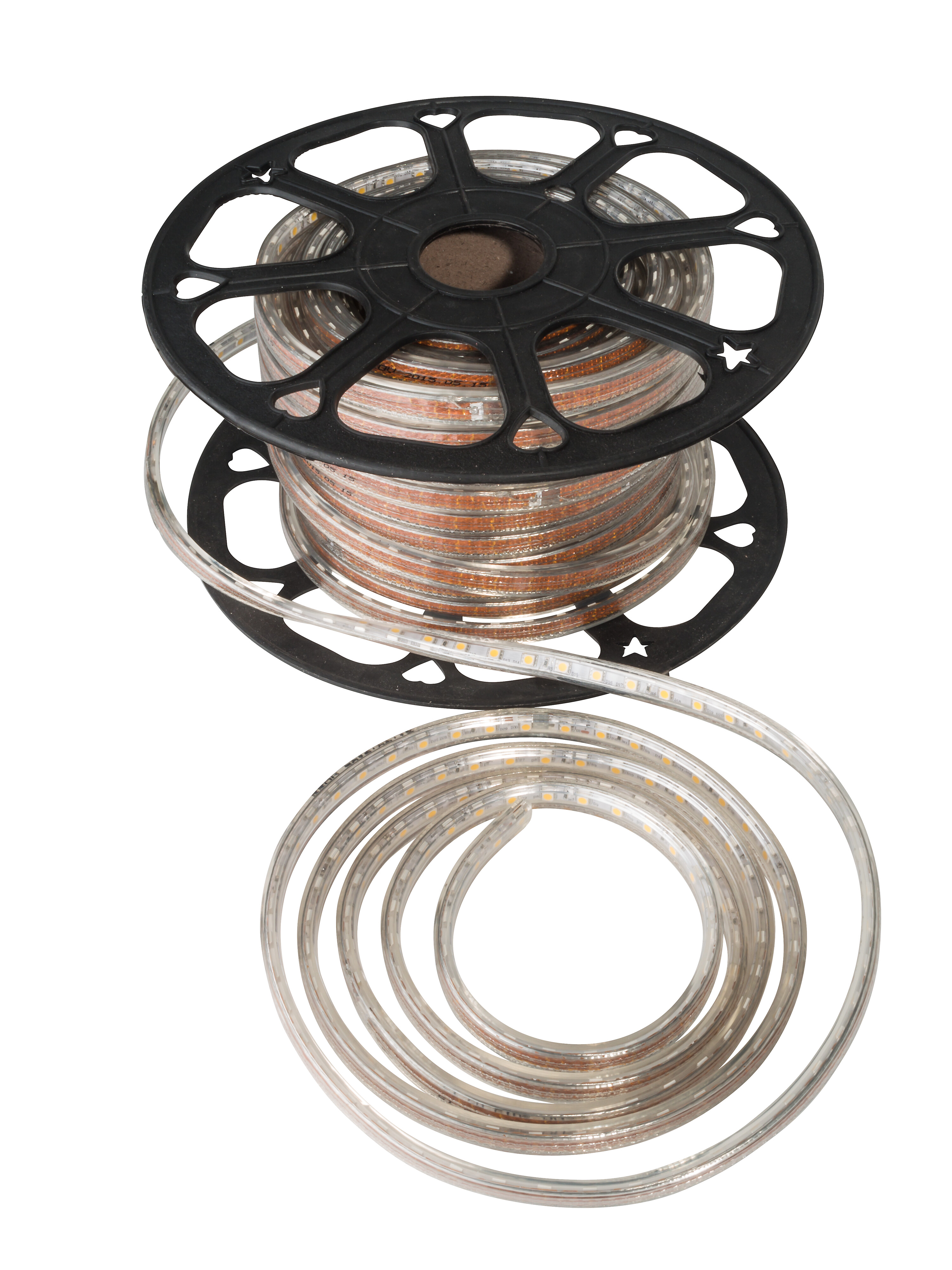

The Rigel 230V LED strip is designed for interior and exterior spaces where long, continuous lines of light are required. The strip’s maximum length is 50 metres. It is connected directly to a 230 V mains network. Suitable applications include offices, public spaces and hotels. Because of its IP65 rating, the strip can also be used for exterior surfaces and wet spaces. The strips are available in two colour temperatures. Rigel is delivered as 50 m reels or cut to measure.

UV-protected, PVC-coated LED strip.
Length 50 m.
1.5 input cable with a schuko plug.
Surface mounting on the Rigel profile or with separate fittings.
For attaching end caps, use an adhesive or sealant suitable for silicone (for outdoor use if necessary), such as Würth All-weather sealant.
Colour temperatures 3,000 K and 4,000, K. CRI > 80 / Ra > 80.
IP65.
IK08.
7 W/m / 400 lm/m.
Can be cut to measure at increments of one metre (1–50 m).
Ambient temperature range -25 … 25 °C.
Rated life time L70 50,000 h (Ta25°C).

Code: 4209542

Technical info

Structure

Model: Tape
Lamp type: LED not exchangeable
Number of LEDs per metre: 60
Number of nodes per foot: 18
Type of power supply: Mains power supply
Exchangeable control gear: Yes
Energy efficiency class of light source according to EU regulation 2019/2015: G
Length of particular segments (mm): 1000 mm
With end piece: Yes
With connection set: Yes
With protective cover: Yes
Self-adhesive: No

Mounting

Mounting method: Surface mounted
Degree of protection (IP): IP65
Lowest bending radius (mm): 40 mm
Type of wiring: Ending
Number of poles: 2
Conductor cross section (mm²): 1 mm²
Connectable conductor cross section (min) (mm²): 1.5 mm²
Connectable conductor cross section (max) (mm²): 2.5 mm²
Connection type: Other

Electrotechnical data

Lamp power per meter (W): 7 W
Lamp power per foot (W): 2.14 W
Luminaire efficacy (lm/W): 57 lm/W
Voltage type: AC
Lamp voltage (min) (V): 220 V
Lamp voltage (max) (V): 230 V
Type of control gear: Not required
Protection class according to IEC 61140: II
Maximum system power (W): 350 W
Power factor: 0.9

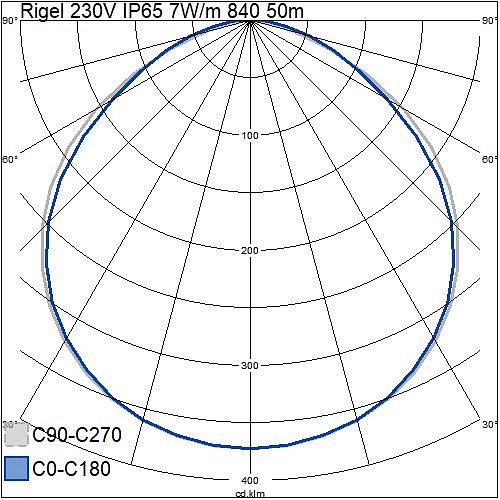

Photometric data

Luminous flux per meter (lm): 400 lm
Radiation angle (°): 120 °
Colour of light (alphanumeric): White
Colour temperature (min) (K): 4000 K
Colour temperature (max) (K): 4000 K
Colour rendering index (CRI/Ra): 80-89
Colour temperature switchable: No
Lumen setting adjustable: No
Beam angle adjustable: No

ETIM

Suitable for dimmer: No

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h): 50000 h
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 70 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 10 %

Dimming and control

Constant luminous flux control: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

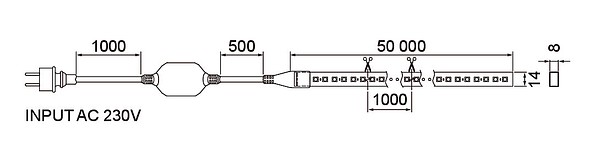

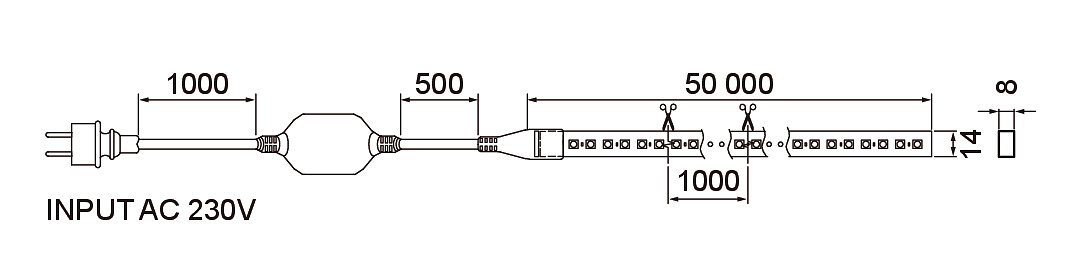

Measurements

Width (mm): 14 mm
Height/depth (mm): 8 mm
Length (mm): 50000 mm
Total length (m): 50 m

	Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
	Rigel 230V IP65 7W/m 830 50m	4209541	4209541	3000K	20000lm	350W	50000x14x8mm
	Rigel 230V IP65 7W/m 840 50m	4209542	4209542	4000K	20000lm	350W	50000x14x8mm
