PRO P45 840 806lm E27 FIL DIM OP

Name: PRO P45 840 806lm E27 FIL DIM OP
SKU: 4714103

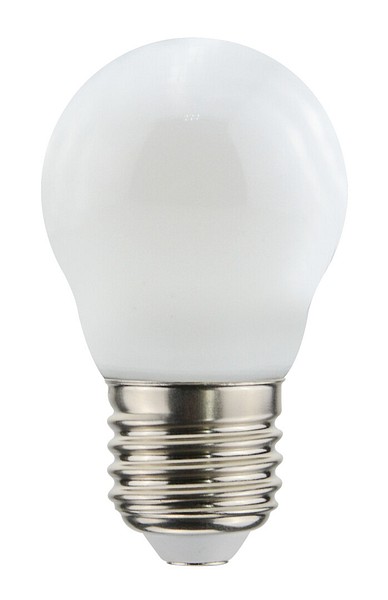

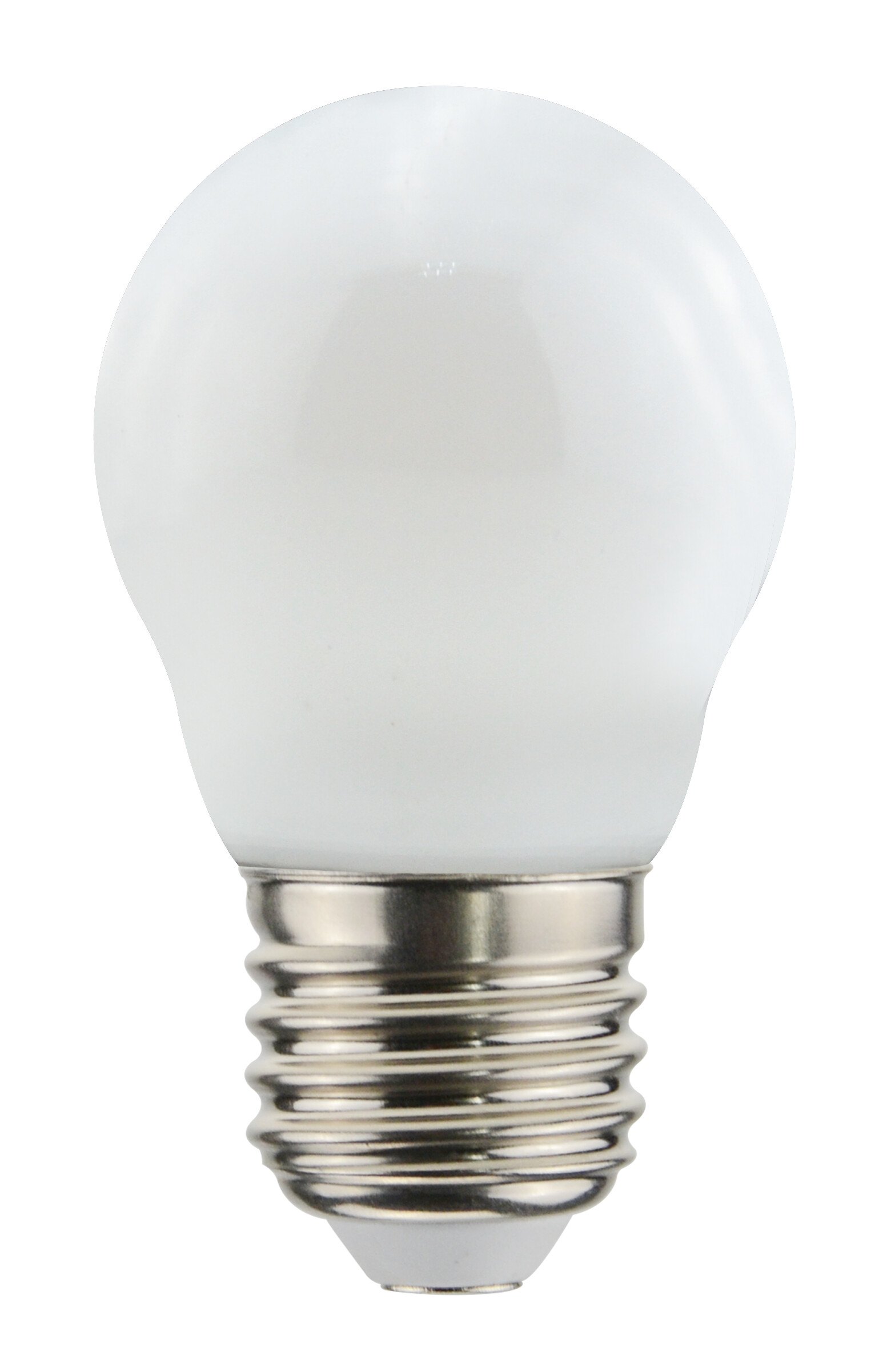

Opal P45 bulb dimmable LED lamp 5,9W 4000K E14 806lm 25000h 45x78mm, cardboard packing. Supply frequency ~50/60Hz.

See product details

The selection of Airam Pro LED 4000 K full glass filament bulbs is highly versatile. The range includes several different lumen options. All models are dimmable. The bulb provides a fully comprehensive 360-degree light distribution, meaning it also emits light toward the base. The opal cover ensures glare-free illumination.

Very long lifetime, 25 000 h.
Switches on instantly, even in freezing conditions.
Colour temperature 4000 K.
Good colour rendering CRI > 80.
Continuous even spectrum, no colour alterations.
No ultraviolet or infrared radiation.
No mercury.
All models can be dimmed with LED dimmers.

Code: 4714103

Technical info

Electrotechnical data

Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Nominal current (min) (mA): 35 mA
Nominal current (max) (mA): 35 mA
Power factor: 0.7
Lamp power (min) (W): 5.9 W
Lamp power (max) (W): 5.9 W
Voltage type: AC

ETIM

Suitable for electronic ballast: No
Suitable for magnetic ballast: No
Rated luminous flux according to IEC 62612 (lm): 806 lm
Lamp efficacy (lm/W): 137 lm/W
Lamp shape: Round/globe
Filament lamp: No
Type of glass/cover: Opal
Cap: E27
Energy efficiency class according to EU regulation 2019/2015: D
Lamp designation: P45
Min. number of switching cycles: 500000
Weighted energy consumption in 1,000 hours (kWh): 6 kWh
Average nominal lifespan (h): 25000 h

Photometric data

Luminous flux (min) (lm): 806 lm
Luminous flux (max) (lm): 806 lm
Colour rendering index (CRI/Ra): 80-89
Colour of light acc. EN 12464-1: Neutral 3300-5300 K
Colour temperature (min) (K): 4000 K
Colour temperature (max) (K): 4000 K
Beam angle (min) (°): 360 °
Beam angle (max) (°): 360 °
Colour consistency (McAdam ellipse): SDCM6
Photobiological safety according to EN 62471: RG1

Structure

Colour: White
Housing colour: White

Dimming and control

Dimmable: Yes
Dimming trailing edge: Yes
Dimming leading edge: Yes
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming Bluetooth: No
Dimming Wi-Fi: No
No dimming function: No
Remote operation possible: No
With movement sensor: No
With remote control: No
With twilight switch: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Measurements

Diameter (mm): 45 mm
Length (mm): 78 mm

Mounting

Degree of protection (IP): IP20

Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
PRO C35 840 470lm E14 FIL DIM OP	4714183	4714183	4000K	470lm	4.2W	35x35x97mm
PRO C35 840 630lm E14 FIL DIM OP	4714101	4714101	4000K	630lm	5W	35x35x97mm
PRO P45 840 470lm E14 FIL DIM OP	4714185	4714185	4000K	470lm	4.2W	45x45x80mm
PRO P45 840 630lm E14 FIL DIM OP	4714102	4714102	4000K	630lm	5W	45x45x80mm
PRO P45 840 470lm E27 FIL DIM OP	4714187	4714187	4000K	470lm	4.2W	45x45x78mm
PRO P45 840 806lm E27 FIL DIM OP	4714103	4714103	4000K	806lm	5.9W	45x45x78mm
PRO A60 840 470lm E27 FIL DIM OP	4714181	4714181	4000K	470lm	4.2W	60x60x108mm
PRO A60 840 806lm E27 FIL DIM OP	4714100	4714100	4000K	806lm	5.9W	60x60x108mm
PRO A60 840 1055lm E27 FIL DIM OP	4710222	4710222	4000K	1055lm	9W	60x60x108mm
PRO A60 840 1521lm E27 FIL DIM OP	4714177	4714177	4000K	1521lm	11W	60x60x108mm
PRO A70 840 1800lm E27 FIL DIM OP	4714179	4714179	4000K	1800lm	12W	70x70x126mm
