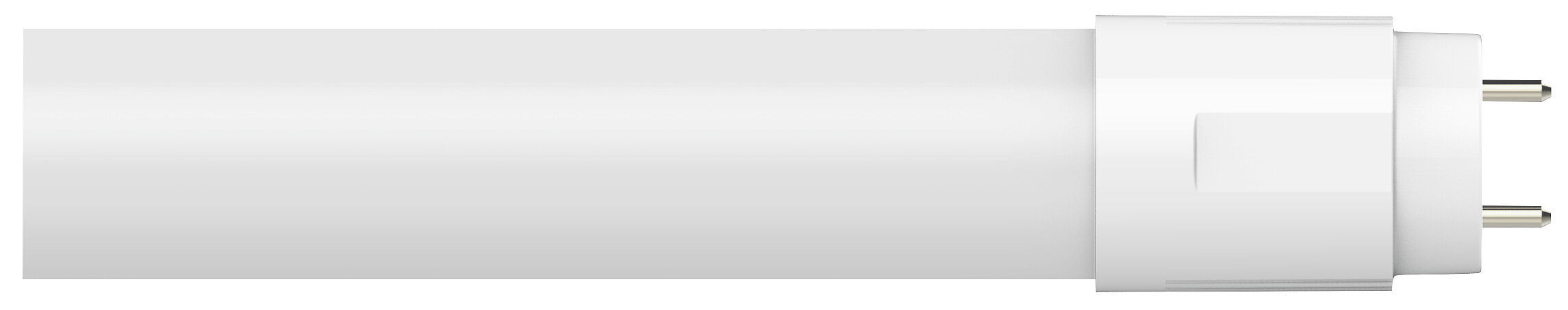

PRO LED T8 1500 830 G13 3700lm

Name: PRO LED T8 1500 830 G13 3700lm
SKU: 4710224

Opal T8 LED tube 24W 3000K G13 3700lm, high luminosity 154lm/W, 50000h 26x1500mm, cardboard packing. Replaces 58W (150cm) fluorescent tube. The conventional starter needs to be replaced with the LED starter included in the package. Supply frequency ~50/60Hz.

See product details

Airam's Pro series LED tubes are long-lasting and energy-efficient. LED tube ensures better light quality and better light efficiency especially in cold conditions. The LED tube is suitable for replacing equivalent fluorescent tubes as is. The conventional starter needs to be replaced with the LED starter included in the package. LED tubes are also suitable for luminaires designed for LED tubes. LED tubes are also suitable for direct mains connection (230 V) with a wiring change. The 59-cm tube is not suitable for two-lamp luminaires where the lamps have a shared ballast. If the luminaire has a compensation capacitor, removing it will improve the power factor (Pf).

Very long lifetime, 50 000 h.
Light efficiency 155 lm/W.
Glass bulb: easy to install (does not bend).
Perfectly even structure between the base and the tube: strong durability during transport.
Led lighter included in the carton.
Replaces 18 W, 36 W and 58 W fluorescent tubes.
Colour temperature 3000 K.
Colour rendering index CRI > 80.
Beam angle 210°.
If the luminaire has a compensation capacitor, removing it could improve the power factor (Pf).

Code: 4710224

Technical info

Electrotechnical data

Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Nominal current (min) (mA): 115 mA
Nominal current (max) (mA): 115 mA
Power factor: 0.9
Lamp power (min) (W): 24 W
Lamp power (max) (W): 24 W
Voltage type: AC

ETIM

Suitable for electronic ballast: No
Suitable for magnetic ballast: Yes
Rated luminous flux according to IEC 62612 (lm): 3700 lm
Lamp efficacy (lm/W): 154 lm/W
Lamp shape: Tube, double-ended
Filament lamp: No
Type of glass/cover: Opal
Cap: G13
Energy efficiency class according to EU regulation 2019/2015: D
Lamp designation: T8
Min. number of switching cycles: 500000
Weighted energy consumption in 1,000 hours (kWh): 24 kWh
Average nominal lifespan (h): 50000 h

Photometric data

Luminous flux (min) (lm): 3700 lm
Luminous flux (max) (lm): 3700 lm
Colour rendering index (CRI/Ra): 80-89
Colour of light acc. EN 12464-1: Warm <3300 K
Colour temperature (min) (K): 3000 K
Colour temperature (max) (K): 3000 K
Beam angle (min) (°): 210 °
Beam angle (max) (°): 210 °
Colour consistency (McAdam ellipse): SDCM5
Photobiological safety according to EN 62471: RG0

Structure

Colour: White
Housing colour: White

Dimming and control

Dimmable: No
Dimming trailing edge: No
Dimming leading edge: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming Bluetooth: No
Dimming Wi-Fi: No
No dimming function: Yes
Remote operation possible: No
With movement sensor: No
With remote control: No
With twilight switch: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Measurements

Diameter (mm): 26 mm
Length (mm): 1500 mm

Mounting

Degree of protection (IP): IP20

Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
PRO LED T8 590 830 G13 1450lm	4710225	4710225	3000K	1450lm	9W	26x26x590mm
PRO LED T8 1200 830 G13 2800lm	4710223	4710223	3000K	2800lm	18W	26x26x1200mm
PRO LED T8 1500 830 G13 3700lm	4710224	4710224	3000K	3700lm	24W	26x26x1500mm
