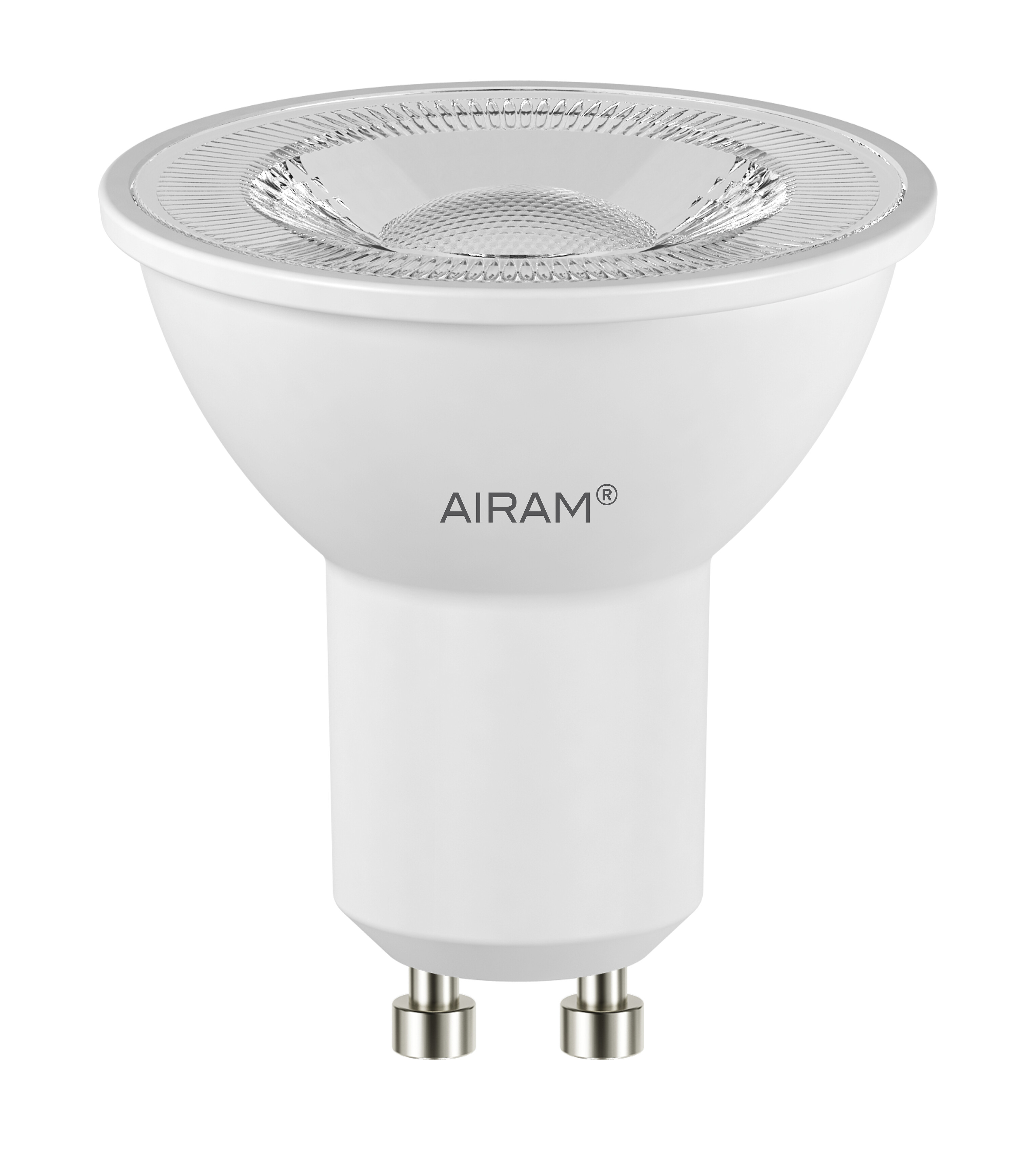

PRO LED PAR16 830 540lm GU10 36 DIM

Name: PRO LED PAR16 830 540lm GU10 36 DIM
SKU: 4713448

PAR16 reflector dimmable LED lamp 5.7W 3000K GU10 540lm 1050cd 36D 25000h 50x57mm, cardboard packing. Supply frequency ~50/60Hz.

See product details

Airam’s PRO LED 3000 K dimmable series covers all basic light source needs. This series includes the most common bulb types. The lamps are packed in cardboard boxes that clearly indicate the key technical specifications. Special characteristics for the lamps in this series include an extremely long operating life (25,000 h) and a high number of switch-on cycles (500,000). The colour temperature is pure white (3000 K). The lamps in the series are dimmable by means of LED dimmers.

Very long lifetime, 25 000 h.
Switches on instantly, even in freezing conditions.
Excellent light efficiency, even > 100 lm/W.
Colour temperature 3000 K.
Good colour rendering CRI > 80.
Continuous even spectrum, no colour alterations.
No ultraviolet or infrared radiation.
No mercury.
All models can be dimmed with LED dimmers.

Code: 4713448

Technical info

Electrotechnical data

Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Nominal current (min) (mA): 37 mA
Nominal current (max) (mA): 37 mA
Power factor: 0.7
Lamp power (min) (W): 5.7 W
Lamp power (max) (W): 5.7 W
Voltage type: AC

ETIM

Suitable for electronic ballast: No
Suitable for magnetic ballast: No
Rated luminous flux according to IEC 62612 (lm): 570 lm
Lamp efficacy (lm/W): 100 lm/W
Lamp shape: Reflector
Filament lamp: No
Type of glass/cover: Clear
Cap: GU10
Energy efficiency class according to EU regulation 2019/2015: E
Lamp designation: PAR16
Min. number of switching cycles: 500000
Weighted energy consumption in 1,000 hours (kWh): 6 kWh
Average nominal lifespan (h): 25000 h

Photometric data

Luminous flux (min) (lm): 570 lm
Luminous flux (max) (lm): 570 lm
Luminous intensity (cd): 1050 cd
Colour rendering index (CRI/Ra): 80-89
Colour of light acc. EN 12464-1: Warm <3300 K
Colour temperature (min) (K): 3000 K
Colour temperature (max) (K): 3000 K
Beam angle (min) (°): 36 °
Beam angle (max) (°): 36 °
Colour consistency (McAdam ellipse): SDCM6
Photobiological safety according to EN 62471: RG1

Structure

Material of light bulb: Plastic
Colour: White
Housing colour: White

Dimming and control

Dimmable: Yes
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming Bluetooth: No
Dimming Wi-Fi: No
No dimming function: No
Remote operation possible: No
With movement sensor: No
With remote control: No
With twilight switch: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Measurements

Diameter (mm): 50 mm
Length (mm): 57 mm

Mounting

Degree of protection (IP): IP20

Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
PRO LED P45 830 470lm E27 DIM OP	4713441	4713441	3000K	470lm	4.2W	45x45x75mm
PRO LED PAR16 830 540lm GU10 36 DIM	4713448	4713448	3000K	570lm	5.7W	50x50x57mm
PRO LED KM75 830 470lm GX53 DIM OP	4713759	4713759	3000K	470lm	4.9W	75x75x25mm
PRO LED A60 830 1060lm E27 DIM OP	4713445	4713445	3000K	1060lm	10.5W	60x60x120mm
